User Manual: Metal Gleam Series 8-in-1 USB-C Hub

1. Producte acabatview

The Baseus Metal Gleam Series 8-in-1 USB-C Hub is a versatile docking station designed to expand the connectivity of your USB-C enabled devices. It integrates multiple essential ports, including USB 3.0, HDMI, USB-C Power Delivery (PD), and microSD/SD card readers, into a single compact unit. This hub is ideal for enhancing productivity by connecting various peripherals, external displays, and charging your device simultaneously.

The Baseus Metal Gleam Series 8-in-1 USB-C Hub is presented in its retail box, showcasing the product and its key features on the packaging.

2. Característiques clau

• Connectivitat 8 en 1: Provides comprehensive port expansion for modern USB-C devices.
• Triple USB 3.0 Ports: Offers high-speed data transfer up to 5Gbps for peripherals like external hard drives, keyboards, and mice.
• Sortides HDMI duals: Supports dual-display ultra-clear expansion, enabling connection to two external monitors for enhanced multitasking.
• Entrega d'energia USB-C (PD): Allows for fast charging of your host device with up to 100W power pass-through.
• MicroSD/SD Card Readers: Facilitates quick access to photos and videos from memory cards.
• Disseny compacte i portàtil: Metal gleam series design ensures durability and easy portability.

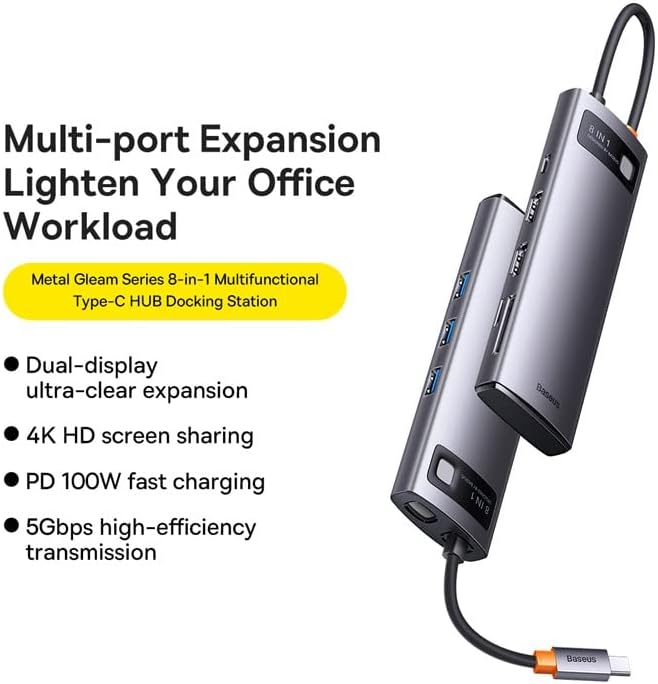

This graphic highlights the multi-port expansion capabilities of the Baseus Metal Gleam Series 8-in-1 USB-C Hub, emphasizing its ability to lighten office workload with features like dual-display, 4K HD screen sharing, PD 100W fast charging, and 5Gbps high-efficiency transmission.

3. Contingut del paquet

• 1 x Baseus Metal Gleam Series 8-in-1 USB-C Hub
• 1 x Manual d'usuari

4. Instruccions de configuració

1. Connecta't al dispositiu amfitrió: Plug the USB-C connector of the hub into the USB-C port of your laptop, tablet, or smartphone. Ensure the connection is secure.
2. Connecteu els perifèrics: Connect your USB devices (e.g., mouse, keyboard, external hard drive) to the USB 3.0 ports on the hub.
3. Connecta les pantalles: Use HDMI cables to connect your external monitors to the HDMI ports on the hub.
4. Lliurament d'energia (opcional): If your host device requires charging, connect your original USB-C power adapter to the USB-C PD port on the hub. This will charge your device while using the hub.
5. Inserir targetes de memòria: Insert your microSD or SD cards into the corresponding slots for data access.

This image provides an angled perspective of the Baseus Metal Gleam Series 8-in-1 USB-C Hub, highlighting its sleek design and the three accessible USB 3.0 ports on its side.

5. Instruccions de funcionament

5.1. Transferència de dades USB 3.0

Connect USB devices such as flash drives, external hard drives, or other USB peripherals to the USB 3.0 ports. The hub supports data transfer speeds of up to 5Gbps.

5.2. Sortida de pantalla HDMI

Connect your monitors using HDMI cables. The hub supports dual HDMI output. For optimal performance, ensure your display settings on your computer are configured correctly for extended or mirrored displays.

• Sistemes Windows: Supports triple-display (A+B+C) at 1080P@60Hz in expansion mode, and (A+A+A) at 1080P@60Hz in mirroring mode.
• Apple OS Systems: Supports dual-display (A+B+B) at 4K@30Hz in expansion mode, and (A+A+A) at 4K@30Hz in mirroring mode.

This visual guide demonstrates the dual-display functionality of the Baseus Metal Gleam Series 8-in-1 USB-C Hub, showing both expansion and mirroring modes for Windows systems (1080P@60Hz) and Apple OS systems (4K@30Hz).

5.3. USB-C Power Delivery

The USB-C PD port allows you to charge your host device (laptop, tablet) while simultaneously using the hub's other functions. Connect your device's original USB-C power adapter to this port. The hub supports up to 100W power pass-through.

5.4. SD/MicroSD Card Reader

Insert your SD or microSD cards into the designated slots. The hub will allow your device to read and write data to these cards.

6. Manteniment

• Neteja: Use a soft, dry cloth to clean the surface of the hub. Avoid using liquid cleaners or abrasive materials.
• Emmagatzematge: Guardeu el concentrador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Manipulació: Avoid dropping the hub or subjecting it to strong impacts. Do not attempt to disassemble the device.

An exploded diagram of the Baseus Metal Gleam Series 8-in-1 USB-C Hub illustrates its internal electronic components and sophisticated circuit board design.

7. Solució De Problemes

• Sense sortida de pantalla:
  • Ensure the HDMI cables are securely connected to both the hub and the monitor.
  • Verify that your monitor input source is set to the correct HDMI port.
  • Check your computer's display settings to ensure the external monitor is detected and configured.
  • Proveu de reiniciar l'ordinador.
• Devices Not Recognized (USB/SD/MicroSD):
  • Ensure the hub's USB-C connector is fully inserted into your host device.
  • Try connecting the device directly to your computer's USB port to confirm it functions independently.
  • Reinicieu l'ordinador i torneu a connectar el concentrador.
• Sense subministrament/càrrega d'energia:
  • Ensure your USB-C power adapter is connected to the hub's PD port and is functioning correctly.
  • Verifiqueu que el dispositiu amfitrió admeti USB-C Power Delivery.
• Connexió intermitent:
  • Assegureu-vos que totes les connexions siguin fermes i estables.
  • Eviteu col·locar el concentrador a prop de fonts d'interferència electromagnètica fortes.

8. Especificacions

La part posterior view of the product packaging displays detailed technical specifications and compliance information for the Baseus Metal Gleam Series 8-in-1 USB-C Hub.

9. Garantia i Suport

For warranty information, technical support, or further inquiries, please visit the official Baseus weblloc web o poseu-vos en contacte amb el servei d'atenció al client. Conserveu el rebut de compra per a reclamacions de garantia.

Baseus oficial Weblloc: www.baseus.com
