Introducció
Thank you for choosing the PARIS RHÔNE Top-Fill Humidifier. This manual provides important information regarding the safe operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and retain it for future reference.
Instruccions importants de seguretat
Per reduir el risc d'incendi, descàrrega elèctrica o lesions, observeu les següents precaucions de seguretat:
- Col·loqueu sempre l'humidificador sobre una superfície ferma, plana i impermeable a almenys 30 cm de distància de les parets i els electrodomèstics.
- No submergiu la base de l'humidificador en aigua ni en altres líquids.
- Desendolleu l'humidificador abans d'omplir-lo, netejar-lo o moure'l.
- No feu servir l'humidificador amb un cable o un endoll danyats.
- Mantingueu l'humidificador fora de l'abast dels nens i les mascotes.
- Use only clean, cool tap water. Do not add hot water.
- Do not add essential oils directly into the water tank; use the designated aroma diffuser tray if available.
- Ensure the mist nozzle is not directed at furniture, walls, or electronic devices.
- Do not block the air inlet or mist outlet.
Contingut del paquet
- 1 x PARIS RHÔNE 3.5L Ultrasonic Top-Fill Humidifier
- 1 x Manual d'usuari
Especificacions
| Paràmetre | Valor |
|---|---|
| Número de model | PE-AH028 |
| Voltage | 100-240V ~ 50/60 Hz |
| Potència nominal | 28 W ± 3 |
| Volum del dipòsit d'aigua | 3.5 L / 0.92 galons |
| Sortida màxima de boira | 220 ± 20 ml/h (High) |
| Temps de funcionament | Fins a 30 hores |
| Dimensions (L x A x A) | 18 x 18 x 27.8 cm |
| Pes | 1.61 kg |
| Material | Plàstic |
| Característiques especials | Auto Shut-off, 7-Color Night Light, 8H Timer, 360° Rotating Nozzle |
Producte acabatview
Familiaritzeu-vos amb els components del vostre humidificador.
Imatge: Frontal view of the PARIS RHÔNE Top-Fill Humidifier, showing its transparent water tank and control panel at the base.
Image: The humidifier displaying its 7-color LED night light feature, with options for different colors, static single color, or light off.
Configuració
- Desembalar: Traieu amb cura tots els materials d'embalatge i col·loqueu l'humidificador sobre una superfície plana i estable.
- Omplir el dipòsit d'aigua: The humidifier features a top-fill design for easy access. Remove the top cover and pour clean, cool tap water directly into the water tank. Do not exceed the maximum fill line.
Image: A person pouring water into the humidifier's wide-opening top-fill water tank, demonstrating the ease of refilling.
- Substituïu la coberta: Torneu a col·locar la coberta superior de manera segura a l'humidificador.
- Connectar l'alimentació: Connecteu el cable d'alimentació a una presa de corrent adequada.
Instruccions de funcionament
Encès/Apagat
- Press the Power button to turn the humidifier on or off.
Ajust del nivell de boira
- Press the Mist Level button repeatedly to cycle through Low, Medium, and High mist output settings. The humidifier provides up to 30 hours of humidity.
Image: The humidifier operating, illustrating its efficient humidification with a 3.5L tank providing up to 30 hours of mist, covering 20-30 m².
Funció de temporitzador
- Press the Timer button to set the operating time for 2, 4, or 8 hours. The humidifier will automatically shut off once the set time expires.
Image: The humidifier operating quietly in a bedroom setting with a sleeping baby, highlighting its timer function (2H, 4H, 8H) for undisturbed sleep.
Llum nocturna
- Press the Light button to activate the 7-color LED night light. Press again to cycle through colors or turn off the light.
Difusor d'aroma
- Locate the aroma diffuser tray (usually a small compartment at the base or side). Add a few drops of your preferred essential oil to the aroma pad. Do not add essential oils directly into the water tank.
Apagat automàtic
- The humidifier is equipped with an automatic shut-off feature that activates when the water level is too low, ensuring safe operation.
Image: The humidifier with a shield icon, representing its reliable safety features, including automatic shut-off when water levels are low.
Manteniment i Neteja
Una neteja regular és essencial per a un rendiment i una higiene òptims.
- Manteniment diari: Empty any remaining water from the tank and wipe the inside with a clean cloth.
- Neteja setmanal:
- Desendolleu l'humidificador.
- Traieu la coberta superior i el dipòsit d'aigua.
- Pour 1 cup (250 ml) of white vinegar into the water tank and let it soak for 30 minutes to loosen mineral buildup.
- Use a soft brush or cloth to clean the inside of the tank and the ultrasonic nebulizer.
- Rinse all parts thoroughly with clean water until the vinegar smell is gone.
- Wipe all surfaces dry before reassembling.
- Leak-Free Design: The integrated structure of this humidifier is designed to prevent leaks, making cleaning and handling more secure.

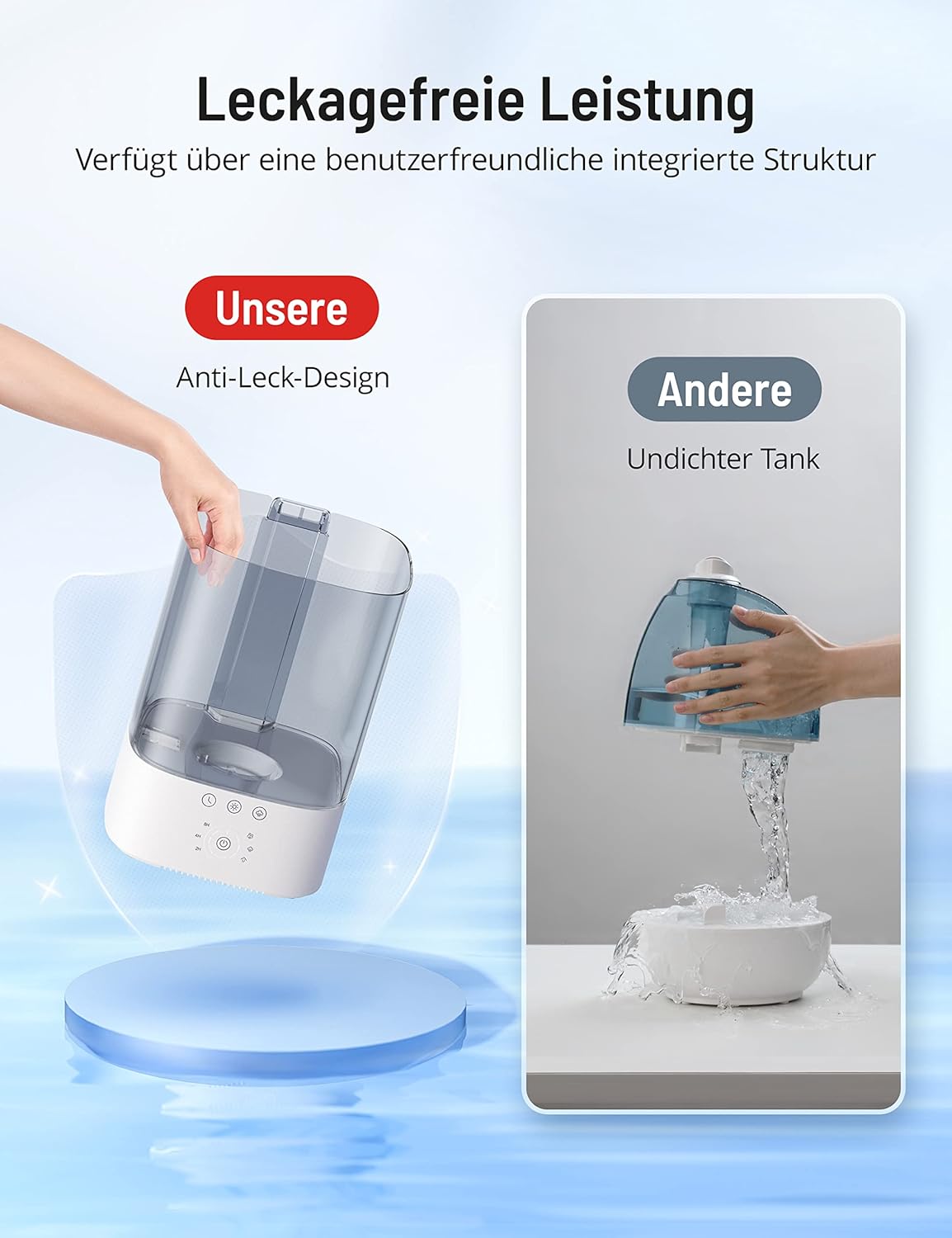

Image: Comparison showing the PARIS RHÔNE humidifier's integrated, leak-free design versus a conventional humidifier with a separate, potentially leaky tank.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sense boira o baixa producció de boira | Low water level; Mineral buildup on nebulizer; Air inlet blocked | Refill water tank; Clean nebulizer with vinegar solution; Ensure air inlet is clear |
| Olor inusual | Stagnant water; Dirty water tank | Empty and clean the water tank thoroughly; Use fresh water daily |
| Fuga d'aigua | Tank not properly seated; Overfilled tank; Damaged tank | Ensure tank is correctly placed; Do not overfill; Contact support if damaged |
| L'humidificador no s'encén | No power; Water tank empty; Unit not assembled correctly | Check power connection; Refill water tank; Reassemble unit correctly |
Garantia i Suport
PARIS RHÔNE products come with a standard warranty. For detailed warranty information, product support, or to report any issues, please refer to the contact information provided on the official PARIS RHÔNE weblloc web o la documentació de la compra.
Please have your model number (PE-AH028) and purchase date ready when contacting support.
