1. Introducció
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Dometic RTX 2000 Air Conditioner. Please read this manual thoroughly before installation and use, and keep it for future reference.
The Dometic RTX 2000 is a self-contained roof-mounted air conditioning unit designed for vehicles such as trucks, campers, and RVs. It offers powerful cooling with energy-efficient operation.
2. Informació de seguretat
Always observe safety instructions and regulations provided with the product. Improper installation, use, or maintenance can result in injury or damage to the unit. Ensure the power supply is disconnected before any installation or maintenance work.
- Llegiu atentament totes les instruccions abans d'utilitzar.
- Assegureu-vos una ventilació adequada durant el funcionament.
- No bloquegeu les entrades o sortides d'aire.
- Només personal qualificat ha de realitzar la instal·lació i les reparacions.
- Mantingueu els nens i les mascotes allunyats de la unitat durant el funcionament.
3. Producte acabatview
3.1 Característiques clau
- Mode Eco: Energy-efficient operation with low power consumption (approximately 19A), extending battery life up to 12 hours.
- Funcionament silenciós: Designed for minimal noise output, suitable for use in sleeping areas.
- Refrigeració turbo: Proporciona un refredament ràpid per a una reducció ràpida de la temperatura.
- Disseny integrat: All air conditioning components are housed within the roof unit, simplifying installation and maintenance.
- Ampli rang de temperatures de funcionament: Effective cooling in ambient temperatures from 41°F (5°C) to 126°F (52°C).
3.2 Components
The Dometic RTX 2000 unit includes the main roof-mounted air conditioner, an interior control panel with vents, and a remote control for convenient operation. A user manual, handling note, and safety instructions are also provided.
Figura 1: Angle view of the Dometic RTX 2000 Air Conditioner exterior unit.

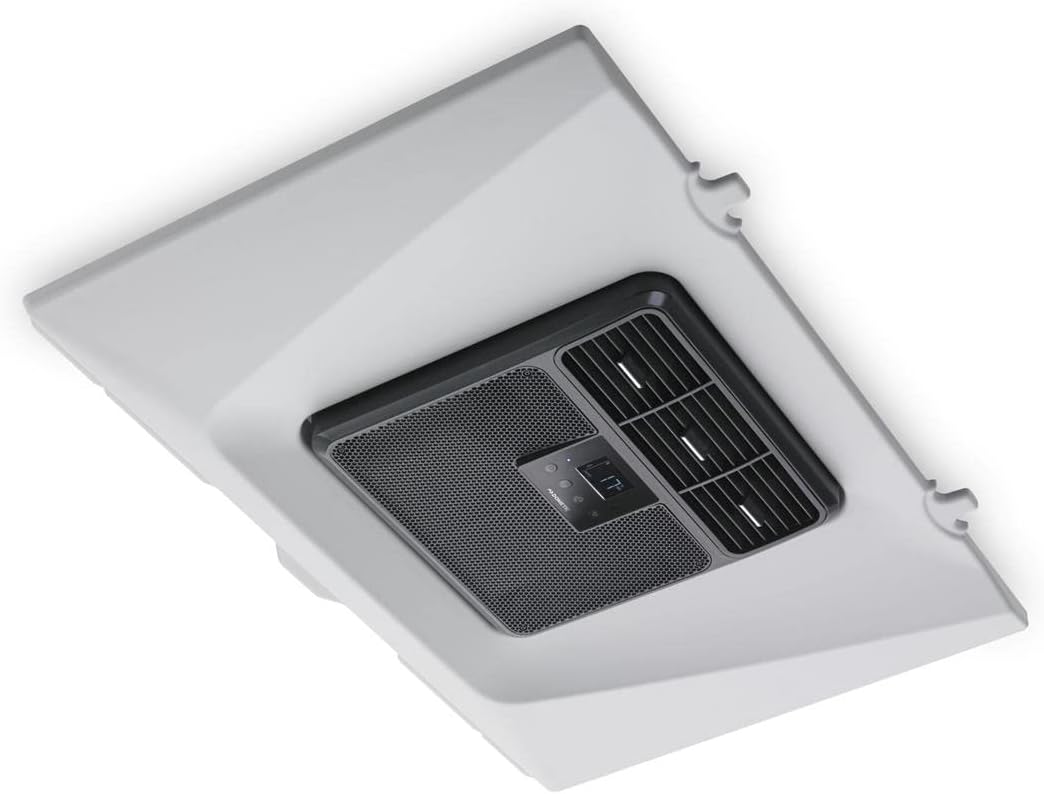

Figure 2: Interior control panel and air vents of the Dometic RTX 2000.
4. Configuració i instal·lació
The Dometic RTX 2000 features an integrated design where all A/C components are contained within the roof unit, simplifying the installation process. However, professional installation is recommended to ensure proper sealing, electrical connections, and optimal performance.
- Muntatge: The unit is designed for roof mounting on compatible vehicles. Ensure the mounting surface is flat and strong enough to support the unit's weight.
- Connexió elèctrica: Connect the unit to a suitable 12V DC power supply. Refer to the detailed wiring diagram in the separate installation guide for specific instructions.
- Segellat: Proper sealing around the roof opening is crucial to prevent water ingress.
- RV Compatibility: For RV installations, it is advised to consult Dometic support for additional guidance on compatibility and specific installation requirements.
5. Instruccions de funcionament
The Dometic RTX 2000 can be operated via the integrated control panel or the provided remote control.
5.1 Encès/Apagat
Press the power button on the control panel or remote to turn the unit on or off.
5.2 Selecció del mode
- Mode de refrigeració: Standard operation for cooling the interior.
- Mode Eco: Activates energy-saving operation, reducing power consumption to approximately 19A. Ideal for extended use on battery power.
- Turbo Cooling Mode: Engages maximum cooling power for rapid temperature reduction. Use when quick cooling is desired.
5.3 Ajust de temperatura
Feu servir els botons de pujar/baixar la temperatura del tauler de control o del comandament a distància per ajustar la temperatura desitjada.
5.4 Velocitat del ventilador
Adjust the fan speed to your preference using the fan control buttons.
6. Manteniment
Regular maintenance ensures the longevity and efficient operation of your Dometic RTX 2000 Air Conditioner. The integrated design simplifies maintenance tasks.
- Neteja de l'exterior: Periodically clean the exterior of the unit with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Neteja del filtre d'aire: Check and clean the air filters regularly to maintain optimal airflow and cooling efficiency. Refer to the detailed instructions in the full user manual for filter access.
- Bobines del condensador: Ensure the condenser coils are free from dirt and debris. If necessary, gently clean them with a soft brush.
- Drenatge: Verify that the condensate drainage system is clear and free-flowing.
- Controls de temporada: Before and after periods of extended storage, perform a thorough inspection of the unit and its connections.
7. Solució De Problemes
This section provides solutions to common issues. For problems not listed here, or if the issue persists, contact Dometic customer support or a qualified service technician.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | No power supply; Blown fuse; Remote control batteries depleted. | Check power connections; Inspect and replace fuse if necessary; Replace remote control batteries. |
| Refrigeració insuficient. | Dirty air filters; Blocked air vents; Ambient temperature too high; Unit capacity insufficient for space. | Clean air filters; Clear any obstructions from vents; Ensure doors/windows are closed; Consider if unit is appropriately sized for the area. |
| Soroll inusual durant el funcionament. | Loose components; Debris in fan; Unit not level. | Inspect for loose parts; Check for and remove debris; Ensure unit is securely and levelly mounted. |
8. Especificacions
| Especificació | Valor |
|---|---|
| Marca | Dometic |
| Número de model | RTX2000 (Part Number: 9600028490) |
| Capacitat de refrigeració | 2000 W (6,824 BTU) |
| Power Consumption (Eco Mode) | Aprox. 19A |
| Running Time (Battery) | Fins a 12 hores |
| Interval de temperatura de funcionament | De 41 °C (5 °F) a 126 °C (52 °F) |
| Pes de l'article | 70.6 lliures (32 kg) |
| Dimensions del producte (L x A x A) | 25.39 x 33.86 x 12.13 polzades (64.5 x 86 x 30.8 cm) |
| Tipus d'instal·lació | Roof-mounted, Integrated System |
| Refrigerant | R-134A (GWP 1430) |
| Color | Blanc |
| Tipus de material | Metall, plàstic |
9. Garantia i Suport
For warranty information, technical support, or service inquiries, please contact Dometic customer service. Retain your proof of purchase for warranty claims.
You can find contact details and further resources on the official Dometic weblloc: www.dometic.com
