Hypertherm SmartSYNC Cartridge 105 A FlushCut (Model 428954) User Manual

Introducció

This manual provides essential information for the proper installation, operation, and maintenance of the Hypertherm SmartSYNC Cartridge 105 A FlushCut, model 428954. This cartridge is designed for plasma cutting applications, specifically for cutting attachments, lugs, pad eyes, and other positive features as close to the base material as possible without piercing or damaging the workpiece. Adherence to these instructions will ensure optimal performance and extend the lifespan of the consumable.

Informació de seguretat

Always prioritize safety when working with plasma cutting equipment. Refer to your plasma system's main operating manual for comprehensive safety guidelines. Key safety considerations include:

• Utilitzeu l'equip de protecció individual (EPI) adequat, com ara casc de soldadura, guants i roba de protecció.
• Assegureu-vos una ventilació adequada per evitar la inhalació de fums.
• Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o canviar consumibles.
• Eviteu tocar les parts calentes.
• Mantenir un extintor a prop.

Producte acabatview

The Hypertherm SmartSYNC Cartridge 105 A FlushCut (Model 428954) is an advanced consumable designed for specific plasma cutting tasks. It integrates multiple consumable parts into a single, easy-to-manage cartridge, simplifying setup and reducing troubleshooting time. The cartridge is color-coded and laser-marked for quick identification of its application and amperage.

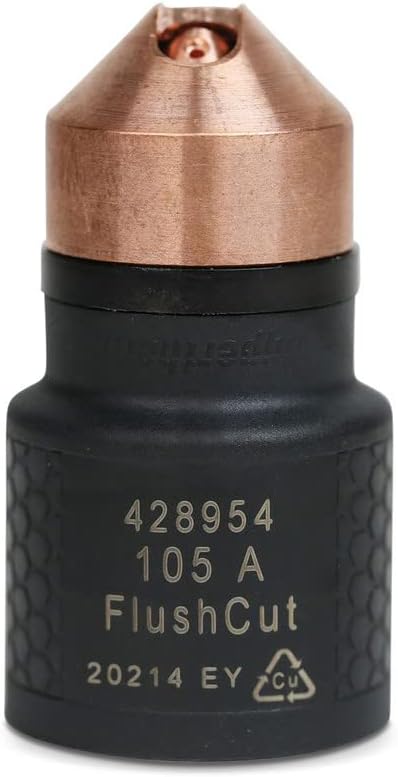

Figure 1: Hypertherm SmartSYNC Cartridge 105 A FlushCut (Model 428954). This image displays the complete cartridge, featuring a copper-colored nozzle and a black main body. The body is clearly marked with the model number "428954", amperage "105 A", and application "FlushCut".

Característiques principals:

• Simplified Consumable Management: Reduces the number of individual parts, streamlining replacement and reducing training requirements.
• Identificació clara: Color-coded and laser-marked for easy identification of process and amperage.
• Rendiment optimitzat: Designed to maximize output and extend life for handheld cutting, and ensure optimal cut quality for mechanized cutting.
• Compatibilitat: Compatible with Powermax45 XP/65/85/105 systems via a torch adapter for Duramax torches.

Configuració i instal·lació

Proper installation of the SmartSYNC cartridge is crucial for safe and efficient operation. Always ensure the plasma system is powered off before proceeding.

1. Sistema d'apagada: Turn off the plasma cutting system and disconnect it from the power source to prevent accidental activation.
2. Remove Old Consumable (if applicable): If replacing an existing consumable, carefully unscrew and remove the old torch components. Dispose of used consumables responsibly.
3. Inspect Torch: Examine the torch body for any damage or debris. Clean if necessary.
4. Install Cartridge: Align the SmartSYNC cartridge with the torch body. Gently push and twist the cartridge clockwise until it is securely seated. Do not overtighten. The SmartSYNC system is designed for tool-free installation.
5. Verifica la connexió: Ensure the cartridge is fully engaged. The SmartSYNC system automatically detects the cartridge type and sets the appropriate parameters on compatible Powermax systems.
6. Power On System: Reconnect the plasma system to the power source and turn it on. Verify that the system recognizes the new cartridge.

For Powermax45 XP/65/85/105 systems using Duramax torches, a torch adapter is required for SmartSYNC cartridge compatibility. Refer to your system's manual for adapter installation instructions.

Instruccions de funcionament

The 105 A FlushCut cartridge is specifically engineered for flush cutting applications. Follow these guidelines for optimal performance:

• Aplicació: Use this cartridge for cutting close to the base material, such as removing lugs, attachments, or other protrusions, without damaging the underlying surface.
• AmpConfiguració de l'era: The cartridge is rated for 105 A. Ensure your plasma system is set to the appropriate amperage for the material thickness and desired cut quality. Compatible SmartSYNC systems will automatically detect and suggest the correct amperage.
• Torch Standoff: Maintain the recommended torch standoff distance for flush cutting. This is typically a very close proximity to the workpiece. Consult your plasma system's manual for precise standoff recommendations for flush cutting.
• Velocitat de viatge: Adjust travel speed according to material type and thickness. Too fast a speed can result in incomplete cuts, while too slow a speed can lead to excessive dross and consumable wear.
• Preparació de la peça: Ensure the workpiece is clean and free of rust, paint, or other contaminants that can affect cut quality and consumable life.

Best Practices for Flush Cutting:

• Start the cut at the edge of the feature to be removed, maintaining a consistent torch angle.
• Move the torch smoothly and steadily along the desired cut path.
• Monitor the arc and cut quality. Adjust parameters as needed.

Manteniment

The SmartSYNC cartridge is a consumable item and will require replacement. Regular inspection and timely replacement are key to maintaining cut quality and system performance.

• Inspecció: Before each use, visually inspect the cartridge for signs of wear, such as a worn electrode, damaged nozzle orifice, or excessive dross buildup.
• Substitució: Replace the cartridge when cut quality degrades, the arc becomes unstable, or the cartridge shows visible signs of significant wear. The SmartSYNC system may also indicate when a cartridge needs replacement.
• Neteja: Do not attempt to clean or repair worn cartridges. They are designed for single-use until worn out.
• Emmagatzematge: Store new cartridges in a clean, dry environment to prevent contamination.

Resolució de problemes

If you encounter issues during operation, consider the following common troubleshooting steps related to the cartridge:

For further assistance, consult your Hypertherm plasma system's comprehensive troubleshooting guide or contact Hypertherm technical support.

Especificacions

Garantia i Suport

For information regarding warranty coverage for Hypertherm SmartSYNC cartridges and related products, please refer to the official Hypertherm warranty statement provided with your plasma cutting system or visit the official Hypertherm website. For technical support, product inquiries, or service, please contact Hypertherm customer service directly.

Hypertherm Official Weblloc: www.hypertherm.com
