Moman H2 Pro Motorcycle Intercom User Manual

1. Introducció

Thank you for choosing the Moman H2 Pro Motorcycle Intercom. This device is designed to provide clear and reliable communication for riders, enhancing your riding experience with features like simultaneous two-way talk, music playback, and hands-free calling. Please read this manual carefully before use to ensure proper operation and to maximize the product's lifespan.

2. Informació de seguretat

• Prioritzeu sempre la seguretat viària. No feu servir el dispositiu de manera que us distregui de la conducció.
• Adjust volume to a safe level that allows you to hear ambient sounds.
• No intenteu desmuntar ni modificar el dispositiu. Això pot anul·lar la garantia i causar danys.
• Mantingueu el dispositiu allunyat de temperatures extremes, la llum solar directa i materials corrosius.
• Assegureu-vos que el dispositiu estigui ben muntat al casc abans de conduir.

3. Contingut del paquet

Marqueu la casella per als elements següents:

• Moman H2 Pro Intercom Unit (x2)
• Velcro Clip (x2)
• Back Clip (x2)
• Hook & Loop Fastener (x2)
• Speaker & Microphone Set (x2)
• Headphone Sticker (x8)
• Cable USB tipus C (x2)
• Tornavís (x2)
• Manual d'usuari (x1)

Image: Moman H2 Pro package contents, showing two intercom units, various mounting clips, speaker/mic sets, cables, screwdriver, and manual.

4. Producte acabatview

4.1. Unitat principal

Image: Two Moman H2 Pro intercom units, showcasing their compact design and main control knob.

4.2. Controls i Funcions

Image: Diagram illustrating the control buttons and knob on the Moman H2 Pro unit, including power, volume, music control, and charging interface.

• Botó d'encesa: On/Off, change intercom mode, redial.
• Pom multifunció: Rotate for volume adjustment, press for music control (play/pause, next/previous track), answer/reject calls, activate voice assistant, change FM channels.
• Llum indicadora: Mostra l'estat del dispositiu (emparellament, càrrega, engegada).
• Interfície de càrrega: Port tipus C per a la càrrega.

5. Configuració

5.1. Instal·lació al casc

The Moman H2 Pro can be attached to your helmet using either the back clip or the Velcro clip.

1. Choose the appropriate clip for your helmet type.
2. Securely attach the clip to the side of your helmet.
3. Slide the intercom unit onto the mounted clip until it clicks into place.
4. Install the speakers inside the helmet, aligning them with your ears.
5. Position the microphone near your mouth for clear voice pickup.

Image: Step-by-step visual guide for installing the Moman H2 Pro intercom unit onto a helmet using the provided clips.

5.2. Càrrega del dispositiu

Before first use, fully charge the device. The Moman H2 Pro has a 900mAh battery.

• Connect the provided Type-C USB cable to the charging port on the intercom unit.
• Connecteu l'altre extrem del cable a una font d'alimentació USB (per exemple, un ordinador, un adaptador de paret).
• El llum indicador mostrarà l'estat de càrrega. Una càrrega completa triga aproximadament 2 hores.
• A full charge provides up to 20 hours of continuous operation/talk time and 300 hours of standby time.

Image: Illustration of the Moman H2 Pro unit being charged via its Type-C port, highlighting its 900mAh battery capacity and charging time.

6. Instruccions de funcionament

6.1. Encendre/apagar

• Encès: Premeu i manteniu premut el botó d'engegada fins que l'indicador lluminós s'encengui.
• Apagar: Premeu i manteniu premut el botó d'engegada fins que l'indicador lluminós s'apagui.

6.2. Emparellament Bluetooth

The Moman H2 Pro uses Wireless 5.1 technology for stable connections.

1. Assegureu-vos que el dispositiu estigui apagat.
2. Press and hold the Power button until the indicator light flashes rapidly, indicating pairing mode.
3. On your mobile device, search for Bluetooth devices and select "Moman H2 Pro".
4. Once connected, the indicator light will change to a steady blue.

6.3. Comunicació per intercomunicador

The H2 Pro supports 2-person simultaneous talk within a 1000m range and is compatible with other brands.

1. Ensure both intercom units are powered on and within range.
2. Initiate intercom pairing according to the specific instructions for your units (usually a long press on a dedicated intercom button or a combination of buttons).
3. Once paired, you can communicate in real-time.

Image: Visual representation of two riders communicating over a 1000m distance using the Moman H2 Pro intercoms.

6.4. Reproducció i compartició de música

• Reproduir/pausa: Short press the Multi-function Knob.
• Pista següent: Gireu el botó en sentit horari.
• Pista anterior: Rotate the knob counter-clockwise.
• Compartir música: The device supports music sharing between two paired units. Refer to the specific pairing instructions for music sharing.

Image: Two riders enjoying shared music through their Moman H2 Pro intercoms, with musical notes flowing between their helmets.

6.5. Trucades telefòniques

• Respon a la trucada: Short press the Multi-function Knob when a call comes in.
• Rebutja la trucada: Long press the Multi-function Knob when a call comes in.
• Finalitzar la trucada: Short press the Multi-function Knob during a call.
• Torna a marcar l'últim número: Premeu dues vegades el botó d'engegada.

6.6. Assistent de veu

• Activa l'Assistent de veu: Press the Multi-function Knob for 2 seconds.
• You can then use voice commands for navigation, music, and more.

Image: A rider interacting with the Moman H2 Pro's voice assistant feature, showing examples of voice commands like "Hey, Siri, call my mom" or "Next song."

6.7. Control de volum

• Augmenta el volum: Rotate the Multi-function Knob clockwise.
• Disminueix el volum: Rotate the Multi-function Knob counter-clockwise.

6.8. Ràdio FM

• Activar/desactivar la ràdio FM: Refer to the specific button combination in your quick start guide.
• Canviar canals: Use the Multi-function Knob to scan for stations.

7. Manteniment

• Neteja: Netegeu el dispositiu amb un suau, damp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
• Emmagatzematge: Guardeu el dispositiu en un lloc fresc i sec quan no l'utilitzeu.
• Resistència a l'aigua: The Moman H2 Pro has an IP65 waterproof rating, making it resistant to dust and water splashes. However, avoid submerging the device in water.

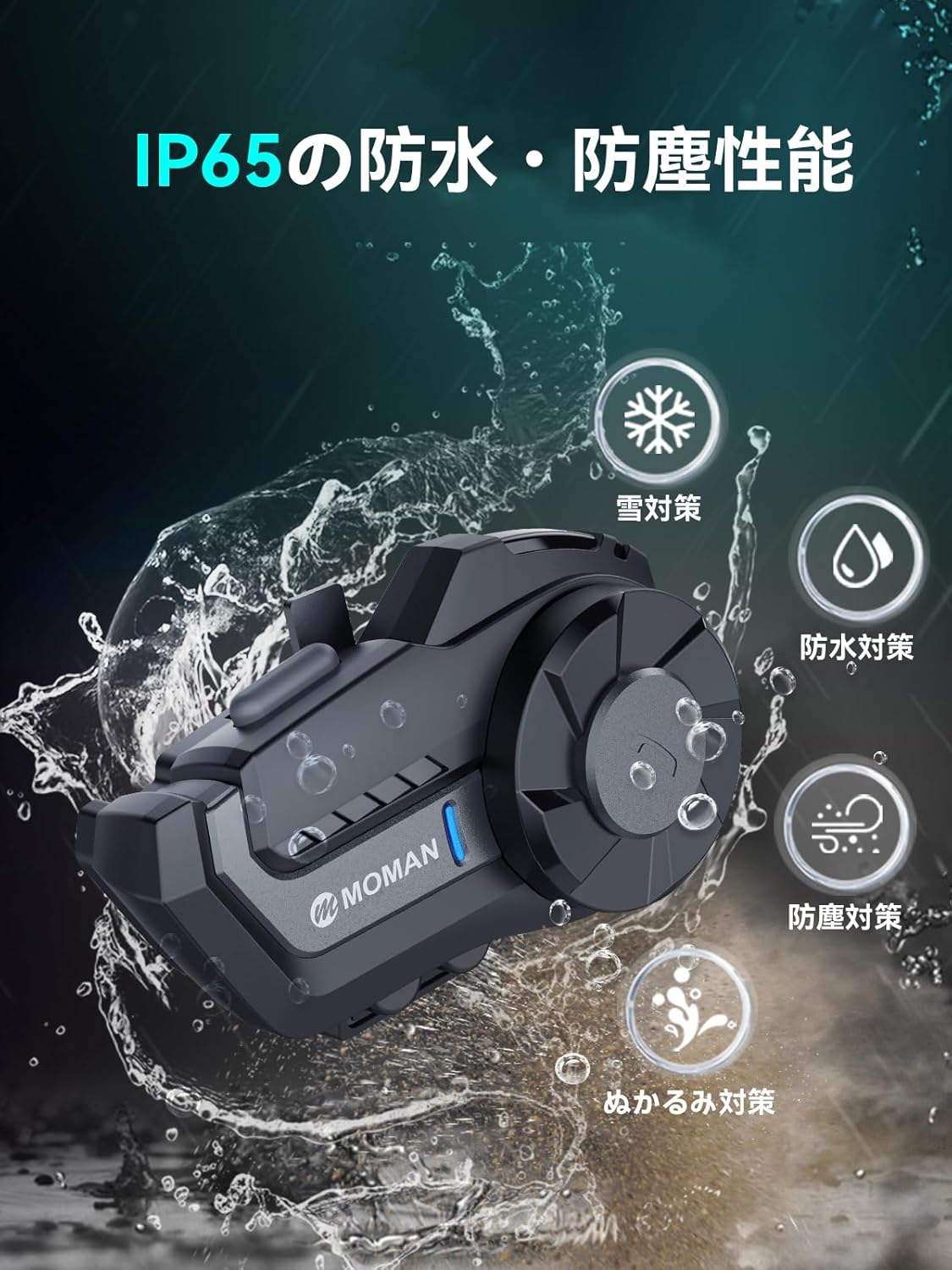

Image: The Moman H2 Pro unit being splashed with water, demonstrating its IP65 waterproof and dustproof capabilities, suitable for various weather conditions.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

The Moman H2 Pro comes with a 1-year warranty.

For any questions regarding product usage or if accessories are missing, please contact us at: tukarajapan@gmail.com (Please replace ',' with '.' in the email address).

You can also contact us through your order history: Go to "Order History" → "Contact Seller".
