Vacmaster VK1638SWC Industrial Wet and Dry Vacuum Cleaner User Manual

1. Introducció

Thank you for choosing the Vacmaster VK1638SWC Industrial Wet and Dry Vacuum Cleaner. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before use and retain them for future reference.

Image: The Vacmaster VK1638SWC vacuum cleaner actively cleaning a workshop floor, demonstrating its industrial application.

2. Informació de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aquest aparell per reduir el risc d'incendi, descàrrega elèctrica o lesions.

• Read all instructions before operating the vacuum cleaner.
• No deixeu l'aparell sense vigilància quan estigui endollat. Desconnecteu-lo de la presa de corrent quan no l'utilitzeu i abans de fer-ne el servei.
• Do not pick up hot ashes, coals, or flammable/combustible liquids.
• No utilitzeu al voltant de líquids o vapors explosius.
• Ensure all filters are correctly installed for the intended operation (wet or dry).
• Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.
• Feu servir només tal com es descriu en aquest manual. Utilitzeu només els accessoris recomanats pel fabricant.
• No l'utilitzeu amb un cable o un endoll danyats. Si l'aparell no funciona com hauria, s'ha caigut, s'ha fet malbé, s'ha deixat a l'exterior o ha caigut a l'aigua, torneu-lo a un centre de servei.
• No estireu ni porteu el cable, no utilitzeu el cable com a nansa, no tanqueu una porta al cable ni estireu el cable per vores o cantonades afilades. No feu passar l'aparell per sobre del cable. Mantingueu el cable lluny de les superfícies escalfades.
• No desconnecteu estirant del cable. Per desconnectar, agafa l'endoll, no el cable.
• No manipuleu l'endoll o l'aparell amb les mans mullades.
• Apagueu tots els controls abans de desconnectar.
• Tingueu molta cura quan netegeu les escales.
• No l'utilitzeu per recollir líquids inflamables o combustibles, com ara la gasolina, ni l'utilitzeu en zones on puguin estar presents.
• No agafeu res que estigui cremant o fumant, com ara cigarrets, llumins o cendres calentes.
• No utilitzeu sense filtres al seu lloc.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
• Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.

3. Contingut del paquet

Carefully unpack the box and ensure all items are present and undamaged. If any parts are missing or damaged, contact Vacmaster customer support.

• 1 x Dust Extractor Unit
• 1 x HEPA 13 Cartridge Filter
• 1 x HEPA Exhaust Filter
• 1 x Pre-filter (washable)
• 1 x filtre d'escuma
• 2 x tubs d'extensió
• 1 x Handle with Air Flow Control
• 1 x Universal Floor Head
• 1 x Dual Mode Floor Head
• 1 x Anti-crush Hose
• 1 x Round Dusting Tool
• 1 x Extra-large Crevice Tool
• 1 x Universal Power Tool Adaptor
• 1 x Accessory Pouch
• 1 x 38L Hygiene Seal Dust Bag

Image: The Vacmaster VK1638SWC unit displayed with its full range of included accessories.

4. Configuració

4.1 Muntatge del buit

1. Fixeu les rodes: Insert the casters into the designated slots on the base of the vacuum until they click securely into place.
2. Enganxa la nansa: Secure the handle to the top of the unit using the provided hardware.
3. Connecteu la mànega: Insert the anti-crush hose into the suction inlet on the front of the tank. Ensure it is firmly seated.
4. Instal·lar filtres: Refer to section 4.2 for specific filter installation based on your intended use (wet or dry).

Imatge: Un primer pla view of the yellow latch, indicating how to secure or release the motor head from the tank.

4.2 Instal·lació del filtre

The VK1638SWC uses different filters for wet and dry applications. Always ensure the correct filter is installed before operation.

• Per a l'aspiració en sec: Install the HEPA 13 Cartridge Filter and the washable Pre-filter. Ensure the HEPA Exhaust Filter is also in place. The 38L hygiene seal dust bag can be used for improved dust collection and disposal.
• Per a l'aspiració humida: Remove the HEPA 13 Cartridge Filter and Pre-filter. Install the Foam Filter over the filter cage. Do NOT use the dust bag for wet vacuuming.

Image: A person demonstrating the process of accessing and handling the filter inside the vacuum cleaner's tank.

5. Instruccions de funcionament

5.1 Aspiració en sec

1. Ensure the HEPA 13 Cartridge Filter and Pre-filter are correctly installed.
2. Connect the desired extension tubes and floor head (universal or dual mode) or other accessory to the hose.
3. Connecteu el cable d'alimentació a una presa de corrent adequada (240 volts).
4. Engegueu l'aspiradora amb l'interruptor d'alimentació.
5. Begin vacuuming the dry debris.
6. Quan hàgiu acabat, apagueu l'aspiradora i desendolleu-la.

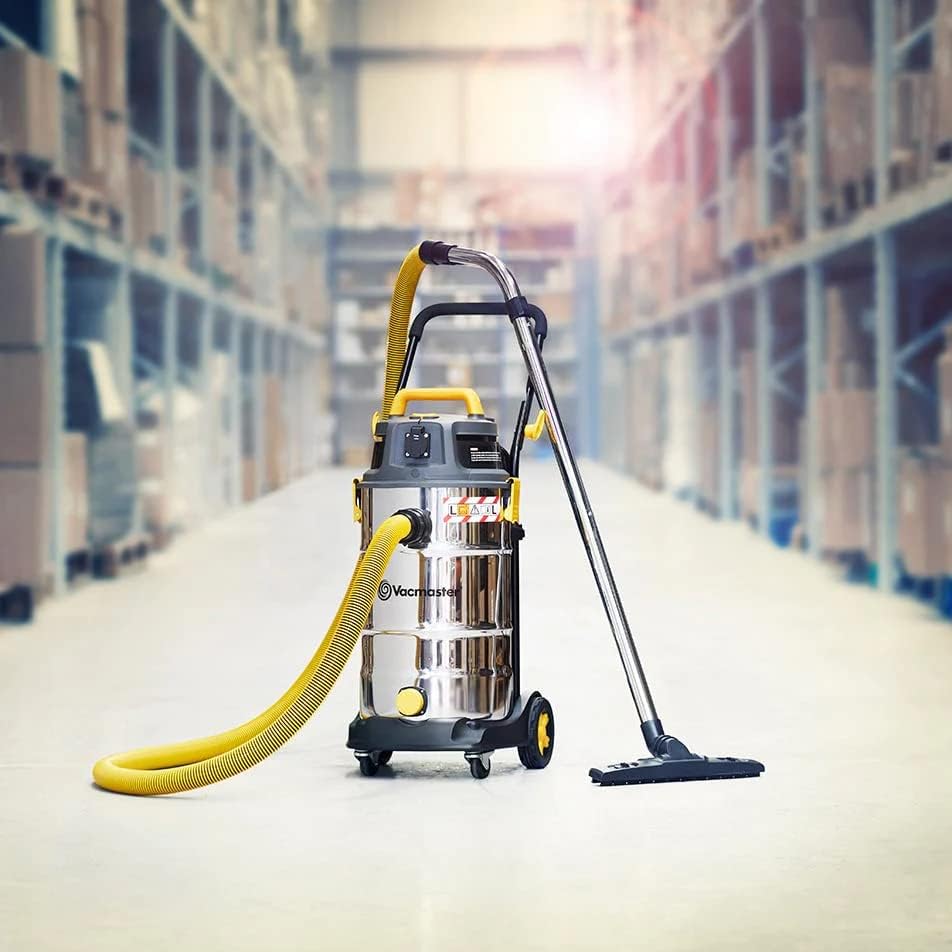

Image: The Vacmaster VK1638SWC vacuum cleaner fully assembled with its hose, extension tubes, and floor head.

5.2 Aspiració humida

1. Ensure the Foam Filter is correctly installed and the HEPA 13 Cartridge Filter and Pre-filter are removed.
2. Connect the desired floor head or accessory suitable for wet pickup to the hose.
3. Connecteu el cable d'alimentació a una presa de corrent adequada.
4. Engegueu l'aspiradora.
5. Begin vacuuming liquids. The vacuum has an automatic shut-off feature that will stop suction when the tank is full.
6. When finished or when the tank is full, turn the vacuum OFF and unplug it. Empty the tank as described in the Maintenance section.

Image: The Vacmaster VK1638SWC vacuum cleaner demonstrating its liquid draining capability from the tank's outlet.

5.3 Funció del bufador

The VK1638SWC can also function as a powerful blower.

1. Ensure the tank is empty and clean, and the appropriate filter is installed (HEPA for dry blowing, no filter or foam filter for wet blowing).
2. Traieu la mànega de l'entrada d'aspiració.
3. Insert the hose into the blower port located on the motor head.
4. Plug in and turn ON the vacuum to use the blower function.

5.4 Power Tool Connection

The included universal power tool adaptor allows for direct dust extraction when working with power tools.

1. Ensure the vacuum is set up for dry vacuuming with the HEPA 13 filter.
2. Connect the universal power tool adaptor to the end of the vacuum hose.
3. Attach the other end of the adaptor to the dust extraction port on your power tool.
4. Plug the power tool into the integrated power socket on the vacuum cleaner (if available and compatible). This allows the vacuum to start automatically when the power tool is activated.
5. Turn on the vacuum cleaner and then your power tool to begin dust extraction.

Image: The Vacmaster VK1638SWC vacuum cleaner connected to a sanding machine, demonstrating its dust extraction capability.

5.5 Using the Wheel Brake

To secure the vacuum cleaner in place, engage the wheel brake by pressing down on the lever located on one of the casters. To release, lift the lever.

Image: A person's foot pressing down on the yellow lever to engage the wheel brake on the vacuum cleaner.

6. Manteniment

Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner. Always unplug the unit before performing any maintenance.

6.1 Neteja i substitució del filtre

• HEPA 13 Cartridge Filter & Pre-filter: For dry use, these filters should be cleaned regularly by tapping them gently to dislodge dust or by using a soft brush. The pre-filter is washable; rinse with water and allow to air dry completely before reinstallation. Replace the HEPA cartridge filter when suction power significantly decreases or if it becomes damaged.
• Filtre d'escuma: For wet use, the foam filter should be rinsed with water after each use and allowed to air dry completely before storage or next use.
• HEPA Exhaust Filter: Check periodically and replace if visibly dirty or if air quality issues are noted.

6.2 Tank Cleaning and Emptying

• Residus secs: Unlatch the motor head and carefully lift it off. Remove the dust bag (if used) and dispose of contents. Empty any remaining debris from the stainless steel tank.
• Líquids: For liquid disposal, the tank can be emptied by tilting the unit or by using the drain plug located at the bottom of the tank. After emptying, rinse the tank with water and wipe dry to prevent odors and corrosion.

6.3 Emmagatzematge d'accessoris

The VK1638SWC features integrated storage for its accessories, keeping them organized and readily accessible.

Image: The Vacmaster VK1638SWC vacuum cleaner showcasing its onboard storage for hose, power cord, and various attachments.

7. Solució De Problemes

Abans de contactar amb l'atenció al client, consulteu la taula següent per veure els problemes habituals i les seves solucions.

8. Especificacions

9. Garantia i Suport

9.1 Informació de la garantia

The Vacmaster VK1638SWC Industrial Wet and Dry Vacuum Cleaner comes with a 2 any de garantia from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accident, unauthorized repairs, or lack of maintenance.

9.2 Atenció al client

For technical assistance, warranty claims, or to order replacement parts, please contact Vacmaster customer support. Refer to the contact information provided with your purchase documentation or visit the official Vacmaster weblloc.
