Introducció
The Focal PS 165 SF 6.5-inch Slatefiber Component Speaker Kit is engineered to deliver high-fidelity audio performance in automotive environments. This kit includes two 6.5-inch woofers, two tweeters, and two external crossovers, designed for a comprehensive sound upgrade.
Key features include a Slatefiber cone for dynamic and natural sound, an aluminum inverted dome tweeter for precise treble, and separable crossovers for flexible installation. The system offers a nominal power handling of 80W RMS (160W Max), a sensitivity of 91dB, and a frequency response from 60Hz to 21kHz, with a nominal impedance of 4 Ohms.
Figura 1: Acabatview of the Focal PS 165 SF component speaker kit, highlighting the Slatefiber cone, aluminum basket, separable crossovers, and Al/Mg tweeter.
Configuració i instal·lació
Una instal·lació correcta és crucial per a un rendiment òptim. Es recomana que la instal·lació la realitzi un professional qualificat.
Identificació de components
- Woofers: 6.5-inch drivers with Slatefiber cones.
- Tweeters: Aluminum/Magnesium inverted dome tweeters.
- Encreuaments: External passive crossovers for frequency separation.
Instal·lació de woofers
The 6.5-inch woofers are designed for flush mounting. Ensure adequate depth and clearance in the chosen mounting location. Refer to the mechanical drawing for precise dimensions.

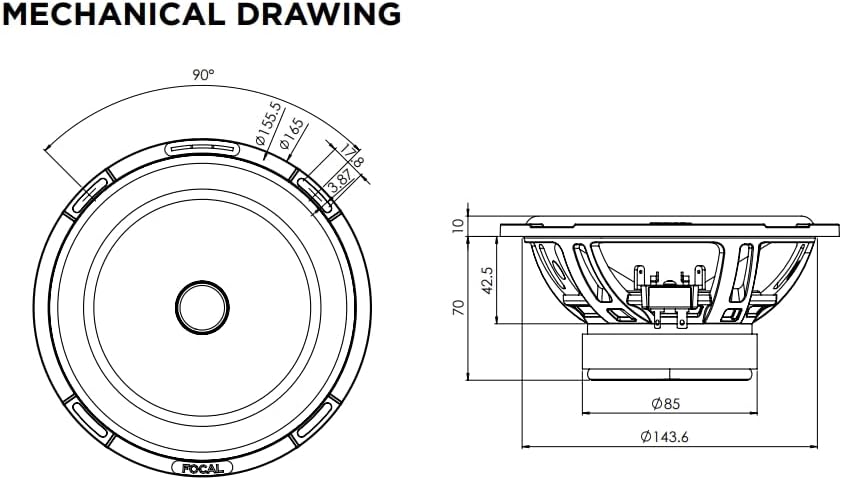

Figura 2: Mechanical drawing providing dimensions for woofer installation.
Figura 3: The 6.5-inch Slatefiber woofer.
Instal·lació de Tweeter
The Al/Mg inverted dome tweeters can be surface-mounted or installed in existing tweeter locations. Ensure proper aiming for optimal sound staging.
Figura 4: Davant view of the tweeter.
Figura 5: posterior view of the tweeter.
Connexió creuada
Connect the woofers and tweeters to the appropriate terminals on the passive crossovers. The separable design allows for flexible placement. Ensure correct polarity for all connections.
Figura 6: Passive crossovers for the component speaker kit.
Instruccions de funcionament
Once installed, connect the speaker system to a suitable amplifier. The PS 165 SF kit is designed to handle 80W RMS power per channel. Ensure your amplifier's output matches or is slightly above this rating for optimal performance without distortion.
- Encès: Engegueu el sistema d'àudio del cotxe i ampmés viu.
- Control de volum: Gradually increase the volume to a comfortable listening level. Avoid excessive volume that causes audible distortion.
- Configuració d'àudio: Adjust your head unit's equalizer and sound settings to fine-tune the audio to your preference.
- Període d'entrada: Allow a break-in period of several hours of listening at moderate volumes for the speakers to reach their full sonic potential.
Manteniment
The Focal PS 165 SF speakers are built with durable materials for long-lasting performance. Regular, simple maintenance can help preserve their condition.
- Neteja: Use a soft, dry cloth to gently wipe dust from the speaker cones and grilles. Avoid using harsh chemicals or abrasive materials.
- Inspecció: Comproveu periòdicament les connexions dels altaveus per assegurar-vos que estiguin ben ajustades i que no hi hagi cables desfilats o exposats.
- Factors ambientals: While designed for automotive use, avoid exposing speakers to extreme moisture or direct sunlight for prolonged periods.
Resolució de problemes
Si teniu problemes amb el sistema d'altaveus, consulteu els passos habituals següents per a la resolució de problemes:
- Sense so:
- Comproveu totes les connexions de cablejat des del amplifier to the crossovers, and from the crossovers to the speakers. Ensure they are secure and correctly polarized.
- Verifiqueu el ampel lifier està encès i funciona correctament.
- Confirm the head unit is sending an audio signal.
- So distorsionat:
- Reduïu el nivell de volum. Sovint es produeix distorsió quan ampL'amplificador o els altaveus estan saturats.
- Comproveu amplifier gain settings. Too high a gain can cause distortion.
- Inspeccioneu els cons dels altaveus per detectar qualsevol dany físic.
- Ensure crossovers are correctly connected and functioning.
- Uneven Sound (One Speaker Not Working or Quieter):
- Check connections for the affected speaker and its corresponding crossover.
- Balance and fader settings on your head unit.
If these steps do not resolve the issue, consult a professional car audio technician.
Especificacions
| Nom del model | PS-165-SF |
| Tipus d'altaveu | Component |
| Potència nominal (RMS) | 80W |
| Potència màxima | 160W |
| Sensibilitat (2.83 V/1 m) | 91 dB |
| Impedància nominal | 4 ohms |
| Resposta de freqüència | 60 Hz - 21 kHz |
| Diàmetre del woofer | 6.5 polzades |
| Diàmetre del Tweeter | 1 polzades |
| Tipus de muntatge | Muntatge d'escorredor |
| Material | Aluminum (basket), Slatefiber (cone) |
| Pes de l'article | 2 lliures |
| Dimensions del producte | 18"D x 8"W x 14"H (Packaging/Kit Dimensions) |
| Tecnologia de connectivitat | Amb cable |
| Mode de sortida d'àudio | estèreo |
| Components inclosos | 2 woofers, 2 tweeters, 2 crossovers |
Informació de la garantia
The Focal PS 165 SF Component Speaker Kit comes with a Limited Warranty. Specific terms and conditions of the warranty may vary by region and retailer.
Please retain your proof of purchase for any warranty claims. For detailed warranty information, refer to the documentation provided with your product or contact your authorized Focal dealer.
Suport
For further assistance, technical support, or service inquiries regarding your Focal PS 165 SF Component Speaker Kit, please contact Focal customer support or your authorized dealer.
You can typically find contact information on the official Focal weblloc web o a través de l'embalatge del producte.
