TecTake Metal Office Cabinet with Lock

1. Introducció

Thank you for choosing the TecTake Metal Office Cabinet. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new cabinet. Please read these instructions carefully before beginning assembly and retain them for future reference.

Figure 1: TecTake Metal Office Cabinet with doors open, showcasing les seves capacitats d'emmagatzematge.

2. Informació de seguretat

Si us plau, observeu les següents pautes de seguretat per evitar lesions o danys al producte:

• Keep keys in a secure location and do not leave the cabinet unlocked when unattended.
• Exercise caution to avoid pinching fingers in the hinges of the swing doors during use.
• Ensure the cabinet is assembled on a flat, stable surface to prevent tipping.
• Do not exceed the maximum weight capacity per shelf (40 kg) to maintain stability and prevent structural damage.
• Mantingueu les peces petites i els materials d'embalatge lluny dels nens per evitar perills d'asfixia.

3. Contingut del paquet

Abans del muntatge, comproveu que tots els components siguin presents i no estiguin danyats. El paquet ha de contenir:

• Cabinet panels (sides, top, bottom, back, doors)
• Adjustable shelves (quantity: 3)
• Drawer components (quantity: 2 sets)
• Lock mechanisms and keys (8 keys total, 2 per lock)
• Assembly hardware (screws, bolts, nuts, shelf pins)
• Rubber buffers for silent door operation
• Manual d'instruccions (aquest document)

Si falta alguna peça o hi ha alguna danyada, poseu-vos en contacte amb el servei d'atenció al client abans de continuar amb el muntatge.

4. Instruccions de muntatge

Assembly requires careful attention to detail. It is recommended to have two people for assembly. A Phillips head screwdriver is the only tool required. Avoid using power drills, as overtightening can damage the metal.

4.1 Preparació

1. Deixeu una zona espaiosa, neta i plana per al muntatge.
2. Unpack all components and lay them out, identifying each part according to the provided parts list (if separate from this manual).
3. Ensure all hardware is sorted and easily accessible.

4.2 Muntatge pas a pas

1. Muntar el marc: Begin by connecting the side panels to the base and top panels using the provided screws. Ensure all connections are secure but do not overtighten until the entire frame is upright.
2. Instal·leu els panells posteriors: Slide or attach the back panels into the designated grooves or screw points.
3. Muntar calaixos: Construct the two drawers. Pay close attention to the orientation of the drawer slides and the central support for the drawer mechanism. Incorrect orientation can prevent drawers and doors from closing properly.


   Figure 2: Detail of adjustable shelves, drawer, and lock mechanism.

4. Inserir calaixos: Carefully slide the assembled drawers into their respective compartments. Test their movement.
5. Fixar portes: Mount the four swing doors to the cabinet frame using the hinges. Ensure the rubber buffers are placed to allow for silent closing. Adjust hinges if necessary for proper alignment.
6. Install Locks: Secure the cylinder locks into the doors. Each lock comes with two keys. Test all locks to ensure they function correctly.
7. Col·loqueu prestatges ajustables: Insert the shelf pins into the desired height slots. Place the shelves onto the pins. The shelves are adjustable to accommodate various item sizes.


   Figure 3: Detail of adjustable shelf brackets.

8. Comprovació final: Verify all screws are tightened, doors open and close smoothly, and drawers slide without obstruction.

For visual guidance, refer to the assembly diagrams provided in the separate assembly manual (if included) or the product images showing the assembled unit.

5. Funcionament

5.1 Portes

The cabinet features four swing doors. To open, turn the key in the lock and pull the handle. To close, push the door firmly until it engages with the magnetic catch or lock mechanism, then turn the key to secure. The rubber buffers ensure quiet operation.

5.2 calaixos

The two drawers are designed for smooth operation. Pull the handle to open and push to close. Each drawer has its own lock for securing contents. Insert the key and turn to lock or unlock.

5.3 Prestatges ajustables

The three adjustable shelves allow for flexible storage configurations. To adjust a shelf, remove all items from it, lift the shelf, and reposition the shelf pins into the desired slots on the cabinet sides. Ensure all four pins are securely seated before placing items back on the shelf.

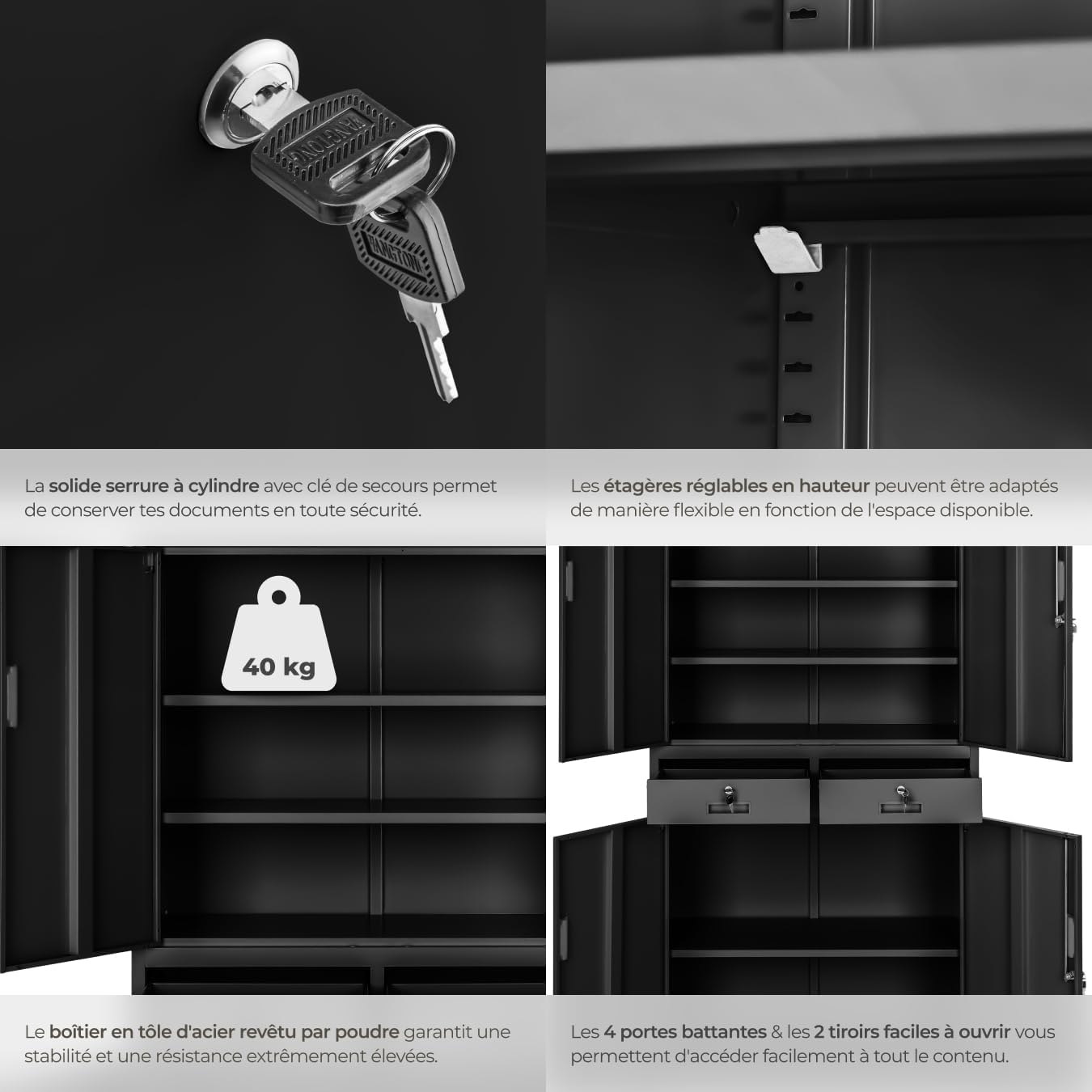

Figure 4: Key features of the cabinet, including adjustable storage and secure locking.

6. Manteniment

To ensure the longevity and appearance of your TecTake Metal Office Cabinet, follow these simple maintenance guidelines:

• Neteja: Netegeu totes les superfícies amb un drap suau iamp cloth. For stubborn marks, a mild soap solution can be used. Avoid abrasive cleaners or harsh chemicals, as these can damage the powder-coated finish. Dry thoroughly after cleaning.
• Locks and Hinges: Periodically check the locks and hinges for smooth operation. If they become stiff, a small amount of silicone-based lubricant can be applied.
• Estabilitat: Regularly check that all screws and connections remain tight. Retighten if necessary to maintain the cabinet's stability.
• Distribució de pes: Distribute weight evenly across shelves and drawers to prevent warping or instability.

7. Solució De Problemes

If you encounter issues with your cabinet, refer to the following common problems and solutions:

8. Especificacions

Key technical specifications for the TecTake Metal Office Cabinet:

Figure 5: Dimensions of the TecTake Metal Office Cabinet.

9. Garantia i Suport

Specific warranty information for this product is not provided in the available data. Please refer to your purchase documentation or contact the retailer/manufacturer directly for details regarding warranty coverage and customer support.

For technical assistance or inquiries about replacement parts, please contact TecTake customer service through their official weblloc web o la informació de contacte proporcionada amb la compra.
