BLACK+DECKER BCHV001 18V Cordless Hand Dustbuster Instruction Manual

Producte acabatview

The BLACK+DECKER BCHV001 is a cordless Dustbuster designed for quick and convenient cleaning tasks. It is compatible with BLACK+DECKER 18V lithium-ion power tool batteries, offering up to nine minutes of continuous runtime with a fully charged 1.5Ah battery. Features include an onboard crevice tool, washable filters, and a 500ml dustbowl.

Figure 1: The BLACK+DECKER BCHV001 18V Cordless Hand Dustbuster, showcasing el seu disseny compacte.

Característiques principals:

• Eina per esquerdes: For hard-to-reach or narrow areas with on-board storage.
• Easy to Clean Filters: Enable you to keep your vac at top performance.
• 2-Stage Filtració: Maintains suction power as the large bowl fills with debris.
• Segur d'utilitzar: On all sealed hard floors.
• Large Dust Bowl: Requires less emptying.

Què hi ha a la caixa

Your BLACK+DECKER BCHV001 package includes the following items:

• BCHV001B 18V Cordless Dustbuster (bare tool)
• Broquet per esquerdes
• No Battery (sold separately)
• No Charger (sold separately)
• Cap cas

Configuració

Instal·lació i càrrega de la bateria

The BCHV001 Dustbuster is designed to be powered by any BLACK+DECKER 18V lithium-ion power tool battery. Ensure you have a compatible battery and charger (sold separately) before use.

1. Insert a fully charged BLACK+DECKER 18V lithium-ion battery into the designated battery slot on the Dustbuster.
2. To charge the battery, connect it to a compatible BLACK+DECKER 18V charger. A fully charged 1.5Ah battery provides approximately nine minutes of continuous runtime.

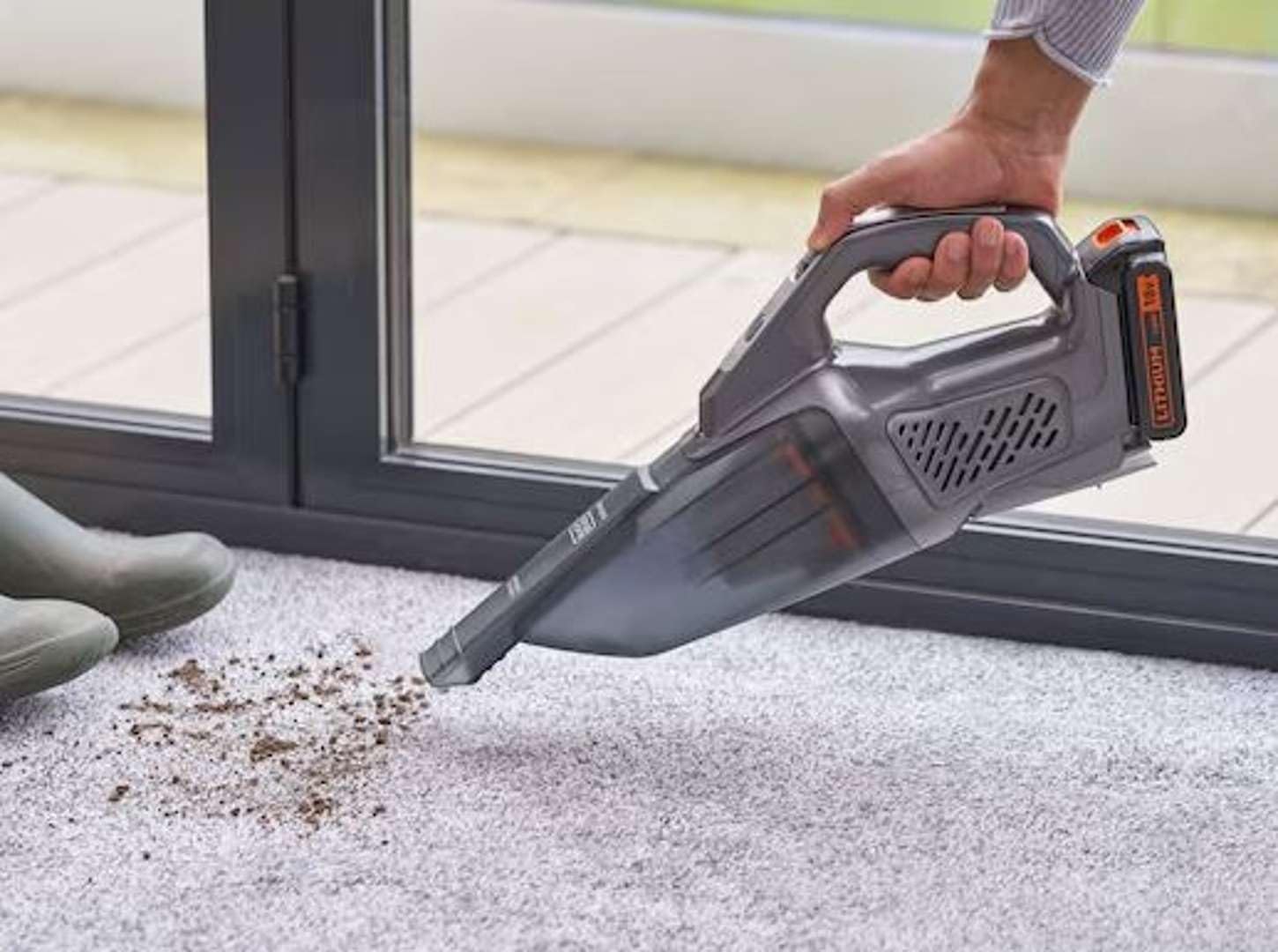

Figure 2: The Dustbuster with a compatible 18V lithium-ion battery attached.

Instruccions de funcionament

Encès/Apagat

To turn the Dustbuster ON, slide the power switch located on the handle to the 'I' position. To turn it OFF, slide the switch to the 'O' position.

Ús de l'eina per a esquerdes

The integrated crevice tool is stored on the unit itself. Extend the crevice tool to reach into tight spaces, corners, and between cushions for thorough cleaning.

Neteja de diverses superfícies

The Dustbuster is versatile and can be used for quick cleanups on various surfaces:

• Superfícies dures: Effectively picks up debris from sealed hard floors, countertops, and tables.
• Carpets and Upholstery: Suitable for spot cleaning carpets, car interiors, and upholstery.
• Espais reduïts: Utilize the crevice tool for car interiors, between furniture, and in workshop areas.

Figure 3: Demonstrating the Dustbuster's use for cleaning crumbs from a table.

Figure 4: The Dustbuster effectively cleaning debris from a carpeted surface.

Manteniment

Emptying the Dustbowl

The Dustbuster features a large 500ml dustbowl that requires less frequent emptying. To empty, locate the dustbowl release switch and press it to detach the dustbowl. Dispose of the collected debris into a trash receptacle.

Figure 5: The dustbowl being emptied into a trash bin, demonstrating the easy release mechanism.

Neteja dels filtres

The Dustbuster is equipped with washable pre-filters and filters to maintain optimal performance. After emptying the dustbowl, remove the filters and wash them with warm, soapy water. Allow them to air dry completely before reinserting them into the unit.

Figure 6: A user removing and cleaning the washable filter from the Dustbuster.

Resolució de problemes

• Sense energia: Ensure the 18V battery is fully charged and correctly inserted.
• Succió reduïda: Check if the dustbowl is full and needs emptying. Clean the filters if they appear clogged. Ensure the crevice tool is properly attached or retracted as needed.
• Soroll inusual: Turn off the unit and inspect for any obstructions in the nozzle or dustbowl.

Especificacions

Garantia i Suport

For warranty information and customer support, please refer to the documentation included with your BLACK+DECKER 18V Cordless Hand Dustbuster or visit the official BLACK+DECKER weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
