SYMA Explorer FPV Drone Z4W User Manual

1. Introducció

The SYMA Explorer FPV Drone Z4W is a compact and foldable quadcopter designed for both beginners and experienced pilots. It features live video transmission, one-key take-off and landing, and auto-hover capabilities, providing an easy and stable flight experience. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Z4W drone.

Image: The SYMA Explorer FPV Drone Z4W in its unfolded state, showcasing its four propellers and sleek black design.

2. Contingut del paquet

Please verify that all items are present in the package before use:

• SYMA Explorer FPV Drone Z4W
• Control remot
• Cable de càrrega USB
• Hélices de recanvi
• Manual d'usuari (aquest document)

Image: The retail packaging for the SYMA Explorer FPV Drone Z4W, displaying key features and the drone itself.

3. Característiques del producte

• Live FPV video transmission with 480P WiFi Camera.
• Disseny compacte i plegable per a una fàcil portabilitat.
• Easy one-key take-off and landing.
• Auto-hover function for stable flight.
• Approximately 10 minutes of flight time.
• Two-speed modes (slower speed for beginners).
• Control via remote control or mobile app (Gravity Control and Flight Plan features available).

4. Pautes de seguretat

Adherence to these safety guidelines is crucial for preventing accidents and ensuring proper operation:

• Edat recomanada: This product is recommended for ages 8 and up. Adult supervision is advised for younger users.
• Entorn de vol: Intended for indoor use or outdoors with little to no wind. Avoid flying near people, animals, buildings, or power lines.
• Comprovació prèvia al vol: Always ensure propellers are securely attached and undamaged. Check battery levels of both drone and remote control before each flight.
• Seguretat de la bateria: Do not overcharge batteries. Use only the provided charging cable. Do not expose batteries to extreme temperatures or puncture them.
• Seguretat de l'hèlix: Mantingueu les mans, la cara i la roba ampla allunyades de les hèlixs giratòries.
• Línia de visió: Mantingueu sempre la línia de visió amb el dron durant el vol.
• Parada d'emergència: Familiarize yourself with the emergency stop procedure on the remote control.

5. Configuració

5.1 Desplegament del dron

Gently unfold the drone arms until they click into place. Ensure all four arms are fully extended and locked before flight.

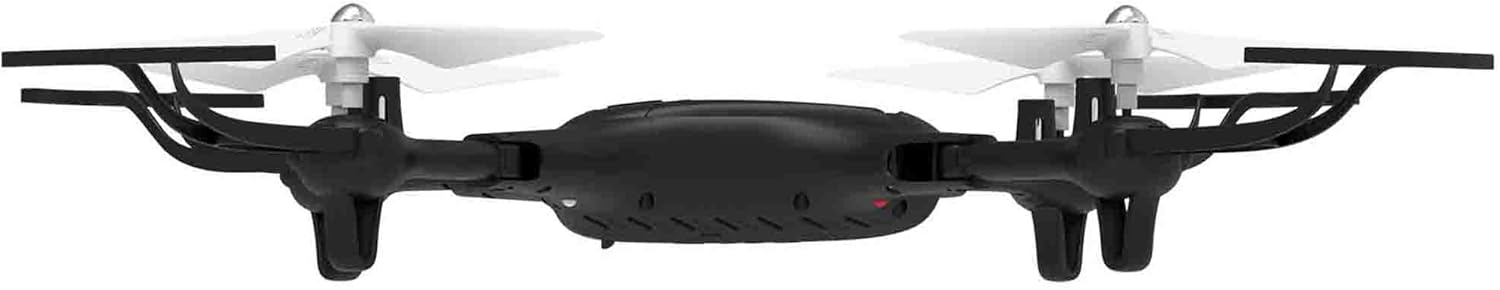

Image: The SYMA Explorer FPV Drone Z4W in its compact, folded configuration, ready for storage or transport.

5.2 Instal·lació de la bateria

Drone Bateria:

1. Localitzeu el compartiment de la bateria del drone.
2. Insert the drone battery, ensuring correct polarity.
3. Tanqueu el compartiment de la bateria de manera segura.

Bateries de control remot:

The remote control requires 4 AA batteries (not included).

1. Obriu la tapa de la bateria a la part posterior del comandament a distància.
2. Insert 4 AA batteries, observing the correct positive (+) and negative (-) terminals.
3. Tanqueu la tapa de la bateria.

Imatge: Un primer pla view of the SYMA Explorer FPV Drone Z4W remote control, showing its joysticks and control buttons.

5.3 Propeller Installation/Check

Ensure all propellers are firmly attached to their respective motors. Check for any damage or cracks before each flight. Replace damaged propellers with spare ones, matching the 'A' and 'B' markings on the propellers to the corresponding motor arms.

5.4 App Download & Connection

Download the official SYMA FPV app from your device's app store. Follow the in-app instructions to connect your mobile device to the drone's Wi-Fi network for live FPV view and advanced control features.

6. Instruccions de funcionament

6.1 Emparellar el dron i el comandament a distància

1. Col·loqueu el drone sobre una superfície plana i plana.
2. Engegueu l'interruptor d'encesa del dron. Els llums indicadors parpellejaran.
3. Engegueu el comandament a distància.
4. Push the left joystick (throttle) all the way up, then all the way down. The drone's indicator lights will become solid, indicating successful pairing.

6.2 One-Key Take-Off and Landing

• Enlairament: After pairing, press the One-Key Take-Off button (usually marked with an arrow pointing up) on the remote control. The drone will automatically ascend to a stable hovering height.
• Aterratge: To land, press the One-Key Landing button (usually marked with an arrow pointing down). The drone will slowly descend and land automatically.

6.3 Basic Flight Controls (Remote Control)

• Joystick esquerre (accelerador/guinyada):
  • Empènyer amunt/avall: Pujar/Baixar
  • Push left/right: Rotate Left/Right (Yaw)
• Joystick dret (Pitch/Roll):
  • Push up/down: Fly Forward/Backward (Pitch)
  • Push left/right: Fly Left/Right (Roll)
• Interruptor de velocitat: Toggle between two speed modes (slow for beginners, fast for advanced).

6.4 Funcions especials

• Manteniment d'altitud: The drone maintains a stable altitude automatically, allowing for easier control of horizontal movement.
• Girs de 360°: Consult the remote control diagram in the full manual for the specific button combination to perform aerial flips. Ensure sufficient altitude before attempting.
• Preprogrammed Flights (App Control): Utilize the mobile app's features such as Gravity Control (tilting your phone to control drone direction) and Flight Plan (drawing a path on your screen for the drone to follow).

6.5 FPV Live View

Once connected to the drone's Wi-Fi via the app, you can view the live feed from the drone's 480P camera directly on your smartphone screen. This allows for an immersive first-person view flight experience.

7. Manteniment

• Neteja: Feu servir un drap suau i sec per netejar el dron i el comandament a distància. Eviteu fer servir aigua o productes químics agressius.
• Cura de l'hèlix: Regularly inspect propellers for damage. Replace any bent, cracked, or chipped propellers immediately to ensure stable flight.
• Emmagatzematge de la bateria: If storing the drone for an extended period, ensure batteries are charged to approximately 50% and stored in a cool, dry place. Remove batteries from the remote control when not in use.
• Cura del motor: Keep motors free from dust and debris. Do not attempt to lubricate the motors.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

For warranty information and technical support, please refer to the official SYMA website or contact their customer service department. Details regarding specific warranty periods and support procedures are typically provided with your purchase documentation or on the manufacturer's official channels.

Protection plans may be available for purchase separately to extend coverage beyond the standard manufacturer's warranty. Please check with your retailer for available options.
