1. Introducció
This manual provides essential information for the safe and efficient operation of your Walfront Fx3u-14mr PLC Controller. Please read this manual thoroughly before installation and use, and retain it for future reference.
2. Informació de seguretat
Observeu sempre les precaucions de seguretat següents:
- Assegureu-vos que la font d'alimentació voltage matches the device specifications (DC24V).
- No exposeu el dispositiu a la humitat ni a temperatures extremes.
- All wiring and installation should be performed by qualified personnel.
- Desconnecteu l'alimentació abans de fer qualsevol manteniment o canvis de cablejat.
3. Producte acabatview
The Walfront Fx3u-14mr is a high-speed Programmable Logic Controller (PLC) designed for industrial control applications. It features 8 input points and 6 output points, supporting various control tasks.
3.1 Característiques clau
- 8 Input Points (DC24V, low level valid, X0-5 high-speed counting input)
- 6 Output Points (Y0-Y5, optional relay or transistor output)
- Font d'alimentació DC24V
- 6-channel 12-bit Analog Input (0-10V, 0-20mA)
- 2-channel 12-bit Analog Output (0-10V)
- 8000 Step Memory Capacity
- Two Communication Ports: RS232 (DB9) and RS485 (optional)
- Supports GX Developer or GX Works programming software
3.2 Contingut del paquet
- 1x Walfront Fx3u-14mr PLC Control Board
Figura 1: Davant view of the Walfront Fx3u-14mr PLC Controller, showing input/output terminals and the DB9 serial port.
4. Especificacions
| Característica | Especificació |
|---|---|
| Pes | 239 g / 8.4 oz |
| Punts d'entrada | 8 (DC24V, low level valid) |
| Punts de sortida | 6 (Y0-Y5, optional relay or transistor) |
| Alimentació Voltage | DC24V |
| Corrent de sortida | Relay: 5A; Transistor: 1A (DC24V) |
| Entrada Analògica | 6 channels, 12-bit accuracy, 0-10V / 0-20mA |
| Sortida analògica | 2 channels, 12-bit accuracy, 0-10V |
| High-Speed Count | 6 channels (12K, optional 100K) |
| Sortida de pols | No |
| Punt flotant | Admet |
| Motor pas a pas | No s'admet |
| Capacitat de memòria | 8000 passos |
| Programari de programació | GX Developer or GX Works |
| Ports de comunicació | 1x RS232 (DB9), 1x RS485 (optional) |
| Material | coure |
5. Configuració i cablejat
5.1 Connexió a la font d'alimentació
Connect a stable DC24V power supply to the designated power terminals on the PLC. Ensure correct polarity.
5.2 Input Wiring (X0-X7)
The input points X0-X7 are DC24V, low-level valid. X0-X5 can be configured for high-speed counting. Connect your input devices (e.g., sensors, switches) to these terminals.
Figura 2: lateral view of the PLC controller, highlighting the input terminal blocks.
5.3 Output Wiring (Y0-Y5)
Y0-Y5 are output points, configurable as relay or transistor outputs. Relay outputs support up to 5A, while transistor outputs support up to 1A (DC24V). Y0-Y1 are high-speed output ports (max 100KHz) for PWM. Connect external loads to these terminals. For transistor outputs, the external load common should terminate to +24V, and the other end to the PLC output port Y.

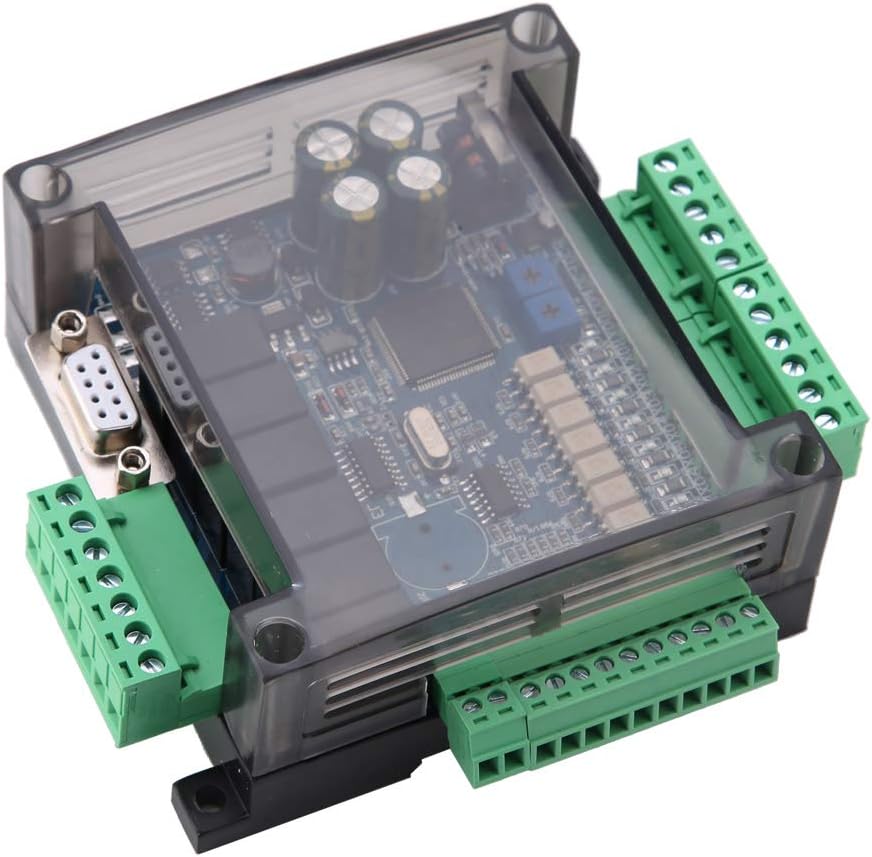

Figura 3: Un altre view of the PLC controller, showing the output terminal blocks.
5.4 Connexió del port de comunicació
The PLC includes one RS232 (DB9) serial communication port (FX3u protocol: 38400, 7, E, 1) and an optional RS485 port. Connect your programming device or HMI to these ports for programming and monitoring.
Figura 4: De dalt a baix view of the PLC controller, illustrating the internal board layout and communication ports.
6. Instruccions de funcionament
6.1 Programming Software
Use GX Developer or GX Works software to create and upload your PLC programs. The memory capacity is 8000 steps.
6.2 Analog Input Operation
The 6-channel analog inputs have 12-bit accuracy and support 0-10V or 0-20mA signals. Use the appropriate instruction in your program to read analog quantities. The corresponding values range from 0 to 4095. Two-way potentiometer analog input is available via D8030 and D8031.
6.3 Analog Output Operation
The 2-channel analog outputs have 12-bit accuracy and provide 0-10V output. Use the WR3A instruction to output analog voltage, with corresponding values from 0 to 4095.
6.4 Intermediate Relays (M)
Intermediate relays M0-M3071 are available. The power loss preservation range for these relays can be configured within the programming software.
7. Manteniment
- Keep the PLC clean and free from dust and debris.
- Comproveu regularment les connexions del cablejat per comprovar si estan ben ajustades i si hi ha signes de desgast.
- Assegureu-vos que hi hagi una ventilació adequada al voltant de la unitat per evitar el sobreescalfament.
- Avoid exposing the unit to strong electromagnetic interference.
8. Solució De Problemes
8.1 Problemes comuns
- PLC not powering on: Verify DC24V power supply connection and voltage. Check for blown fuses if applicable.
- Errors de comunicació: Ensure correct serial port settings (baud rate, data bits, parity, stop bits) in your programming software. Check cable connections.
- Input not responding: Check input device wiring and functionality. Verify input status in programming software.
- Output not activating: Check output device wiring and power supply. Verify output status in programming software. Ensure the output type (relay/transistor) matches the load requirements.
9. Garantia i Suport
For warranty information or technical support, please refer to the Walfront official weblloc web o poseu-vos en contacte amb el vostre distribuïdor local. Conserveu el rebut de compra per a reclamacions de garantia.
