1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your WELLFOR LED Mirrored Cabinet. This cabinet features integrated LED lighting, an anti-fog mirror, adjustable tempered-glass shelves, and soft-close door hinges. It is designed for both recessed and surface mounting applications in bathrooms or similar environments.

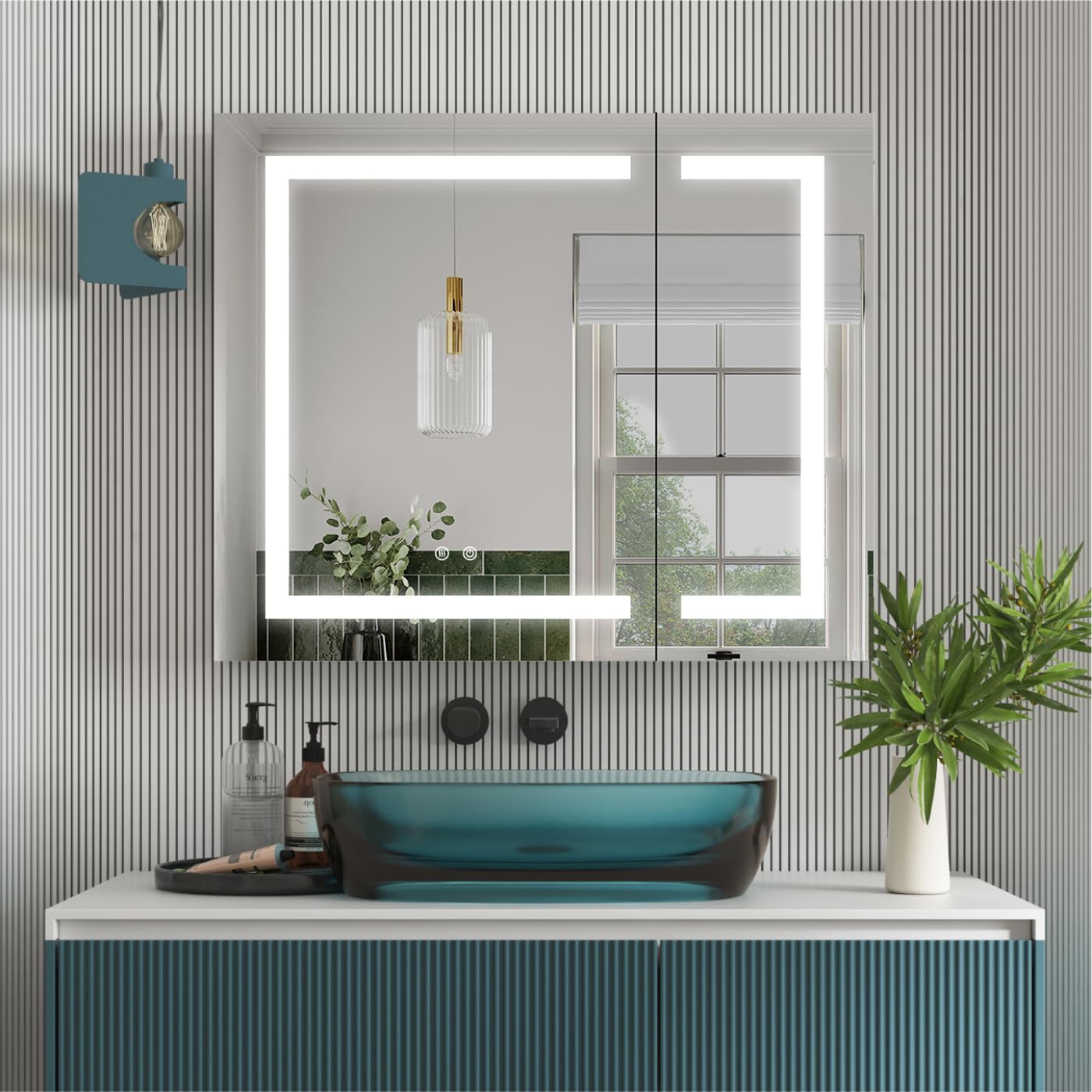

Image 1.1: The WELLFOR LED Mirrored Cabinet in a bathroom setting, showcasing its illuminated mirror and sleek design.
2. Informació de seguretat
Si us plau, llegiu atentament totes les instruccions abans de la instal·lació i l'ús. Conserveu aquest manual per a futures consultes.
- Ensure the power supply is disconnected at the circuit breaker before any installation or maintenance procedures.
- All electrical wiring must be performed by a qualified electrician in accordance with local codes and regulations.
- Manipuleu els components de vidre amb cura per evitar trencaments i lesions.
- Do not expose the cabinet to excessive moisture or direct water spray beyond its intended use in a bathroom environment.
- Mantenir els nens allunyats de la zona d'instal·lació.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats abans de començar la instal·lació.
- WELLFOR LED Mirrored Cabinet
- Prestatgeries ajustables de vidre temperat (3)
- Kit de maquinari de muntatge
- Manual d'usuari
4. Especificacions
| Característica | Especificació |
|---|---|
| Marca | WELLFOR |
| Nom del model | led medicine cabinet |
| Número de model de l'article | W3MCL3630 |
| Dimensions del producte | 4.63 "P x 36" W x 30" H |
| Tipus de muntatge | Recessed Mount; Surface Mount |
| Nombre de prestatgeries | 3 (vidre temperat) |
| Característica especial | Illuminated, Defogger, Dimmable, 3 Color LED Lights, Outlets & USB Ports |
| Temperatura de color clar | 2700K-6500K (Continuously-variable) |
| Brillantor | 2200 Lumens (10%-100% Dimmable) |
| LED de vida útil | 50,000 hores |
| Interior Outlets | 2 Outlets + 2 USB (15 AMP 110 V CA, 4.2 AMP 5V DC USB) |
| Frontisses | Austria BLUM Soft-Close, 3-dimension adjustable, 110-degree opening |
| Desnebulitzador | Separate control, automatic shut-off after 1 hour |
| Connexió d'alimentació | Plug or Hardwire (US standard plug included) |
| Certificacions | UL Std. 962, ETL |
| Pes de l'article | 59.8 lliures |
Image 4.1: Detailed technical specifications and dimensions for installation planning.
5. Instal·lació
5.1 Mounting Options: Recessed or Surface Mount
The WELLFOR LED Mirrored Cabinet offers flexibility for installation, allowing it to be either recessed into the wall or surface mounted. Choose the option that best suits your bathroom design and structural capabilities.

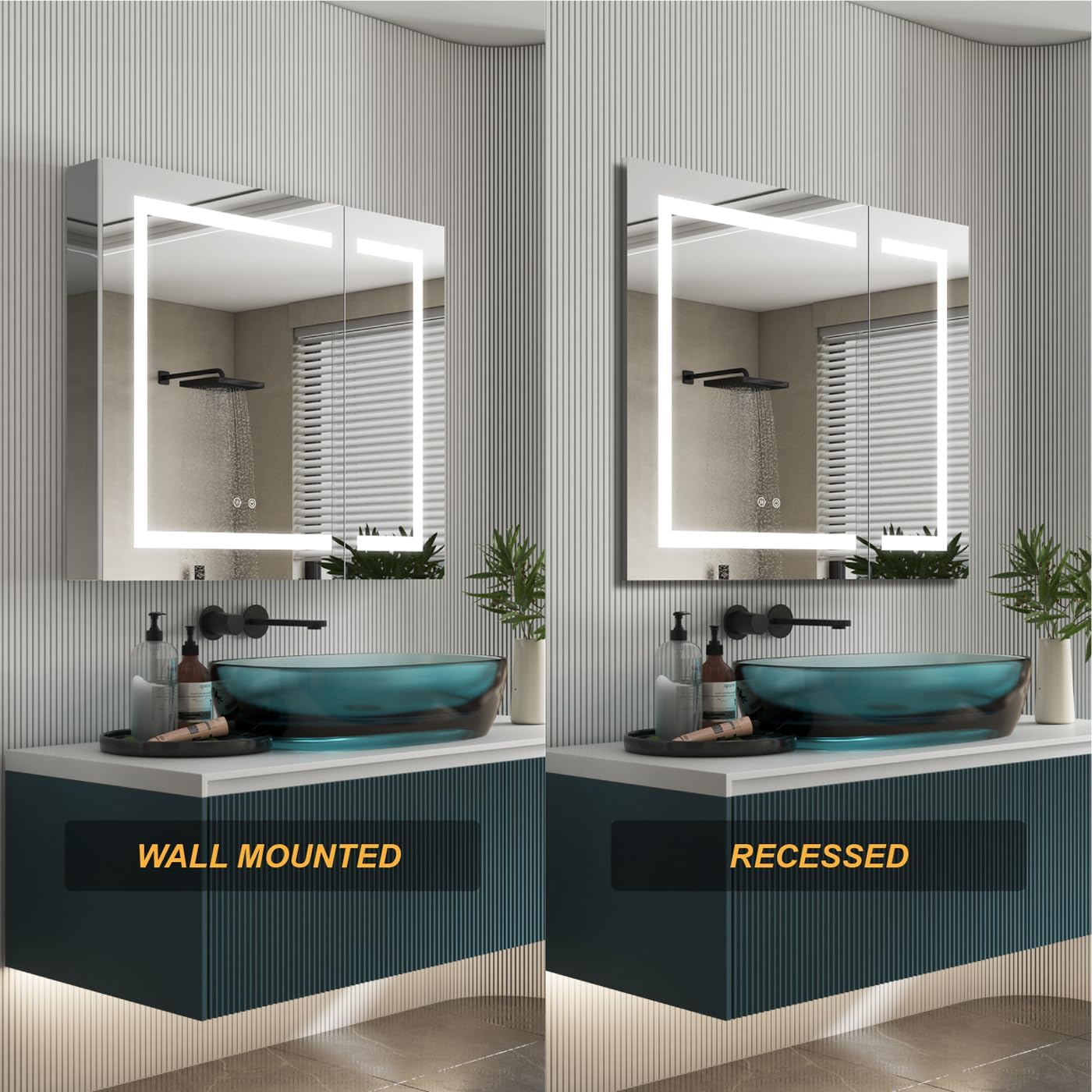

Image 5.1: Visual comparison of the cabinet installed as wall-mounted versus recessed.
Imatge 5.2: Ex.amples of recessed and surface mounted installations in different bathroom settings.
5.2 Connexió elèctrica
The cabinet can be connected via a standard US plug or hardwired directly into your electrical system. Ensure all electrical work is performed by a certified professional.
- For plug-in installation, ensure a GFCI-protected outlet is available within reach of the cabinet's power cord.
- For hardwired installation, disconnect power at the circuit breaker and follow local electrical codes for safe wiring.
5.3 Instal·lació de prestatgeries
The cabinet includes three tempered-glass shelves. These shelves are adjustable to accommodate items of various heights. Insert the shelf pins into the desired slots inside the cabinet and carefully place the glass shelves on top of the pins.
Image 5.3: Details of the interior, including the tempered glass shelves and soft-close hinges.
6. Instruccions de funcionament
The WELLFOR LED Mirrored Cabinet features intuitive controls for its various functions.
Image 6.1: Key features and controls of the WELLFOR LED Mirrored Cabinet.
Control d'il·luminació LED 6.1
The cabinet features dimmable LED lights with three color temperature modes (2700K-6500K).
- Encès/apagat: Tap the power icon on the mirror surface to turn the lights on or off.
- Ajusta la brillantor: Long press the power icon to continuously adjust the brightness from 10% to 100%. The cabinet has a memory function that restores the last brightness setting when powered off and on.
- Canvia la temperatura del color: Tap the color temperature icon to cycle through Warm White (2700K), Natural White (4000K), and Cool White (6500K) modes.

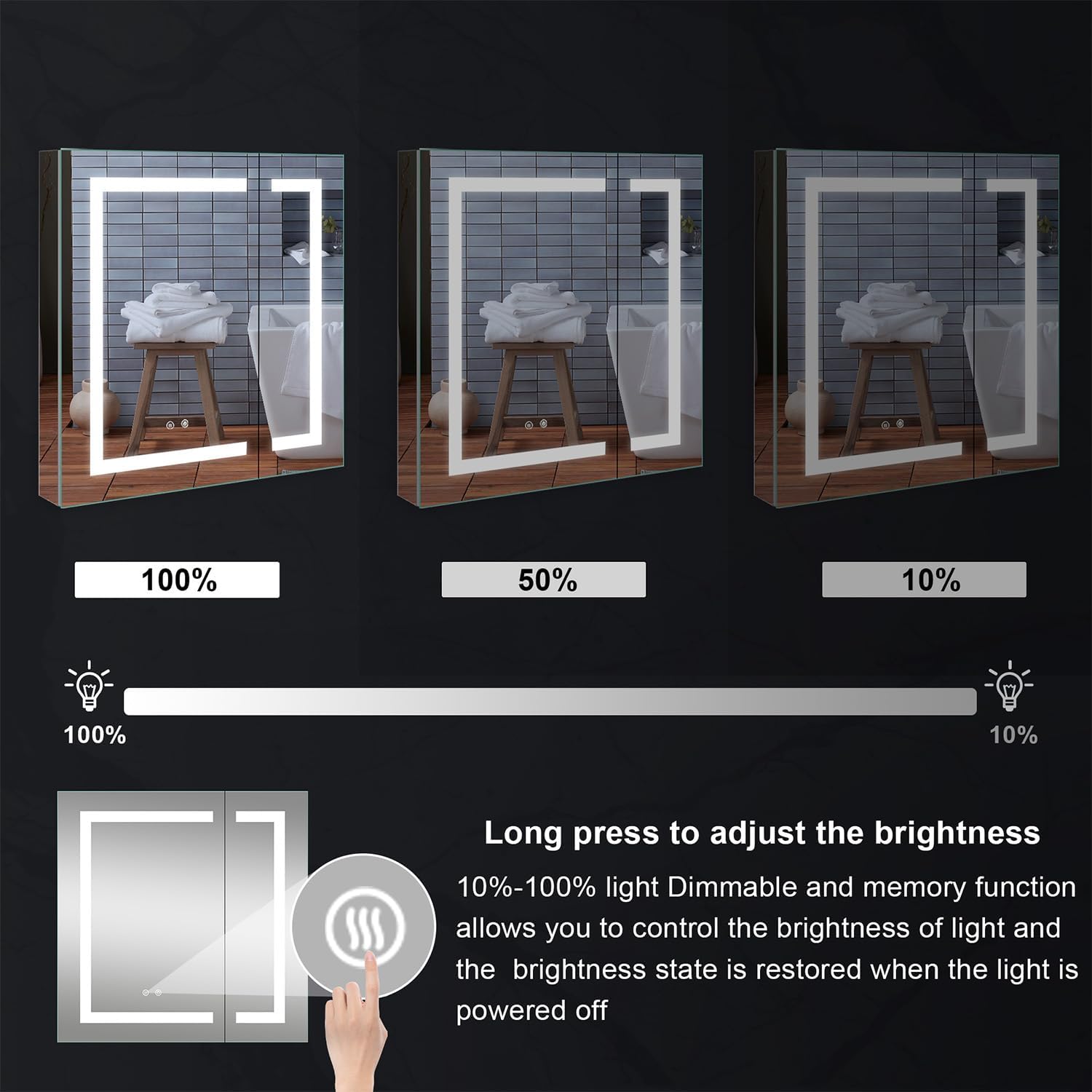

Image 6.2: Brightness adjustment from 10% to 100% with memory function.
Image 6.3: Continuously variable light color temperature from 2700K to 6500K.
Image 6.4: Different color temperature options for the LED lighting.
6.2 Defog Mirror Function
The high-tech anti-fog pad provides efficient defogging. The defogger function is controlled separately for energy saving.
- Activate Defogger: Tap the defogger icon on the mirror surface to activate the anti-fog function.
- Apagat automàtic: The defogger will automatically shut off after 1 hour to conserve energy.
Image 6.5: Defogger control and energy-saving automatic shut-off.
Image 6.6: Demonstration of the intelligent anti-fog function.
6.3 Interior Outlets and USB Ports
The cabinet is equipped with two 15 AMP 110V AC outlets and two 4.2 AMP 5V DC USB ports inside, providing convenient power for various bathroom accessories.
- Use the AC outlets for electric razors, hair dryers, or other small appliances.
- Use the USB ports for charging smartphones, electric toothbrushes, or other USB-powered devices.
Image 6.7: Interior outlets and USB ports for charging and powering devices.
6.4 Soft-Close Door Hinges
The cabinet doors are fitted with Austria BLUM soft-close hinges, ensuring quiet and gentle closing. These hinges are 3-dimension adjustable and offer a 110-degree opening capability for easy access.
7. Manteniment
Regular cleaning and proper care will ensure the longevity and optimal performance of your WELLFOR LED Mirrored Cabinet.
- Neteja de miralls: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the edges.
- Neteja d'armaris: Netegeu les superfícies exteriors i interiors amb un drap suau iamp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the finish.
- Components elèctrics: Ensure the cabinet is unplugged or power is off at the circuit breaker before cleaning near any electrical components. Do not spray water directly onto outlets or wiring.
- Manteniment de les frontisses: Periodically check hinges for smooth operation. No lubrication is typically required for soft-close hinges.
8. Solució De Problemes
If you encounter any issues with your cabinet, refer to the following common troubleshooting steps:
- Els llums no funcionen:
- Comproveu si la font d'alimentació està connectada i si l'interruptor està activat.
- Ensure the touch sensor is clean and unobstructed.
- If hardwired, verify all electrical connections are secure.
- El desembussador no s'activa:
- Confirm the defogger touch sensor is activated.
- Allow a few minutes for the defogger to warm up and become effective.
- Doors Not Closing Softly:
- Check for any obstructions in the hinge mechanism or door path.
- Ensure the hinges are properly adjusted. Refer to a professional if adjustment is needed.
- Outlets/USB Ports Not Functioning:
- Verify the main power to the cabinet is on.
- Prova amb un altre dispositiu per descartar un mal funcionament del dispositiu.
For issues not resolved by these steps, please contact WELLFOR customer support.
9. Garantia i Suport
WELLFOR products are manufactured with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your purchase or visit the official WELLFOR weblloc.
For technical assistance, replacement parts, or any other inquiries, please contact WELLFOR customer support. When contacting support, please have your model number (W3MCL3630) and purchase information readily available.
Visita el WELLFOR Store per a més informació i ofertes de productes.
