GOWENIC Shortkiller Short Circuit Detection Box User Manual

1. Introducció

The GOWENIC Shortkiller is a specialized tool designed for the precise detection and repair of short circuits on mobile phone and computer motherboards. It assists technicians in quickly identifying fault points by evaluating current flow, enabling efficient and accurate repairs. This device features real-time current and voltage display, along with multiple protection functions.

2. Informació de seguretat

Please read all safety instructions carefully before using the GOWENIC Shortkiller. Failure to follow these instructions may result in electric shock, fire, or damage to the device or components.

• Equips de protecció individual: Always wear appropriate personal protective equipment (PPE), such as safety glasses, to protect against potential hazards.
• Desconnexió d'alimentació: Ensure the device is disconnected from the power source before performing any maintenance or adjustments.
• Condicions ambientals: No utilitzeu el dispositiu en mullat o damp conditions. Avoid exposure to liquids.
• Children and Unauthorized Users: Keep the device out of reach of children and individuals not trained in its use.
• Sortida de corrent alta: This device can output current up to 30A. Exercise extreme caution to avoid electric shock or damage to sensitive electronic components.
• Ventilació: Ensure adequate ventilation when operating the device, as short circuits can generate heat.
• Ús adequat: Use the device only for its intended purpose of short circuit detection and repair on electronic motherboards.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• GOWENIC Shortkiller Main Unit
• Power Cord (US Plug)
• Test Leads (Red Probe, Black Alligator Clip)

Image: Contents of the GOWENIC Shortkiller package, including the main unit, power cord, and test leads.

4. Producte acabatview

The GOWENIC Shortkiller consists of a main unit and detachable test leads. Familiarize yourself with its components:

• Unitat principal: A compact black rectangular box housing the control circuitry and display.
• Pantalles digitals: Two LED displays show real-time current (A) and voltage (V) readings.
• Test Lead Port: A circular connector on the front panel for attaching the test leads.
• Voltage Adjustment Buttons: 'V+' and 'V-' buttons allow for precise voltage control.
• Interruptor d'alimentació: Located on the side or rear of the unit to power the device on/off.
• Cables de prova: Comprise a red probe with a sharp needle tip for precise contact and a black lead with an alligator clip for grounding.

Imatge: Primer pla view of the Shortkiller's front panel, showing the digital current (A) and voltage (V) displays, the test lead connection port, and voltage adjustment buttons.

Image: The Shortkiller unit showing its digital displays for current and voltage in operation.

5. Configuració

Follow these steps to set up your GOWENIC Shortkiller:

1. Connectar l'alimentació: Plug the provided power cord into the power input port on the Shortkiller main unit, then connect the other end to a standard AC 100-240V power outlet.
2. Attach Test Leads: Connect the test leads to the circular port on the front panel of the Shortkiller. Ensure a secure connection.
3. Encès: Flip the power switch (usually located on the side or rear) to the 'ON' position. The digital displays should illuminate.

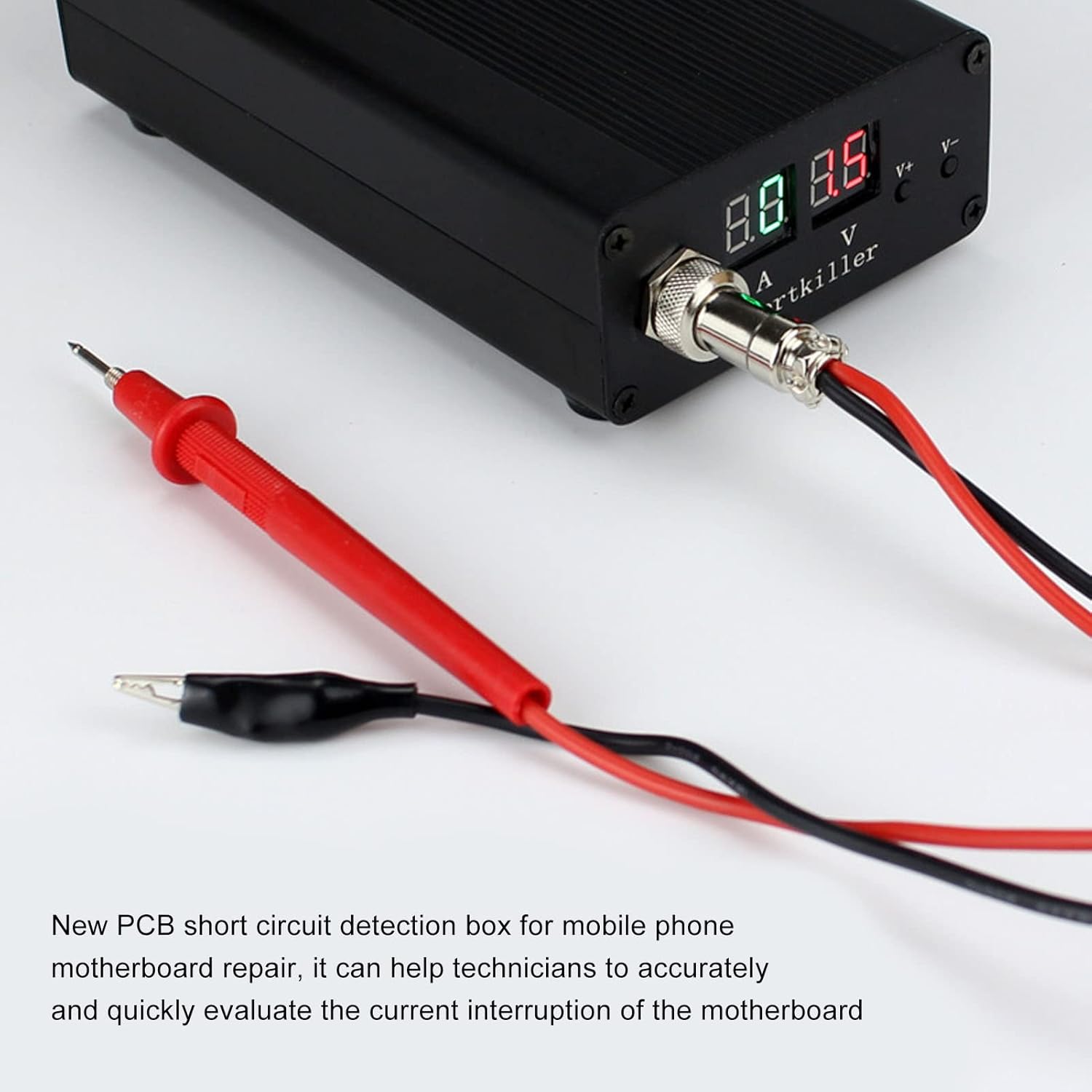

Image: The GOWENIC Shortkiller unit with the test leads properly connected to the front panel.

6. Instruccions de funcionament

The GOWENIC Shortkiller is designed for efficient short circuit detection on electronic motherboards. Always proceed with caution.

1. Prepara la placa base: Ensure the motherboard to be tested is clean, dry, and disconnected from any power source or battery.
2. Connectar a terra: Attach the black alligator clip of the test lead to a known ground point on the motherboard.
3. Ajust Voltage: Use the 'V+' and 'V-' buttons on the Shortkiller to set the desired output voltage. Start with a low voltage and gradually increase if necessary.
4. Probe Suspected Area: Carefully touch the red needle probe to the suspected shorted areas on the motherboard.
5. Observeu les lectures: Monitor the current (A) and voltage (V) displays. A sudden increase in current indicates a short circuit.
6. Locate Fault: The device will help locate the short circuit by causing the fault point to heat up or, in some cases, burn out the faulty component. Use thermal imaging or careful touch (with insulated tools) to pinpoint the exact location.
7. Desconnectar: Once the short is identified or repaired, power off the Shortkiller and disconnect the test leads from the motherboard.

Image: The GOWENIC Shortkiller actively being used to probe a mobile phone motherboard, with the digital display showing readings.

Image: A close-up of the red probe making contact with a component on a motherboard during short circuit detection.

7. Especificacions

Image: Diagram illustrating the dimensions of the GOWENIC Shortkiller unit and the lengths of its power cord and test leads.

8. Solució De Problemes

If you encounter issues with your GOWENIC Shortkiller, refer to the following common problems and solutions:

• El dispositiu no s'encén:
  • Check that the power cord is securely connected to both the Shortkiller and the power outlet.
  • Assegureu-vos que l'interruptor d'alimentació estigui a la posició "ON".
  • Comproveu que la presa de corrent funcioni.
• No Current Reading / Inaccurate Readings:
  • Ensure the test leads are securely connected to the Shortkiller unit.
  • Confirm that the black alligator clip has good contact with the motherboard's ground.
  • Check that the red probe is making firm contact with the circuit point being tested.
  • Inspect test leads for any visible damage or breaks.
• Overheating / Overcurrent Protection Triggered:
  • The device has built-in protection mechanisms. If triggered, disconnect the test leads immediately.
  • Deixeu que el dispositiu es refredi.
  • Re-evaluate the circuit for severe short circuits or incorrect voltage settings before resuming operation.

9. Manteniment

Proper maintenance ensures the longevity and reliable operation of your GOWENIC Shortkiller:

• Neteja: Keep the device clean and dry. Use a soft, dry cloth to wipe the exterior. Avoid using abrasive cleaners or solvents.
• Emmagatzematge: Store the Shortkiller in a cool, dry place away from direct sunlight and extreme temperatures.
• Inspecció de cables de prova: Regularly inspect the test leads for any signs of wear, cuts, or damage to the insulation. Replace damaged leads immediately to prevent electrical hazards.
• Consell de la sonda: Ensure the red probe tip remains sharp and clean for effective contact.

10. Garantia i Suport

For specific warranty information, technical assistance, or customer support regarding your GOWENIC Shortkiller, please refer to the documentation provided with your purchase or contact GOWENIC customer service directly through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
