Xiaomi L55M6-6AEU Main Board Instruction Manual

1. Introducció

This manual provides essential information for the proper handling, installation, and understanding of the Xiaomi L55M6-6AEU Main Board. This component is designed as a replacement or repair part for compatible electronic devices, typically smart televisions. Please read this manual thoroughly before attempting any installation or repair procedures.

2. Informació de seguretat

• Instal·lació professional recomanada: Installation of this main board requires technical expertise and should ideally be performed by a qualified technician. Improper installation can lead to damage to the board, the device, or personal injury.
• Desconnecteu l'alimentació: Always ensure the device is completely disconnected from the power source before beginning any installation or repair work.
• Precaucions de descàrrega electrostàtica (ESD): Electronic components are sensitive to static electricity. Use an anti-static wrist strap and work on an anti-static mat to prevent ESD damage.
• Manejar amb cura: Avoid touching the integrated circuits and connectors directly. Hold the board by its edges.
• Ventilació: Ensure adequate ventilation around the device after installation to prevent overheating.

3. Producte acabatview

The Xiaomi L55M6-6AEU Main Board serves as the central processing unit for compatible devices, managing all input/output operations, video processing, and system control. It integrates various components necessary for the device's functionality.

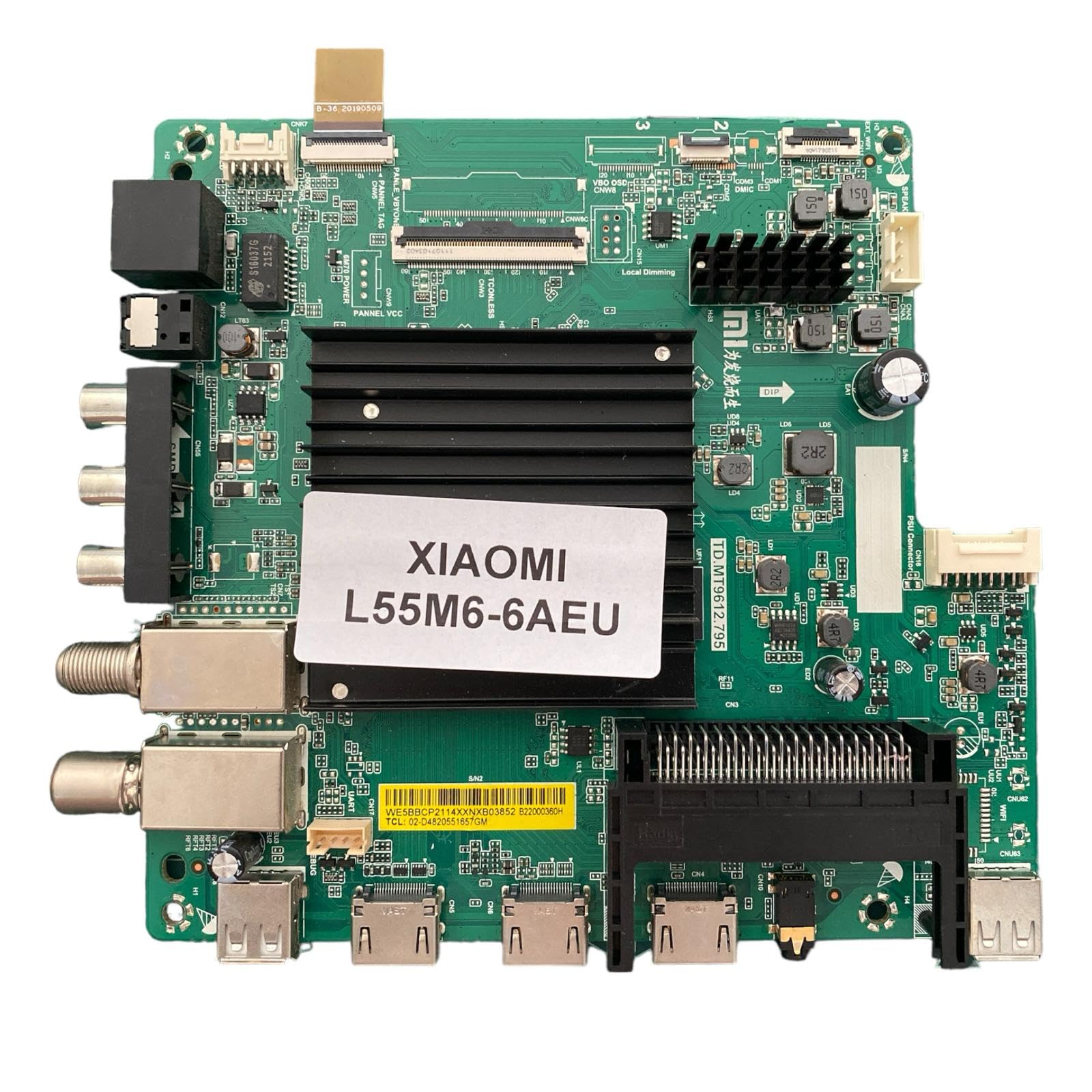

Image 3.1: Xiaomi L55M6-6AEU Main Board. This image displays the Xiaomi L55M6-6AEU main board, a critical component for compatible devices. It features multiple input/output ports, including HDMI, USB, and antenna connectors, along with various integrated circuits and heat sinks. A label clearly identifies it as 'XIAOMI L55M6-6AEU'.

Key features visible on the board include:

• Ports d'entrada/sortida: Multiple HDMI ports, USB ports, and coaxial antenna inputs for connectivity.
• Processor Area: A large heatsink covers the main processor, indicating its role in high-performance operations.
• Connectors: Various connectors for internal components such as the display panel (VBYONE, PANNEL TAG), power supply (PSU Connector), and other modules (e.g., Wi-Fi, speakers).
• Circuits integrats: Numerous smaller chips and components facilitate various functions, including power regulation and signal processing.

4. Configuració i instal·lació

This section outlines general steps for installing the main board. Specific procedures may vary depending on the device model. Always refer to the service manual of your specific device for detailed instructions.

1. Preparació: Ensure the device is unplugged from all power sources. Place the device on a clean, flat, anti-static surface.
2. Access the Main Board: Carefully remove the back cover or casing of the device to gain access to the existing main board. Document cable connections with photos if necessary.
3. Desconnexió de cables: Gently disconnect all cables connected to the old main board, including power, display, and input/output cables.
4. Treure la placa antiga: Unscrew any fasteners securing the old main board and carefully lift it out of the chassis.
5. Instal·lar la placa nova: Position the new Xiaomi L55M6-6AEU Main Board into the chassis, ensuring it aligns correctly with mounting points. Secure it with the appropriate screws.
6. Torneu a connectar els cables: Reconnect all cables to their corresponding ports on the new main board. Double-check each connection for proper seating.
7. Prova inicial: Before fully reassembling the device, connect it to power and perform a basic functional test to ensure the board is operating correctly.
8. Remuntatge: Once functionality is confirmed, carefully reattach the device's casing and secure all screws.

5. Principis de funcionament

As an internal component, the Xiaomi L55M6-6AEU Main Board does not have direct user-operable controls. Its operation is integral to the functionality of the host device. Once installed and powered, the main board performs the following core functions:

• Processament del senyal: Receives and processes audio and video signals from various input sources (HDMI, USB, antenna).
• Control del sistema: Manages the device's operating system, user interface, and application execution.
• Sortida de visualització: Generates and sends video signals to the display panel.
• Connectivity Management: Handles network connections (wired/wireless) and peripheral device communication.

6. Manteniment

The Xiaomi L55M6-6AEU Main Board is designed for long-term reliability and typically requires no routine user maintenance. To ensure its longevity and optimal performance:

• Mantenir sec: Protect the device from moisture and liquids, which can cause short circuits and corrosion.
• Avoid Dust Accumulation: Excessive dust can impede heat dissipation and potentially lead to component failure. Ensure the device's ventilation openings are clear.
• Ventilació adequada: Operate the device in a well-ventilated area to prevent overheating of internal components.
• Sense peces reparables per l'usuari: The main board contains no user-serviceable parts. Do not attempt to repair or modify the board yourself.

7. Solució De Problemes

If the device experiences issues after main board installation, consider the following general troubleshooting steps. For complex problems, professional diagnosis is recommended.

• Sense energia: Ensure all power cables are securely connected, both internally to the main board and externally to the power outlet. Verify the power supply unit is functioning.
• No Display/Picture: Check the display panel cable connection to the main board. Ensure the display panel itself is functional.
• Sense so: Verify speaker connections to the main board. Test with different audio sources.
• Input Issues: If specific inputs (e.g., HDMI, USB) are not working, check the physical connection and try different cables or devices.
• Intermittent Problems: Loose connections can cause intermittent issues. Recheck all internal cable connections.
• Errors de programari: If the device powers on but exhibits unusual behavior, a factory reset (if accessible) or firmware reinstallation might be necessary. Consult the device's specific manual for these procedures.

8. Especificacions

9. Garantia i Suport

Specific warranty information for the Xiaomi L55M6-6AEU Main Board is not provided in the product details. For warranty claims, technical support, or inquiries regarding spare parts and software updates, please contact the original seller or the manufacturer directly. It is advisable to retain your proof of purchase for any support requests.
