1. Producte acabatview
Thank you for choosing the Midea 10 kg Top Load Washing Machine, Model MA200W100/W-SA. This appliance is designed to provide efficient and convenient laundry care for your home. Featuring a generous 10 kg capacity and intuitive touch controls, it simplifies your washing routine. Please read this manual thoroughly before operating your new washing machine to ensure safe and optimal performance.
Figura 1: Angle view of the Midea 10 kg Top Load Washing Machine.
2. Configuració i instal·lació
Una instal·lació correcta és crucial per al funcionament segur i eficient de la rentadora.
2.1 Desembalatge
- Carefully remove all packaging materials, including the base packaging and any protective foam.
- Inspect the washing machine for any signs of damage during transit. If damaged, do not proceed with installation and contact customer support.
2.2 Requisits d'ubicació
- Col·loqueu la rentadora sobre una superfície ferma i anivellada per minimitzar les vibracions i el soroll durant el funcionament.
- Assegureu-vos que hi hagi prou espai al voltant de la màquina per a la ventilació i el manteniment.
- The location must have access to a water supply (hot and cold, if applicable), a drain, and a grounded electrical outlet (220 Volts).
2.3 Anivellament de la màquina
The Midea washing machine is equipped with adjustable leveling legs.
- Tilt the machine slightly and adjust the front leveling legs by turning them clockwise or counter-clockwise until the machine is stable.
- Use a spirit level to ensure the machine is perfectly level from front to back and side to side.
- Tighten the lock nuts on the leveling legs to secure them in place.
2.4 Connexió de les mànegues d'aigua i desguàs
- Connect the water inlet hoses to the corresponding hot and cold water faucets (if applicable) and to the inlet valves on the back of the washing machine. Ensure connections are tight to prevent leaks.
- Col·loqueu la mànega de desguàs de manera segura en un tub vertical o en una tina de rentat, assegurant-vos que no estigui doblegada ni bloquejada.
2.5 Connexió elèctrica
- Plug the power cord into a grounded 220 Volt electrical outlet. Do not use extension cords or adapters.

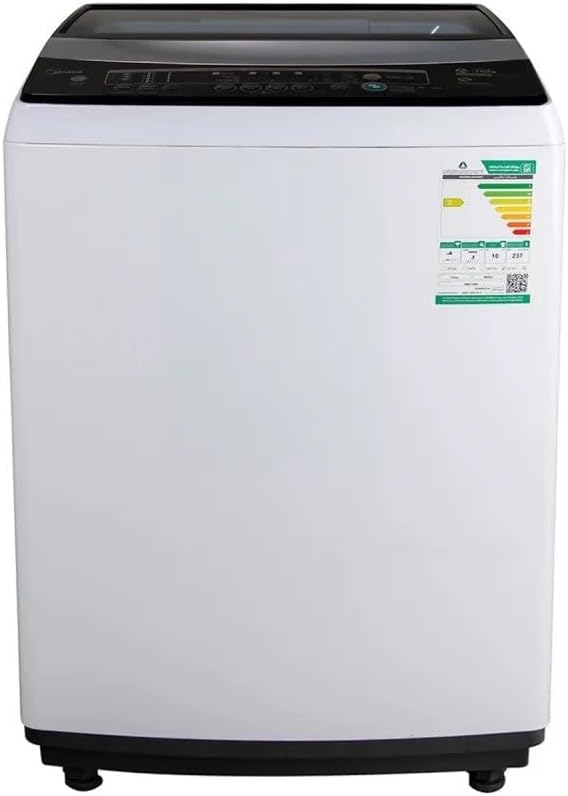

Figura 2: Frontal view of the Midea 10 kg Top Load Washing Machine with control panel.
3. Instruccions de funcionament
Follow these steps for optimal washing performance.
3.1 Tauler de control acabatview
The Midea MA200W100/W-SA features a user-friendly touch control panel. Familiarize yourself with the various buttons and indicators before use.
3.2 Càrrega de la roba
- Ordena la roba per tipus de teixit, color i nivell de sòl.
- Open the top lid and load items loosely into the drum, ensuring not to overload the 10 kg capacity. Overloading can reduce washing efficiency and damage the machine.
- Tanqueu la tapa amb seguretat.
Figura 3: superior view of the Midea 10 kg Top Load Washing Machine with lid open.
3.3 Afegir detergent i suavitzant
- Add the appropriate amount of detergent to the detergent dispenser. Refer to your detergent's instructions for dosage.
- Pour fabric softener into the designated softener compartment (if available).
3.4 Selecció d'un programa de rentat
- Premeu el botó d'engegada per encendre la màquina.
- Use the program selection buttons on the touch control panel to choose the desired wash cycle. The machine offers various standard cycles.
- Adjust additional settings such as water level, temperature, or spin speed (up to 1500 RPM) if available and desired.
3.5 Inici i pausa d'un cicle
- Premeu el botó Inici/Pausa per iniciar el cicle de rentat.
- Per pausar un cicle, premeu de nou el botó Inici/Pausa. Premeu-lo una vegada més per reprendre'l.
- The machine will automatically proceed through the wash, rinse, and spin phases.
3.6 Fi de cicle
Once the cycle is complete, the machine will signal with an audible alert. Remove laundry promptly to prevent wrinkles and odors.
4. Manteniment
Regular maintenance helps prolong the life of your washing machine and ensures optimal performance. Always unplug the machine before performing any cleaning or maintenance.
4.1 Neteja de l'exterior
- Netegeu les superfícies exteriors amb un damp tela.
- Avoid using abrasive cleaners, solvents, or harsh chemicals that could damage the finish.
4.2 Neteja del dispensador de detergent
- Periodically remove and clean the detergent and softener dispenser compartments to prevent residue buildup. Rinse with warm water and dry thoroughly before reinserting.
4.3 Neteja del tambor
- Run a "Tub Clean" or "Self Clean" cycle (if available) regularly to remove detergent residue and odors from the drum.
- Alternatively, run an empty cycle with hot water and a cup of white vinegar or a washing machine cleaner.
- Deixeu la tapa lleugerament entreoberta després d'usar-la per permetre que el bidó s'assequi a l'aire i evitar que es formi floridura.
4.4 Water Inlet Filter Cleaning
- If you notice reduced water flow, the inlet filters may be clogged. Turn off the water supply and disconnect the inlet hoses.
- Remove the mesh filters from the inlet valves and clean them under running water with a brush. Reinstall and reconnect hoses.
5. Solució De Problemes
Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes comuns i les seves solucions.
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no arrenca | Cable d'alimentació desconnectat; Tapa no tancada correctament; Apagadatage. | Ensure power cord is securely plugged in; Close the lid completely; Check household circuit breaker. |
| Sense farciment d'aigua | Water supply turned off; Water inlet hoses kinked; Inlet filters clogged. | Turn on water supply; Straighten hoses; Clean inlet filters (refer to Maintenance section). |
| Machine vibrates excessively or is noisy | Màquina no anivellada; Cargols d'enviament no retirats; Càrrega sobrecarregada o desequilibrada. | Adjust leveling legs; Ensure all shipping bolts are removed; Redistribute laundry evenly in the drum. |
| L'aigua no drena | Mànega de desguàs doblegada o bloquejada; filtre de la bomba de desguàs obstruït. | Check and straighten drain hose; Clean drain pump filter (refer to manual for location, if applicable). |
| Clothes are still wet after spin cycle | Load unbalanced; Spin speed too low; Overloaded. | Redistribute load; Select a higher spin speed; Reduce load size. |
If the problem persists after trying these solutions, please contact Midea customer support.
6. Especificacions
| Marca | Midea |
| Informació del model | MA200W100/W-SA |
| Dimensions del producte | 22.83 x 38.11 x 23.46 cm (P x A x A) |
| Pes de l'article | 45 kg |
| Capacitat | 10 quilos |
| Consum d'energia anual ponderat | 191 quilowatts hora per any |
| Consum anual d'energia | 255 watts |
| Velocitat màxima de gir | 1500 RPM |
| Nivell de soroll | 30 dB |
| Tipus d'instal·lació | Autònom |
| Color | Blanc |
| Consola de control | Toca |
| Cicles estàndard | 60 |
| Localització d'accés | Càrrega superior |
| Voltage | 220 Volts |
| Tipus de material | Plàstic |
| Característiques especials | Potes d'anivellament ajustables |
7. Informació de la garantia
Your Midea 10 kg Top Load Washing Machine comes with a standard 2 anys de garantia des de la data de compra, cobrint defectes de fabricació i avaries en condicions d'ús normal.
Plans de protecció ampliats
For additional peace of mind, the following protection plans are available for purchase:
- 1-Year Extended Warranty by Tawuniya: Provides an additional year of warranty coverage.
- 1 Year Accidental Damage Protection Plan: Covers accidental damage for one year.
- 2 Years Accidental Damage Protection Plan: Covers accidental damage for two years.
Please refer to the specific terms and conditions of each protection plan for full details on coverage and exclusions.
8. Atenció al client
For installation services, technical assistance, or any inquiries regarding your Midea washing machine, please contact the Midea customer support team at the following regional numbers:
- Riad: +966-11-4094006 Ext. – 113
- Jeddah: +966-12-6577714
- Dammam: +966-13-8343691
- Qassim: +966 581044198
- Abha: +966 593322785
Please have your model number (MA200W100/W-SA) and purchase details ready when contacting support.
