1. Introducció
This manual provides essential information for the safe and effective operation, setup, and maintenance of your ARCCAPTAIN MIG200 6-in-1 Synergic MIG Welder. The MIG200 is a versatile inverter-based welding machine designed for various welding processes, including Flux-Cored Arc Welding (FCAW), Gas Metal Arc Welding (GMAW) in MIG and MAG modes, Shielded Metal Arc Welding (SMAW) or MMA (E-Hand), Lift TIG, and Spot Welding. It features synergic control for simplified parameter adjustment and IGBT technology for stable performance.
2. Informació de seguretat
ADVERTÈNCIA: La soldadura pot ser perillosa. Seguiu sempre les precaucions de seguretat per evitar lesions o la mort.
- Descàrrega elèctrica: Can kill. Ensure proper grounding. Do not touch live electrical parts. Wear dry welding gloves and protective clothing.
- Fums i gasos: Pot ser perillós per a la salut. Mantingueu el cap allunyat dels fums. Utilitzeu la ventilació o l'extracció per eliminar els fums de la zona de respiració.
- Raigs d'arc: Can burn eyes and skin. Wear a welding helmet with a proper shade filter. Wear appropriate eye protection and protective clothing.
- Incendi i explosió: Les espurnes de soldadura poden causar incendis o explosions. Mantingueu els materials inflamables allunyats de la zona de soldadura. Tingueu a mà un extintor.
- Parts calentes: Can cause severe burns. Allow equipment to cool before touching.
- Soroll: El soroll excessiu pot danyar l'oïda. Feu servir protecció auditiva.
Always read and understand the entire manual before operating the equipment. Consult a qualified professional if you have any doubts about safety procedures.
3. Producte acabatview
The ARCCAPTAIN MIG200 is a compact and powerful welding machine offering multiple welding processes. Its intuitive LED display and synergic control simplify operation, making it suitable for both experienced welders and beginners.
3.1 Característiques clau
- Modes de soldadura 6 en 1: Supports Flux-Cored (Gasless MIG), Gas MIG, MAG, MMA (Stick), Lift TIG, and Spot Welding.
- Control sinèrgic: Automatically adjusts wire feed speed based on selected wire diameter, gas type, and material, simplifying setup.
- Tecnologia d'inversor IGBT: Provides stable arc, high efficiency, and reliable performance.
- Pantalla LED fàcil d'usar: Clear interface for easy mode selection and parameter adjustment.
- Advanced MIG Settings: Includes adaptive crater, burn-back adjustment, and pre/post-flow control.
- Funcionalitat 2T/4T: Offers flexibility for different welding tasks.

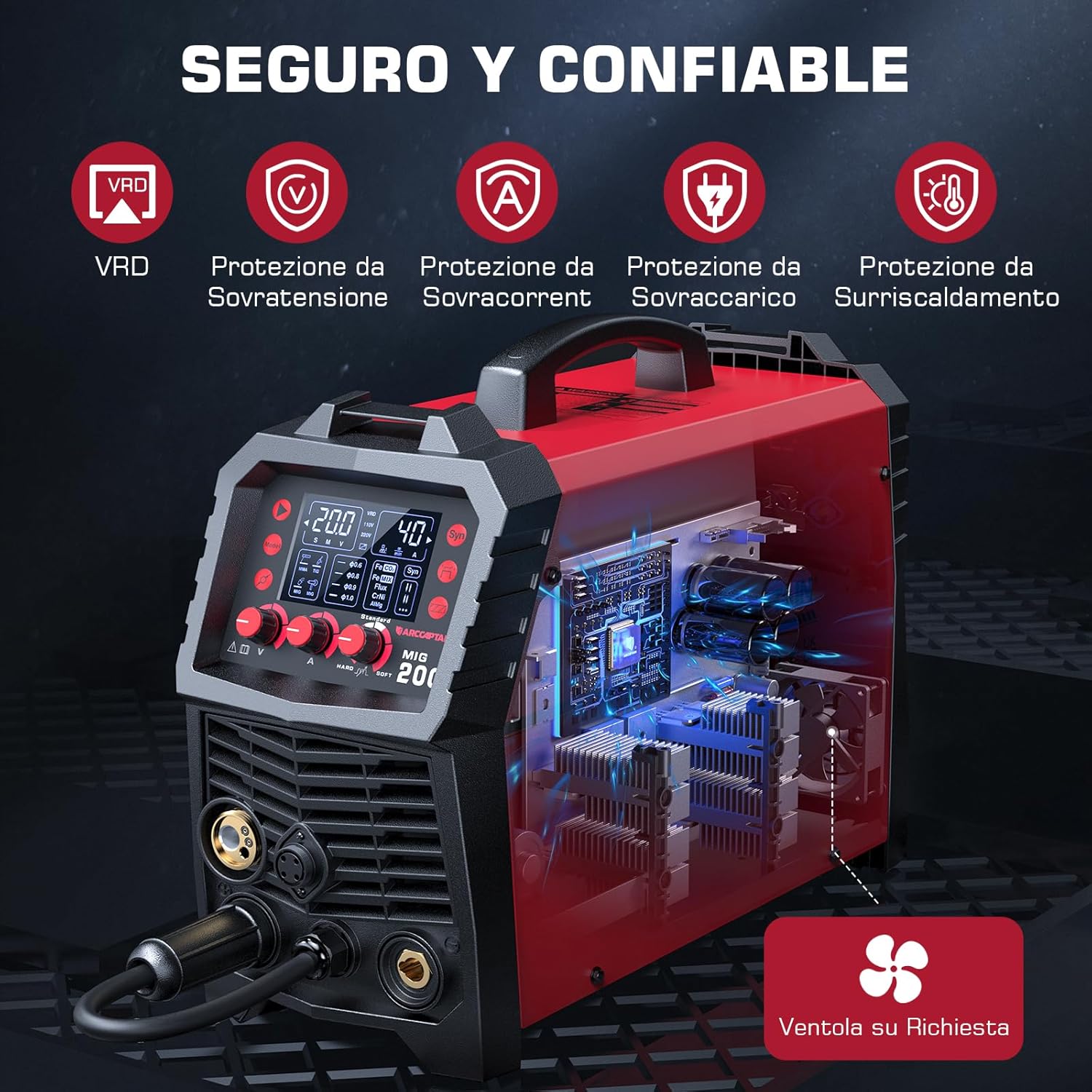

- Proteccions de seguretat: Equipped with VRD, over-voltage, over-current, overload, and over-heating protection.
3.2 Components i accessoris
4. Configuració
4.1 Desembalatge i inspecció
Carefully remove the welder and all accessories from the packaging. Inspect for any shipping damage. Report any damage to your supplier immediately.
4.2 Connexió d'alimentació
Ensure the power supply matches the welder's requirements (230V). Connect the power cord to a properly grounded outlet. The machine is equipped with VRD (Voltage Reduction Device) for enhanced safety.
4.3 Instal·lació de la bobina de filferro
The MIG200 is compatible with D100 (2 lb) and D200 (10 lb) wire spools.
- Obriu el compartiment de la bobina de filferro.
- Col·loqueu el carret de filferro al portacarrets, assegurant-vos que giri lliurement.
- Secure the spool with the retaining nut.
- Feed the wire through the guide tube and into the drive roller mechanism.
- Close the drive roller tension arm and adjust tension appropriately for the wire type.
4.4 Gas Connection (for Gas MIG/MAG)
For Gas MIG/MAG welding, connect the gas hose from your shielding gas cylinder (e.g., CO2, Argon/CO2 mix) to the gas inlet on the rear of the welder. Ensure all connections are secure and leak-free.
4.5 Polarity Settings
Correct polarity is crucial for different welding processes and wire types. Refer to the setup guide table for specific configurations.
DCEN - No Gas: For Flux-Cored (FCAW) welding. Connect the MIG torch to the negative (-) terminal and the ground clamp al terminal positiu (+).
DCEP - Gas: For Gas MIG/MAG (GMAW) welding. Connect the MIG torch to the positive (+) terminal and the ground clamp al terminal negatiu (-).
5. Instruccions de funcionament
5.1 Tauler de control acabatview

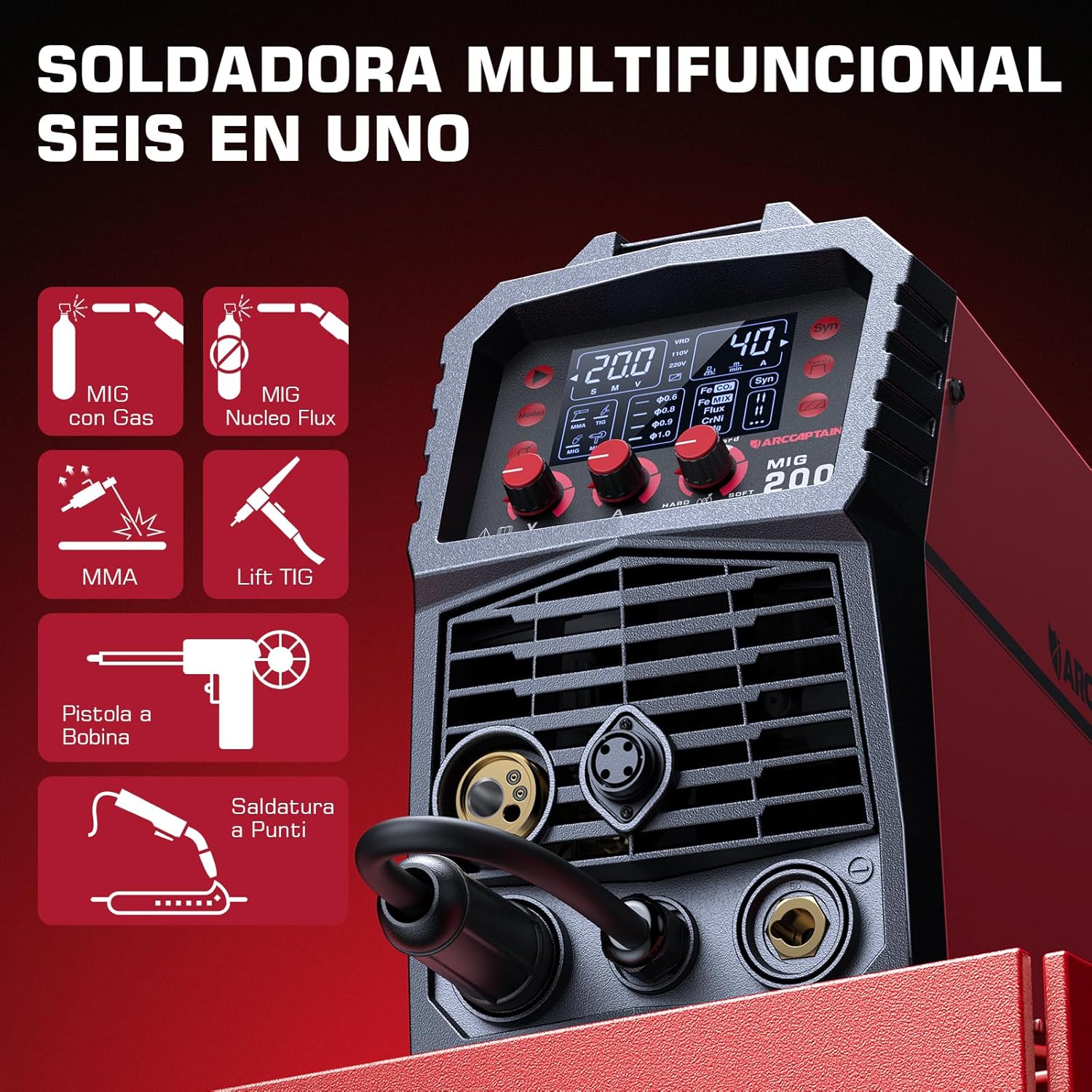

The ARCCAPTAIN MIG200 features an intuitive control panel with an LED display and rotary knobs for precise adjustments.
5.2 Selecció del mode de soldadura
Press the 'Mode' button (2) to cycle through the available welding processes: MMA, TIG, MIG (Gas), and MIG (Flux-Cored).
5.3 Synergic Control
In MIG/MAG modes, activate the 'Syn' button (7) for synergic control. This feature automatically sets the optimal wire feed speed based on your selected wire diameter (3), gas type, and material (9). You can fine-tune the welding current using knob (5) and voltage using knob (4) as needed.
5.4 Funció 2T/4T
The 2T/4T button (8) allows selection between two-stroke and four-stroke trigger operation. 2T (Two-Stroke) is standard: press and hold the trigger to weld, release to stop. 4T (Four-Stroke) is for longer welds: press and release to start, press and release again to stop, reducing finger fatigue.
5.5 Ajust de paràmetres
Use the dedicated knobs and buttons on the control panel to adjust parameters such as:
- Current/Wire Feed Speed (Knob 5): Adjusts the welding current and corresponding wire feed speed (in synergic mode).
- Voltage (Knob 4): Fine-tunes the arc voltage.
- Inductance (Button 6): Controls the arc stiffness and puddle fluidity.
5.6 General Welding Procedure
- Assegureu-vos d'utilitzar tot l'equip de seguretat.
- Prepare the workpiece: clean off rust, paint, and grease.
- Connecteu la terra clamp de manera segura a la peça de treball.
- Select the appropriate welding mode and parameters.
- Initiate the arc and begin welding, maintaining a consistent travel speed and arc length.
- Allow the workpiece to cool before handling.
6. Manteniment
Regular maintenance ensures the longevity and optimal performance of your ARCCAPTAIN MIG200 welder.
- Neteja: Periodically clean the internal components using dry compressed air to remove dust and metal particles. Ensure the machine is unplugged before cleaning.
- Inspecció de torxes i cables: Regularly inspect the MIG torch, electrode holder, ground clamp, and all cables for wear, damage, or loose connections. Replace damaged parts immediately.
- Drive Rollers: Clean the drive rollers and wire guide to prevent wire feeding issues. Ensure the correct drive roller size is used for your wire diameter.
- Nozzle and Contact Tip: For MIG welding, regularly clean or replace the nozzle and contact tip to ensure proper gas flow and arc stability.
- Emmagatzematge: Guardeu el soldador en un entorn net i sec, protegit de la pols i la humitat.
7. Solució De Problemes
Aquesta secció tracta els problemes habituals que podeu trobar durant el funcionament.
| Problema | Causa possible | Solució |
|---|---|---|
| Sense poder | Power cord unplugged, circuit breaker tripped, machine fault | Check power connection, reset breaker, contact support if fault persists |
| Sense arc | Poor ground connection, incorrect settings, worn contact tip, no wire feed | Assegureu-vos que el terra estigui netamp is secure, verify settings, replace contact tip, check wire feed system |
| Mala qualitat de soldadura | Incorrect parameters, improper technique, contaminated workpiece, insufficient gas flow | Ajusta el corrent/volumtage/WFS, refine technique, clean workpiece, check gas supply/flow rate |
| Problemes d'alimentació de filferro | Incorrect drive roller tension, wrong drive roller size, tangled wire, clogged liner | Adjust tension, use correct rollers, untangle wire, clean/replace liner |
| Sobreescalfament | Exceeding duty cycle, blocked ventilation | Allow machine to cool, ensure clear airflow around vents |
For issues not listed here or if problems persist, please contact ARCCAPTAIN customer support.
8. Especificacions
The following table outlines the technical specifications for the ARCCAPTAIN MIG200 welder.
| Característica | Especificació |
|---|---|
| Número de model | MIG200 |
| Fabricant | ARCCAPTAIN |
| Entrada Voltage | 230 V |
| Corrent de sortida màx | 200A |
| Processos de soldadura | Flux-Cored (FCAW), MIG (GMAW), MAG, MMA (E-Hand), Lift TIG, Spot Welding |
| Tecnologia | Inversor IGBT |
| Wire Diameter Compatibility | Ø0.6/0.8/0.9/1.0 mm |
| Spool Size Compatibility | D100 (2 lb), D200 (10 lb) |
| Dimensions (L x A x A) | 22.86 x 15.24 x 17.78 cm (aprox. 9 x 6 x 7 polzades) |
| Pes | 14.27 kg (aprox. 31.46 lliures) |
| Material | Metall |
| Certificacions | TÜV, CSA Witness Laboratory tested |
9. Garantia i Suport
ARCCAPTAIN provides a 2-year quality service for the MIG200 welder, ensuring high-quality components and maximum stability. The product has undergone professional laboratory tests including vibration, drop, waterproof, and metal dust tests.
For technical assistance, warranty claims, or any questions regarding your ARCCAPTAIN MIG200 welder, please contact ARCCAPTAIN customer support through the official weblloc web o la vostra plataforma de compra.
Recursos en línia: Visit the official ARCCAPTAIN weblloc web per obtenir informació addicional sobre el producte, preguntes freqüents i recursos d'assistència.
