HiQuick SW-8N 8-Bay Smart Battery Charger and 1100mAh AAA Ni-MH Rechargeable Batteries User Manual

1. Introducció

Thank you for choosing the HiQuick SW-8N 8-Bay Smart Battery Charger. This manual provides essential information for the safe and efficient operation of your new charger and rechargeable batteries. Please read these instructions carefully before use and retain for future reference.

2. Característiques del producte

Independent Charging Function: Charges 1-8 NiMH/NiCD AA/AAA batteries independently.
Indicadors LED intel·ligents: LED screen displays the charging process and status for each battery.
Càrrega ràpida: Equipped with a 5V 2A Type-C high-current charging port for quick charging.
Multiple Intelligent Protection: Features overcharge, overcurrent, overvoltage, overheating, and short-circuit protection.
Low Self-Discharge Performance: HiQuick 1.2V AAA Ni-MH batteries retain 80% capacity after 36 months of non-use.
Cicle de vida llarg: Rechargeable AAA batteries are designed for up to 1200 charging cycles.
Compatibilitat universal: AAA batteries are compatible with a wide range of common household devices.

3. Contingut del paquet

The HiQuick SW-8N Charger package typically includes:

1 x HiQuick SW-8N 8-Bay Smart Battery Charger
8 x HiQuick 1100mAh AAA Ni-MH Rechargeable Batteries
1 x cable de càrrega USB tipus C
1 x Manual d'usuari

HiQuick SW-8N Charger and Batteries in packaging — Image: HiQuick SW-8N Charger, USB cable, and batteries as packaged. This image shows the charger, USB cable, and two packs of AAA batteries, along with the instruction manual, indicating the typical contents of the product package.

4. Instruccions de seguretat

Per garantir un funcionament segur i evitar danys, seguiu les següents pautes de seguretat:

Use only Ni-MH or Ni-CD rechargeable batteries with this charger. Do not attempt to charge alkaline, carbon, or other non-rechargeable batteries.
Ensure correct polarity (+/-) when inserting batteries into the charger slots.
Do not disassemble, modify, or short-circuit the charger or batteries.
Avoid exposing the charger to water, moisture, direct sunlight, or high temperatures.
Mantingueu el carregador i les bateries fora de l'abast dels nens.
Unplug the charger from the power source when not in use or when cleaning.
Operate the charger within an ambient temperature range of 0-35°C (32-95°F).
If any battery shows signs of damage, leakage, or overheating, discontinue use immediately.

HiQuick charger with multiple protection icons — Image: HiQuick charger displaying various safety features. Icons represent Overcharge Protection, Overcurrent Protection, Overvoltage Protection, Overheat Protection, and Short-circuit Protection, highlighting the charger's built-in safety mechanisms.

HiQuick charger with safety features listed — Image: HiQuick charger with a shield icon and text listing safety features. This graphic emphasizes the charger's comprehensive protection against overheating, short-circuiting, overcharging, overcurrent, and overvoltage.

5. Configuració

Connect the provided USB Type-C charging cable to the charger's input port.
Plug the other end of the USB cable into a compatible 5V 2A USB power adapter (not included), laptop USB port, power bank, or car charger.
The charger's LED indicators will briefly light up upon power connection.

HiQuick charger connected via Type-C to various power sources — Image: HiQuick charger connected via a Type-C cable to different power sources. This illustrates the versatility of the charger, showing it can be powered by a power bank, wall adapter, laptop, or car charger.

HiQuick charger showing various charging methods — Image: HiQuick charger connected to a laptop, with icons for adapters, power banks, and car chargers. This graphic emphasizes the convenient and flexible charging methods available for the device.

6. Instruccions de funcionament

6.1 Inserció de les bateries

Carefully insert 1 to 8 Ni-MH/Ni-CD AA or AAA rechargeable batteries into the charging slots. Ensure the positive (+) and negative (-) ends of the batteries match the polarity markings in the charger slots. The charger supports mixed charging of AA and AAA batteries simultaneously.

HiQuick charger demonstrating independent charging slots for AA and AAA batteries — Image: HiQuick charger illustrating independent charging slots for various battery configurations. The image shows single AAA, single AA, mixed AA/AAA, and 1-8 mixed AA/AAA batteries being charged, highlighting the independent slot functionality.

6.2 Procés de càrrega i indicadors LED

When batteries are correctly inserted, the corresponding LED indicator for each slot will turn VERMELL, indicating that charging is in progress.
Once a battery is fully charged, its corresponding LED indicator will turn VERD.
The charger will automatically stop charging when batteries are full to prevent overcharging.

HiQuick charger with LED indicators showing charging (red) and fully charged (green) status — Image: HiQuick charger with smart LED indicators. The image shows red lights for batteries currently charging and green lights for batteries that are fully charged, providing clear visual status updates.

6.3 Temps de càrrega estimats

For AAA NiMH/NiCD batteries: Approximately 2 hours for any number of batteries.
For AA NiMH/NiCD batteries: Approximately 4.5 hours for any number of batteries.

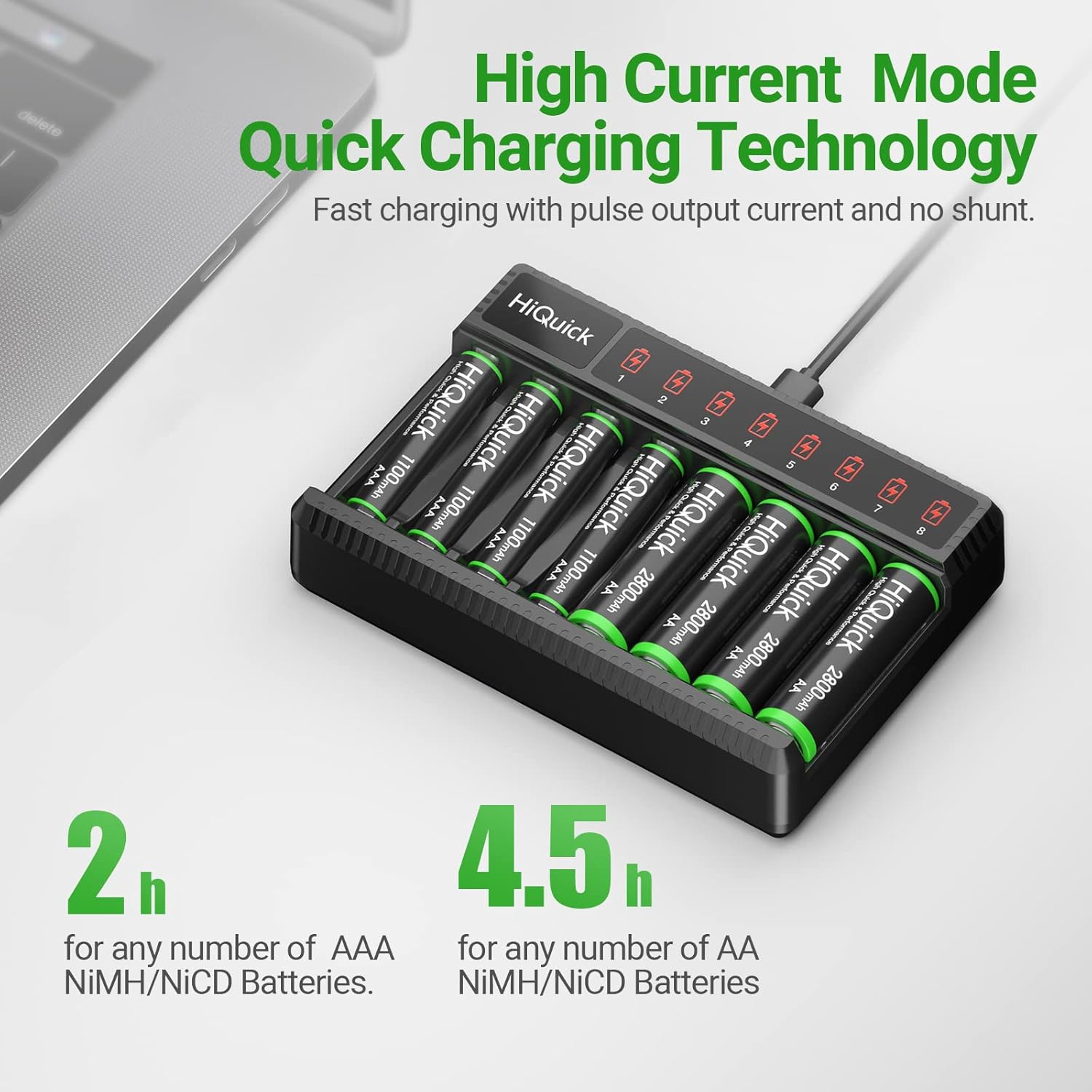

HiQuick charger showing quick charging technology and times — Image: HiQuick charger highlighting High Current Mode Quick Charging Technology. The graphic indicates approximately 2 hours for AAA NiMH/NiCD batteries and 4.5 hours for AA NiMH/NiCD batteries, emphasizing fast charging capabilities.

HiQuick charger with fast charging times for AAA and AA batteries — Image: HiQuick charger displaying charging times. It shows 2 hours for AAA NiMH/NiCD batteries and 4.5 hours for AA NiMH/NiCD batteries, indicating efficient charging for various battery types.

6.4 Vídeo oficial del producte

Video: Official HiQuick video demonstrating the fast charging capabilities of the battery charger with AA and AAA batteries. This video provides a visual guide to the product's operation and features.

7. Battery Care and Maintenance

Ús inicial: New batteries reach their best performance after 3-5 charge/discharge cycles.
Emmagatzematge: For long-term storage, fully charge the batteries before storing them. Store in a cool, dry place.
Baixa autodescàrrega: HiQuick Ni-MH batteries are designed to retain a significant charge even after extended periods of non-use.
Reciclatge: These batteries are free from harmful substances like Hg/Cd/Pb and are recyclable. Please dispose of them responsibly.

HiQuick battery low self-discharge performance chart — Image: Chart illustrating the low self-discharge performance of HiQuick rechargeable batteries compared to other brands. It shows HiQuick batteries retaining 80% capacity after 3 years, while others significantly drop.

HiQuick batteries showing low self-discharge over time — Image: HiQuick rechargeable AAA batteries with a graphic showing retained capacity over time. It indicates 95% after half a year, 90% after 1 year, 85% after 2 years, and 80% after 3 years, demonstrating excellent low self-discharge properties.

HiQuick rechargeable battery with 1200 charging cycles icon — Image: HiQuick rechargeable battery highlighting its long-life and 1200 charging cycle capability. The graphic emphasizes the durability and reusability of the batteries.

HiQuick battery showing no harmful substances and recycling symbol — Image: HiQuick battery with symbols indicating it is free from harmful substances (Pb, Hg, Cd) and is recyclable. This highlights the eco-friendly aspects of the batteries.

8. Solució De Problemes

Els LED no s'encenen: Ensure the charger is properly connected to a power source and the batteries are inserted with correct polarity.
La bateria no es carrega: Check if the battery is a compatible Ni-MH/Ni-CD type. Ensure it's not damaged. Try re-inserting the battery.
Càrrega lenta: Verify that your USB power adapter provides at least 5V 2A output. Lower output may result in slower charging.
Incompatible batteries: The charger is designed for Ni-MH and Ni-CD rechargeable batteries only. Other battery types will not charge.

9. Especificacions

Model	SW-8N
Entrada	Type-C DC 5V 2A (Min)
Output (AA/AAA)	1.48V DC 500mA±10%
Tipus de bateria	Ni-MH / Ni-CD (AA/AAA)
Tarifa de càrrega	≥80%
Mètode de càrrega	Vol constanttage i control de corrent
Dimensions del producte	1.1 "P x 4.9" W x 3.3" H
Pes	9.14 unces

10. Garantia i Suport

HiQuick is committed to providing reliable and high-quality products. This product comes with a 30-day worry-free money-back guarantee and a one-year warranty. For any questions, concerns, or support needs, please contact HiQuick customer service through the retailer where you purchased the product.
