1. Introducció
The Eumspo G3 Wireless Headset is designed for clear communication and extended use, featuring dual-mic noise cancellation and a long-lasting battery. This manual provides detailed instructions to help you get the most out of your device.
Característiques principals:
- Maridatge ràpid: Advanced chip for smooth signal transmission, low latency, and stable connection up to 33 feet.
- Dual Mic Noise Canceling: Built-in HD microphones and high-quality speakers eliminate background noise for clear calls.
- Temps de joc ampliat: Up to 60 hours of playback with the 400mAh charging case, and 12-15 hours on a single 1.5-hour charge.
- Control fàcil: Button controls for music, calls, and voice assistant activation. Includes a mute function.
- Ajust còmode: Flexible rotatable ear hook and boom mic, adjustable for comfortable and stable wear on either ear.
2. Què hi ha a la caixa
Verifiqueu que tots els elements siguin presents al vostre paquet:
- Wireless Headset (Eumspo G3)
- Estoig de càrrega
- Cable USB-C
- Replacement Eartips (S, M, L sizes)
- Manual d'usuari
Figura 2.1: Contingut del paquet
3. Configuració i emparellament
3.1 Càrrec inicial
Before first use, fully charge the headset and charging case. The LED display on the charging case indicates the battery level.

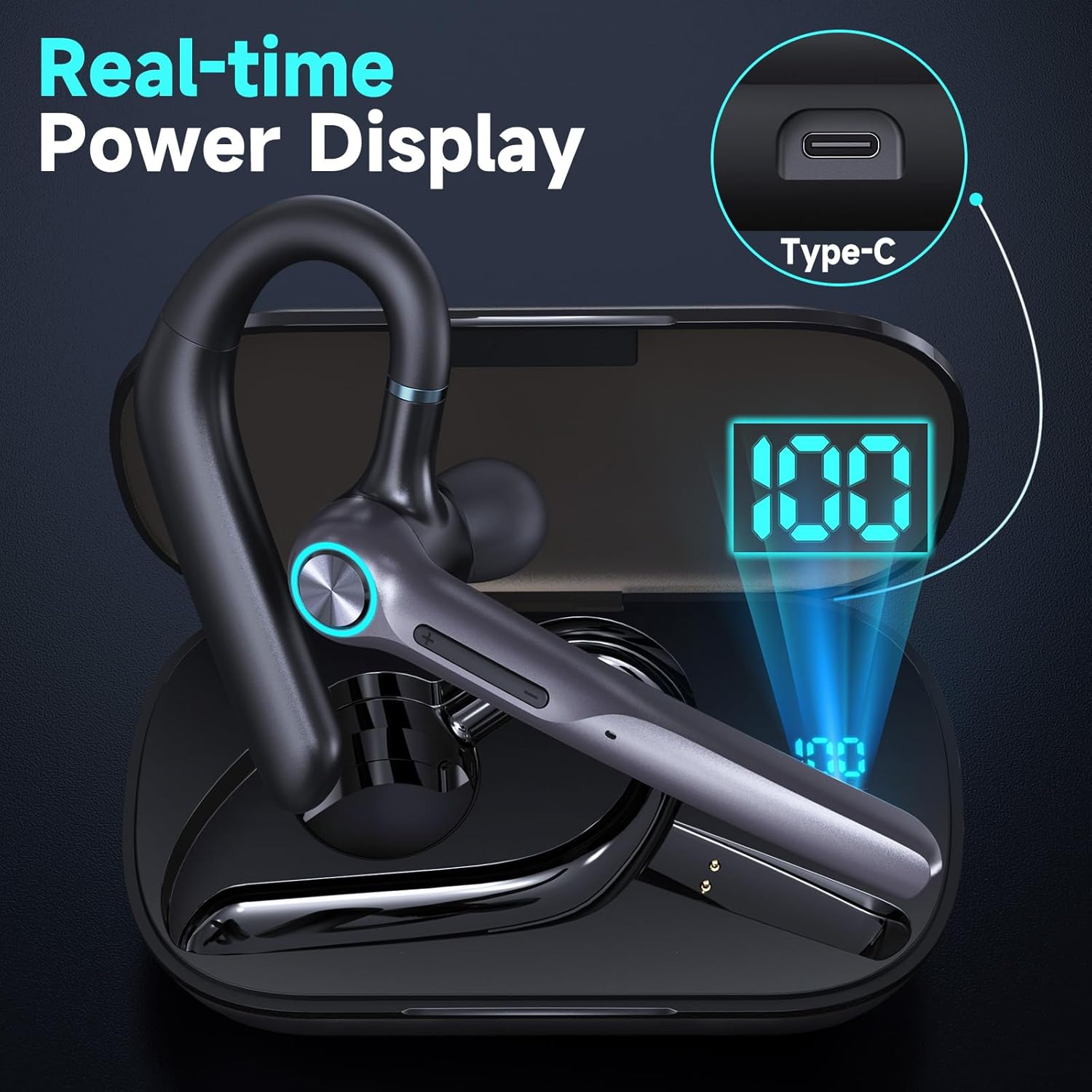

Figure 3.1: Headset in Charging Case with LED Display
3.2 Emparellament amb el dispositiu
- Assegureu-vos que els auriculars estiguin carregats.
- Take the earphone out of the charging case. It will automatically power on and enter pairing mode (indicated by a flashing light).
- On your smartphone, tablet, or laptop, activate the Bluetooth function.
- Cerca "G3" in the list of available devices and select it to connect.
- Once connected, the headset will provide an audio confirmation, and the light indicator will stop flashing.
The headset supports dual device Bluetooth pairing, allowing connection to two devices simultaneously (e.g., a smartphone and a laptop).
Figure 3.2: Dual Device Bluetooth Pairing
3.3 Instruccions d'ús
The Eumspo G3 headset is designed for comfortable and stable wear on either ear. The ear hook and boom mic are flexible and rotatable.
- Insert the ear tip into your ear canal.
- Position the ear hook over the back of your ear.
- Adjust the boom mic and earbud angle for a comfortable and secure fit. The earbud rotates 20 degrees, and the ear hook can be adjusted 180 degrees. The microphone rotates 270 degrees.
Figure 3.3: Wearing the Headset
4. Instruccions de funcionament
4.1 Controls de botons
The headset features intuitive button controls for various functions:
- Botó MFB (botó multifunció):
- Click once: Answer/End call, Play/Pause music.
- Press & Hold for 1.5-2s: Activate voice assistant (Siri, Google Assistant).
- Press & Hold for 3s during call: Mute/Unmute microphone.
- Press & Hold for 3s (not during call): Power On/Off.
- Botons de volum (+/-):
- Click once: Adjust volume up/down.
- Press & Hold for 2s: Previous/Next track.
Figure 4.1: Headset Features Showcase
4.2 Cancel·lació de soroll
The dual-mic noise canceling technology actively reduces background noise, ensuring clear audio for both you and the person on the other end of the call. This feature is particularly beneficial in noisy environments like offices or while driving.
Figure 4.2: Noise Cancelling Headset
5. Manteniment
5.1 Charging the Headset and Case
To charge the headset, place it back into its charging case. The case will automatically begin charging the headset. To charge the case itself, connect the provided USB-C cable to the charging port on the case and a power source.
- A single 1.5-hour charge provides 12-15 hours of playtime for the headset.
- The 400mAh charging case can provide up to 4 full charges for the headset, offering a total of 60 hours of playtime.
- The case has a standby time of up to 500 hours.
Figura 5.1: Llarga durada de la bateria durantview
5.2 Neteja
Regularly clean the ear tips and charging contacts with a soft, dry cloth to ensure optimal performance and hygiene. Avoid using harsh chemicals or abrasive materials.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Els auriculars no s'emparellan/connecten. | Bluetooth not enabled on device, headset not in pairing mode, out of range. | Ensure Bluetooth is on. Take headset out of case to activate pairing mode. Move device closer to headset (within 33 feet). Try restarting both devices. |
| Els auriculars no es carreguen. | Charging cable or port issue, headset not properly seated in case, case battery low. | Check USB-C cable and power source. Ensure headset is correctly placed in the charging case. Charge the charging case. Clean charging contacts. |
| Mala qualitat d'àudio/soroll. | Interference, headset too far from device, ear tip fit. | Move away from sources of interference. Stay within Bluetooth range. Adjust ear tip for a secure fit. |
| Mute function not working on computer. | Feature limitation. | The mute function is not supported on computers. Use your computer's software mute controls. |
7. Especificacions
| Característica | Detall |
|---|---|
| Nom del model | G3 |
| Tecnologia de connectivitat | Sense fil (Bluetooth) |
| Tecnologia de comunicació sense fils | Bluetooth |
| Durada de la bateria | 60 hores (amb estoig de càrrega) |
| Temps de càrrega | 1.5 hores (una sola càrrega) |
| Capacitat de la caixa de càrrega | 400 mAh |
| Control de soroll | Cancel·lació activa del soroll |
| Tipus de control | Control per veu, tàctil |
| Dispositius compatibles | iOS/Android smart phones, tablets, laptops |
| abast sense fils | Fins a 33 peus |
| Material | Plàstic |
| Pes de l'article | 4.6 unces (0.13 quilograms) |
| Dimensions del producte | 4.13 x 2.17 x 1.14 polzades |
| Nivell de resistència a l'aigua | Waterproof (IPX5 Sweatproof & Water-Resistant) |
| Interval de freqüència | Approximately 20 Hz - 20,000 Hz |
| UPC | 717021978163 |
| Fabricant | Eumspo |
8. Garantia i Suport
Eumspo products are manufactured with high-quality standards. For any issues or support needs, please contact Eumspo customer service through the retailer's platform or the official Eumspo weblloc web. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
