1. Introducció

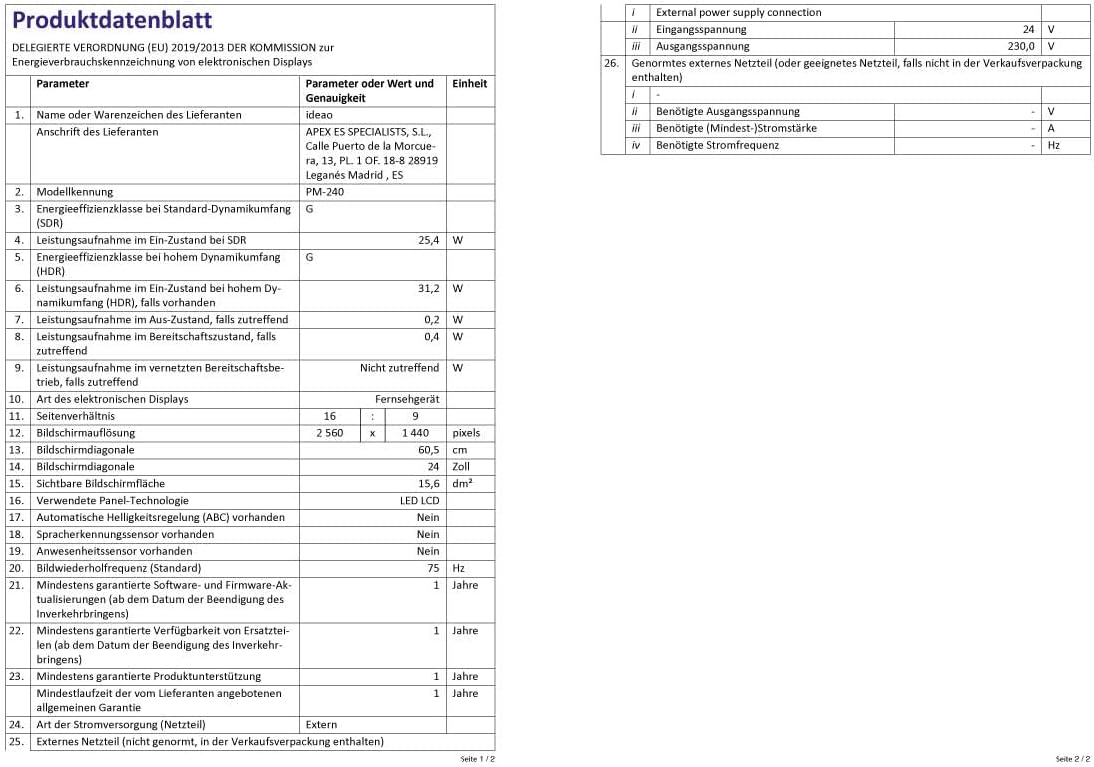

The Innex Ideao Hub 24 Inch P-Cap Touchscreen Monitor is designed to enhance collaboration, presentations, and creative work. Featuring a QHD (2560x1440P) display with 10-point touch capability and MPP2.0 active stylus support, it transforms your workspace into an interactive environment. Its versatile ergonomic stand allows for various adjustments, including swiveling, lifting, tilting, and portrait mode, ensuring optimal viewing i interacció.
This manual provides detailed instructions for setting up, operating, and maintaining your Ideao Hub monitor, along with troubleshooting tips and product specifications.
Figure 1.1: The Ideao Hub monitor facilitating teamwork and collaboration.
2. Què hi ha a la caixa
Upon unboxing your Ideao Hub monitor, please ensure all the following items are present:
- Ideao Hub 24 Inch Touchscreen Monitor
- Monitor Stand (Base and Neck components)
- Cable USB-Type C
- Cable HDMI
- USB 3.0 A-B Cable (for touch functionality with HDMI/VGA/DVI-D connections)
- Adaptador d'alimentació AC/DC
- Power Cables (various regional types included)
- Guia d'inici ràpid
- Porta llapis
- Tornavís
- Backup Screws (for stand assembly)
Video 2.1: An unboxing video demonstrating the contents of the Ideao Hub package.
Figura 2.1: Mésview of all included accessories and monitor components.
3. Configuració
3.1 Col·locació del suport
- Carefully remove the monitor from its packaging, keeping it within the original styrofoam for protection.
- Identify the stand neck and stand base components.
- Attach the stand neck to the back of the monitor using the provided screws and screwdriver. Ensure it is securely fastened.
- Attach the stand base to the stand neck, tightening the thumb screw clockwise until firm.
Video 3.1: A video demonstrating the assembly process of the Ideao Hub monitor stand.
3.2 Connecting to a PC or Laptop
The Ideao Hub offers versatile connectivity options. Choose the method that best suits your device:
- USB Type-C (Single Cable Solution): If your PC or laptop supports DisplayPort Alternate Mode and Power Delivery via its USB Type-C port, you can use a single USB Type-C cable for video, audio, data, touch, and power. Connect one end of the USB Type-C cable to the monitor's USB Type-C port and the other end to your computer's compatible USB Type-C port.
- HDMI/VGA/DVI-D with USB A-B (Dual Cable Solution): If your computer does not support the full functionality of USB Type-C, you will need two cables. Connect the HDMI, VGA, or DVI-D cable from your computer to the corresponding input on the monitor for video and audio. Then, connect the USB 3.0 A-B cable from your computer's USB-A port to the monitor's USB-B port to enable touch functionality.
Figura 3.1: posterior view of the Ideao Hub with labeled connectivity ports.
Figure 3.2: Laptop connected to the Ideao Hub for extended display and touch.
3.3 Encès
Connect the AC/DC power adapter to the monitor's power input and then plug it into a wall outlet. The power button is located on the bottom right of the back of the monitor. Tap the power button once. The Ideao Hub logo will appear, followed by the screen display from your connected laptop or PC.
The power LED light is located at the bottom of the Ideao Hub. No light means no power. A red light indicates power standby. A blue light means a display source is currently detected.
4. Funcionament del monitor
4.1 Touch and Stylus Interaction
The Ideao Hub supports 10-point multi-touch and an MPP2.0 active stylus for precise and intuitive interaction. This allows for smooth writing, drawing, and annotation directly on the screen.
- Smooth Touch Control: Use one finger to scroll or swipe, two fingers to zoom in and out, and three fingers for gestures similar to a touchpad.
- Windows Ink Compatibility: Directly annotate on documents such as Microsoft Word, Excel, PowerPoint, and Whiteboard with the stylus.
- Rebuig de la palma: Rest your palm comfortably on the screen while writing without interfering with the touch input.
Figure 4.1: Multi-touch gestures on the Ideao Hub screen.
Video 4.1: Demonstration of 10-point touch and Windows Ink writing with the Ideao Hub and pen.
4.2 Ergonomic Stand Adjustments
The versatile ergonomic stand allows for various adjustments to suit your working style and environment:
- Tilt & Lift: Adjust the screen angle and height for comfortable viewing, whether sitting or standing.
- Girar: Rotate the screen left or right to share content with others in the room.
- Mode de retrat: Flip the monitor into portrait orientation, ideal for viewing long documents, programming code, or for 1-on-1 online meetings.
Figura 4.2: Ajustaments ergonòmics del suport per a un funcionament òptim viewing i interacció.
4.3 On-Screen Display (OSD) Settings
To access the OSD menu, swipe down from the top right edge of the screen with two fingers. The menu provides options to adjust various display settings:
- Signal Sources: Select input source (HDMI, Type-C, DVI-D, VGA).
- Brillantor i contrast: Adjust display brightness and contrast levels. Preset settings for gaming and movie modes are available.
- Temperatura de color: Choose between Warm, Natural, Cool presets, or customize RGB values.
- Relació d'aspecte: Canvia la relació d'aspecte de la pantalla.
- Volum del so: Ajusteu el volum de l'altaveu integrat del monitor.
- HDR (alt rang dinàmic): Enable HDR mode for brighter and richer colors. Note that HDR mode overrides brightness, contrast, and color temperature settings.
- Restableix la configuració: Restableix tots els paràmetres als valors predeterminats de fàbrica.
To exit the OSD menu, press the exit icon. While the OSD menu is active, touch or write functionality on other areas of the display is temporarily suspended.
5. Manteniment
To ensure the longevity and optimal performance of your Ideao Hub monitor, follow these maintenance guidelines:
- Neteja de la pantalla: Utilitzeu un drap suau i sense pelusa dampened with water or a non-abrasive screen cleaner. Avoid harsh chemicals or abrasive materials that could damage the screen surface.
- Neteja de la Casing: Netegeu el monitor casinamb un drap suau i sec.
- Ventilació: Assegureu-vos que les obertures de ventilació del monitor estiguin clares i sense obstruccions per evitar el sobreescalfament.
- Emmagatzematge: Quan no l'utilitzeu durant períodes prolongats, guardeu el monitor en un lloc fresc i sec, preferiblement en el seu embalatge original.
6. Solució De Problemes
If you encounter any issues with your Ideao Hub monitor, please refer to the following common troubleshooting steps:
- Sense pantalla:
- Assegureu-vos que el cable d'alimentació estigui connectat correctament tant al monitor com a la presa de corrent.
- Verify the video cable (USB-C, HDMI, VGA, DVI-D) is properly connected to both the monitor and your computer.
- Check the input source selection in the OSD menu to ensure it matches your connected cable.
- Confirm your computer's display settings are configured to output to an external monitor.
- La funcionalitat tàctil no funciona:
- If using a dual-cable setup, ensure the USB A-B cable is securely connected to both the monitor and your computer.
- If using a single USB Type-C cable, verify that your computer's USB Type-C port supports touch data transfer.
- Check your computer's device manager for any unrecognized touch devices or driver issues.
- Imatge parpellejant o distorsionada:
- Comproveu si el cable de vídeo està danyat o si hi ha connexions soltes. Proveu un cable diferent si és possible.
- Adjust the display resolution and refresh rate on your computer to match the monitor's supported specifications.
- Reset the monitor's OSD settings to factory defaults.
If the issue persists after trying these steps, please contact Innex customer support for further assistance.
