1. Producte acabatview
This manual provides detailed instructions for the CKPSMS Brand Bobbins and Bobbin Cases, model KP-19232. This set includes high-quality replacement parts designed for specific PFAFF home sewing machines. The kit contains 2 bobbin cases and 20 steel bobbins, essential components for proper sewing machine operation.
Image 1.1: A complete set of CKPSMS steel bobbins and two bobbin cases, showcasing the quantity and type of components included in the KP-19232 package.
2. Informació de seguretat
Always prioritize safety when handling sewing machine parts. Ensure the sewing machine is turned off and unplugged before installing or removing any components. Handle small parts with care to avoid injury or damage to the parts themselves.
Image 2.1: General safety guidelines for various sewing machine parts. When handling bobbin cases, ensure the machine is off and unplugged. Avoid using damaged parts.
2.1 Bobbin Case Safety
- Always use the correct bobbin case for your sewing machine model.
- Do not use a damaged or bent bobbin case.
- When changing the bobbin case, make sure the sewing machine is turned off and unplugged to prevent accidental operation.
3. Contingut del paquet
The KP-19232 package includes the following items:
- 2 PCS Bobbin Cases (No Back Lash design)
- 20 PCS Steel Bobbins
Image 3.1: The CKPSMS Bobbins and Bobbin Cases neatly packaged in a clear plastic storage box, illustrating the complete contents of the kit.
4. Compatibilitat
These high-quality bobbin cases and steel bobbins are specifically designed to be compatible with/replacement for the following PFAFF brand HOME Sewing Machines:
- Tipmatic 1010
- Tipmatic 1011
- Tipmatic 1014
- Tipmatic 1015
- Tipmatic 1018
- Tipmatic 1019
- Tipmatic 1025
- Tipmatic 1027
- Tipmatic 1035
- Tipmatic 1037
- Tipmatic 1045
- Tipmatic 1047
- Tipmatic 1050
- Tipmatic 1051
- Tipmatic 6110
- Tipmatic 6112
- Tipmatic 6120
- Tipmatic 6120 stretch & Jeans
- Tipmatic 6122
- Tipmatic 6122 Festival 135
Important: Please pay attention to the size of the product to ensure proper fit with your specific machine model.

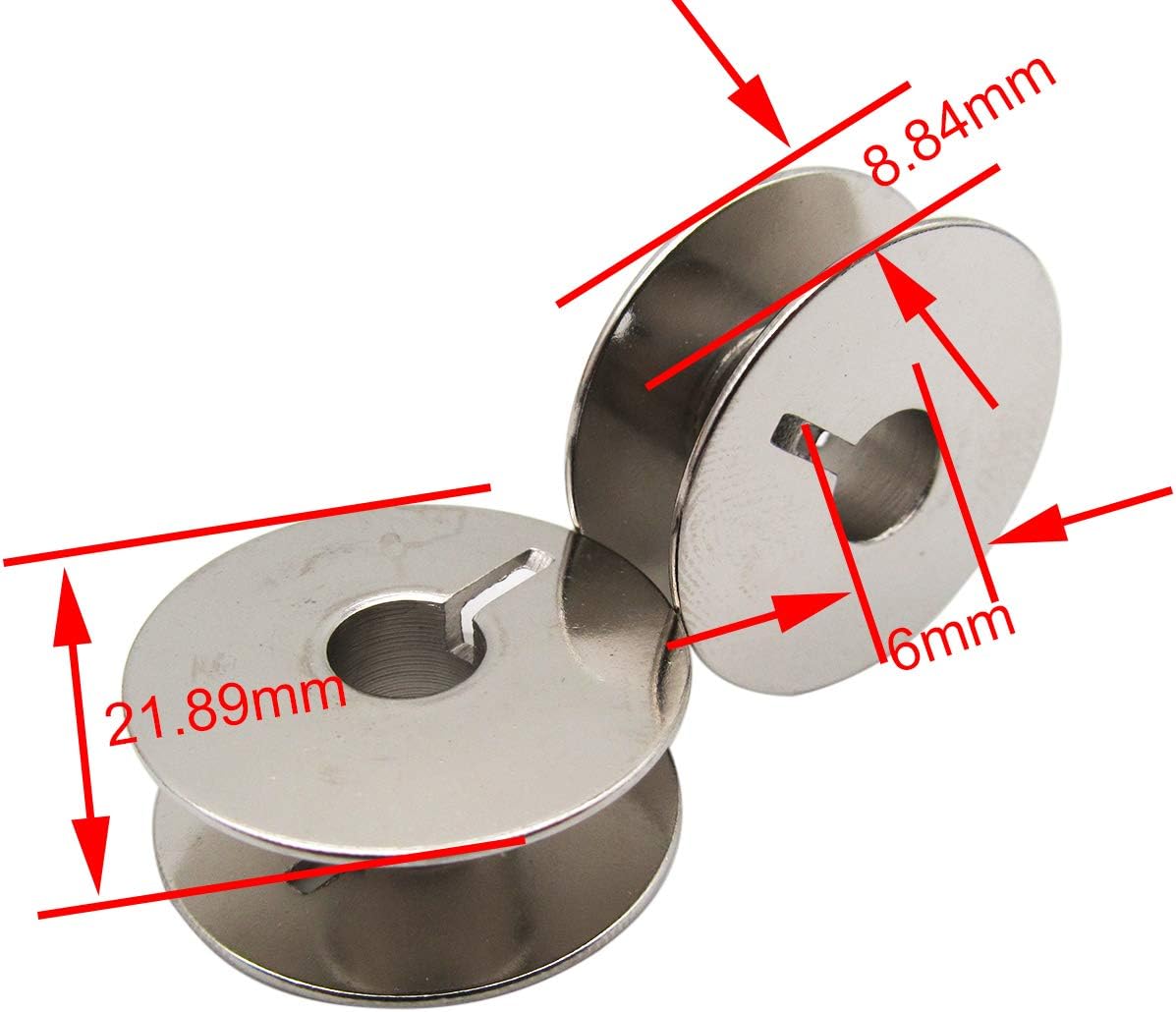

Image 4.1: Detailed dimensions of the steel bobbins, showing measurements such as 21.89mm diameter and 8.84mm height, crucial for ensuring compatibility with your sewing machine.
5. Configuració i instal·lació
Replacing or installing bobbins and bobbin cases is a standard procedure for sewing machine maintenance. Always refer to your specific sewing machine's instruction manual for precise steps, as procedures may vary slightly between models.
5.1 Installing a Bobbin into the Bobbin Case
- Ensure the bobbin is wound correctly with thread.
- Agafeu la bobina amb una mà.
- Insert the bobbin into the bobbin case, ensuring the thread unwinds in the correct direction (usually clockwise or counter-clockwise, depending on the machine and bobbin case design).
- Guide the thread through the tension spring slot on the bobbin case. The thread should slide smoothly under the tension spring.
- Pull the thread gently to ensure it feeds properly and has appropriate tension.
Imatge 5.1: Un primer pla view of a single bobbin case, highlighting the tension spring and thread path where the bobbin thread is inserted.
5.2 Inserting the Bobbin Case into the Sewing Machine
- Apagueu i desendolleu la màquina de cosir.
- Open the bobbin compartment of your sewing machine (location varies by model, often under the needle plate or in a front-loading compartment).
- Hold the bobbin case by its latch or finger.
- Carefully insert the bobbin case into its designated slot in the machine. It should click or snap into place securely.
- Ensure the thread from the bobbin case is correctly positioned according to your machine's threading path.
- Close the bobbin compartment cover.
6. Directrius de funcionament
Once the bobbin and bobbin case are correctly installed, you can proceed with your sewing tasks. Proper installation is crucial for achieving balanced stitches and preventing thread jams or breakage.
- Always ensure the bobbin thread is pulled up through the needle plate before starting to sew.
- Monitor the bobbin thread level to avoid running out mid-seam.
- If you experience skipped stitches, loose stitches, or thread tangles, check the bobbin and bobbin case installation and thread tension.
7. Manteniment
To ensure the longevity and optimal performance of your CKPSMS bobbins and bobbin cases:
- Neteja: Periodically remove lint and dust from the bobbin case and bobbin area of your sewing machine. Use a small brush or lint remover.
- Emmagatzematge: Store bobbins and bobbin cases in a clean, dry environment, preferably in their original packaging or a dedicated storage box, to prevent rust and damage.
- Inspecció: Regularly inspect bobbins and bobbin cases for any signs of wear, bending, or damage. Replace parts that appear worn or damaged to prevent issues with your sewing machine.
8. Solució De Problemes
If you encounter issues related to bobbin or bobbin case function, consider the following:
| Problema | Causa possible | Solució |
|---|---|---|
| Thread jams or tangles in bobbin area | Incorrect bobbin insertion, lint buildup, damaged bobbin/case | Re-insert bobbin correctly, clean bobbin area, inspect and replace damaged parts. |
| Skipped stitches or uneven tension | Improper bobbin tension, incorrect bobbin type, damaged bobbin case spring | Ensure bobbin thread is correctly routed through tension spring. Verify bobbin size. Replace bobbin case if spring is faulty. |
| Bobbin case does not fit | Compatibilitat incorrecta del model | Double-check your sewing machine model against the compatibility list in Section 4. Ensure you have the correct part number. |
For persistent issues, consult your sewing machine's original manual or contact CKPSMS technical support.
9. Especificacions
- Número de peça: KP-19232
- Tipus de producte: Bobbin Cases & Steel Bobbins
- Quantitat: 2 Bobbin Cases, 20 Steel Bobbins
- Material: Steel (Bobbins), Metal (Bobbin Cases)
- Dimensions del producte: 15 x 12 x 1 polzades (embalatge)
- Fabricant: CKPSMS
- País d'origen: Xina
- Data de primera disponibilitat: 26 d'agost de 2022
10. Suport tècnic i garantia
CKPSMS is committed to providing excellent customer support for its products.
10.1 Assistència tècnica
If you are unsure if these parts are compatible with your machine, or if you encounter any issues using the received parts, please do not hesitate to contact us. Our technicians are available to provide professional and accurate advice.
Com contactar amb l'assistència:
- Send us a message via Amazon.
- When contacting, please provide your machine brand and complete model number for faster assistance.
10.2 Informació de la garantia
Specific warranty details are not provided in this manual. For information regarding product warranty, please refer to the product listing on Amazon or contact CKPSMS customer service directly via the methods mentioned above.
