1. Introducció
Thank you for choosing the De'Longhi Magnifica EVO ECAM29064B Automatic Coffee Machine. This appliance is designed to provide a variety of authentic coffee beverages, from rich espresso to creamy cappuccinos, with ease. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your new coffee machine. Please read it thoroughly before first use and keep it for future reference.
2. Informació de seguretat
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance generates hot water and steam; exercise caution to prevent burns. Do not immerse the appliance, power cord, or plug in water or other liquids. Ensure the voltagEl volum indicat a l'aparell correspon al volum de la xarxa elèctricatage. Keep the appliance out of reach of children.
3. Producte acabatview
The De'Longhi Magnifica EVO ECAM29064B is an automatic coffee machine featuring an integrated grinder, the LatteCrema System for automatic milk frothing, and an intuitive touch control panel. It offers one-touch preparation for Espresso, Cappuccino, My Latte, and Caffe Japonese.
Figure 3.1: The De'Longhi Magnifica EVO ECAM29064B coffee machine, showcasing its sleek design and the variety of coffee beverages it can produce, including espresso, cappuccino, and My Latte.
3.1. Tauler de control
The machine features a touch control panel with direct menu icons for easy selection of your desired beverage. Icons allow for customization of coffee strength, volume, and temperature.
Figura 3.2: Un primer pla view of the intuitive touch control panel, showing various beverage selection icons and settings for easy operation.
3.2. LatteCrema System and Milk Container
The integrated LatteCrema System automatically froths milk to the perfect consistency for milk-based drinks. The detachable milk container has clear markings to indicate milk levels for different beverages.
Figure 3.3: The transparent milk container with clear measurement markings, indicating levels for various milk-based coffee preparations.
4. Configuració
- Desembalatge: Traieu amb cura la màquina del seu embalatge. Traieu totes les pel·lícules protectores i els materials d'embalatge.
- Col·locació: Col·loqueu la màquina sobre una superfície estable i anivellada, allunyada d'esquitxades d'aigua i fonts de calor.
- Dipòsit d'aigua: Ompliu el dipòsit d'aigua amb aigua fresca i neta.
- Instal·lació del filtre d'aigua: Install the water softening filter into the water tank as per the filter's instructions. This helps reduce limescale buildup and enhances coffee flavor.
- Contenidor de mongetes: Open the bean container lid and pour fresh coffee beans into the container.
- Cicle d'esbandida inicial: Plug in the machine and turn it on. Follow the on-screen prompts or refer to the quick start guide for the initial rinse cycle to prepare the internal circuits for use.
Figure 4.1: The water filter, which should be installed in the water tank to soften water and improve coffee quality.

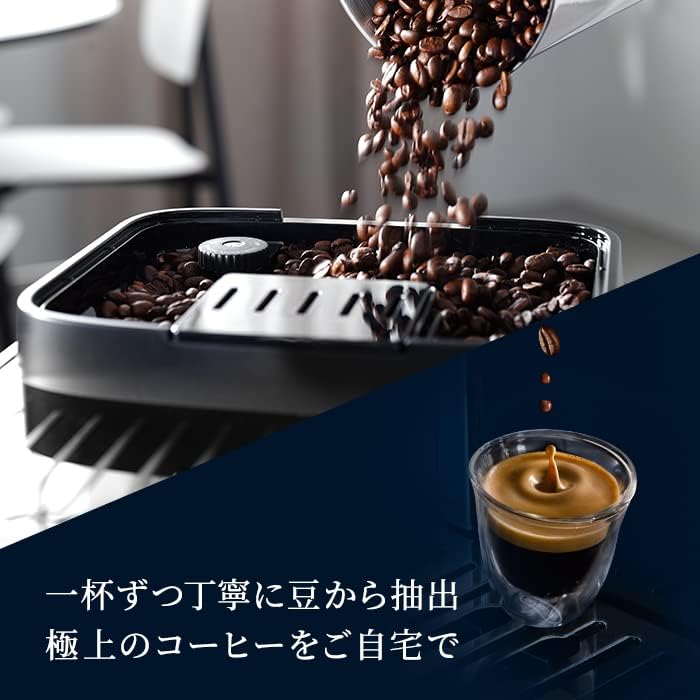

Figure 4.2: Fresh coffee beans being added to the machine's bean container, ready for grinding.
5. Instruccions de funcionament
Your Magnifica EVO ECAM29064B automatically grinds, tamps, and extracts coffee for each cup, ensuring optimal flavor. You can customize coffee strength (amount of beans), volume, and extraction temperature.
5.1. Selecció de begudes
The machine offers four main one-touch menu options:
- Cafè espresso: Un shot de cafè concentrat.
- Capuccino: Espresso amb llet vaporitzada i escumosa.
- El meu cafè amb llet: A customizable milk-based drink where you control the milk volume.
- Caffe Japonese: A deep-steamed regular coffee, combining espresso richness with a clean drip coffee aftertaste.
Figure 5.1: Visual representation of the four main beverage options available on the Magnifica EVO ECAM29064B.
5.2. Making Milk-Based Beverages (LatteCrema System)
The LatteCrema System ensures perfect milk frothing. It achieves an optimal extraction temperature of 60-65°C for milk, which is when milk is at its sweetest, and a delicious milk-to-foam ratio of 2:3. The size of the foam can be adjusted to suit your preference.
Figure 5.2: The LatteCrema System in action, automatically frothing milk to create a perfect layer of foam for a cappuccino.
5.2.1. My Latte Function
The My Latte function allows you to customize the amount of milk. The machine's sensor detects the milk volume in the container and froths only the amount you pour, creating a personalized milk-based drink.
Figure 5.3: The My Latte function icon and a visual of a latte being prepared, highlighting the customizable milk volume feature.
5.2.2. Plant-Based Milk Compatibility
The LatteCrema System is also effective with various plant-based milks, such as soy milk, almond milk, and oat milk, allowing for fluffy foam for those with dietary preferences.
Figura 5.4: Examples of plant-based milks (soy, almond, oat) that can be used with the LatteCrema System to create frothed milk.
5.3. Caffe Japonese Function
The Caffe Japonese function combines the richness of espresso with the clean aftertaste of drip coffee. It achieves this by steaming the coffee beans during extraction, similar to hand-drip methods, to condense a rich aroma and flavor.
6. Manteniment
Regular cleaning and maintenance are crucial for the longevity and optimal performance of your coffee machine. Many parts are removable and washable for easy cleaning.
6.1. Cleaning the Brewing Unit and Removable Parts
The brewing unit and various other parts, such as the drip tray, grounds container, and milk container, can be easily removed for washing. Rinse them under running water regularly.
Figure 6.1: A user cleaning the brewing unit under running water, alongside an image of various disassembled parts ready for washing.
6.2. Filtre d'aigua
The standard-equipped water filter helps reduce limescale buildup inside the machine, which can affect performance and coffee taste. Replace the filter periodically as indicated by the machine or filter instructions.
6.3. Descalcificació
The machine will indicate when descaling is required. Follow the instructions in the full user manual for the descaling process using a suitable descaling solution.
7. Solució De Problemes
If you encounter any issues with your coffee machine, please refer to the following general advice:
- No Coffee/Water: Check the water tank level and ensure it is correctly inserted.
- Poor Coffee Quality: Adjust the grinding setting, coffee strength, or water temperature. Ensure fresh beans are used.
- La llet no fa escuma: Ensure the milk container is clean and correctly assembled. Use cold milk.
- Missatges d'error: Consult the full user manual for specific error code meanings and solutions.
Si els problemes persisteixen, poseu-vos en contacte amb el servei d'atenció al client de De'Longhi.
8. Especificacions
| Característica | Especificació |
|---|---|
| Número de model | ECAM29064B |
| Dimensions (L x P x A) | 240 mm x 445 mm x 360 mm |
| Pes | 10 kg |
| Consum d'energia | 1450 W |
| Capacitat del dipòsit d'aigua | 1.9 L |
| País d'origen | Romania |
| Instruccions de cura | Drip tray, water tank, milk tank: washable |
9. Garantia i Suport
9.1. Garantia del fabricant
This De'Longhi Magnifica EVO ECAM29064B coffee machine comes with a 1-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.
9.2. Atenció al client
For further assistance, technical support, or to inquire about spare parts, please contact De'Longhi customer service. Contact information can typically be found on the official De'Longhi weblloc o en els materials d'embalatge.
