Introducció
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your BILT HARD 2-inch Semi Trash Gas Water Pump, Model TWA-0209. Please read this manual thoroughly before operating the pump and retain it for future reference.
Informació de seguretat
ADVERTIMENT: Failure to follow these safety instructions could result in serious injury or death. Always operate the pump in a well-ventilated area. Do not operate near flammable materials. Keep children and pets away from the operating area.
- Ensure all connections are secure before starting.
- No feu funcionar mai la bomba en sec.
- Always use appropriate personal protective equipment (PPE).
- No reompliu de combustible mentre el motor estigui en marxa o calent.
- Store fuel in an approved container in a well-ventilated area.
Producte acabatview
The BILT HARD 2-inch Semi Trash Gas Water Pump (Model TWA-0209) is designed for efficient water transfer, capable of handling various applications such as removing job site ground water, irrigation, and draining pools. It features a 7HP 212cc 4-cycle OHV engine.
Components clau

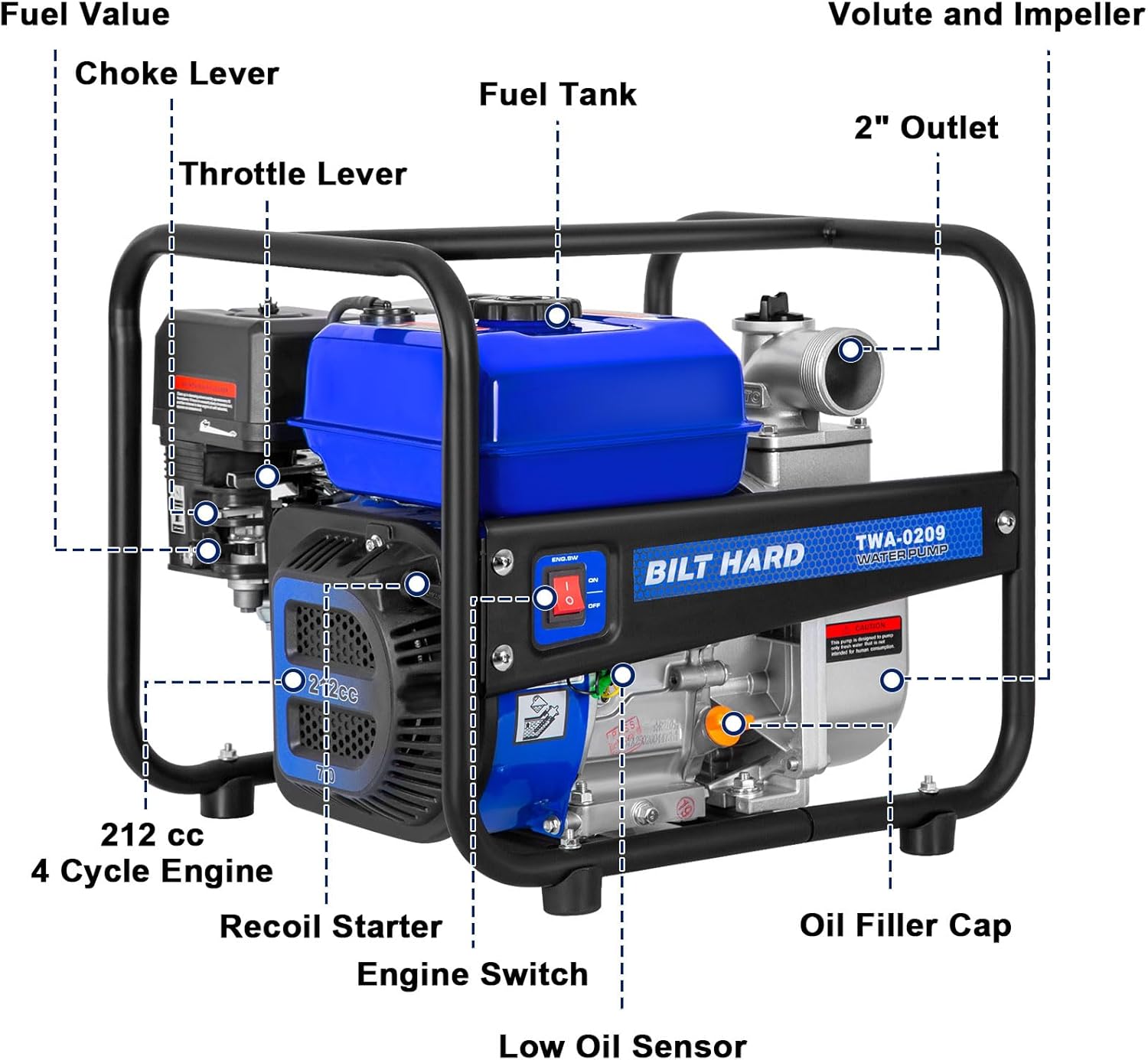

Figura 1: Main components of the BILT HARD 2-inch Semi Trash Gas Water Pump, including the fuel tank, engine switch, recoil starter, throttle lever, choke lever, fuel valve, oil filler cap, low oil sensor, 2-inch outlet, and volute and impeller.
Figura 2: lateral view of the pump highlighting the 2-inch inlet, drain plug, muffler, air filter, and support legs.
Components inclosos
Figura 3: All accessories included with the pump: 50 ft discharge hose, 12 ft suction hose, cam lock coupler, filter, oil funnel, spark plug socket, clamps, fittings, and adapters. Sealing tape is recommended for hose connections to prevent leaks.
Configuració i instal·lació
Una configuració adequada és crucial per a un rendiment i una seguretat òptims. Seguiu aquests passos amb atenció.
Muntatge de mànega i accessoris
- Assemble the mesh enclosure and mesh interface into a strainer.
- Feu lliscar un clamp over one end of the green suction hose. Attach the assembled strainer to this end of the green suction hose and tighten the clamp de forma segura.
- Separate the cam lock coupler and its fitting.
- Slide the remaining clamps over the other end of the green suction hose. Attach the cam lock coupler to this end of the green suction hose and tighten the clamps. Ensure the cam lock coupler does not turn.
- Wrap the pump's inlet clockwise with Teflon tape, ensuring at least 4 complete wraps.
- Thread the cam lock coupler fitting over the taped inlet and tighten it completely by hand to ensure no air leaks.
- Wrap the pump's outlet clockwise with Teflon tape, ensuring at least 4 complete wraps.
- Assemble the outlet hose adapter, seal gasket, and outlet hose fitting into a single connector.
- Thread the assembled connector to the outlet fitting on the pump.
- Feu lliscar un clamp over the blue discharge hose. Slide the blue discharge hose over the outlet hose fitting.
- Feu lliscar el clamp into place behind the outlet adapter barbs on the smooth part of the adapter and tighten it.
- Attach the cam lock coupler from the suction hose assembly to the fitting on the pump's inlet and lock it in place with the cam levers.
Vídeo 1: Detailed installation guide for the BILT HARD 2-inch Gasoline Water Pump, demonstrating how to assemble hoses and fittings.
Instruccions de funcionament
Comprovacions prèvies a l'operació
- Assegureu-vos que la bomba estigui col·locada en una superfície estable i plana.
- Verify all hose connections are tight and secure to prevent air leaks.
- Check the engine oil level. Add fresh SAE 10W-30 oil if necessary.
- Ompliu el dipòsit de combustible amb gasolina sense plom.
- Cebada de la bomba: Open the knob on top of the pump and add water to discharge any air from the pump housing. Close the knob securely after priming.
Figura 4: Steps for adding fresh oil and fuel to the pump before starting. Ensure proper oil type and level.
Figura 5: Priming the pump by opening the knob and adding water to remove air. This is essential for proper operation.
Arrencada del motor
- Gireu l'interruptor del motor a la posició "ON".
- Moveu la vàlvula de combustible a la posició "ON".
- Per a cold engine, move the choke lever to the "CHOKE" position (OFF). For a warm engine, leave the choke lever in the "RUN" position (ON).
- Move the throttle lever 1/3 of the way from the "SLOW" position.
- Pull the recoil starter firmly until the engine starts.
- Once the engine starts, open the throttle as needed and adjust for desired water flow.
Figura 6: Controls for starting the engine: Engine Switch, Fuel Valve Lever, Choke Lever, and Recoil Starter.
Figura 7: Comparison of starting procedures for cold and warm engines, specifically regarding the choke position.
Vídeo 2: Quick setup and starting guide for the BILT HARD 2-inch Water Pump, demonstrating the initial steps to get the pump running.
Manteniment
Regular maintenance ensures the longevity and reliable performance of your water pump.
- Oli de motor: Comproveu el nivell d'oli abans de cada ús. Canvieu l'oli després de les primeres 20 hores de funcionament i, a continuació, cada 50 hores o anualment.
- Filtre d'aire: Clean the air filter every 25 hours or more frequently in dusty conditions. Replace if damaged.
- Bujía: Inspeccioneu la bugia cada 100 hores o anualment. Netegeu-la o substituïu-la segons calgui.
- Sistema de combustible: Drain the fuel tank and carburetor if storing for more than 30 days to prevent fuel degradation.
- Carcassa de la bomba: After each use, drain all water from the pump housing to prevent freezing and corrosion.
- Colador: Regularly check and clean the intake strainer to prevent blockages. Never operate the pump without the strainer.
Figura 8: Important maintenance reminders: Do not run the pump dry, always drain all water after use, and never operate without the intake filter.
Resolució de problemes
Aquesta secció ofereix solucions a problemes comuns que podeu trobar.
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrenca | No fuel, low oil, engine switch OFF, choke incorrect, clogged fuel line/carburetor, faulty spark plug. | Check fuel level, add oil, turn engine switch ON, adjust choke, clean fuel system, replace spark plug. |
| Pump not priming/no water flow | Pump not primed, air leaks in suction hose, clogged strainer, suction lift too high, damaged impeller. | Prime the pump, check all suction hose connections for leaks, clean strainer, reduce suction lift, inspect/replace impeller. |
| Reducció del cabal d'aigua | Clogged strainer, partially blocked hoses, engine running at low RPM, worn impeller. | Clean strainer, clear hoses, increase engine throttle, inspect/replace impeller. |
| Vibració / soroll excessius | Loose components, pump not on level surface, damaged impeller, cavitation. | Tighten all fasteners, place pump on stable surface, inspect/replace impeller, ensure adequate water supply to prevent cavitation. |
Especificacions
| Característica | Especificació |
|---|---|
| Número de model | TWA-0209 |
| Tipus de motor | 7HP 212cc 4-Cycle OHV Engine |
| Caudal màxim | 158 galons per minut (GPM) |
| Diàmetre d'entrada/sortida | 2 polzades |
| Aixecament total del cap | 91 peus |
| Elevador del capçal de succió | 26 peus |
| Capacitat del dipòsit de combustible | 0.9 galons |
| Dimensions (L x A x A) | 18.78" x 15.55" x 15.43" |
| Pes de l'article | 51.46 lliures |
| Certificat EPA | Sí |
Figura 9: Acabatview of the BILT HARD 2-inch Semi Trash Gas Water Pump, highlighting its 212cc engine, 7.0 HP, 26 ft suction height, 158 GPM max flow, 0.9 gal fuel tank, and 91 ft delivery height.
Figura 10: Physical dimensions of the BILT HARD 2-inch Semi Trash Gas Water Pump: 18.78" L x 15.55" W x 15.43" H, with a weight of approximately 51 lbs.
Garantia i Suport
This water pump is free from defects in materials and workmanship for 90 days from the date of purchase. For any questions or support, please contact BILT HARD directly via Amazon email or their official website. Note that Amazon does not handle returns for gasoline-related products.
