Introducció
Thank you for choosing the Gritin 9 LED Rechargeable Book Light. This manual provides essential information for the safe and effective operation of your device. Please read it thoroughly before use and retain it for future reference.
Image: The Gritin 9 LED Rechargeable Book Light in use, illuminating an open book. The image highlights the flexible neck and the three available light color temperatures (warm, natural, cool white) in the top right corner.
Característiques del producte
- Atenuació continuada: Adjust brightness from 100% down to 10% by long-pressing the control button.
- 3 temperatures de color: Easily switch between mixed color (4500K), cool white (6000K), and warm light (3000K) with a single button click.
- Protecció ocular: Designed to provide natural, soft light without flicker, shadow, or dizzying effects, reducing eye strain during prolonged use.
- Llarga vida útil de la bateria: Equipped with a built-in 1000 mAh rechargeable battery, offering up to 80 hours of illumination at the lowest brightness setting.
- Indicador de bateria: Four LED indicator lights display the remaining power level.
- Disseny flexible: Features a 360° bendable goose neck for precise light positioning.
- Sturdy Clip: An anti-skid clip ensures secure attachment to books, e-readers, shelves, or other surfaces.
- Portàtil i lleuger: Compact design (2.26 ounces / 64 grams) makes it ideal for travel and easy to carry. Can also stand independently on a flat surface.
Image: A child reading with the Gritin book light, illustrating its eye-caring features such as anti-blue light, no flicker, no dizzy light, and no shadow.

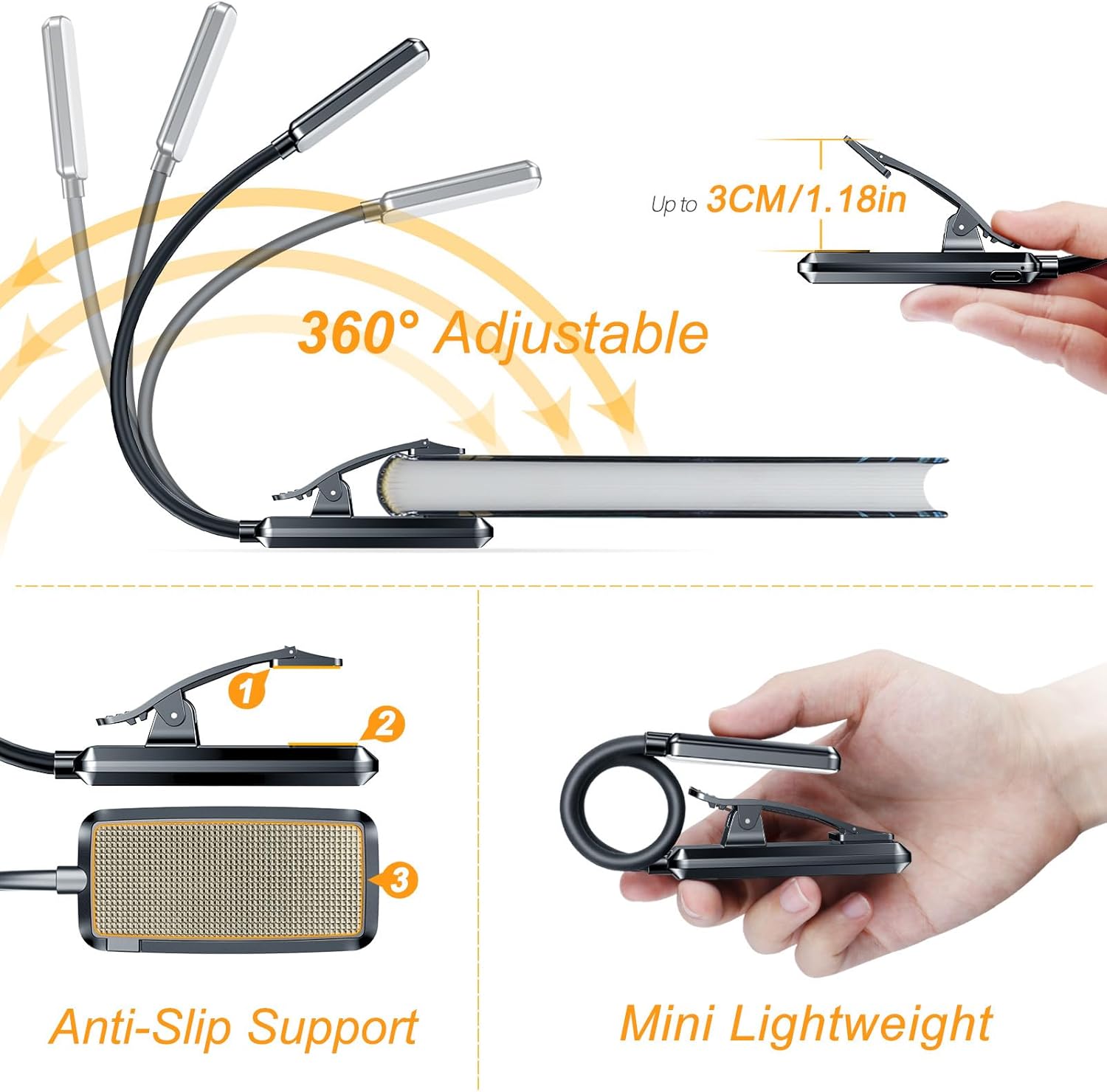

Image: A visual representation of the book light's 360-degree adjustable neck and its anti-slip support base, demonstrating its versatility and stability.
Contingut del paquet
The Gritin 9 LED Rechargeable Book Light package includes:
- 1 x Gritin 9 LED Rechargeable Book Light (Model: G1330)
- 1 x cable de càrrega USB
- 1 x Manual d'usuari
Configuració
- Desembalar: Carefully remove the book light and all accessories from the packaging.
- Càrrec inicial: Before first use, fully charge the book light. Connect the included USB charging cable to the light's Type-C port and to a standard USB power source (e.g., computer, wall adapter). The LED indicator lights will show charging progress.
- Posicionament: Clip the light onto your book, e-reader, or desired surface. The sturdy clip is designed for secure attachment.
- Ajustar el coll: Bend the 360° flexible goose neck to direct the light precisely where needed.
Instruccions de funcionament
Power On/Off and Color Temperature Adjustment
- Encès: Short press the power button located on the clip to turn the light on.
- Canvia la temperatura del color: With the light on, short press the power button repeatedly to cycle through the three color temperature modes:
- Mixed Color (4500K)
- Blanc fred (6000K)
- Llum càlida (3000K)
- Apagar: Continue short pressing the power button until the light turns off, or long press the button for 4 seconds to turn it off directly.
Brightness Adjustment (Stepless Dimming)
- Dimecres: When the light is on, long press the power button for approximately 4 seconds. The brightness will gradually dim from 100% down to 10%. Release the button at your desired brightness level.
- Il·luminador: To increase brightness, long press the power button again. The brightness will gradually increase. Release the button at your desired brightness level.
Image: An illustration detailing the one-key control for switching between 3 color temperatures (4500K, 6000K, 3000K) and how to use the stepless dimming feature to adjust brightness from 100% to 10%.
Carregant la bateria
- Connect the provided USB Type-C cable to the charging port on the book light's clip.
- Connect the other end of the USB cable to a 5V USB power source.
- The 4 LED indicator lights on the clip will illuminate to show the charging status. All four lights will be solid when fully charged.
- A full charge typically takes about 2.5 hours. The light can be used while charging.
Imatge: Un primer pla view of the book light's clip, showing the Type-C charging port and the four LED indicator lights that display battery level and charging status.
Manteniment
- Neteja: Wipe the book light with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Emmagatzematge: Store the light in a cool, dry place away from direct sunlight and extreme temperatures when not in use for extended periods.
- Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu el dispositiu regularment, fins i tot si no l'utilitzeu constantment.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | La bateria està esgotada. | Charge the book light using the provided USB cable. |
| La llum parpelleja o s'atenua inesperadament. | Bateria baixa. | Recharge the book light. |
| No es pot canviar la temperatura del color ni la brillantor. | Premsa incorrecta del botó. | Ensure you are short pressing for color change and long pressing for dimming. Refer to "Operating Instructions". |
| La llum no manté la càrrega. | Battery degradation or faulty unit. | Ensure proper charging cable and power source are used. If problem persists, contact customer support. |
Especificacions
| Característica | Detall |
|---|---|
| Número de model | G1330 |
| Font de llum | 9 LED |
| Temperatures de color | 3 (Mixed, Cool White, Warm) |
| Ajust de brillantor | Stepless Dimming (10% - 100%) |
| Capacitat de la bateria | Polímer de liti de 1000 mAh |
| Temps de càrrega | Aprox. 2.5 hores |
| Runtime (Lowest Brightness) | Fins a 80 hores |
| Connectivitat | USB tipus C |
| Entrada Voltage | 5 Volts |
| Wattage | 1.8 watts |
| Dimensions del producte (L x A x A) | 10 cm x 6 cm x 4.5 cm (aprox. 3.94 cm x 2.36 cm x 1.77 cm) |
| Pes de l'article | 2.26 unces (64 grams) |
| Material | Plàstic, Fusta |
Image: The book light being held and placed into a bag, illustrating its lightweight and portable design, along with its dimensions and weight (63g/2.22oz).
Informació i advertències de seguretat
ADVERTIMENT!
- Eviteu caigudes, impactes i extrusió.
- No desmunteu i substituïu les parts internes de lamp by yourself, as this may damage the product or even cause safety hazards.
- No utilitzeu aquest producte en ambients extremadament calents o freds.
- Mantenir allunyat de l'aigua, el foc, els gasos inflamables i els líquids corrosius.
- No mireu directament a la font de llum per evitar irritacions oculars.
Image: A warning label providing critical safety instructions in multiple languages, advising against drops, disassembly, extreme temperatures, and contact with water or flammable materials.
Garantia i Suport
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Gritin website. If you encounter any issues not covered in this manual, please contact Gritin customer service for assistance.
You can also visit the Gritin Store on Amazon for more information: Gritin Amazon Store
