1. Instruccions de seguretat importants
Please read these instructions carefully before using your GBC ShredMaster XP418+ shredder. Keep this manual for future reference.
- Mantingueu els nens i les mascotes lluny de la trituradora.
- Keep loose clothing, hair, and jewelry away from the shredder opening.
- No introduïu els dits ni altres parts del cos a l'obertura de la trituradora.
- Desendolleu la trituradora abans de moure, netejar o buidar el contenidor d'escombraries.
- No utilitzeu productes en aerosol prop de la trituradora.
- No tritureu etiquetes adhesives ni materials que no estiguin especificats per a la trituració.
- Assegureu-vos que la trituradora estigui col·locada sobre una superfície estable i anivellada.
- No feu funcionar la trituradora si el cable d'alimentació està danyat.
2. Producte acabatview
The GBC ShredMaster XP418+ is a heavy-duty cross-cut office shredder designed for secure destruction of confidential documents, credit cards, CDs, and DVDs. It features Active Sensing Anti-Jam Technology and a large 45-liter pull-out bin for efficient operation.

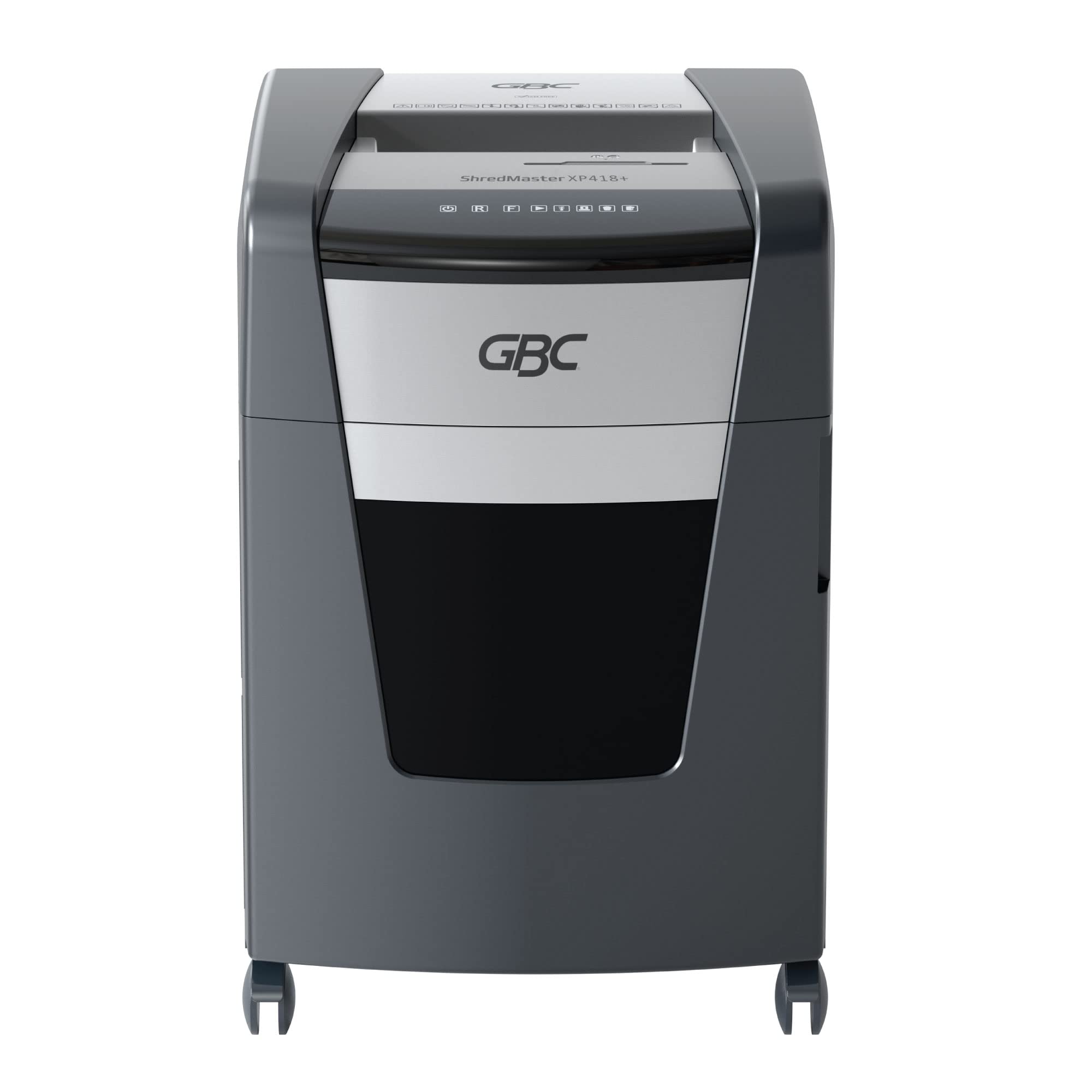

Figura 2.1: Frontal view of the GBC ShredMaster XP418+ office shredder, showcasing its sleek black and silver design with casters for mobility.
Característiques principals:
- Cross-Cut Shredding: Shreds paper into 4 x 35 mm particles (P-4 security level).
- Alta capacitat: Shreds up to 18 sheets of 80 gsm paper at once.
- Jam Free Technology: Active sensing technology prevents paper jams by measuring sheet count in real-time.
- Multi-Media Shredding: Safely shreds staples, paper clips, credit cards, CDs, and DVDs through a separate feed slot.
- Large Bin Capacity: 45-liter pull-out waste bin for less frequent emptying.
- Funcionament silenciós: Operates at an ultra-quiet 55 dBA noise level.
- Temps d'execució contínua: Designed for moderate to heavy use with extended run times.
3. Configuració
Follow these steps to set up your shredder for first use:
- Desembaleu la trituradora: Traieu amb cura la trituradora del seu embalatge. Conserveu l'embalatge per a futurs transports o emmagatzematge.
- Posicioneu la trituradora: Place the shredder on a flat, stable surface near a power outlet. Ensure there is adequate space around the unit for ventilation and bin access.
- Check the Waste Bin: Ensure the 45-liter pull-out waste bin is correctly inserted and closed. The shredder will not operate if the bin is not properly seated.
- Connectar l'alimentació: Connecteu el cable d'alimentació a una presa de corrent estàndard.
- Encès: Locate the power switch, usually on the back or side of the unit, and turn it to the 'ON' position. The control panel lights should illuminate.
Figure 3.1: The GBC ShredMaster XP418+ with its 45-liter pull-out waste bin open, demonstrating easy access for emptying shredded materials.
4. Funcionament
Your GBC ShredMaster XP418+ is designed for user-friendly operation. Familiarize yourself with the control panel and feed slots.
Figura 4.1: Primer pla view of the GBC ShredMaster XP418+ control panel, showing the power, reverse, forward, and jam indicator lights.
4.1 Trituració de paper
- Ensure the shredder is powered on and in auto mode (usually indicated by a green light).
- Insert up to 18 sheets of 80 gsm paper into the main paper feed slot. The Active Sensing Anti-Jam Technology will detect the sheet count.
- The shredder will automatically start shredding. If too many sheets are inserted, a red LED will illuminate, and the shredder will not operate until some sheets are removed.
- Once shredding is complete, the shredder will return to standby mode.
4.2 Shredding Credit Cards, CDs, and DVDs
- Locate the separate feed slot for credit cards and optical media.
- Insert one credit card, CD, or DVD at a time into the designated slot.
- La trituradora triturarà l'article automàticament.
- Note: These items are shredded into separate compartments within the waste bin for easier disposal and recycling.
4.3 Anti-Jam Technology
The GBC ShredMaster XP418+ features Active Sensing Anti-Jam Technology. This system continuously monitors the number of sheets being fed. If the load exceeds the maximum capacity, the shredder will not start, and a red indicator light will signal an overload. Remove excess paper until the indicator light clears, then proceed with shredding.
Video 4.1: An official GBC video demonstrating the Active Sensing Anti-Jam Technology in action, showing how the shredder detects and prevents overloads. (Note: Video URL is a placeholder as no specific video URL was provided in the input JSON, only a timestamp.)
5. Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la trituradora.
5.1 Buidatge de la paperera
- When the waste bin is full, the shredder will stop operating, and a 'bin full' indicator light may illuminate.
- Desendolleu la trituradora de la presa de corrent.
- Traieu el contenidor de residus de la part frontal de la trituradora.
- Empty the shredded material into a suitable recycling container.
- Feu lliscar el contenidor de residus de nou a la trituradora fins que encaixi fermament al seu lloc.
- Torneu a connectar la trituradora.
5.2 Lubricació de les fulles de la trituradora
To maintain shredding performance and prevent wear, oil the shredder blades regularly, especially after emptying the bin 2-3 times or if performance decreases.
- Use only GBC shredder oil or a vegetable-based shredder oil. Do not use aerosol lubricants.
- Apliqueu una fina línia d'oli a la ranura d'entrada de paper.
- Feu funcionar la trituradora en marxa inversa durant 10 segons per distribuir l'oli.
- Shred a few sheets of paper to remove any excess oil.
6. Solució De Problemes
Consulteu aquesta secció per obtenir solucions a problemes comuns que podeu trobar.
| Problema | Causa possible | Solució |
|---|---|---|
| La trituradora no arrenca. | No power, waste bin not closed, shredder overheated, safety switch engaged. | Check power connection. Ensure bin is fully inserted. Allow shredder to cool down. Check for obstructions. |
| Emballament de paper. | Too much paper inserted, paper folded or crumpled. | Press the reverse button to clear the jam. If unsuccessful, unplug, remove paper manually, then re-oil blades. |
| La trituradora funciona contínuament. | Sensor obstruït. | Unplug the shredder and clean the paper entry sensor with a soft cloth. |
| Reduced shredding performance. | Blades need oiling, waste bin full. | Oil the shredder blades. Empty the waste bin. |
7. Especificacions
Detailed technical specifications for the GBC ShredMaster XP418+ shredder.
| Característica | Especificació |
|---|---|
| Número de model | G2021418X |
| Tipus de trituració | Tall de creu |
| Mida de trituració | 4 x 35 mm |
| Nivell de seguretat (DIN 66399) | P-4 |
| Sheet Capacity (80 gsm) | 18 fulls |
| Capacitat de la paperera | 45 litres |
| Trituradors | Paper, Staples, Paper Clips, Credit Cards, CDs/DVDs |
| Nivell de soroll | 55 dBA |
| Característiques especials | Jam Proof (Active Sensing), Quiet Operation |
| Pes de l'article | 29 kg |
| Dimensions de l'article (LxWxH) | 47.9 x 44.5 x 67.5 cm |
8. Garantia i Suport
Your GBC ShredMaster XP418+ comes with a comprehensive warranty and dedicated support.
8.1 Informació de la garantia
Aquest producte està cobert per a Garantia de la màquina de 2 anys from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, neglect, unauthorized repairs, or normal wear and tear.
8.2 Atenció al client
For technical assistance, troubleshooting not covered in this manual, or warranty service, please contact GBC customer support. Refer to the contact information provided with your product or visit the official GBC weblloc per a la vostra regió.
