1. Introducció
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Zanussi ZCG92686XA Free Standing Gas Cooker. Please read these instructions carefully before using the appliance and keep them for future reference.
1.1 Informació de seguretat
Always prioritize safety when operating any gas appliance. This cooker is equipped with a safety feature that automatically turns off the gas supply if the flame extinguishes. Ensure proper ventilation and never leave the appliance unattended during operation.
- Llegiu totes les instruccions abans d'utilitzar.
- Ensure the appliance is installed by a qualified technician.
- Mantenir els nens allunyats de l'aparell durant el funcionament.
- Do not store flammable materials near the cooker.
- In case of a gas leak, immediately shut off the gas supply, open windows, and do not operate any electrical switches.
2. Producte acabatview
The Zanussi ZCG92686XA is a freestanding gas cooker featuring 5 burners, a large digital screen, and a gas oven with both cooking and cooling fans. It is constructed from stainless steel and includes cast iron pan supports.

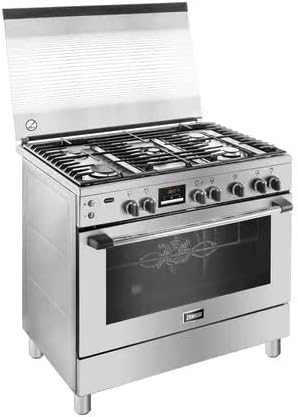

Figura 2.1: Front inclinat view of the Zanussi ZCG92686XA Gas Cooker with the top lid open, showing the five burners and control panel.
Figura 2.2: Frontal view of the Zanussi ZCG92686XA Gas Cooker, highlighting the digital screen, control knobs, and oven door.
Figura 2.3: lateral view of the Zanussi ZCG92686XA Gas Cooker, showing its freestanding design.
2.1 Components principals
- Placa de cuina: Five gas burners with cast iron pan supports.
- Tauler de control: Knobs for burner and oven control, large digital screen for settings and timer.
- Forn de gas: Equipped with cooking fan for even heat distribution and a cooling fan.
- Calaix d'emmagatzematge: Located at the bottom for storing accessories.
3. Configuració i instal·lació
Installation of this appliance must be performed by a qualified and authorized technician in accordance with local regulations and standards.
3.1 Desembalatge
Carefully remove all packaging materials. Inspect the cooker for any damage incurred during transit. Report any damage to your retailer immediately.
3.2 Posicionament
Place the cooker on a stable, level surface. Ensure adequate clearance from adjacent walls and cabinets as specified in the installation guide provided separately with the product. The appliance is freestanding.
3.3 Connexió de gas
Connect the cooker to the gas supply using a flexible hose and appropriate fittings. Ensure all connections are tight and leak-free. A gas leak test must be performed by the installer.
3.4 Connexió elèctrica
Connect the cooker to a grounded 240 Volt electrical outlet. Ensure the electrical supply meets the appliance's requirements. This connection is primarily for the digital screen, oven light, and fans.
4. Funcionament de la placa de cuina
The cooktop features five gas burners of varying sizes for different cooking needs.
4.1 Lighting a Burner
- Place a suitable cooking pot or pan on the cast iron support over the desired burner.
- Push in and turn the corresponding control knob counter-clockwise to the maximum flame setting.
- Hold the knob in for a few seconds until the flame ignites. If the flame does not ignite, release the knob and repeat the process.
- Once lit, adjust the flame size by turning the knob to the desired heat level.
Nota: The safety device will automatically cut off the gas if the flame goes out. If this happens, wait a few moments before attempting to re-ignite the burner.
4.2 Using Cast Iron Holders
The cast iron pan supports provide stable and durable surfaces for your cookware. Ensure they are correctly positioned over the burners before use. They can be removed for cleaning.
5. Funcionament del forn
The gas oven includes a cooking fan for even heat distribution and a cooling fan to manage external temperatures.
5.1 Setting Oven Temperature
- Open the oven door and place food on the appropriate rack.
- Gireu el botó de control del forn a la temperatura desitjada.
- The digital screen will display the current settings and can be used to set timers or other functions. Refer to the separate digital screen manual for detailed instructions on advanced features.
5.2 Using the Cooking Fan
The cooking fan circulates hot air within the oven cavity, promoting more even cooking and reducing hot spots. This is particularly useful for baking and roasting multiple items simultaneously.
5.3 Funcionament del ventilador de refrigeració
The cooling fan operates automatically to dissipate heat from the appliance's exterior, protecting surrounding cabinetry and components. It may continue to run for a period after the oven is turned off.
6. Manteniment i Neteja
Una neteja i un manteniment regulars garantiran la longevitat i el rendiment òptim de la vostra cuina.
6.1 Neteja general
- Always ensure the cooker is cool before cleaning.
- Wipe stainless steel surfaces with a soft cloth and a mild, non-abrasive cleaner.
- Remove cast iron pan supports and burner caps for separate cleaning with warm soapy water. Dry thoroughly before replacing.
- Do not use harsh chemicals, abrasive cleaners, or scouring pads, as these can damage surfaces.
6.2 Oven Door Glass Cleaning
The oven door is designed for easy cleaning. The inner glass panels can be completely removed for thorough cleaning on both sides. Refer to the detailed instructions in the separate installation and maintenance guide for the specific removal procedure.
7. Solució De Problemes
Abans de contactar amb el servei tècnic, torneu aview els següents problemes comuns i les seves possibles solucions.
| Problema | Causa possible | Solució |
|---|---|---|
| El cremador no s'encén. | No gas supply, igniter dirty, burner cap incorrectly placed. | Check gas supply valve. Clean igniter and burner cap. Ensure burner cap is seated correctly. |
| El forn no s'escalfa. | Gas supply issue, oven control knob not set correctly. | Verify gas supply. Ensure oven knob is turned to a temperature setting. |
| Digital screen is blank. | Sense energia elèctrica. | Check power cord connection and circuit breaker. |
| Cocció desigual al forn. | Food placement, cooking fan not operating. | Ensure food is placed centrally. Check if cooking fan is active. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb un tècnic de servei qualificat.
8. Especificacions
Technical details for the Zanussi ZCG92686XA Free Standing Gas Cooker.
| Característica | Detall |
|---|---|
| Marca | Zanussi |
| Número de model | ZCG92686XA |
| Tipus d'instal·lació | Autònom |
| Dimensions del producte (P x A x A) | 60 x 90 x 88.5 cm |
| Pes de l'article | 68 quilos |
| Classificació d'eficiència | A+ |
| Mode de cocció al forn | Gas |
| Nombre d'elements calefactors (cremadors) | 5 |
| Tipus de cremador | Obert |
| Consola de control | Pom |
| Voltage | 240 Volts |
| Tipus de combustible | Gas |
| Tipus de material | Vidre, acer inoxidable |
| Components inclosos | Free standing Cooker |
| Necessites piles? | No |
| Tipus de calaix | Emmagatzematge |
9. Garantia i Suport
Your Zanussi ZCG92686XA Free Standing Gas Cooker comes with a manufacturer's warranty.
9.1 Informació de la garantia
Aquest producte està cobert per a 5 anys de garantia del fabricant. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use conditions.
9.2 Atenció al client
For technical assistance, service requests, or warranty claims, please contact your local Zanussi service center or the retailer from whom you purchased the appliance. Always provide the model number (ZCG92686XA) and serial number (if applicable) when seeking support.
