Introducció
This instruction manual provides essential information for the installation, operation, and maintenance of your ALVAR WPW10671238 Refrigerator Crisper Drawer Center Rail. This part is designed to replace a broken or defective center crisper rail in compatible refrigerators, ensuring proper function of your crisper drawers.
The WPW10671238 center crisper rail is a crucial component that supports the crisper drawers, allowing them to slide smoothly in and out. Replacing this part can resolve common issues such as drawers not opening or closing properly, noise, or leaking.
Image: The ALVAR WPW10671238 Refrigerator Crisper Drawer Center Rail, a white plastic component designed for refrigerator drawer support.
Producte acabatview
Característiques principals:
- Disseny actualitzat: Made from premium thickened food-grade ABS materials for enhanced durability and strength.
- Alta capacitat de càrrega: Engineered to withstand significant weight, outperforming ordinary clear plastic materials.
- Ajust exacte: Designed to meet or exceed OEM standards for a perfect match to original refrigerator components.
- Fàcil instal·lació: Simple replacement process that typically does not require special tools.
Compatibilitat:
The WPW10671238 Refrigerator Crisper Drawer Center Rail is compatible with a wide range of refrigerator models from various brands, including:
- Jacuzzi
- Kenmore
- maigtag
- creença
- KitchenAid
- Crosley
- Inglis
- Ikea
- JennAir
- Sears
Please verify your refrigerator's model number and the dimensions of your existing rail to ensure compatibility. The part replaces numbers such as 12530701, 12530701N, 8208354, 67001057, W10671238, W10671238N, 3447456, AP6023702, PS11757048, and EAP11757048.

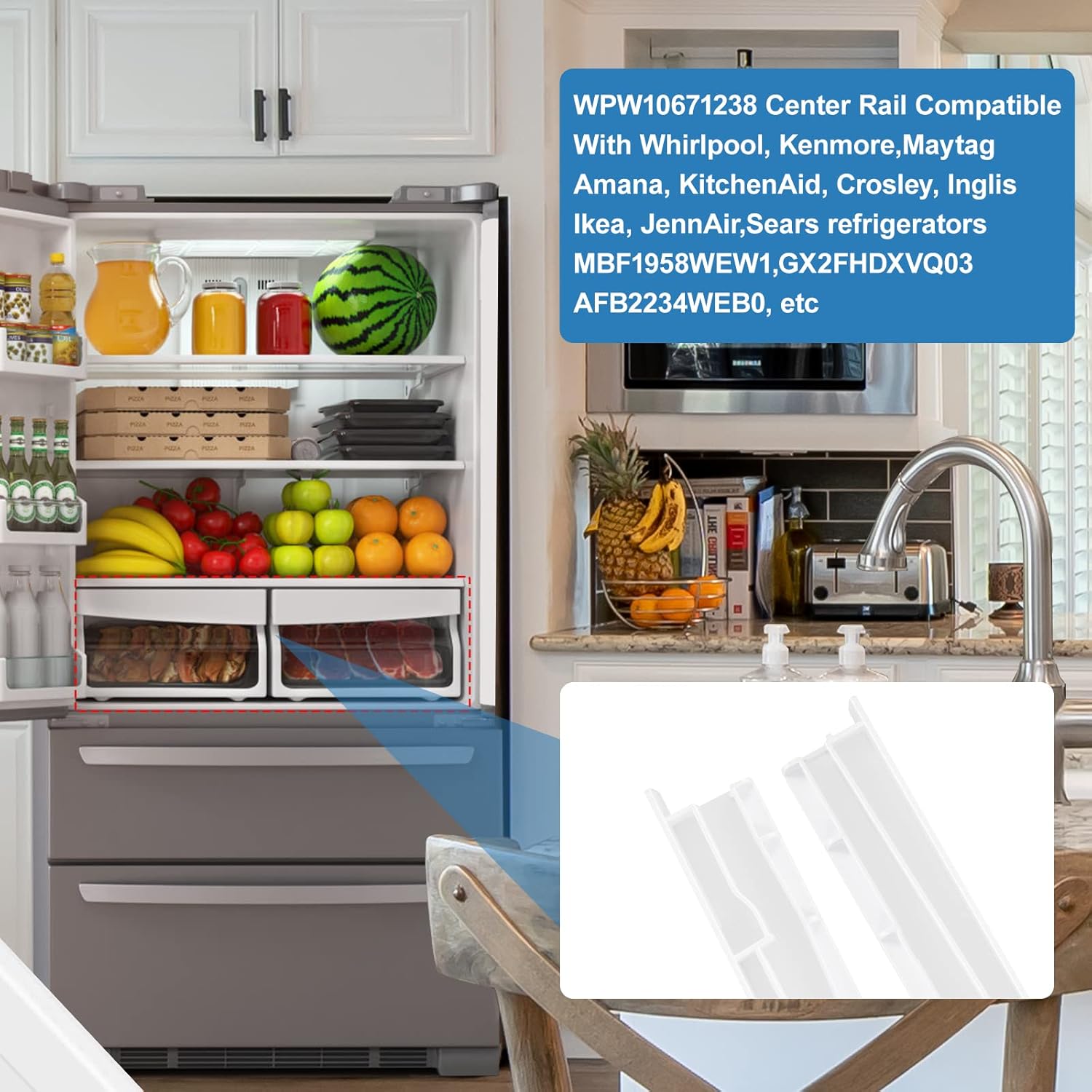

Image: A refrigerator interior with crisper drawers, illustrating the location of the center rail and a list of compatible brands.
Dimensions del producte:
| Dimensió | Mesurament |
|---|---|
| Longitud | 12.8 polzades (aprox. 32.5 cm) |
| Amplada | 1.6 polzades (aprox. 4.1 cm) |
| Alçada | 1.98 polzades (aprox. 5.0 cm) |
| Material | Plàstic ABS |

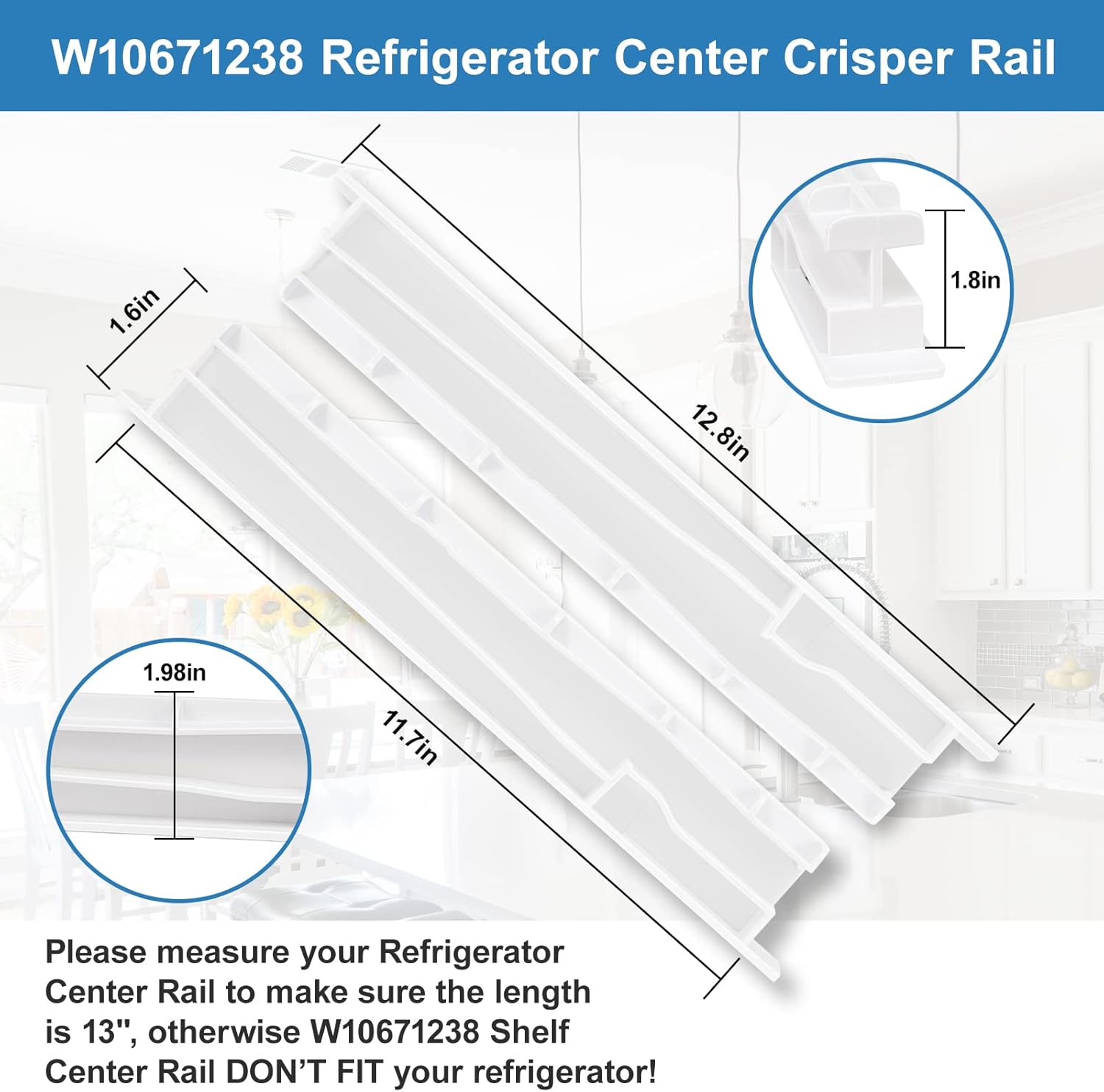

Image: Detailed diagram illustrating the length, width, and height of the W10671238 Refrigerator Center Crisper Rail.
Guia d'instal·lació
Replacing the crisper drawer center rail is a straightforward process that typically requires no special tools. Follow these steps for a successful replacement:
- Preparar la nevera: Ensure the refrigerator is unplugged for safety. Remove all items from the crisper drawers and then remove the crisper drawers themselves.
- Locate the Old Rail: Identify the broken or defective center crisper rail. It is usually located between the two crisper drawers.
- Remove the Old Rail: Gently slide the old rail out of its mounting slots. It may require a slight upward or downward tilt to disengage.
- Install the New Rail: Align the new ALVAR WPW10671238 crisper drawer center rail with the mounting slots in your refrigerator. Slide it firmly into place until it clicks or sits securely.
- Prova i muntatge: Once the new rail is securely installed, test its stability. Reinsert the crisper drawers and ensure they slide smoothly. Return items to the drawers and plug the refrigerator back in.

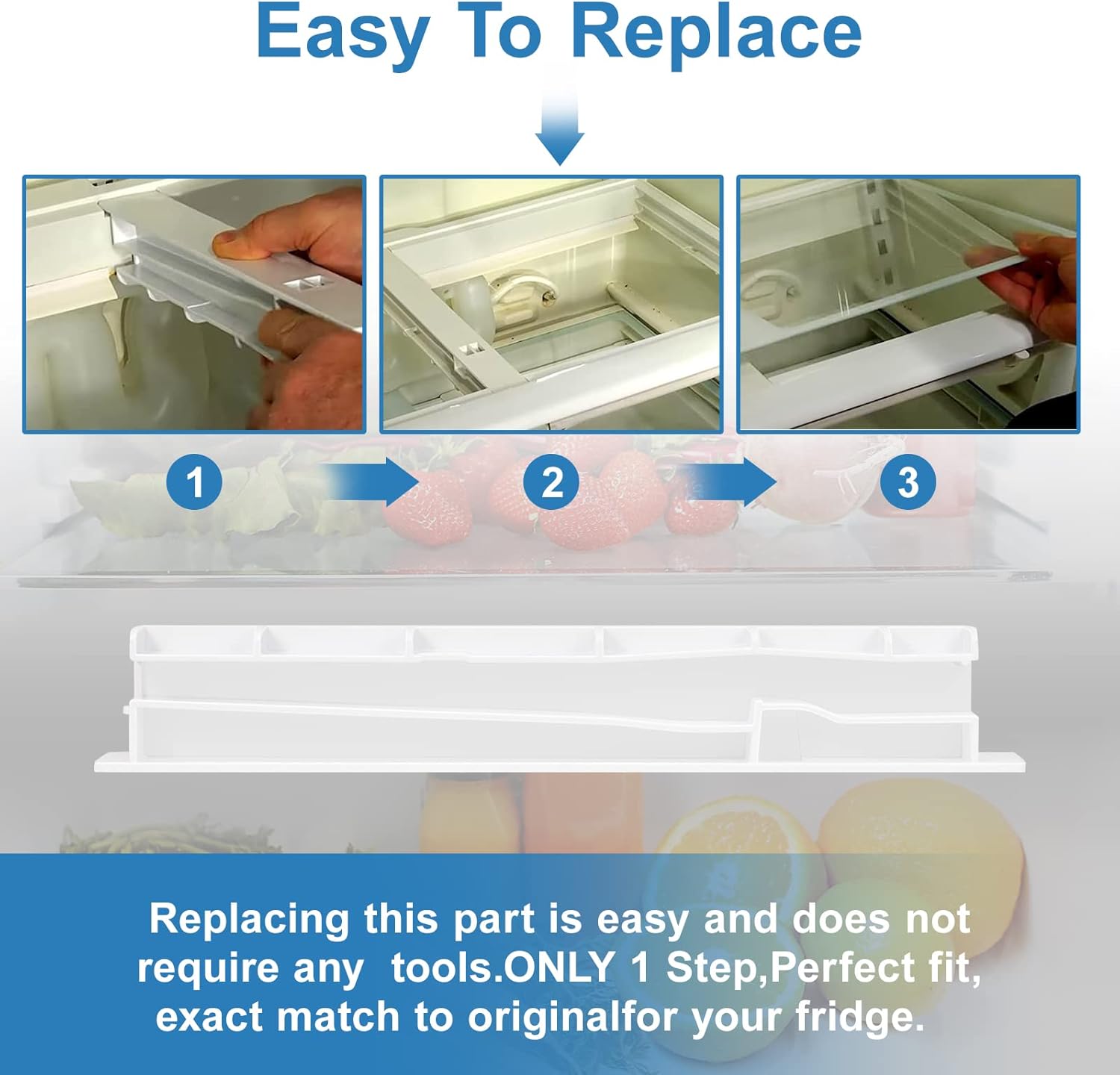

Image: A visual guide demonstrating the simple three-step process for replacing the crisper drawer center rail.
Important Note on Part Identification:
To ensure you purchase and install the correct part, it is crucial to accurately identify your refrigerator's model number and the specific part number required. The model number is typically found on a label inside the refrigerator compartment.
Funcionament i ús
Once the new crisper drawer center rail is installed, the crisper drawers should operate smoothly. To ensure longevity and proper function of the rail and drawers:
- Eviteu la sobrecàrrega: Do not place excessive weight in the crisper drawers, as this can strain the rail and lead to premature wear or breakage.
- Distribució uniforme: Distribute the weight of contents evenly within the crisper drawers to prevent uneven stress on the rail.
- Manipulació suau: Always open and close crisper drawers gently. Avoid forcing them if they encounter resistance.
Manteniment
Regular cleaning of the crisper drawer area, including the center rail, can help maintain smooth operation and hygiene.
- Neteja: Periodically remove the crisper drawers and wipe down the rail and surrounding area with a damp cloth and mild soap. Rinse with clean water and dry thoroughly before reassembling.
- Inspecció: Occasionally inspect the rail for any signs of wear, cracks, or damage. Early detection can prevent further issues.
Resolució de problemes
If you encounter issues after replacing the crisper drawer center rail, consider the following:
| Símptoma | Causa possible | Solució |
|---|---|---|
| Drawer won't open or close smoothly | Rail not seated correctly, obstruction, or drawer misalignment. | Remove drawers, re-seat the rail firmly, check for debris, and ensure drawers are aligned properly on the rail. |
| Noisy operation of drawers | Friction due to dirt, improper installation, or damaged rail. | Clean the rail and drawer runners. Verify the rail is installed correctly and not damaged. |
| Crisper drawer appears to be leaking | While less common for the rail itself, a misaligned or broken rail can affect drawer seal. | Ensure the rail allows the drawer to close completely and form a proper seal. Check for other sources of leaks within the refrigerator. |
If issues persist after troubleshooting, please refer to the Warranty and Support section for assistance.
Especificacions
| Atribut | Detall |
|---|---|
| Número de part | W10671238 / WPW10671238 |
| Tipus de material | Plàstic ABS |
| Pes de l'article | 5.9 unces (aproximadament 167 grams) |
| Dimensions del producte | 12.8"L x 1.6"W x 1.98"Th (approx. 32.5cm x 4.1cm x 5.0cm) |
| Tipus de muntatge | Muntanya central |
| Components inclosos | 1X W10671238 Refrigerator Drawer Slide Rail |
Garantia i Suport
ALVAR stands behind the quality of its products. The WPW10671238 Refrigerator Drawer Slide Rail comes with a Garantia del dia 365.
If you experience any problems with the product, including damage during shipping or issues with fit, please do not hesitate to contact ALVAR customer support. We are committed to providing comprehensive after-sales service and will work to resolve any concerns you may have.
For support, please refer to the contact information provided with your purchase or visit the official ALVAR store online. We aim to reply to inquiries within 24 hours.
Note: Warranty terms and conditions may apply. Please retain your proof of purchase.
