ALLPOWERS SP037 400W Portable Solar Panel Instruction Manual

1. Introducció

This manual provides detailed instructions for the safe and efficient use of your ALLPOWERS SP037 400W Portable Solar Panel. This high-efficiency solar panel is designed to provide substantial power for various applications, including charging portable power stations for outdoor adventures, RV travel, and emergency power outages.

Les característiques clau inclouen:

Sortida d'alta potència de 400 W: Capable of providing 37.4V output, suitable for large solar generators.
22% High Efficiency Solar Cells: Advanced polycrystalline solar modules ensure efficient conversion of sunlight.
IP67 Waterproof and ETFE Coating: Designed to withstand extreme weather conditions, offering protection against scratches, dust, and water splashes.
Disseny plegable i portàtil: Compact and lightweight for easy storage and transport, ideal for mobile use.

ALLPOWERS SP037 400W Portable Solar Panel unfolded

Image 1.1: The ALLPOWERS SP037 400W Portable Solar Panel fully unfolded, ready for use.

2. Informació de seguretat

Please read all safety warnings and instructions carefully before using the solar panel. Failure to follow these instructions may result in electric shock, fire, or serious injury.

No intenteu desmuntar, reparar o modificar el panell solar.
Avoid exposing the solar panel to open flames or extreme heat.
Do not immerse the solar panel in water, despite its IP67 rating, as prolonged submersion can cause damage.
Handle the solar panel with care to prevent physical damage.
Ensure all connections are secure and correct before operation.
Mantenir fora de l'abast dels nens.
Only use the solar panel with compatible devices and power stations.

3. Què s'inclou

Verifiqueu que tots els elements siguin presents al paquet:

ALLPOWERS 400W Solar Panel (SP037)
Solar to XT60 Cable
Solar to DC 5525 / DC 8020 Cable
Guia d'usuari

Contents of ALLPOWERS SP037 package including folded solar panel, cables, and user guide

Image 3.1: Package contents showing the folded solar panel, various connection cables, and the user manual.

4. Instruccions de configuració

Desplegueu el panell solar:
Carefully unfold the five panels of the ALLPOWERS SP037. Lay them flat in an area with direct sunlight.
Image 4.1: The solar panel fully extended.
Posició per a la llum solar òptima:
Utilize the integrated adjustable kickstands to angle the solar panel towards the sun. For best results, position the panel to receive maximum direct sunlight throughout the day. Adjust the angle periodically as the sun moves.
Image 4.2: Adjusting the panel's kickstands for better sun exposure.
Connect to a Power Station:
Connect the appropriate cable (Solar to XT60 or Solar to DC 5525 / DC 8020) from the solar panel to your compatible portable power station (e.g., ALLPOWERS R1500/R2500/S2000 Pro). Ensure the connection is firm and secure.
Image 4.3: Connection diagram of the solar panel to a power station.

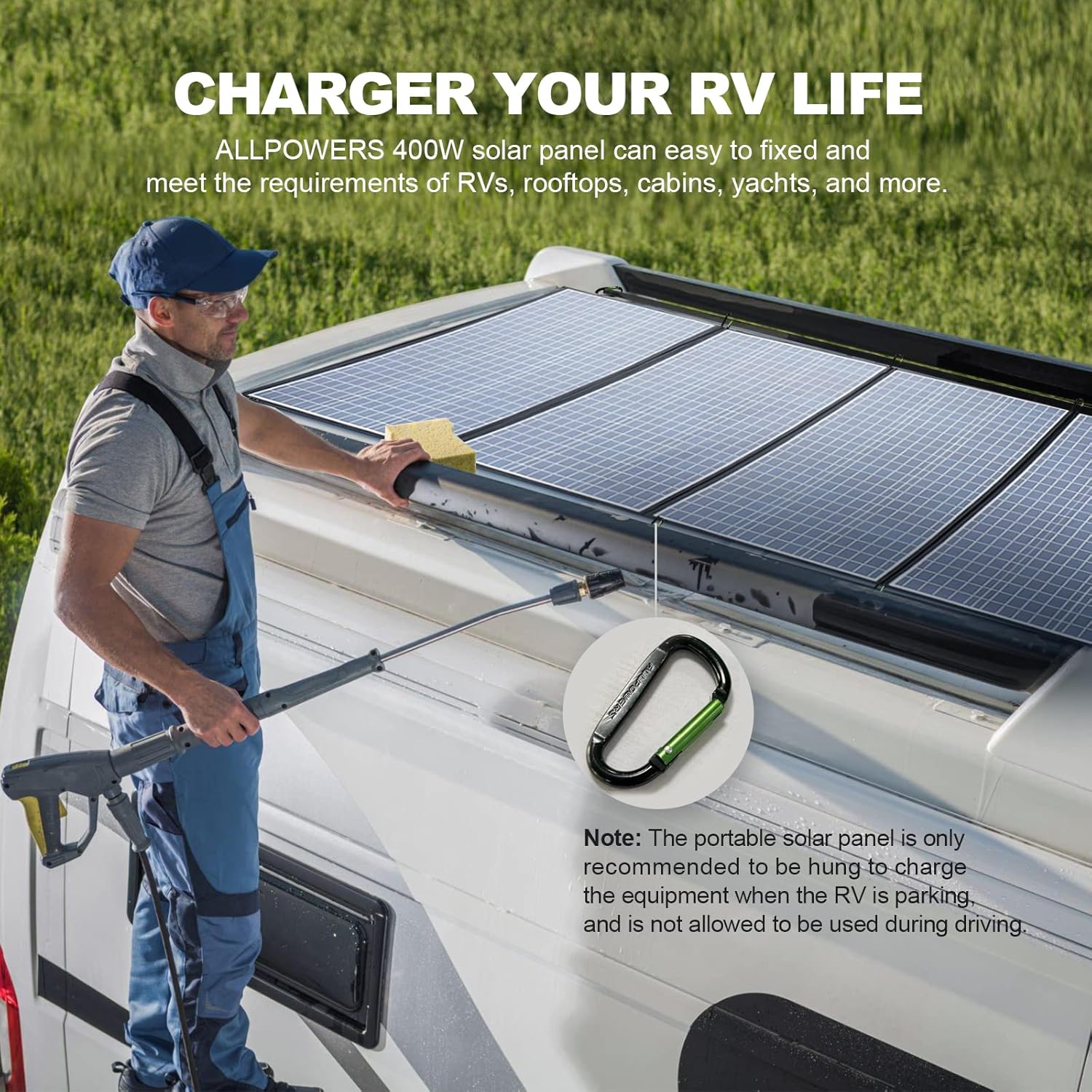

Note: The portable solar panel is only recommended to be hung to charge the equipment when the RV is parking, and is not allowed to be used during driving.
Image 4.4: Solar panel installed on an RV roof.

5. Instruccions de funcionament

Once properly set up and connected, the ALLPOWERS SP037 solar panel will begin converting sunlight into electricity to charge your connected devices.

Indicador de càrrega: Refer to your power station's display for charging status and input wattage.
Eficiència: The panel boasts a 22% high conversion efficiency, allowing for effective power generation even on partially cloudy days.
Àmplia compatibilitat: The universal connecting cables ensure compatibility with various ALLPOWERS power stations (S1500, S2000, S2000 Pro, R4000) and many third-party portable power stations.

ALLPOWERS solar panel in various outdoor settings: garden, RV, and camping

Image 5.1: The solar panel in use for garden, RV, and campescenaris de creació.

ALLPOWERS solar panel connected to a power station in a grassy outdoor setting, with FC, CE, Recycle, RoHS, and crossed-out wheelie bin symbols

Image 5.2: The solar panel demonstrating its green, durable, and reliable characteristics.

6. Manteniment

Proper maintenance ensures the longevity and optimal performance of your solar panel.

Neteja: Netegeu regularment la superfície del panell solar amb un drap suau iamp cloth to remove dust, dirt, or debris that may reduce efficiency. Do not use harsh chemicals or abrasive materials.
Emmagatzematge: When not in use, fold the solar panel and store it in a dry, cool place away from direct sunlight and extreme temperatures. The compact folded size (41.3 x 104 x 2.5 inches) makes storage convenient.
Resistència a l'aigua: The IP67 rating provides protection against dust ingress and temporary immersion in water (up to 1 meter for 30 minutes). However, avoid prolonged exposure to heavy rain or submersion.
Inspecció: Periodically check cables and connectors for any signs of wear, damage, or corrosion.

Close-up of the ALLPOWERS solar panel surface showing IP67 water resistance and connection cables

Image 6.1: Demonstrating the IP67 water resistance of the panel.

7. Solució De Problemes

If you encounter issues with your ALLPOWERS SP037 solar panel, refer to the following common troubleshooting steps:

Problema	Causa possible	Solució
No power output / Low power output	Insuficiència de llum solar Panel not angled correctly Superfície del panell bruta Loose or incorrect cable connection Incompatible power station Danys al panell	Move panel to direct sunlight. Adjust panel angle towards the sun. Netegeu la superfície del panell. Check all cable connections; ensure they are secure and correctly plugged in. Verify power station compatibility. Inspect panel for visible damage. Contact support if damaged.
Sobreescalfament del panell	Poca ventilació Temperatura ambient extrema	Ensure adequate airflow around the panel. Treballar dins dels rangs de temperatura recomanats.

If the problem persists after attempting these solutions, please contact ALLPOWERS customer support.

8. Especificacions tècniques

Característica	Detall
Marca	ALPODERS
Número de model	AP-SP-037
Potència màxima	400 watts
Volum màximtage	37.5 Volts
Eficiència	22% (alta eficiència)
Material	ETFE
Dimensions del producte (desplegat)	40.94 cm de llargada x 23.62 cm d'amplada x 4.72 cm d'alçada
Mida plegada	41.3" x 104" x 2.5"
Pes de l'article	40.8 lliures
Classificació impermeable	IP67

Image displaying detailed specifications of the 400W portable solar panel including solar cell lamination, rated power, cell type, efficiency, voltages, currents, and dimensions.

Image 8.1: Visual representation of the solar panel's key specifications.

9. Informació de la garantia

The ALLPOWERS SP037 400W Portable Solar Panel comes with a 2 any de garantiaAquesta garantia cobreix els defectes de materials i de fabricació en condicions d'ús normal. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

La garantia no cobreix:

Danys causats per mal ús, abús, accident o negligència.
Reparació o modificació no autoritzada.
Desgast normal.
Damage from natural disasters (e.g., lightning, flood).

10. Atenció al client

For technical assistance, warranty claims, or any other inquiries regarding your ALLPOWERS SP037 400W Portable Solar Panel, please contact ALLPOWERS customer support.

You can find more information and contact details on the official ALLPOWERS store page:

Visit the ALLPOWERS Store on Amazon

Please have your product model number (AP-SP-037) and purchase date ready when contacting support.

11. Vídeos de productes

No official product videos from the seller were found in the provided data that meet the embedding criteria (m3u8 format and 'Seller' creator type). Please refer to the product page on Amazon for any available video content.
