1. Producte acabatview
The EGLO Padulari LED Ceiling Light is a modern, dimmable lighting fixture designed for various indoor spaces such as living rooms, bedrooms, offices, and hallways. It features a sleek black metal design with white plastic light surfaces, providing versatile illumination with adjustable color temperatures and brightness.
Característiques principals:
- Dimmable LED lighting with remote control.
- Adjustable light color: Warm white, neutral white, and cool white (25.6 watts, 3800 lumens).
- Includes comfort functions: night light mode and 30-minute timer.
- Minimalist design suitable for modern interiors.
- Dimensions: Length 53.5 cm, Width 47 cm, Height 5 cm.
Figure 1: EGLO Padulari LED Ceiling Light, showcasing its linear black and white design.
2. Informació de seguretat
Llegiu atentament totes les instruccions de seguretat abans de la instal·lació i l'ús. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o altres perills.
- Seguretat elèctrica: Always disconnect power at the main circuit breaker before installing, cleaning, or servicing the fixture. Ensure all electrical connections comply with local codes and regulations. If unsure, consult a qualified electrician.
- Instal·lació: This product requires assembly. Ensure the mounting surface can support the weight of the fixture (approximately 1.44 kg). Do not install in damp o llocs humits.
- Manipulació: Handle the light fixture with care to avoid damage to the LED components or housing.
- Font de llum: The LED light source is integrated and not user-replaceable. Do not attempt to disassemble the LED module.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- EGLO Padulari LED Ceiling Light fixture
- Control remot
- Assembly Instructions (English language)
- Mounting Hardware (screws, anchors, etc. - typically included with assembly instructions)
Figure 2: Diagram illustrating the light fixture's dimensions and typical components included for assembly.
4. Configuració i instal·lació
Assembly is required for this ceiling light. Please follow the detailed assembly instructions provided in the package for proper installation.
- Preparació per a la instal·lació:
- Turn off power at the main circuit breaker to the junction box where the light will be installed.
- Desembaleu tots els components i col·loqueu-los sobre una superfície neta i plana.
- Ensure you have the necessary tools (e.g., screwdriver, wire strippers, drill if needed).
- Muntatge de l'aparell:
- Fixeu el suport de muntatge a la caixa de connexions del sostre amb els cargols proporcionats.
- Connect the electrical wires (live, neutral, ground) from the fixture to the corresponding wires in the junction box, following standard electrical wiring practices. Secure connections with wire nuts.
- Fixeu amb cura el cos de la lluminària al suport de muntatge, assegurant-vos que estigui ben fixat.
- Configuració del control remot:
- The remote control requires batteries. Insert the specified battery type (usually AAA, check remote compartment for details) into the remote control, observing polarity.
- The remote control should be pre-paired with the light. If not, refer to the specific pairing instructions in the included manual.
- Comprovació final:
- Once the fixture is securely mounted and wired, restore power at the circuit breaker.
- Test the light using the remote control.
Figure 3: The EGLO Padulari LED Ceiling Light installed, demonstrating its appearance in a living space.
5. Instruccions de funcionament
The EGLO Padulari LED Ceiling Light is operated using the included remote control. Familiarize yourself with the buttons and their functions:

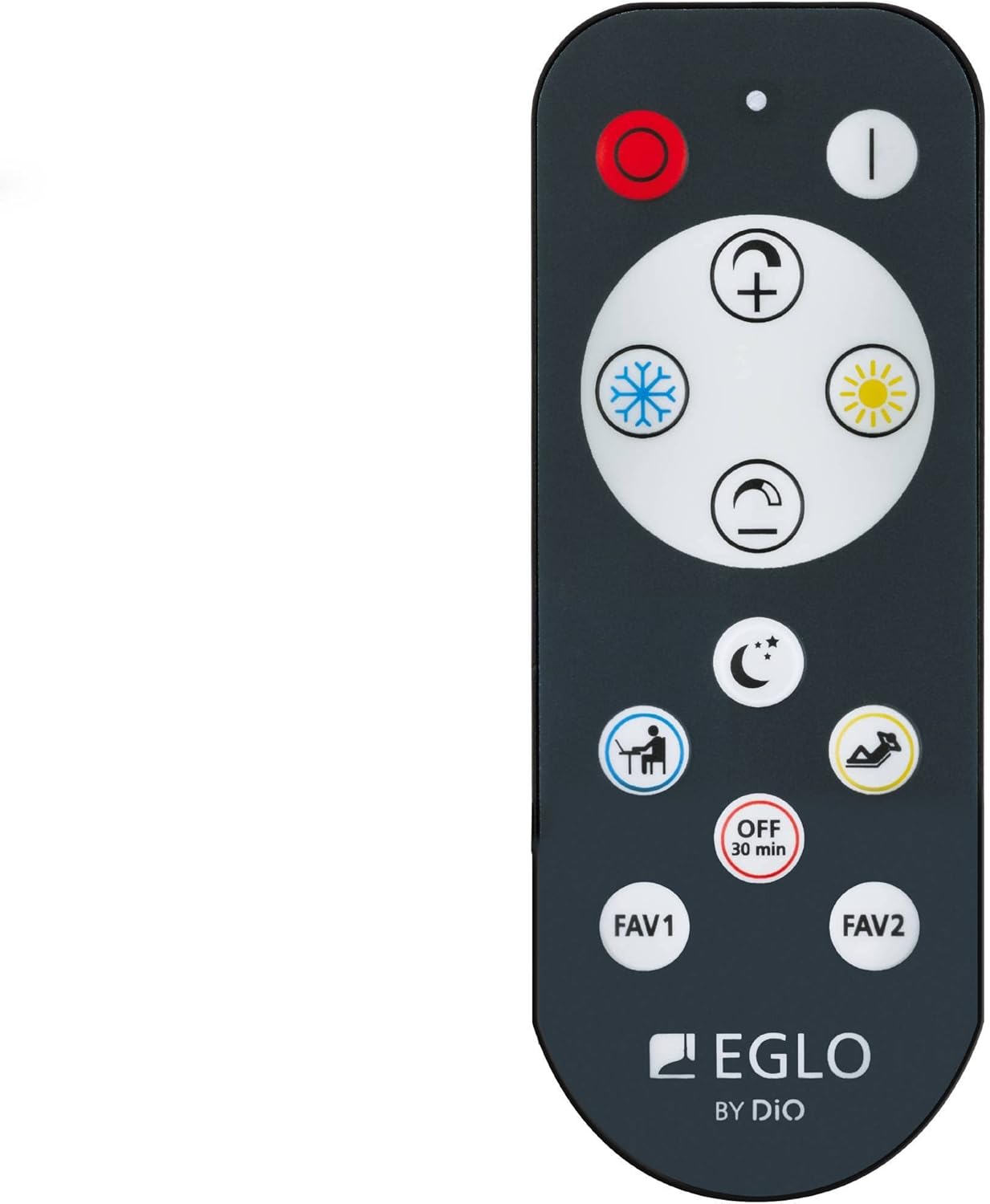

Figure 4: The remote control for the EGLO Padulari LED Ceiling Light, showing various function buttons.
Funcions de control remot:
- Encès/apagat: Premeu el botó cercle vermell button to turn the light off, and the white vertical line botó per activar-lo.
- Ajust de brillantor (atenuació): Utilitza el + i - buttons (often depicted as sun with plus/minus) to increase or decrease the light intensity.
- Ajust de temperatura de color:
- Snowflake/Blue Icon: Adjusts to cooler white light.
- Sun/Yellow Icon: Adjusts to warmer white light.
- The light offers a range from warm white to neutral white to cool white.
- Mode de llum nocturna: Premeu el botó Crescent Moon with Stars icon for a low-intensity, soft light suitable for nighttime.
- Funció de temporitzador: Premeu el botó "OFF 30 min" button to set the light to automatically turn off after 30 minutes.
- Scene Presets (FAV1, FAV2): These buttons allow you to save and recall your preferred light settings (brightness and color temperature). Refer to the detailed remote control instructions in your included manual for saving presets.
- Specific Use Modes (e.g., Desk Lamp, Relax): Icons resembling a person at a desk or a person relaxing may activate specific pre-programmed light settings optimized for those activities.
6. Manteniment
Proper care will ensure the longevity and optimal performance of your EGLO Padulari LED Ceiling Light.
- Neteja:
- Always turn off the light and disconnect power at the circuit breaker before cleaning.
- Netegeu l'aparell amb un drap suau, sec o lleugerament humit.amp tela.
- Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or plastic components.
- LED: The LEDs are integrated and do not require replacement. Do not attempt to open the LED modules.
- Comandament a distància: If the remote control stops responding, check and replace the batteries. Ensure there are no obstructions between the remote and the light fixture.
7. Solució De Problemes
If you encounter issues with your EGLO Padulari LED Ceiling Light, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No power to the fixture; loose wiring; remote control issue. | Check circuit breaker. Ensure all wire connections are secure. Replace remote control batteries. Re-pair remote if necessary (refer to included manual). |
| La llum parpelleja o s'atenua inesperadament. | Unstable power supply; loose connection; incompatible dimmer (not applicable as it uses its own remote). | Check power supply. Verify wiring connections. If problem persists, consult a qualified electrician. |
| El comandament a distància no respon. | Dead batteries; remote out of range; obstruction; remote not paired. | Replace batteries. Ensure remote is within operating range and pointed towards the light. Remove any obstructions. Refer to manual for pairing instructions. |
| No es pot ajustar el color de la llum ni la brillantor. | Problema amb el comandament a distància; error intern. | Check remote batteries and functionality. If remote works for other functions, there might be an internal fault. Contact customer support. |
Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
8. Especificacions
| Atribut | Valor |
|---|---|
| Marca | Eglo |
| Número de model | 900597 |
| ASIN | B0BGMF7429 |
| Dimensions del producte | 53.5 x 47 x 5 cm |
| Pes de l'article | 1.44 quilos |
| Material | Metall d'alumini |
| Color | Negre |
| Tipus de font de llum | LED |
| Wattage | 25.6 watts |
| Flux lluminós | 3800 lúmens |
| Temperatura de color | Warm White / Neutral White / Cool White (Adjustable) |
| Font d'alimentació | AC |
| Muntatge obligatori | Sí |
| Calen piles (per al comandament a distància) | Sí |
| Components inclosos | Ceiling light, remote control, assembly instructions |
9. Garantia i Suport
For warranty information and customer support, please refer to the documentation included with your purchase or contact the seller directly. As this product is fulfilled by Amazon Germany, you may contact Amazon customer service for assistance with returns or product-related inquiries.
Informació de contacte:
- For general inquiries or support, visit the Atenció al client d'Amazon pàgina.
- For product-specific technical support, refer to the contact details provided in the original packaging or on the Eglo official weblloc.
