Ledvion Surface-Mounted Motion Sensor LV10040 Instruction Manual

1. Introducció

Thank you for choosing the Ledvion Surface-Mounted Motion Sensor. This manual provides detailed instructions for the safe installation, operation, and maintenance of your device. Please read this manual carefully before installation and retain it for future reference.

This motion sensor is designed for indoor use, featuring a 360° detection range and adjustable settings for ambient light sensitivity and illumination time. Its IP20 rating makes it suitable for various indoor environments.

Imatge 1.1: Frontal view of the Ledvion Surface-Mounted Motion Sensor. This white, circular sensor is designed for discreet installation on ceilings or walls.

2. Instruccions de seguretat

• Seguretat elèctrica: La instal·lació ha de ser realitzada per un electricista qualificat d'acord amb les normatives locals de cablejat. Assegureu-vos que el subministrament elèctric estigui desconnectat abans de la instal·lació o el manteniment.
• Només per a ús interior: This product has an IP20 rating and is designed for indoor environments. Do not expose it to water, high humidity, or extreme temperatures.
• Capacitat de càrrega: Do not exceed the maximum load capacity: 800W for incandescent/halogen lamps, 400W for LED lamps.
• Muntatge: Ensure the mounting surface is stable and can support the weight of the sensor.
• Neteja: Utilitzeu un drap suau i sec per netejar. No utilitzeu netejadors abrasius ni dissolvents.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents al paquet:

• 1x Ledvion Motion Sensor (Model LV10040)
• 1 x manual d'instruccions
• 2x cargols de muntatge
• 2x endolls de paret

Image 3.1: The package includes one motion sensor, one instruction manual, two screws, and two wall plugs for installation.

4. Especificacions

Image 4.1: Detailed dimensions of the motion sensor, showing a diameter of 100mm and a height of 45mm.

5. Configuració i instal·lació

The Ledvion Motion Sensor is designed for surface mounting on ceilings or walls. Follow these steps for proper installation:

1. Tria la ubicació: Select a suitable indoor location, free from direct sunlight, heat sources, or strong air currents that might cause false triggers. The optimal installation height is between 2.2 and 4 meters for a 360° detection range of up to 8 meters.
2. Desconnecteu l'alimentació: Abans de començar qualsevol treball elèctric, assegureu-vos que l'alimentació principal de la zona d'instal·lació estigui desconnectada a l'interruptor.
3. Marca els punts de perforació: Use the sensor's base as a template to mark the two drilling points on the ceiling or wall.
4. Forats: Drill holes at the marked points and insert the provided wall plugs.
5. Cablejat: Connect the electrical wires to the sensor's terminals according to the wiring diagram (refer to the diagram on the sensor or packaging if available). Ensure correct polarity and secure connections.
6. Muntar el sensor: Secure the sensor to the wall or ceiling using the provided screws.
7. Restaura l'alimentació: Once the sensor is securely mounted and wired, restore power at the circuit breaker.

Imatge 5.1: Ex.ample of the motion sensor installed on a wall, blending discreetly with the interior design.

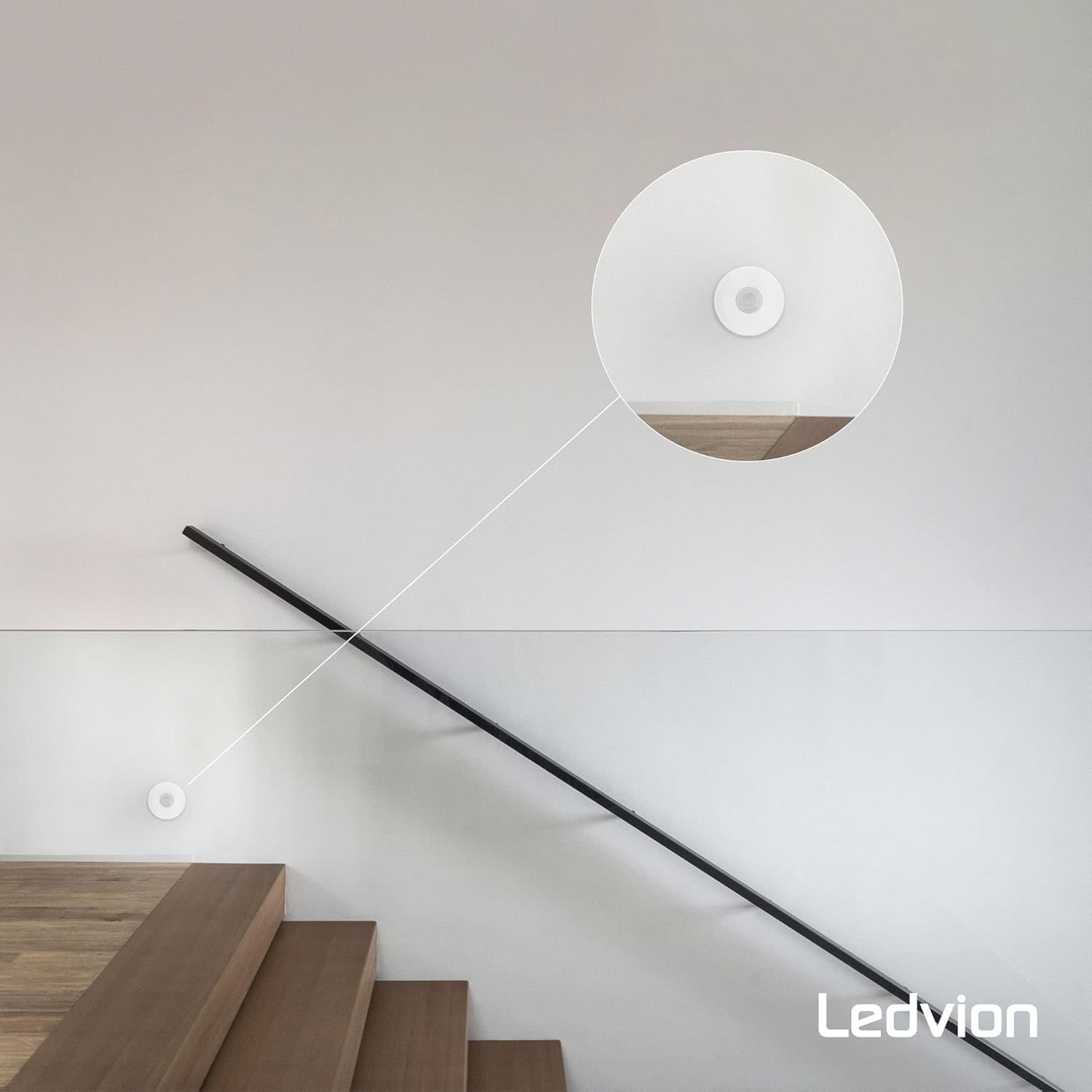

Image 5.2: Another installation example, showing the sensor mounted on a wall in a staircase, providing illumination when motion is detected.

6. Operating Instructions and Settings

The Ledvion Motion Sensor features adjustable settings for time delay and ambient light sensitivity (LUX level).

6.1. Ajust del retard de temps

The time delay determines how long the connected light remains on after motion is last detected. This can be adjusted from a minimum of 10 seconds to a maximum of 30 minutes.

• Minimum (10 seconds): Ideal for high-traffic areas where lights are needed only briefly.
• Maximum (30 minutes): Suitable for areas where longer illumination is desired after motion.

6.2. Ambient Light (LUX) Adjustment

The LUX setting determines the ambient light level at which the sensor will activate. This can be adjusted from approximately 3 LUX (dark) to 2000 LUX (daylight).

• Low LUX (e.g., 3 LUX): The sensor will only activate the light when the environment is very dark.
• High LUX (e.g., 2000 LUX): The sensor will activate the light even in brighter conditions, effectively functioning throughout the day.

Imatge 6.1: Primer pla view of the sensor's adjustment dials for time delay and ambient light (LUX) settings.

6.3. Interval de detecció

The sensor offers a wide 360° detection range, covering an area of up to 8 meters. For optimal performance, ensure the sensor is installed at a height between 2.2 and 4 meters.

Image 6.2: Illustration of the sensor's 360-degree detection capability and an 8-meter detection range, with recommended installation height.

7. Manteniment

The Ledvion Motion Sensor requires minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:

• Neteja: Periodically wipe the sensor's surface with a soft, dry, lint-free cloth to remove dust and dirt. Do not use liquid cleaners, aerosols, or abrasive materials, as these can damage the sensor.
• Inspecció: Regularly check for any visible damage to the sensor or its wiring. If any damage is observed, disconnect power immediately and consult a qualified electrician.
• Condicions ambientals: Ensure the sensor remains in an indoor environment, protected from moisture and extreme temperatures, as per its IP20 rating.

8. Solució De Problemes

If you encounter issues with your Ledvion Motion Sensor, refer to the following common problems and solutions:

• Light does not turn on when motion is detected:
  • Comproveu si la font d'alimentació està connectada i activa.
  • Verify the LUX setting. If it's set too low, the sensor might not activate in current ambient light conditions. Adjust it to a higher LUX level for testing.
  • Ensure the connected light bulb is functional.
  • Check wiring connections for looseness or errors.
• Light stays on continuously or turns on without motion:
  • Check for constant movement within the detection zone (e.g., pets, curtains moving in a draft).
  • Adjust the LUX setting. If it's set too high, the sensor might be activating even in bright conditions.
  • Ensure the sensor is not exposed to direct heat sources or strong air currents.
• Light turns off too quickly or too slowly:
  • Adjust the "TIME" delay setting on the sensor to your desired duration.
• Reduced detection range:
  • Assegureu-vos que no hi hagi obstacles que bloquegin el sensor view.
  • Verify the installation height is within the recommended 2.2 to 4 meters.
  • Clean the sensor lens if it is dusty or dirty.

If the problem persists after trying these solutions, please contact Ledvion customer support.

9. Garantia i Suport

The Ledvion Motion Sensor comes with a 2 any de garantia, ensuring long-lasting usage and reliability. This warranty covers defects in materials and workmanship under normal use.

Image 9.1: The product is backed by a 2-year warranty, highlighting its durable construction.

For technical support, warranty claims, or further assistance, please refer to the contact information provided on the product packaging or the official Ledvion weblloc.
