1. Introducció
The Sordin Pro-X Hearing Protector is an advanced electronic hearing protection device designed for active use in environments with varying noise levels, such as hunting, shooting, and communication. It combines effective noise attenuation with sound amplification to enhance situational awareness while protecting against harmful impulse noises.
Image 1.1: The Sordin Pro-X Hearing Protector, showcasing its design and controls.
2. Producte acabatview
The Sordin Pro-X features advanced electronic circuitry for active noise amplification and suppression. Key components include:
- Copes d'orella: Designed for comfort and effective noise sealing.
- Gel Pads: Enhanced comfort and improved sealing for prolonged use.
- Diadema: Ajustable per a un ajust segur i còmode.
- Micròfons: External microphones capture ambient sounds.
- Tauler de control: Buttons for power, volume adjustment, and mode selection.
- Compartiment de la bateria: Houses AAA batteries for power.
Image 2.1: Illustration of the SordinHEAR electronic system for active noise amplificació.
3. Configuració
3.1. Instal·lació de la bateria
The Sordin Pro-X requires two AAA batteries. Follow these steps to install or replace batteries:
- Localitza el compartiment de la bateria en un dels auriculars.
- Unscrew the battery cap by turning it counter-clockwise.
- Insert two AAA batteries according to the polarity indicators (+/-) inside the compartment.
- Replace the battery cap and screw it clockwise until secure.
Image 3.1: Battery compartment showing correct AAA battery placement.
Video 3.1: Instructions on how to change the batteries in Sordin Supreme series hearing protectors.
3.2. Ajust de la diadema
Adjust the headband to ensure a snug and comfortable fit. The ear cups should fully cover your ears, creating a seal to maximize noise protection and sound quality.
4. Instruccions de funcionament
4.1. Encendre/apagar
Press and hold the power button (usually the central button on the control panel) for approximately 2 seconds to turn the device on or off.

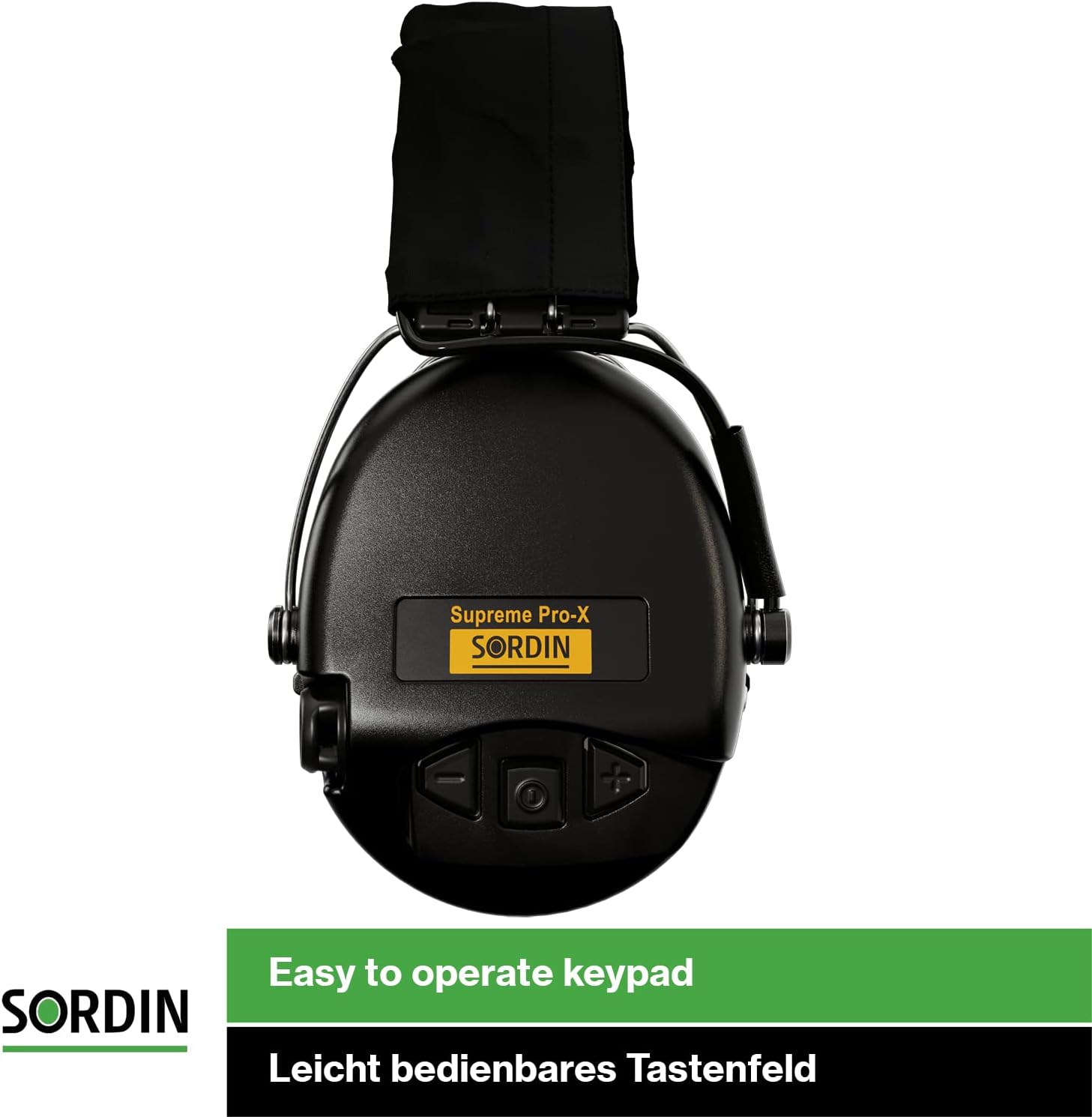

Image 4.1: The easy-to-operate keypad on the Sordin Pro-X ear cup.
4.2. Ajust de volum
Use the '+' and '-' buttons on the control panel to increase or decrease the ampnivell de lificació dels sons ambientals.
4.3. Modes de so
The Sordin Pro-X offers four selectable sound modes to optimize performance for different environments:
- Hunting Mode: Optimized for detecting subtle sounds in natural environments.
- Mode d'enfocament: Enhances directional hearing for specific sound sources.
- Mode de tir: Provides maximum impulse noise suppression while maintaining speech clarity.
- Mode de comunicació: Balances ambient sound amplification with clear communication.
Refer to the device's specific button combinations or sequence to cycle through these modes.
5. Manteniment
5.1. Neteja
Wipe the ear cups and headband with a damp drap. No utilitzeu productes químics agressius ni netejadors abrasius. Assegureu-vos que el compartiment de la bateria estigui sec abans de tancar-lo.
5.2. Gel Pad Care
Regularly inspect the gel pads for wear and tear. Replace them if they become damaged or lose their sealing effectiveness. Replacement hygiene kits are available.
Image 5.1: Sordin Pro-X with focus on the ear cups, which can be fitted with hygienic foam kits.
5.3. Emmagatzematge
Store the hearing protector in a dry, cool place away from direct sunlight. Remove batteries if the device will not be used for an extended period to prevent leakage.
Image 5.2: Detail of the Sordin Pro-X ear cup, demonstrating its durable design for tough conditions.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Cap so o so fluix. | Low or dead batteries, incorrect battery insertion, device not powered on. | Replace batteries, ensure correct polarity, power on the device. |
| So distorsionat. | Low batteries, moisture in microphones, damaged components. | Replace batteries, allow device to dry, contact support if issue persists. |
| Uncomfortable fit. | Improper headband adjustment, worn gel pads. | Adjust headband, replace gel pads if necessary. |
7. Especificacions
- Número de model: Sordin Supreme Pro-X
- Fabricant: Sordin
- Compliment: EN 352 (European Standard for Hearing Protectors)
- Font d'alimentació: 2 x piles AAA
- Característiques: Soroll actiu amplification, 4 selectable sound modes, waterproof electronics.
Image 7.1: Certification markings on the Sordin Pro-X, indicating compliance with EN 352 standards.
8. Garantia i Suport
For warranty information, technical support, or to purchase replacement parts, please contact Sordin customer service directly. Refer to the official Sordin weblloc web per obtenir les dades de contacte més actualitzades.
Nota: The seller "ACE-Instruments" is responsible for fulfilling orders. For product-specific issues, Sordin is the manufacturer.
