1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Kolice Commercial Dough Baking Proofer, Model KDP-16F. This versatile unit integrates freezing, thawing, fresh-keeping, and fermentation functions, designed for commercial baking environments. Please read this manual thoroughly before operating the appliance to ensure safe and efficient use.
Imatge 1.1: Frontal view of the Kolice Commercial Dough Baking Proofer KDP-16F.
2. Instruccions de seguretat
Adhering to safety guidelines is crucial for preventing injury and damage to the appliance. Keep this manual for future reference.
- Assegureu-vos que la unitat estigui connectada a una presa de corrent amb connexió a terra i el volum correctetage (110 V, 60 Hz).
- Do not operate the appliance with wet hands or while standing on wet surfaces.
- Mantingueu l'aparell allunyat de l'aigua i altres líquids.
- Do not block ventilation openings. Ensure adequate clearance around the unit for proper airflow.
- Only use the specified 60x40cm stainless steel trays with this unit. Using other sizes may cause operational issues or damage.
- Regularly inspect the power cord for damage. If damaged, contact qualified service personnel for replacement.
- Do not attempt to repair or modify the appliance yourself. Refer all servicing to authorized personnel.
- Desendolleu la unitat abans de netejar-la o realitzar qualsevol manteniment.
- Mantingueu els nens allunyats de l'aparell durant el funcionament i la neteja.
3. Configuració i instal·lació
3.1 Desembalatge
Carefully remove the proofer from its packaging. Inspect the unit for any signs of shipping damage. Report any damage to your supplier immediately.
3.2 Col·locació
Place the proofer on a stable, level surface. Ensure there is sufficient space around the unit for ventilation, especially at the rear and sides. The adjustable stainless steel feet can be used to level the unit on uneven floors.
Image 3.1: The proofer with its door open, showing the 16 tray slots.
3.3 Connexió d'alimentació
Connect the power cord to a dedicated 110V, 60Hz, 680W grounded electrical outlet. Do not use extension cords or adapters.
3.4 Neteja inicial
Abans del primer ús, netegeu les superfícies interiors i exteriors amb anuncis.amp cloth and mild detergent. Rinse thoroughly and dry completely. Ensure all 16 stainless steel trays (60x40cm) are clean before loading.
4. Instruccions de funcionament
4.1 Tauler de control acabatview
The unit features a touch control panel for easy operation. Familiarize yourself with the various indicators and buttons.
Imatge 4.1: Detallada view of the touch control panel, showing time, temperature, humidity displays, and function buttons.
- Botó d'encesa: Encén o apaga la unitat.
- Visualització de l'hora: Shows the set or remaining operation time.
- Visualització de la temperatura: Shows the current or set temperature.
- Pantalla d'humitat: Shows the current or set humidity level.
- Selecció del mode: Buttons for Freezing, Thawing, Keep Fresh, Proofing 1, Proofing 2.
- Establir botons: Used to adjust time, temperature, and humidity settings.
- Botó de llum: Controls interior lighting.
4.2 Funcionament bàsic
- Encès: Premeu el botó d'engegada per engegar la unitat.
- Seleccioneu la funció: Choose the desired function (Freezing, Thawing, Keep Fresh, Proofing 1, Proofing 2) using the corresponding button.
- Establir paràmetres: Use the set buttons to adjust the temperature (range: -22°C to 45°C / -7.6°F to 113°F), humidity (range: 0% to 99%), and timer (up to 24 hours) as needed for your specific product.
- Loading Trays: Place your dough or food items on the 60x40cm stainless steel trays and slide them into the designated slots.
- Inici del cicle: Once settings are confirmed, the unit will begin its operation.
- Seguiment: The transparent glass window allows for visual monitoring of the process without opening the door.
The unit supports a two-stage humidity setting for optimal fermentation: 65% for the first stage and 85% for the second stage. The cold air convection system ensures uniform temperature distribution throughout the cabinet.
Image 4.2: Visual representation of dough before and after proofing in the unit.
Imatge 4.3: Ex.amples of food items that can be processed using the proofer's various functions.
5. Manteniment
Regular maintenance ensures the longevity and optimal performance of your proofer.
5.1 Neteja
- Neteja diària: Wipe down the interior and exterior with a soft cloth and mild, food-safe detergent. Avoid abrasive cleaners or scouring pads that can scratch the stainless steel finish.
- Neteja de safates: Remove and clean the stainless steel trays after each use. They are dishwasher safe.
- Seal Strip: The removable seal strip on the door should be cleaned regularly to maintain insulation effectiveness. Ensure it is properly re-seated after cleaning.
- Descàrrega d'aigua: The unit features automatic water discharge. Ensure the drainage system is clear and unobstructed.
5.2 Auto-Defrost
The proofer is equipped with an auto-defrost function, minimizing manual defrosting. Allow the cycle to complete as needed.
5.3 Inspecció general
Periodically check the door hinges, seal, and power cord for any signs of wear or damage. Contact customer support if any issues are identified.

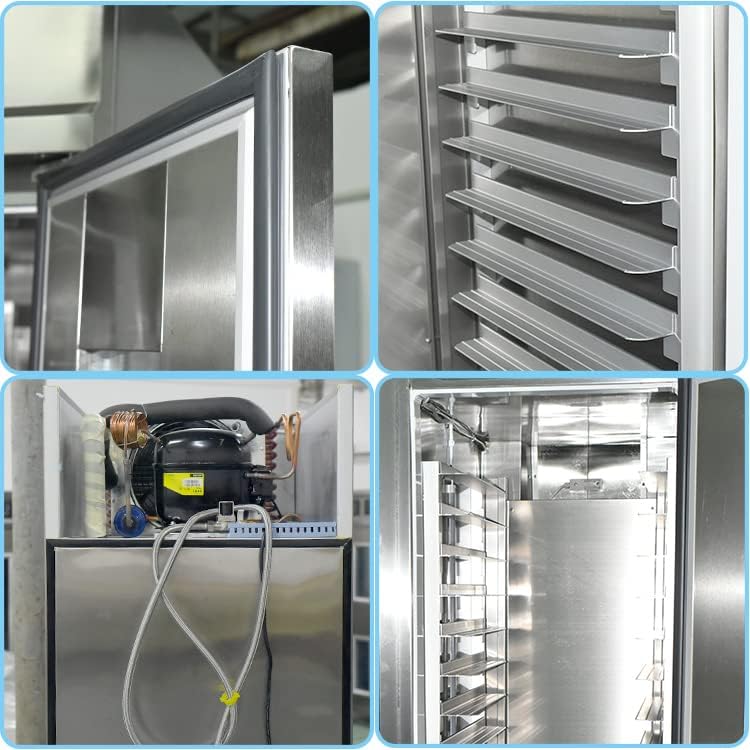

Image 5.1: Close-up details of the proofer's construction, highlighting the stainless steel door seal, precise control panel, removable shelves, and durable fuselage.
Imatge 5.2: Interior view of the proofer, illustrating the internal air circulation fans and refrigeration unit components.
6. Solució De Problemes
Aquesta secció tracta els problemes habituals que podeu trobar. Per a problemes que no figuren aquí, poseu-vos en contacte amb l'atenció al client.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | No power supply; power cord disconnected; circuit breaker tripped. | Comproveu la connexió elèctrica; assegureu-vos que la presa de corrent funciona correctament; reinicieu l'interruptor automàtic. |
| Temperature not reaching set point. | Door not closed properly; ventilation obstructed; ambient temperature too high/low. | Ensure door is sealed; clear obstructions around unit; adjust ambient conditions if possible. |
| Humidity not stable. | Water supply issue; humidity sensor malfunction; door seal compromised. | Check water circulation system; inspect door seal; contact support if sensor suspected. |
| Soroll inusual durant el funcionament. | Unit not level; internal component loose; fan obstruction. | Ensure unit is level; inspect for loose parts; check for fan obstructions. |
7. Especificacions
| Característica | Detall |
|---|---|
| Model | KDP-16F |
| Marca | Kolice |
| Funcions | Freezing, Thawing, Keep Fresh, Fermentation |
| Capacitat | 600 litres |
| Capacitat de la safata | 16 stainless steel trays (60x40cm) |
| Font d'alimentació | 110 V, 60 Hz |
| Potència nominal | 680W |
| Interval de temperatura | -22 °C a 45 °C (-7.6 °F a 113 °F) |
| Gamma d’humitat | 0% to 99% (Two-stage: 65%, 85% for fermentation) |
| Temporitzador | Fins a 24 hores |
| Dimensions (AxPxA) | 33.46" x 27.56" x 77.95" (85 cm x 70 cm x 198 cm) |
| Pes | 195 lliures (aprox. 88.5 kg) |
| Material | Acer inoxidable de grau alimentari |
| Aïllament | Double-layer with 6cm high-density environmental material |
| Tipus de control | Toqueu Tauler de control |
8. Garantia i assistència
Kolice products are manufactured with quality and durability in mind. This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Kolice weblloc.
For technical assistance, troubleshooting, or to inquire about spare parts, please contact Kolice customer support. Contact information can typically be found on the product packaging, the official Kolice weblloc web o a través del vostre punt de compra.
Kolice Refrigeration Equipment Manufacturer Inc. provides long-term technical support and spare parts for maintenance.
