1. Introducció
This manual provides detailed instructions for the assembly, operation, and maintenance of your Dripex C-Shaped Adjustable Mobile Side Table. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of the product.
Image 1.1: The Dripex C-Shaped Adjustable Mobile Side Table, shown with a laptop and coffee cup, highlighting its versatile design.
2. Informació de seguretat
- Assegureu-vos que totes les peces estiguin ben subjectes abans d'utilitzar-les.
- No supereu el pes màxim recomanat de 100 lliures (45 kg).
- Mantingueu les peces petites allunyades dels nens durant el muntatge.
- Eviteu col·locar objectes calents directament sobre la superfície sense protecció.
- Reviseu regularment totes les connexions per assegurar-vos que romanen ben ajustades.
3. Contingut del paquet
Si us plau, verifiqueu que tots els components siguin presents abans de començar el muntatge. Si falta alguna peça o hi ha alguna peça danyada, poseu-vos en contacte amb el servei d'atenció al client.
- Tabletop (Engineered Wood)
- Steel Frame Components (H-shaped base, vertical supports)
- 2-Tier Storage Shelves
- 4 Universal Wheels (with 2 foot brakes)
- Perilles d'ajust d'alçada
- Maquinari de muntatge (cargols, perns, clau Allen)
4. Instruccions de muntatge
Cal muntatge per a aquest producte. Segueix aquests passos amb atenció.
- Desempaquetar components: Traieu amb cura totes les peces de l'embalatge i col·loqueu-les sobre una superfície neta i suau per evitar ratllades.
- Fixeu les rodes a la base: Secure the four universal wheels to the H-shaped base frame. Ensure the two wheels with foot brakes are positioned on the desired side for easy access.
- Muntar els suports verticals: Connect the vertical steel supports to the H-shaped base using the provided hardware. Do not fully tighten screws yet.
- Instal·leu prestatges d'emmagatzematge: Attach the two storage shelves to the designated positions on the vertical supports.
- Fixar el taulell: Secure the tabletop to the top of the vertical supports.
- Adjust Height Mechanism: Insert the height-adjustable poles into the main vertical supports and secure them with the height adjustment knobs.
- Ajustament final: Once all components are in place, carefully tighten all screws and bolts to ensure stability.
Image 4.1: Detail of the stable H-shaped base structure and the omni-directional wheels, including a close-up of a wheel with its brake mechanism.
Image 4.2: Illustration of the double-layer storage rack and the height adjustment knob on the vertical support.
5. Instruccions de funcionament
5.1. Ajust d'alçada
The table's height can be adjusted to suit various needs, ranging from 68 cm to 89 cm.
- Loosen the height adjustment knobs located on the vertical supports.
- Gently raise or lower the tabletop to the desired height.
- Once the desired height is reached, securely tighten the adjustment knobs to lock the tabletop in place.
5.2. Moving the Table
The table is equipped with four 360° swivel wheels for easy mobility.
- To move the table, ensure the foot brakes on the wheels are disengaged (in the "OFF" position).
- Gently push the table to its new location.
- To secure the table in place, engage the foot brakes on the two braked wheels (in the "ON" position).

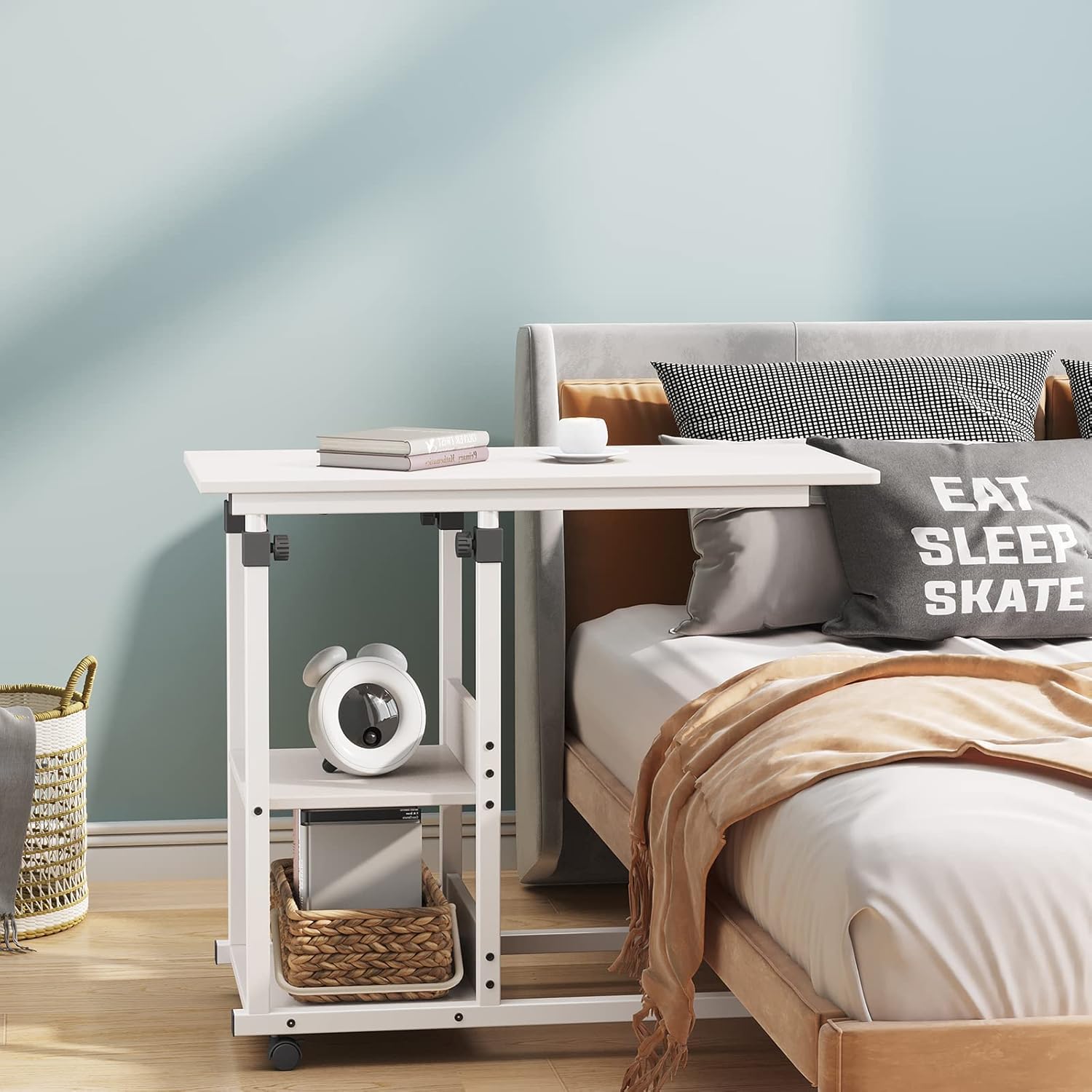

Image 5.1: The C-shaped design allows the table to slide under a bed, providing a convenient surface.
Image 5.2: The table's C-shape allows it to slide under a sofa, making it ideal for various seating arrangements.
6. Manteniment
- Neteja: Netegeu el taulell i el marc amb un drap suau.amp drap. Eviteu productes de neteja abrasius o productes químics agressius.
- Vessaments: Clean spills immediately to prevent staining, especially on the engineered wood surface.
- Comprovació de maquinari: Inspeccioneu periòdicament tots els cargols i perns per assegurar-vos que estiguin ben ajustats. Torneu a estrènyer-los si cal.
- Cura de les rodes: Mantingueu les rodes lliures de deixalles per garantir un moviment suau.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Table is wobbly. | Cargols solts o terra irregular. | Check and tighten all assembly screws. Move the table to a level surface. |
| Dificultat per ajustar l'alçada. | Adjustment knobs are too tight or mechanism is stiff. | Loosen knobs completely before adjusting. Apply a small amount of silicone lubricant to the poles if necessary. |
| Les rodes no giren suaument. | Debris caught in wheels or brakes engaged. | Clear any debris from the wheels. Ensure brakes are in the "OFF" position. |
8. Especificacions
| Marca: | Dripex |
| Model: | C-Shaped Side Table |
| Color: | Blanc |
| Material: | Engineered Wood (Top), Alloy Steel (Frame) |
| Interval d'alçada ajustable: | 68 cm - 89 cm (26.8 polzades - 35 polzades) |
| Capacitat de pes màxim: | 100 lliures (45 kg) |
| Característiques especials: | C-shaped design, 4 Universal Wheels (2 with brakes), 2-Tier Storage Shelves, Height Adjustable |
| Muntatge requerit: | Sí |
Image 8.1: Dimensional diagram of the table, illustrating its overall size and key measurements.
9. Garantia i Suport
For warranty information or technical support, please contact Dripex customer service through their official website or the retailer where the product was purchased. Please have your purchase receipt and product model number (C-Shaped Side Table) available when contacting support.
