Introducció
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Forno 24-inch Microwave Drawer Oven, Model FMWDR3000-24. Please read all instructions thoroughly before using the appliance and retain this manual for future reference.
Instruccions importants de seguretat
Per reduir el risc d'incendi, descàrrega elèctrica, lesions a persones o exposició a un excés d'energia de microones quan feu servir l'aparell, seguiu les precaucions bàsiques, com ara les següents:
- Llegiu totes les instruccions abans d'utilitzar l'aparell.
- No feu funcionar el forn si la porta està danyada o si el forn no funciona correctament.
- No intenteu fer el manteniment o la reparació del forn vosaltres mateixos. Poseu-vos en contacte amb personal de servei qualificat.
- No escalfeu líquids ni altres aliments en recipients tancats ja que poden explotar.
- Feu servir sempre estris de cuina aptes per a microones.
- Superviseu els nens de prop quan l'aparell estigui en ús.
- Assegureu-vos que hi hagi una ventilació adequada al voltant del microones.
Característiques del producte
The Forno Microwave Drawer Oven is designed for convenience and performance, offering a sleek, built-in solution for your kitchen.
- Disseny per estalviar espai: Seamlessly installs built-in under a counter or in a wall.
- Potència de cocció: 1,000 watts of cooking power for efficient heating.
- Capacitat: Capacitat interior d'1.2 peus cúbics.
- Tauler de control: Easy-to-use glass touch controls and LED display.
- Funcionament de la porta: Touch open door for convenience.
- Material: Heavy-duty food-grade 430 stainless steel construction.
- Pre-programmed Modes: Includes Defrost, Popcorn, Beverage heating, Melt, and Soften functions.
- Nivells de potència: 11 adjustable power levels.
- Pany de seguretat infantil: Per a una major seguretat.
Figura 1: Frontal view of the Forno 24-inch Microwave Drawer Oven.
Figura 2: Angle view of the Forno 24-inch Microwave Drawer Oven in a closed position.
Figure 3: Visual representation of key features including stainless steel construction, glass touch controls, high efficiency, child safety lock, and multiple cooking modes.
Instal·lació
Proper installation is crucial for the safe and optimal performance of your microwave drawer oven. This appliance is designed for built-in installation under a counter or in a wall cabinet. Ensure the installation area meets the specified dimensions and electrical requirements.
Dimensions del tall
The required cutout dimensions for installation are:
- Amplada: 22.5 polzades
- Alçada: 15 polzades
- Profunditat: 23 polzades
A minimum clearance of 3 inches between the microwave and the outer wall is required for proper ventilation.
Requisits elèctrics
The unit is powered by 120 volts and requires a 15 amp circuit with a three-pronged outlet.
Passos d'instal·lació
- Prepare the cabinet cutout according to the specified dimensions.
- Ensure the power cord is accessible and can reach the outlet. The power cord is located on the left side of the unit and extends to 53 inches.
- Plug the unit into a grounded 120V, 15A outlet.
- Gently slide the microwave drawer oven into the prepared cutout frame.
- Secure the microwave to the cabinet using the provided mounting brackets and screws.
Video 1: This video provides detailed installation measurements and steps for the Forno FMWDR3000-24 Microwave Drawer Oven, including external dimensions, internal cutout requirements, and power cord specifications.
Figure 4: Overall product dimensions of the microwave drawer oven.
Funcionament
Your Forno Microwave Drawer Oven offers intuitive controls for various cooking needs.
Obrir i tancar el calaix
To open the microwave drawer, press the OBERT button on the control panel. To close, press the TANCAR button. The drawer also features a touch-open mechanism for convenience.
Figura 5: Frontal view of the microwave drawer oven with the drawer in the open position.

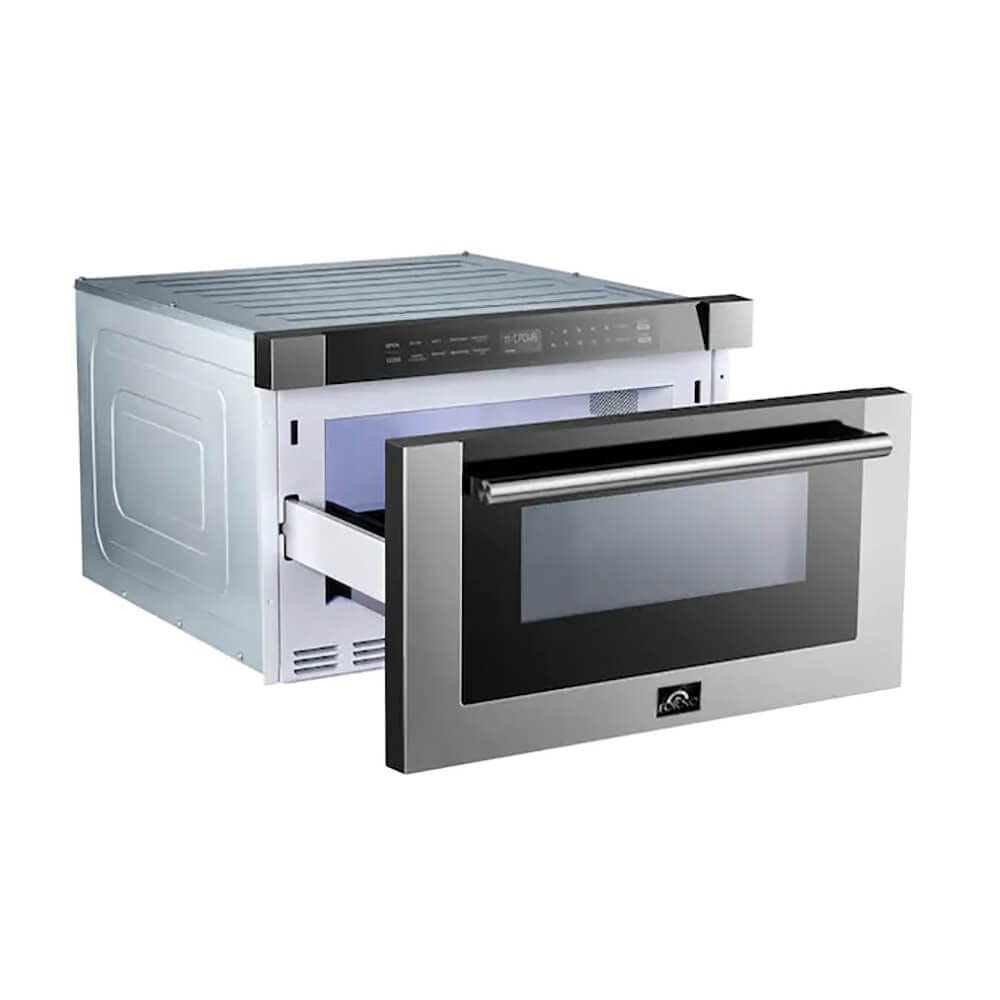

Figura 6: Angle view of the microwave drawer oven with the drawer open, showing the interior.
Figura 7: De dalt a baix view into the open microwave drawer, highlighting the spacious interior.
Funcions de cuina
- Inici ràpid: Premeu el botó INICI +30 SEGONS. button to begin cooking for 30 seconds at full power. Each subsequent press adds 30 seconds.
- Nivells de potència: Select from 11 power levels (1-10, 0 for lowest) to adjust cooking intensity.
- Temps de cuina: Enter desired cooking time using the number pad, then select a power level if different from full power, and press COMENÇA.
- Configuració preprogramada: Utilize dedicated buttons for common tasks: Fondre (butter, chocolate, ice cream, cheese, marshmallows), Crispetes de blat de moro, Defrost (Weight/Time), i Beguda. Follow on-screen prompts for specific selections.
- Rellotge/temporitzador de cuina: Set the current time or use the kitchen timer for general timing needs.
Video 2: This video demonstrates the various operational features of the Forno 24-inch Microwave Drawer Oven, including opening/closing the drawer, setting cooking times, and using pre-programmed functions like melt, popcorn, and defrost.
Manteniment
La neteja i el manteniment regulars garantiran la longevitat i el rendiment òptim del vostre forn microones de calaix.
- Neteja interior: Netegeu l'interior amb anunciamp cloth and mild detergent after each use. For stubborn stains, place a bowl of water with lemon slices inside and microwave for a few minutes to loosen food particles.
- Neteja exterior: Clean the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner. Avoid harsh chemicals or abrasive pads.
- Tauler de control: Wipe the glass touch control panel with a soft, damp drap. No ruixeu productes de neteja directament sobre el panell.
- Guies de calaix: Keep the drawer rails free of food debris to ensure smooth operation.
Resolució de problemes
Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| El forn no arrenca | Cable d'alimentació no connectat; interruptor automàtic saltat; porta no tancada correctament. | Ensure plug is secure; reset circuit breaker; close door firmly. |
| El menjar no s'escalfa uniformement | Improper stirring; food density; incorrect power level. | Stir food during cooking; use appropriate power level for food type. |
| Drawer not opening/closing | Obstruction in drawer path; control panel issue. | Check for obstructions; try pressing the OPEN/CLOSE buttons again. |
Especificacions
| Característica | Detall |
|---|---|
| Dimensions del producte (P x A x A) | 23.4" x 23.62" x 14.96" |
| Pes de l'article | 79.1 lliures |
| Fabricant | Forno |
| Número de model | FMWDR3000-24 |
| Color | Acer inoxidable |
| Capacitat | 1.2 peus cúbics |
| Característiques especials | Defrost, Timer, Turntable |
| Tipus d'instal·lació | Integrat |
| Wattage | 1500 watts |
| Material | Acer inoxidable |
| Components inclosos | Range (Microwave Drawer Oven), Power Cord, Mounting Bracket |
Garantia i Suport
Forno stands behind its appliances with a comprehensive warranty and dedicated customer support.
- Garantia: The Forno 24-Inch Microwave Drawer Oven offers an industry-leading 2-year factory part and labor warranty. Please retain your proof of purchase for warranty claims.
- Atenció al client: For assistance with installation, operation, troubleshooting, or warranty claims, please contact Forno customer support. Refer to the official Forno weblloc web o la documentació de la compra per obtenir les dades de contacte.
