Introducció
This manual provides essential information for the assembly, operation, and maintenance of your vidaXL Industrial Metal Storage Cabinet with Mesh Doors. Please read these instructions carefully before assembly and use to ensure safe and correct handling of the product. Keep this manual for future reference.
Image 1: The vidaXL Industrial Metal Storage Cabinet with Mesh Doors, showcasinel seu disseny i funcionalitat en un entorn domèstic.
Informació de seguretat
WARNING: To prevent overturning, this product must be used with the wall attachment device provided. Failure to secure the cabinet to a wall can result in serious injury or death from tipping furniture.
Always ensure the cabinet is placed on a flat, stable surface. Do not overload shelves or drawers. Keep small parts away from children during assembly. Regularly check all connections and fasteners to ensure they remain tight.
Contingut del paquet
Abans de començar el muntatge, verifiqueu que totes les peces que s'enumeren a continuació siguin presents i no estiguin danyades. Si hi ha alguna peça que falti o estigui danyada, no continueu amb el muntatge i poseu-vos en contacte amb el servei d'atenció al client.
- Metal cabinet panels (sides, top, bottom, back)
- 2 Mesh doors
- 2 Prestatges regulables
- 2 Drawers with ballbearing runners
- Metal handles for doors and drawers
- Ferramenteria de muntatge (cargols, perns, femelles, etc.)
- Wall attachment device
- Eines de muntatge (si s'inclouen)
Muntatge i muntatge
Assembly is required for this product. It is recommended to have two people for assembly. Please follow these general steps. Refer to the specific assembly diagram included in your package for detailed instructions.
- Prepara la zona: Clear a spacious, clean, and flat area for assembly. Lay out all components and hardware.
- Muntar el marc: Connect the side panels to the bottom and top panels using the provided hardware. Ensure all connections are secure.
- Instal·leu el panell posterior: Fixeu el panell posterior al marc muntat.
- Muntar calaixos: Construct the two drawers, ensuring the 2-section ballbearing runners are correctly installed for smooth operation.
- Instal·lar calaixos: Slide the assembled drawers into their designated slots in the cabinet frame.
- Fixar portes: Mount the two mesh doors to the cabinet frame using the hinges. Adjust as necessary for proper alignment.
- Instal·leu les nanses: Attach the metal handles to both the doors and drawers.
- Inserir prestatges: Place the adjustable shelves at your desired height within the cabinet.
- Fixar a la paret: Using the provided wall attachment device, secure the cabinet to a sturdy wall to prevent tipping. This step is crucial for safety.
Imatge 2: Frontal view of the fully assembled cabinet, showing the mesh doors and drawers.

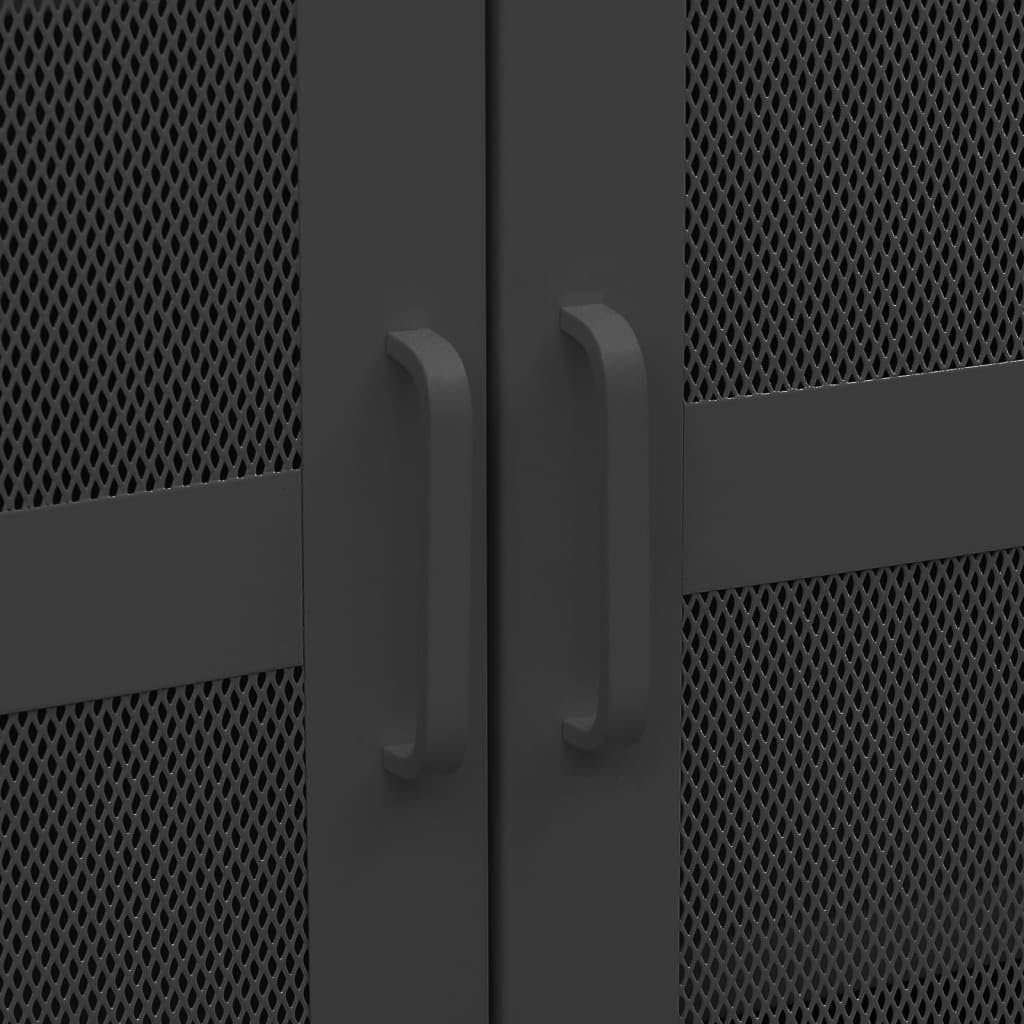

Image 3: Detail of the mesh doors and robust metal handles.
Image 4: An open drawer, highlighting the smooth 2-section ballbearing runners.
Instruccions de funcionament
- Ajust de prestatgeries: The cabinet features 2 adjustable shelves. To adjust, remove all items from the shelf, lift the shelf, and reposition the shelf supports to the desired height. Ensure the shelf is securely seated on all four supports before placing items back.
- Ús de calaixos: The two drawers are equipped with 2-section ballbearing runners for smooth opening and closing. Pull the handles gently to open and push firmly to close. The drawers include name tag holders for easy organization and identification of contents.
- Capacitat de càrrega: Do not exceed the maximum loading capacity for each shelf (44.1 lb / 20 kg) or drawer (17.6 lb / 8 kg). The total loading capacity for the cabinet is 123.5 lb (56 kg). Distribute weight evenly to maintain stability.
Manteniment
- Neteja: Clean the metal surfaces with a damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish. Dry immediately with a soft cloth.
- Inspecció periòdica: Reviseu periòdicament tots els cargols, perns i elements de fixació per assegurar-vos que estiguin ben ajustats. Torneu a estrènyer-los si cal.
- Condicions ambientals: Avoid placing the cabinet in direct sunlight or in areas with extreme temperature fluctuations or high humidity, which can affect the metal over time.
Resolució de problemes
- El gabinet tremola: Ensure the cabinet is on a flat, level surface. Check that all assembly screws are tightened. Verify the wall attachment device is securely installed.
- Els calaixos s'enganxen o no tanquen suaument: Check for any obstructions in the drawer runners. Ensure the ballbearing runners are properly aligned and free of debris. Do not overload the drawers.
- Portes desalineades: Adjust the hinges on the doors to correct alignment. Ensure all hinge screws are tight.
Especificacions
| Característica | Detall |
|---|---|
| Marca | vidaXL |
| Número de model | 339621 |
| Color | Negre |
| Material | Metall |
| Dimensions totals (L x P x A) | 27.6" x 15.7" x 45.3" (70 cm x 40 cm x 115 cm) |
| Pes de l'article | 60.3 lliures (27.4 kg) |
| Nombre de prestatgeries | 2 (ajustable) |
| Nombre de calaixos | 2 |
| Loading Capacity per Shelf | 44.1 lliures (20 kg) |
| Loading Capacity per Drawer | 17.6 lliures (8 kg) |
| Total Loading Capacity | 123.5 lliures (56 kg) |
| Muntatge obligatori | Sí |
| Característiques especials | Mesh doors, adjustable shelves, ballbearing drawer runners, name tag holders, wall attachment device included |
Image 5: Detailed dimensions of the cabinet.
Imatge 6: Pro lateralfile del gabinet.
Imatge 7: posterior view del gabinet.
Garantia i Suport
For warranty information or technical support, please refer to the documentation included with your purchase or contact vidaXL customer service directly. Keep your proof of purchase for any warranty claims.
