Manual d'usuari del telèfon per a gent gran LTC MOB20RED

1. Introducció

Thank you for choosing the LTC MOB20RED Senior Phone. This device is designed with ease of use in mind, featuring large keys, a loud voice readout, and essential functions tailored for seniors. It includes a dedicated SOS button for emergencies, a built-in flashlight, and a long-lasting battery. This manual provides detailed instructions for setting up, operating, and maintaining your phone to ensure optimal performance and safety.

2. Informació de seguretat

• Seguretat de la bateria: Use only the original battery and charger provided. Do not short-circuit, puncture, or expose the battery to extreme temperatures or fire. Dispose of batteries properly according to local regulations.
• Càrrega: Charge the phone in a well-ventilated area. Do not charge near flammable materials.
• Resistència a l'aigua: Aquest telèfon no és resistent a l'aigua. Eviteu l'exposició a líquids.
• Neteja: Use a soft, dry cloth to clean the phone. Do not use harsh chemicals or abrasive cleaners.
• Protecció auditiva: Eviteu escoltar música durant molt de temps a volums alts per evitar danys auditius.
• Dispositius mèdics: Maintain a safe distance between the phone and medical devices like pacemakers. Consult your physician and the medical device manufacturer for specific guidelines.
• Seguretat de conducció: No utilitzeu el telèfon mentre conduïu. Prioritzeu sempre la seguretat viària.

3. Contingut del paquet

Si us plau, comproveu el contingut del paquet en desempaquetar-lo:

• LTC MOB20RED Senior Phone
• Li-Ion Battery (900 mAh)
• Adaptador de corrent alterna
• Manual d'usuari (aquest document)

4. Producte acabatview

Familiarize yourself with the key components of your LTC MOB20RED phone.

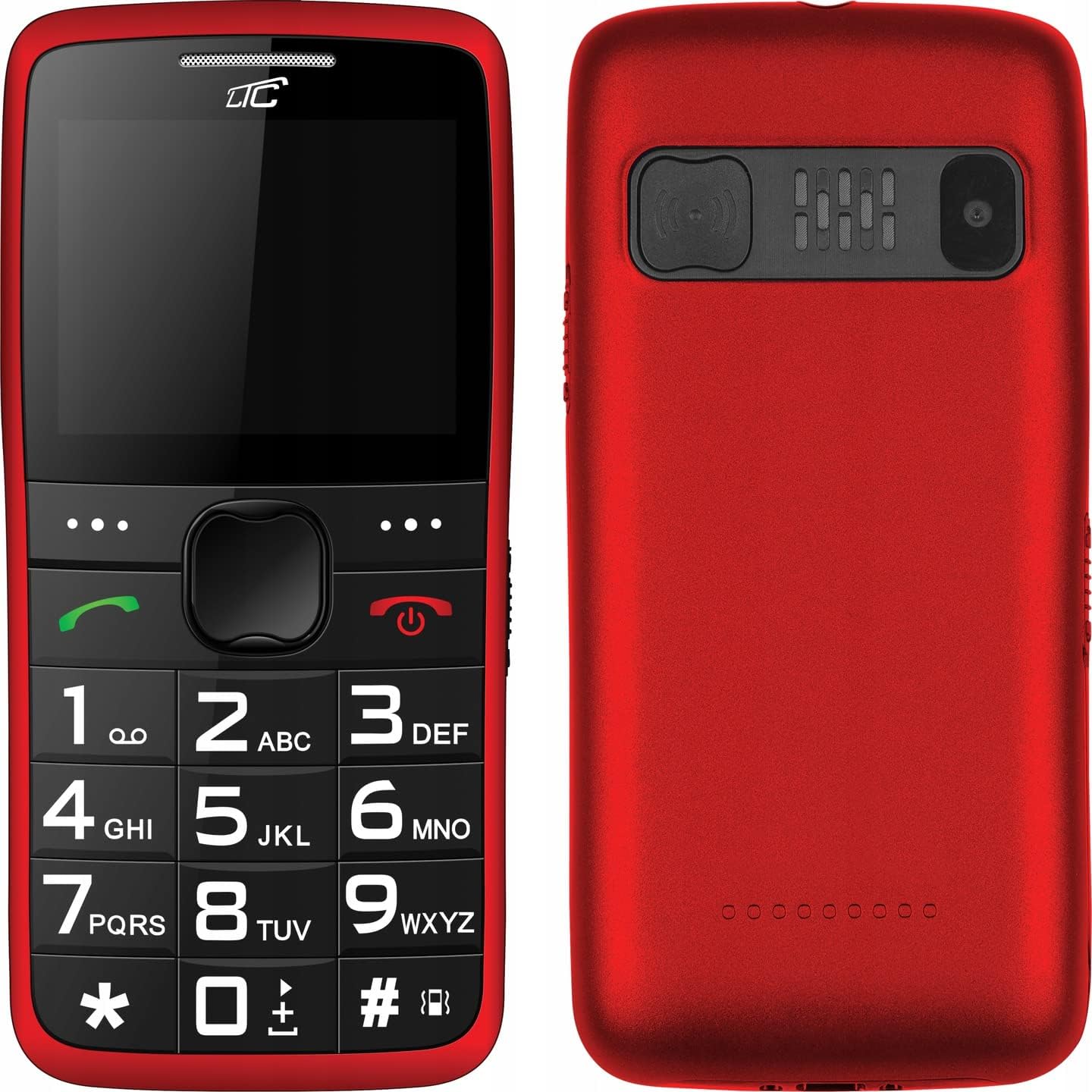

Figura 4.1: Davant i darrere View of the Phone. This image displays both the front with its large keypad and screen, and the back with the SOS button and camera module.

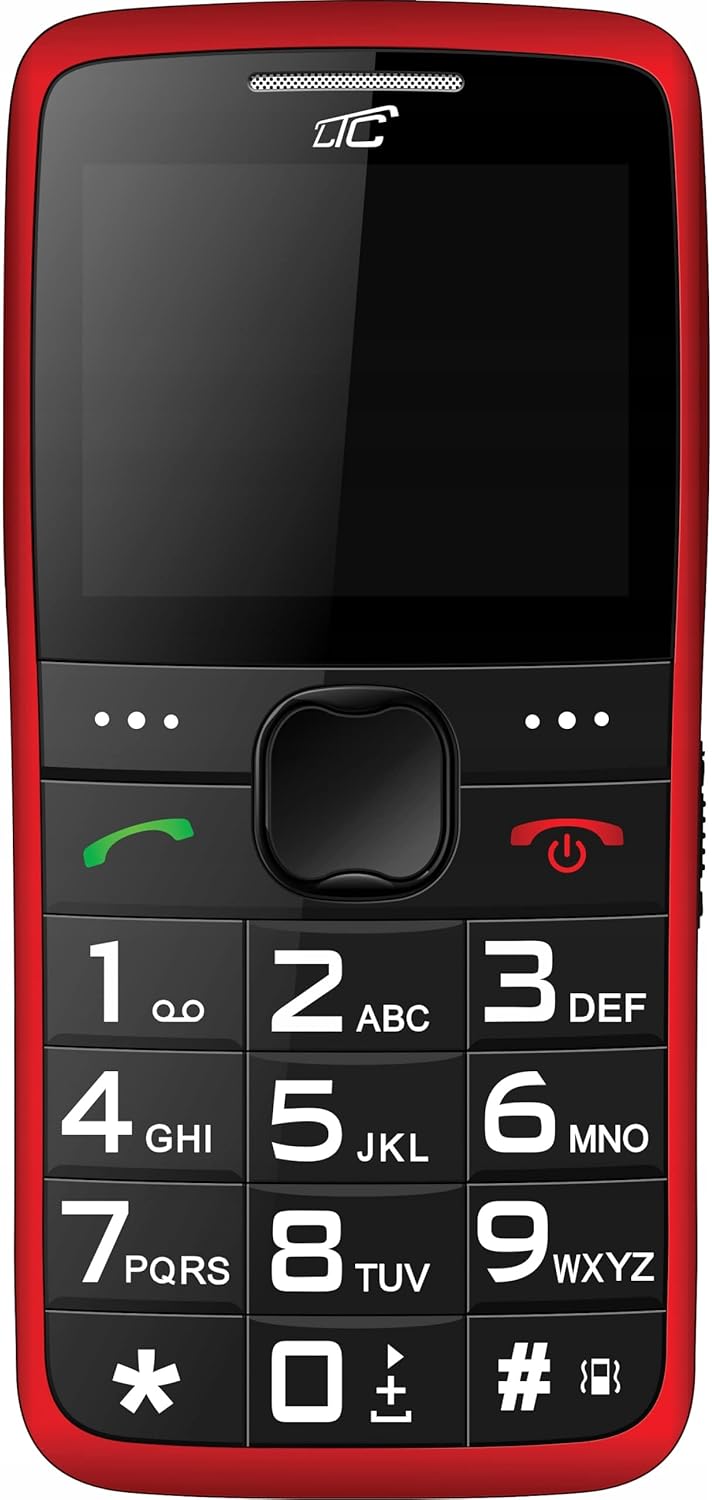

Figura 4.2: Davant View. A clear view of the phone's front, highlighting the spacious keypad with large, easy-to-read numbers and letters, and the color display.

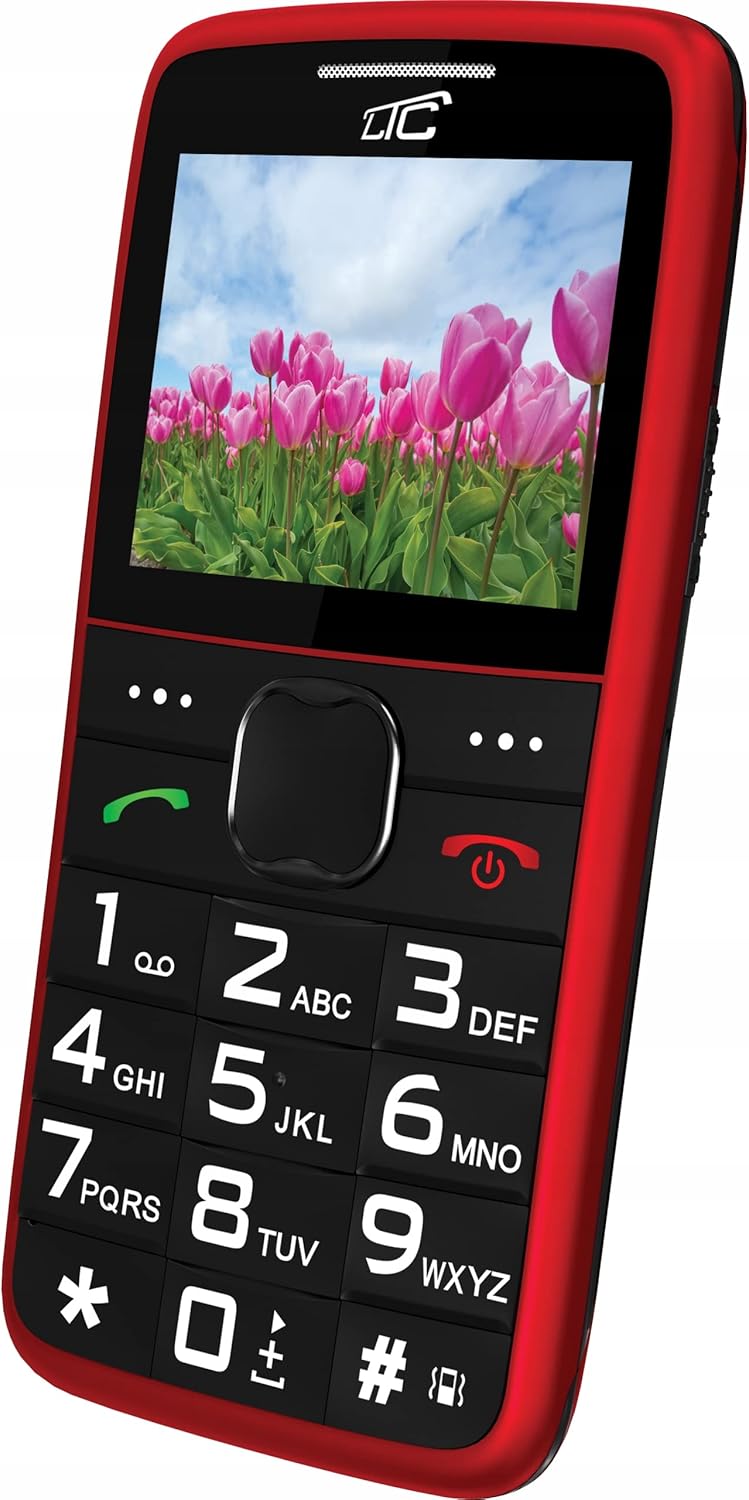

Figura 4.3: Front angulat View with Display On. This image shows the phone from an angle, with the screen displaying a vibrant image, demonstrating its color capabilities.

Figura 4.4: Enrere View. The rear of the phone is shown, featuring the prominent SOS button, the camera lens, and the speaker grille.

Característiques principals:

• Tecles grans: Easy to press and read, designed for comfortable dialing and texting.
• Pantalla gran: 2.2-inch color LCD with clear, large font for easy viewing.
• Botó SOS: Located on the back, allows quick access to emergency contacts.
• Loud Voice Readout: Announces pressed keys (numbers, asterisk, hash) for confirmation. This feature can be toggled on/off in settings.
• Bateria d'alta capacitat: 900 mAh Li-Ion battery provides up to 7-10 days of standby time.
• Llanterna: Built-in for convenience.
• Suport Dual SIM: Allows use of two SIM cards simultaneously.
• Ranura per a targeta MicroSD: Supports up to 32 GB for expanded storage.
• Multimèdia: Includes FM Radio, Audio/Video Player, Alarm Clock, Calendar, Calculator, and Voice Recorder.
• Bluetooth: Per a la connectivitat sense fil.

5. Configuració

5.1 Inserció de la targeta SIM i la targeta MicroSD

1. Traieu la tapa posterior del telèfon fent palanca suaument per obrir-la des de l'osca.
2. Si la bateria està instal·lada, traieu-la.
3. Locate the SIM card slot(s) and the microSD card slot.
4. Insert your SIM card(s) into the designated slot(s) with the gold contacts facing down, ensuring it clicks into place.
5. If desired, insert a microSD card (up to 32 GB) into its slot.

5.2 Inserció de la bateria

1. Align the battery's gold contacts with the contacts in the phone's battery compartment.
2. Gently press the battery down until it is securely seated.
3. Torneu a col·locar la coberta posterior, prement fermament fins que encaixi al seu lloc.

5.3 Charging the Phone

1. Connect the small end of the charging cable to the charging port on the phone.
2. Connecteu l'altre extrem del carregador a una presa de corrent estàndard.
3. L'indicador de bateria a la pantalla mostrarà l'estat de càrrega.
4. Once fully charged, disconnect the charger. A full charge typically takes a few hours.

6. Instruccions de funcionament

6.1 Encès/Apagat

• Per encendre: Manteniu premut el vermell Engegar/Finalitzar trucada botó fins que la pantalla s'il·lumini.
• Per apagar: Manteniu premut el vermell Engegar/Finalitzar trucada button until the power off options appear, then select "Power off".

6.2 Fer i rebre trucades

• Per fer una trucada: Dial the number using the large keypad. The phone will audibly read out each digit you press (if voice readout is enabled). Press the green Truca botó per iniciar la trucada.
• Per rebre una trucada: When the phone rings, press the green Truca botó per respondre.
• Per finalitzar una trucada: Premeu el vermell Engegar/Finalitzar trucada botó.

6.3 Marcatge ràpid

You can assign frequently called numbers to keys 0-9 for quick dialing.

1. Vés a Configuració > Marcatge ràpid.
2. Select a key (0-9) and assign a contact from your phonebook or enter a new number.
3. To use speed dial, press and hold the assigned key until the call is initiated.

6.4 Funció SOS

The SOS button is a critical safety feature. When pressed, it will automatically call and/or send an SMS to pre-set emergency contacts.

1. Setting Up SOS Contacts: Vés a Configuració > Configuració SOS.
2. Add up to 5 emergency contact numbers. You can also enable/disable SMS sending and customize the SOS message.
3. Using the SOS Function: En cas d'emergència, premeu i manteniu premut el botó Botó SOS on the back of the phone for a few seconds. The phone will then sequentially call the pre-set numbers until one answers, and/or send the emergency SMS.

6.5 Llanterna

To turn the flashlight on or off, locate the dedicated flashlight button (usually on the side of the phone) and slide or press it. Refer to the phone's physical layout for exact location.

6.6 Altres funcions

• Ràdio FM: Access from the main menu. You may need to connect headphones (not included) to act as an antenna.
• Audio/Video Player: Use to play media files stored on your microSD card.
• Despertador: Set multiple alarms with customizable tones.
• Calendari: View dates and add reminders.
• Calculadora: Perform basic arithmetic operations.
• Gravadora de veu: Grava notes d'àudio.
• Bluetooth: Enable Bluetooth in settings to pair with compatible devices like headsets.

7. Manteniment

• Neteja: Wipe the phone regularly with a soft, lint-free cloth. Do not use liquid cleaners or aerosols.
• Cura de la bateria: To prolong battery life, avoid fully discharging the battery frequently. Charge the phone before the battery level drops too low. Do not leave the phone connected to the charger for excessively long periods after it's fully charged.
• Emmagatzematge: Guardeu el telèfon en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Actualitzacions de programari: While this phone typically does not receive frequent software updates, ensure you are using the latest available firmware if prompted.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

The LTC MOB20RED Senior Phone comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging or contact your point of purchase for specific warranty terms and conditions.

For technical support, troubleshooting assistance, or service inquiries, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase for warranty claims.

Fabricant: LAMEX
Marca: LTC
