1. Introducció
This manual provides detailed instructions for the assembly, operation, and maintenance of your VIVO STAND-TV22B Aluminum Mobile TV Cart. This heavy-duty stand is designed to securely hold screens from 32 to 100 inches, weighing up to 220 lbs, with VESA patterns ranging from 200x200mm to 1000x600mm. It features mobile casters, a sturdy middle shelf, and tilt/height adjustment for optimal viewing.
2. Informació de seguretat
WARNING: Read and understand all instructions before use. Failure to follow these instructions may result in serious injury or damage.
- Assegureu-vos que tots els components siguin presents i no estiguin danyats abans del muntatge.
- No supereu la capacitat màxima de pes de 220 lliures (100 kg).
- Do not exceed the maximum screen size of 100 inches.
- Verify VESA compatibility (200x200mm to 1000x600mm) with your television.
- Assemble the unit on a flat, stable surface.
- Use appropriate tools and tighten all fasteners securely.
- Always lock the casters when the cart is stationary to prevent accidental movement.
- Exercise caution when moving the cart, especially on uneven surfaces or with a TV mounted.
- Mantingueu els nens i les mascotes allunyats del carretó durant el muntatge i el funcionament.
- Aquest producte conté substàncies químiques que l'estat de Califòrnia sap que causen càncer i defectes congènits o altres danys reproductius (advertència de la Proposició 65).
3. Contingut del paquet
Please verify that all parts are included in your package. If any parts are missing or damaged, contact VIVO customer support.
- Base frame with 4 locking casters
- Columnes de suport verticals (2)
- Placa de muntatge de TV
- Suports de muntatge per a TV (2)
- Prestatge mitjà
- Top shelf (for webcam/camera)
- Cobertes de gestió de cables
- Assembly hardware (screws, washers, nuts, Allen wrench, open-end wrench)
4. Especificacions
| Marca | VIVO |
| Número de model | STAND-TV22B |
| Material | Alumini, Acer |
| Color | Negre |
| Compatibilitat amb la mida de la pantalla | 32" a 100" |
| Capacitat de pes | Fins a 220 lliures (100 kg) |
| Compatibilitat VESA | 200x200mm a 1000x600mm |
| Ajust d'alçada | 48" to 68" (center of screen) |
| Angle d'inclinació | +5° a -10° |
| Dimensions del producte | 45" x 27.5" x 94" (L x W x H, top shelf to floor) |
| Pes de l'article | 70.4 lliures |
Note: All measurements are approximate.
5. Muntatge i muntatge
Follow these steps carefully to assemble your VIVO Mobile TV Cart. It is recommended to have assistance during certain steps, especially when mounting the television.
Guia de vídeo de muntatge
Descripció del vídeo: This official VIVO assembly video provides a visual guide for setting up the mobile TV cart. While the video references model STAND-TV22S, the assembly process is highly similar to the STAND-TV22B. It demonstrates each step from unboxing to final TV mounting, covering assembling the base, columns, shelves, and attaching the TV.
Instruccions de muntatge pas a pas
Pas 1: munta la base
Attach the four locking casters to the base frame using the provided hardware. Ensure they are securely tightened with the open-end wrench.
Descripció de la imatge: Un primer pla view of the sturdy base of the VIVO mobile TV cart, highlighting one of the quad locking casters. The caster is black with a metal bracket, designed for stability and mobility.
Step 2: Extend the Vertical Support Columns
Carefully extend the inner sections of the vertical support columns. Secure them in the extended position using the provided pins or locking mechanisms.
Step 3: Attach Columns to Base and Handles
Secure the two extended vertical support columns to the assembled base using the designated screws and the Allen wrench. Attach the decorative handles to the top of the columns.
Descripció de la imatge: The VIVO mobile TV cart with a large television mounted, positioned in a modern office setting. The dual vertical support columns are visible, extending from the base to the TV mounting plate.
Step 4: Install TV Mounting Plate
Attach the horizontal TV mounting plate to the top of the vertical support columns. Use the provided screws and ensure it is level and securely fastened.

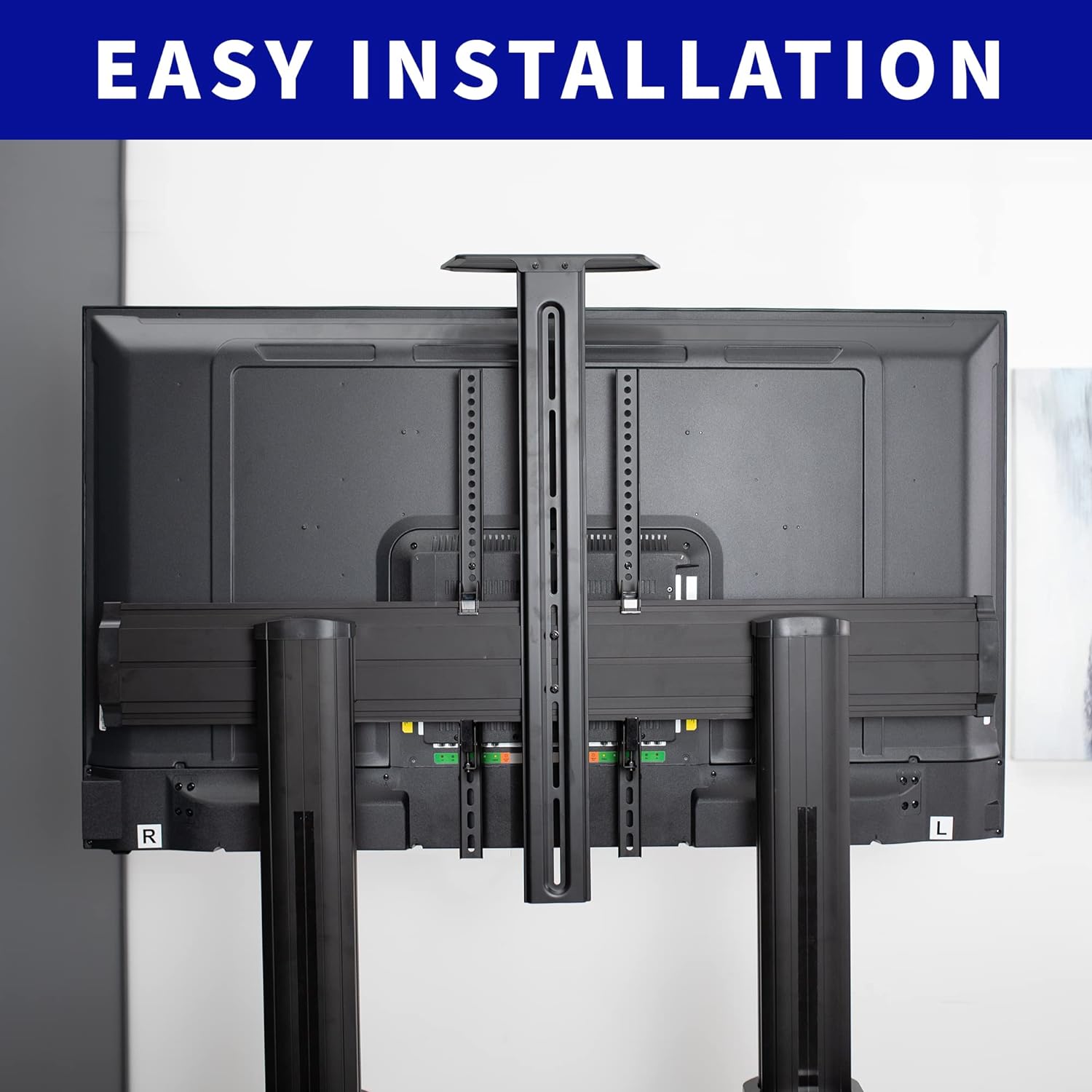

Descripció de la imatge: Una darrera view of a television mounted on the VIVO TV cart, showcasing the horizontal mounting plate and the vertical brackets attached to the TV. This illustrates the "Easy Installation" feature.
Step 5: Secure Columns to the Base (Covers)
Place the plastic covers over the base connections of the vertical columns and secure them with the appropriate fasteners to complete the base assembly.
Step 6: Attach Middle Shelf (DVD Tray)
Attach the middle shelf to the desired height on the vertical columns using the provided hardware. This shelf is suitable for laptops, DVD players, or streaming devices.
Descripció de la imatge: The VIVO mobile TV cart in an office setting, displaying a laptop on its adjustable middle shelf and a webcam on the top shelf, demonstrating its utility for presentations or video conferencing.
Step 7: Install the Television
Carefully attach the TV mounting brackets to the back of your television using the appropriate VESA screws and spacers from the hardware kit. Refer to your TV's manual for specific VESA hole patterns. With assistance, lift your television and hook the attached mounting brackets onto the horizontal mounting plate. Secure the TV to the plate using the safety screws or locking mechanisms provided.
Step 8: Attach Top Shelf
The smaller top shelf can be installed above the TV for a webcam or camera, securing it with the provided hardware.
Pas 9: Gestió de cables
Utilize the integrated cable management system within the vertical columns to route and conceal cables for a clean and organized appearance.
6. Instruccions de funcionament
Moure el carro
To move the TV cart, unlock all four casters by flipping their locking levers. Carefully push the cart to your desired location. Once positioned, lock all casters to ensure stability.
Ajust d'alçada
The TV cart allows for height adjustment from 48" to 68" (center of screen). To adjust, loosen the locking mechanisms on the vertical columns, carefully raise or lower the TV to the desired height, and then securely tighten the locking mechanisms. It is recommended to remove the TV before significant height adjustments for safety.
Descripció de la imatge: Un costat view of the VIVO mobile TV cart with a television, illustrating the telescoping height adjustment feature and the tilt range of +5° to -10° for optimal viewangles d'ajust.
Ajust d'inclinació
The TV mounting brackets allow for a tilt range of +5° to -10°. Loosen the tilt adjustment knobs on the side of the TV brackets, adjust the screen to your preferred angle, and then tighten the knobs to secure the position.
7. Manteniment
- Reviseu regularment tots els cargols i elements de fixació per assegurar-vos que estiguin ben ajustats.
- Netegeu les superfícies del carretó amb un drap suau iamp tela. Eviteu els netejadors abrasius.
- Inspect casters periodically for smooth operation and clean any debris.
- Ensure cables routed through the management system are not pinched or strained.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El carretó és inestable o trontolla. | Loose fasteners; uneven floor; overloaded. | Check and tighten all screws. Move to a level surface. Ensure TV weight is within limits. |
| Dificultat per moure el carretó. | Casters are locked; debris in casters. | Unlock all casters. Clean any debris from the wheels. |
| El televisor no està anivellat. | Mounting plate or brackets are uneven. | Adjust the TV mounting brackets or re-level the horizontal mounting plate. |
| Cables are visible or messy. | No s'utilitza la gestió de cables. | Route cables through the integrated cable management system in the vertical columns. |
9. Garantia i Suport
VIVO products are designed for quality and durability. For specific warranty information, please refer to the product packaging or the official VIVO website. If you encounter any issues or require assistance, please contact VIVO customer support.
- Atenció al client: VIVO offers customer support for product inquiries and assistance.
- Devolucions: Aquest producte té dret a devolucions fàcils de 30 dies.
- Plans de protecció: Extended protection plans (2-Year, 3-Year) may be available for purchase.
For the most up-to-date information, visit the official VIVO store or contact their support directly.
