1. Introducció
This manual provides essential information for the safe and efficient operation of your suevery SV240ZA 24-inch 165Hz IPS Gaming Monitor. Please read this manual thoroughly before using the product and retain it for future reference. This monitor is designed for gaming, home office, and general computing tasks, offering a Full HD 1080p resolution, a high refresh rate, and fast response time for a smooth visual experience.
2. Informació de seguretat
- No exposeu el monitor a la pluja ni a la humitat per evitar incendis o descàrregues elèctriques.
- No obriu el monitor casing. No hi ha peces a l'interior que l'usuari pugui reparar. Demaneu totes les tasques de manteniment a personal qualificat.
- Col·loqueu el monitor sobre una superfície estable i plana per evitar que caigui.
- Assegureu-vos que hi hagi una ventilació adequada al voltant del monitor. No bloquegeu les obertures de ventilació.
- Feu servir només l'adaptador de corrent que s'inclou amb el monitor.
- Desconnecteu l'endoll de la presa de corrent si no heu d'utilitzar el monitor durant un període prolongat.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- 1 x suevery SV240ZA Monitor
- 1 x Stand Base
- 1 x cable HDMI
- 1 x cable DisplayPort
- 1 x Manual d'usuari
- 1 x adaptador de corrent
4. Instruccions de configuració
4.1 Muntatge del suport
Attach the stand base to the monitor neck, then secure the neck to the back of the monitor. Ensure all screws are tightened securely.
Image: The suevery SV240ZA monitor fully assembled with its desktop stand.
4.2 Muntatge VESA
The monitor supports VESA mounting with a 75mm x 75mm pattern. Remove the stand if attached, and use appropriate VESA screws to mount the monitor to a compatible wall mount or desk arm.
Image: Rear of the monitor illustrating the 75mm x 75mm VESA mount compatibility.
4.3 Cables de connexió
Connect the power adapter to the monitor and a power outlet. Use either the HDMI or DisplayPort cable to connect the monitor to your computer or gaming device. For audio output, connect headphones or external speakers to the 3.5mm audio out port.
Imatge: Més deview of the monitor's rear ports including USB, HDMI, DisplayPort, and Audio out.
4.4 Encès inicial
Press the power button located on the monitor to turn it on. The monitor will automatically detect the input signal. If no signal is detected, ensure your source device is powered on and connected correctly.
5. Instruccions de funcionament
5.1 Menú de visualització en pantalla (OSD)
The OSD menu allows you to adjust various monitor settings. Typically, buttons on the back or bottom of the monitor are used to navigate and select options within the OSD.
5.2 Ajust de la configuració de la pantalla
- Freqüència d'actualització: The monitor supports up to 165Hz. Ensure your graphics card settings are configured to utilize the maximum refresh rate for a smoother experience.
- Temps de resposta: With a 1ms GTG response time, motion blur is significantly reduced. This setting is often managed automatically or through specific OSD options.
- FreeSync: Enable AMD FreeSync in the OSD menu and your graphics card control panel to synchronize the monitor's refresh rate with your GPU's frame rate, eliminating screen tearing and stuttering.
- Configuració de color: Adjust brightness, contrast, color temperature, and gamma for optimal visual quality. The IPS panel provides 99% sRGB color gamut and 8-bit color depth for rich and vibrant colors.

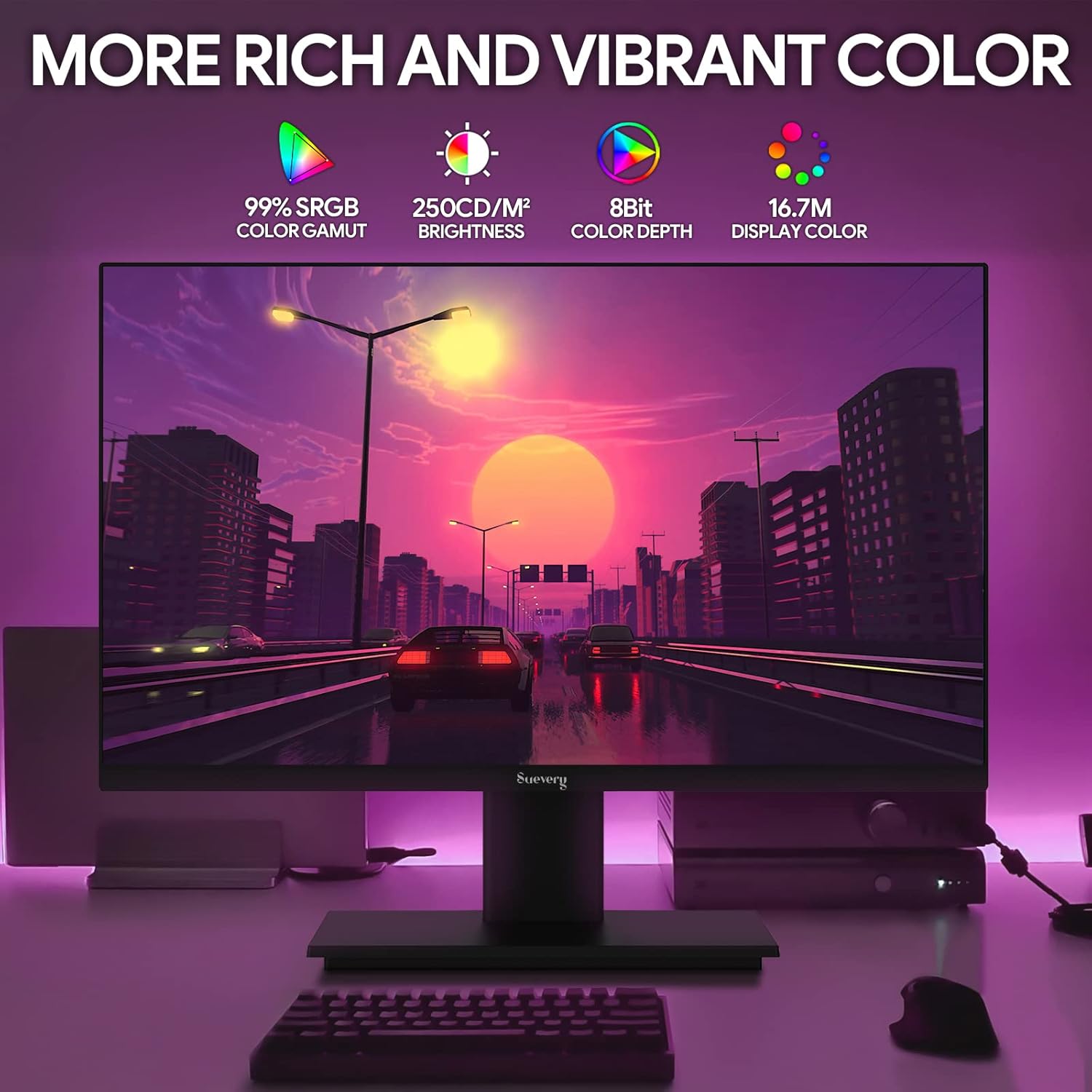

Image: The monitor's display capabilities, highlighting rich and vibrant color reproduction.
5.3 Ajust d'inclinació
The monitor allows for tilt adjustment from -3 to 18 degrees. Gently adjust the screen to your preferred viewangle de ing.
Image: Illustration of the monitor's adjustable tilt feature.
5.4 Sortida d'àudio
Connect your headphones or external speakers to the 3.5mm audio out port for private listening or enhanced sound.
Image: User connecting headphones to the 3.5mm audio out port on the monitor.
6. Característiques acabadesview
6.1 High Refresh Rate and Fast Response Time
Experience smooth visuals with a 165Hz refresh rate and a 1ms GTG response time, reducing motion blur and ghosting in fast-paced content.
Image: Visual comparison demonstrating the smoothness of a 165Hz refresh rate versus 75Hz.
Image: Visual comparison highlighting the reduction of afterimage and ghosting with 1ms GTG response time.
6.2 Tecnologia de sincronització adaptativa
AMD FreeSync support synchronizes the monitor's refresh rate with compatible graphics cards, eliminating screen tearing and stuttering for fluid gameplay.
Image: Demonstrates the smooth display experience provided by 165Hz and FreeSync technology.
6.3 IPS Panel and Full HD Resolution
The IPS panel offers wide 178-degree viewing angles and accurate color reproduction. The 1920 x 1080p Full HD resolution provides clear and detailed images.
Image: Illustrates the enhanced detail and realism of 1080p Full HD resolution compared to standard HD.
Tecnologia HDR 6.4
HDR (High Dynamic Range) technology enhances contrast and color accuracy, bringing more lifelike images to your screen.
Image: Visual representation of how HDR technology improves image quality compared to SDR.
6.5 Compatibilitat àmplia
Equipped with HDMI and DisplayPort, the monitor connects to various devices such as PCs, laptops, gaming consoles, and TV boxes.
Image: The monitor connected to multiple devices, demonstrating its broad compatibility.
7. Manteniment
7.1 Neteja del monitor
- Desconnecteu sempre el monitor abans de netejar-lo.
- Utilitzeu un drap suau i sense pelusa dampesbandida amb aigua o un netejador de pantalles suau i no abrasiu.
- No ruixeu el netejador directament sobre la pantalla.
- Avoid using harsh chemicals like alcohol, benzene, or thinners, as they can damage the screen surface.
7.2 Atenció general
- Mantingueu el monitor allunyat de la llum solar directa i de fonts de calor.
- Eviteu col·locar objectes pesats sobre el monitor o els seus cables.
- No exposeu el monitor a temperatures o humitat extremes.
8. Solució De Problemes
Si teniu problemes amb el monitor, consulteu els passos habituals següents per a la resolució de problemes:
| Problema | Causa possible | Solució |
|---|---|---|
| No hi ha imatge a la pantalla | Cable d'alimentació desconnectat; cable de vídeo desconnectat; font d'entrada incorrecta seleccionada. | Check power and video cable connections. Ensure the correct input source (HDMI/DP) is selected via the OSD menu. |
| Imatge parpellejant o inestable | Video cable loose or damaged; Graphics card driver issue; Refresh rate mismatch. | Secure video cable. Update graphics card drivers. Adjust refresh rate in your computer's display settings. Enable FreeSync if applicable. |
| No hi ha so de la sortida d'àudio | Headphones/speakers not connected; Volume too low; Incorrect audio output device selected on computer. | Ensure audio device is properly connected. Increase volume on monitor and computer. Select the monitor as the default audio output device in your computer's sound settings. |
| El monitor no s'encén | Power cable disconnected; Power adapter faulty. | Verify power cable is securely connected to both the monitor and a working power outlet. Test the outlet with another device. |
9. Especificacions
| Característica | Especificació |
|---|---|
| Marca | tota |
| Model | SV240ZA |
| Mida de la pantalla | 24 polzades |
| Resolució | FHD 1080p (1920 x 1080 píxels) |
| Relació d'aspecte | 16:9 |
| Tipus de panell | IPS (LCD) |
| Freqüència d'actualització | 165 Hz |
| Temps de resposta | 1 mil·lisegon (GTG) |
| Relació de contrast | 1000:1 |
| Brillantor | 220 cd/m² |
| Viewangle ing | 178 graus |
| Connectivitat | 1 x HDMI, 1 x DisplayPort, 1 x USB (charging only), 1 x 3.5mm Audio Out |
| Sincronització adaptativa | AMD FreeSync |
| Muntatge VESA | 75 mm x 75 mm |
| Ajust d'inclinació | -3 a 18 graus |
| Dimensions (A x A x P) | 54.6 cm x 32.3 cm x 9.7 cm (approximate, without stand) |
Image: Detailed dimensions of the suevery SV240ZA monitor.
10. Garantia i Suport
10.1 Política de garantia
The suevery SV240ZA monitor comes with a one-year free warranty. Returns and replacements are free within 30 days of purchase for quality issues.
10.2 Atenció al client
For any quality issues or support inquiries regarding your monitor, please contact suevery customer support. Refer to the contact information provided with your purchase documentation or visit the official suevery weblloc d'assistència.
