Radtel RT-830 Dual Band Ham Radio

1. Introducció

This manual provides detailed instructions for the operation and maintenance of your Radtel RT-830 Dual Band Ham Radio. Please read this manual thoroughly before using the device to ensure proper function and safety. The RT-830 is a versatile multi-band ham radio designed for reliable communication.

2. Producte acabatview

2.1 Característiques clau

• Dual-band Radio with Air band Receive, NOAA Weather Channel, and FM broadcast receive.
• 2M/70CM radio band available.
• TX priority channel.
• Keypad lock and Backlight select.
• 8 US NOAA weather channels.
• Voice prompt in English/Chinese.
• CH/VFO Mode.
• Beep tone/Roger.
• Dual standby.
• Repeater offset.
• Bandwidth: wide and narrow.
• VOX/squelch.
• Power level: HI/LOW.
• TOT/Busy channel lockout.
• Scrambler/Encrypt.
• Frequency scan.
• CTCSS/DCS.
• Port de càrrega USB-C.
• 3500mAh battery for extended standby time.

2.2 Contingut del paquet

The Radtel RT-830 package includes the following items:

• 1x RT-830 radio
• 1x 3500mAh Rechargeable battery
• 1x carregador d'escriptori
• 1x Dual Band antenna
• 1x Clip de cinturó
• 1 x manual d'usuari

2.3 Diagrama del producte

Figura 1: Frontal view of the Radtel RT-830 radio, showing the display, keypad, and top knobs.

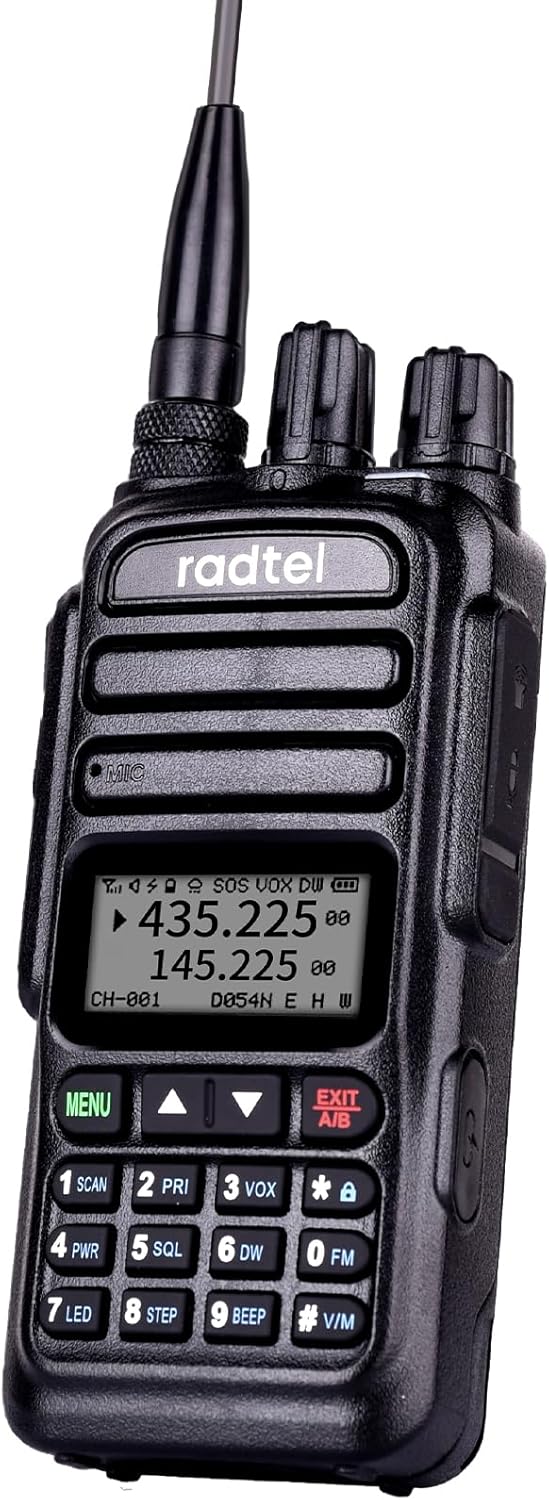

Figura 2: lateral view of the Radtel RT-830 radio, highlighting the Push-to-Talk (PTT) button and accessory ports.

Figure 3: Close-up of the USB-C charging port located on the side of the radio.

Figure 4: Close-up of the accessory jack for external audio devices.

3. Configuració

3.1 Instal·lació i càrrega de la bateria

The RT-830 comes with a 3500mAh Lithium Ion battery. Ensure the battery is fully charged before first use.

1. Alineeu la bateria amb les ranures de la part posterior de la ràdio i feu-la lliscar fins que faci clic.
2. To charge, connect the desktop charger to a power outlet. Place the radio with the battery installed into the charging cradle. The charging indicator light will show the charging status.
3. Alternatively, you can charge the radio directly using a USB-C cable connected to the USB-C port on the side of the radio.

Figure 5: The Radtel RT-830 radio placed in its desktop charging cradle.

Figure 6: Illustration of the three charging modes: direct USB-C to radio, radio in desktop charger, and battery only in desktop charger.

3.2 Fixació de l'antena

Screw the provided dual-band antenna clockwise onto the antenna connector on top of the radio until it is finger-tight. Do not overtighten.

Figure 7: The Radtel RT-830 radio with its antenna detached, showing the antenna port.

4. Instruccions de funcionament

4.1 Engegada/Apagada i Volum

Per encendre la ràdio, gireu el botó superior esquerre en sentit horari. Continueu girant per ajustar el volum. Per apagar-la, gireu el botó en sentit antihorari fins que faci clic.

4.2 Selecció de canal/freqüència

The RT-830 supports both Channel (CH) mode and VFO (Frequency) mode. You can switch between modes via the menu.

• Mode de canal: Use the UP/DOWN arrow keys on the keypad to navigate through the 128 pre-programmed channels.
• Mode VFO: Directly input frequencies using the numeric keypad. Use the UP/DOWN arrow keys to fine-tune the frequency.

4.3 Transmissió i recepció

• Recepció: The radio will automatically receive signals on the selected channel or frequency.
• Transmetent: Press and hold the Push-to-Talk (PTT) button on the side of the radio to transmit. Speak clearly into the microphone. Release the PTT button to stop transmitting and return to receive mode.

4.4 NOAA Weather Channel

The RT-830 can receive 8 US NOAA weather channels. This feature is crucial for outdoor activities to stay informed about weather conditions.

Figure 8: The Radtel RT-830 displaying a weather channel, emphasizing its NOAA weather alert capability.

4.5 Air Band Reception

The radio supports Air Band reception (108-136Mhz AM RX), allowing you to listen to air traffic control communications.

Figure 9: Graphic illustrating the multi-band transmit and receive capabilities of the RT-830, including 144-148Mhz TX/RX, 420-450Mhz TX/RX, and 108-136Mhz AM RX.

4.6 Scrambler/Encrypt Function

The RT-830 includes a scrambler/encrypt function for enhanced privacy during communications. Refer to the menu settings to activate and configure this feature.

Figure 10: Visual representation of the scrambler/encrypt function, showing two radios with a digital background.

5. Manteniment

5.1 Neteja

Netegeu la ràdio amb un suau, damp drap. No utilitzeu productes químics agressius ni netejadors abrasius. Assegureu-vos que la tapa del port USB-C estigui tancada quan no es carregui per evitar l'entrada de pols i humitat.

5.2 Cura de la bateria

• Eviteu descarregar completament la bateria amb freqüència.
• Guardeu la ràdio i la bateria en un lloc fresc i sec quan no les feu servir durant períodes prolongats.
• If the radio will not be used for a long time, charge the battery to about 50% before storing.

5.3 Antenna Care

Handle the antenna with care. Do not bend or twist it excessively, as this can damage the antenna or the radio's connector.

6. Solució De Problemes

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

7. Especificacions

8. Garantia i Suport

8.1 Informació de la garantia

The Radtel RT-830 comes with a 1 any de garantia des de la data de compra. Aquesta garantia cobreix els defectes de fabricació i els mals funcionaments en condicions d'ús normal. No cobreix els danys causats per un mal ús, accidents, modificacions no autoritzades o desastres naturals.

Per a reclamacions de garantia, conserveu el comprovant de compra.

8.2 Atenció al client

For technical assistance, troubleshooting, or general inquiries, please contact Radtel Direct customer support. Refer to the contact information provided with your product packaging or visit the official Radtel weblloc web per obtenir els detalls d'assistència més actualitzats.

També podeu visitar el Radtel Store on Amazon per a més informació i actualitzacions del producte.
