Manual d'usuari del pressostat digital SMC ZSE30A-01-N-LD

1. Introducció i finalview

The SMC ZSE30A-01-N-LD is a high-precision digital pressure switch specifically engineered for vacuum pressure applications. This device provides accurate pressure monitoring and control, essential for various industrial automation processes. It features an R1/8 (M5 Female Thread) connection for versatile installation, an NPN open collector output for reliable signal transmission, and integrated unit switching capabilities for user convenience.

2. Informació de seguretat

Always adhere to local and national electrical and safety codes during installation and operation. Ensure the power supply is disconnected before performing any wiring or maintenance. Do not exceed the specified pressure or electrical ratings. This device is intended for use by qualified personnel only. Avoid exposing the unit to excessive vibration, shock, or extreme temperatures outside its specified operating range.

3. Components i característiques

The ZSE30A-01-N-LD digital pressure switch is designed for ease of use and robust performance. Key components include a clear digital display for real-time pressure readings and output status, and intuitive control buttons for configuration.

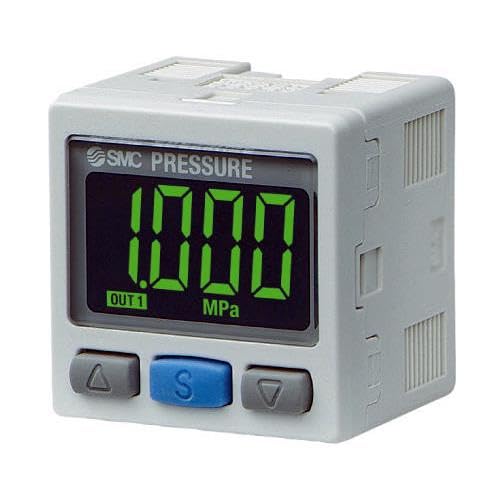

Aquesta imatge mostra la part frontal view of the SMC ZSE30A-01-N-LD Digital Pressure Switch. It features a clear digital display for pressure readings and output status, along with three tactile buttons for configuration and operation.

• Pantalla digital: Provides precise pressure readings and indicates output status (e.g., OUT 1).
• Botons de control: Three buttons (Up, Set, Down) for navigating menus and adjusting settings.
• Port de pressió: R1/8 (M5 Female Thread) for connecting to the vacuum system.
• Connexió elèctrica: Lead wire with connector for NPN open collector output.

4. Configuració i instal·lació

Proper installation is crucial for the optimal performance and longevity of the pressure switch.

1. Muntatge: Securely mount the pressure switch in a location free from excessive vibration and within the specified ambient temperature range.
2. Pneumatic/Vacuum Connection: Connect the vacuum line to the R1/8 (M5 Female Thread) pressure port. Ensure a leak-free seal.
3. Cablejat elèctric: Connect the lead wire to your control system. The NPN open collector output requires careful wiring according to the provided diagram (refer to the product's detailed wiring diagram for specific connections). Ensure correct polarity and voltage.
4. Font d'alimentació: Connect the appropriate DC power supply to the unit. Verify the voltage coincideix amb les especificacions del producte.

5. Instruccions de funcionament

Once installed and powered, the digital pressure switch will display the current vacuum pressure. The unit can be configured using the front panel buttons.

• Encès: Upon applying power, the display will illuminate and show the current pressure reading.
• Visualització de lectura: The large digital display shows the measured pressure value. The unit of measurement (e.g., MPa) will also be indicated.
• Canvi d'unitat: The device supports switching between different pressure units. Refer to the detailed programming manual for steps on how to change the displayed unit.
• Setting Output Thresholds: Use the 'Set' button to enter the programming mode. The 'Up' and 'Down' buttons allow adjustment of the pressure set points for the NPN output. Save settings before exiting programming mode.

6. Manteniment

The SMC ZSE30A-01-N-LD is designed for minimal maintenance. However, periodic checks can ensure continued reliable operation.

• Neteja: Gently wipe the display and housing with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Inspecció de connexió: Periodically check all electrical and pneumatic/vacuum connections for tightness and signs of wear or damage.
• Condicions ambientals: Assegureu-vos que l'entorn de funcionament es mantingui dins dels rangs de temperatura i humitat especificats per evitar danys.

7. Solució De Problemes

If you encounter issues with your digital pressure switch, consider the following common troubleshooting steps:

• Sense pantalla/Sense alimentació: Verify the power supply connection and ensure the correct voltage is applied. Check for any blown fuses in the power circuit.
• Incorrect Pressure Reading: Ensure the pressure port is properly connected and there are no leaks in the vacuum line. Verify the unit of measurement displayed is correct.
• Sortida no commutadora: Check the set point values to ensure they are configured correctly relative to the measured pressure. Verify the NPN output wiring to your control system.
• Lectures erràtiques: Ensure the unit is not exposed to excessive vibration or electromagnetic interference.

If problems persist after performing these checks, contact SMC technical support or your distributor.

8. Especificacions

9. Garantia i Suport

For detailed warranty information and technical support, please refer to the official SMC website or contact your authorized SMC distributor. Keep your purchase receipt or proof of purchase for warranty claims.
