Introducció
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Dometic Atwood AirCommand Ducted Rooftop RV Air Conditioner. Please read this manual thoroughly before installation and use, and keep it for future reference.
The Dometic Atwood AirCommand rooftop air conditioner is engineered to deliver reliable cooling performance in various mobile living environments, designed to withstand harsh elements while providing comfortable air circulation.
Informació de seguretat
Important: Installation, maintenance, and repair must be performed by qualified personnel only. Improper installation or maintenance can lead to property damage, injury, or death.
- Desconnecteu sempre l’alimentació abans de donar servei a la unitat.
- Assegureu-vos de posar a terra correctament per evitar descàrregues elèctriques.
- Verify that the RV's electrical system can support the unit's power requirements.
- No feu funcionar la unitat amb el cablejat o els components danyats.
- Keep all vents clear of obstructions to ensure proper airflow.
Configuració i instal·lació
The Dometic Atwood AirCommand is designed for ducted rooftop installation on RVs. While installation can be straightforward for those with technical knowledge, professional installation is recommended.
Comprovacions prèvies a la instal·lació:
- Verify roof opening dimensions (standard 14.25" x 14.25").
- Confirm roof thickness is within the unit's specifications for proper bolt length.
- Ensure adequate structural support on the RV roof for the unit's weight (86 lbs).
- Check electrical wiring for compatibility with 115 Volts AC, 60 Hz.
Passos d'instal·lació (més enllà)view):
- Carefully lift the rooftop unit onto the RV roof, ensuring proper alignment with the roof opening.
- Install the foam gasket around the opening to create a watertight seal.
- From inside the RV, install the ceiling frame and secure the unit using the provided bolts. Ensure bolts are tightened evenly to compress the gasket.
- Connect the electrical wiring (live, neutral, ground) according to the wiring diagram provided in the full installation manual.
- Mount the air distribution box (ADB) to the ceiling frame, ensuring all connections are secure.
- Test the unit's operation.
Figura 1: Exterior view of the Dometic Atwood AirCommand 13.5K BTU RV Air Conditioner in Black.

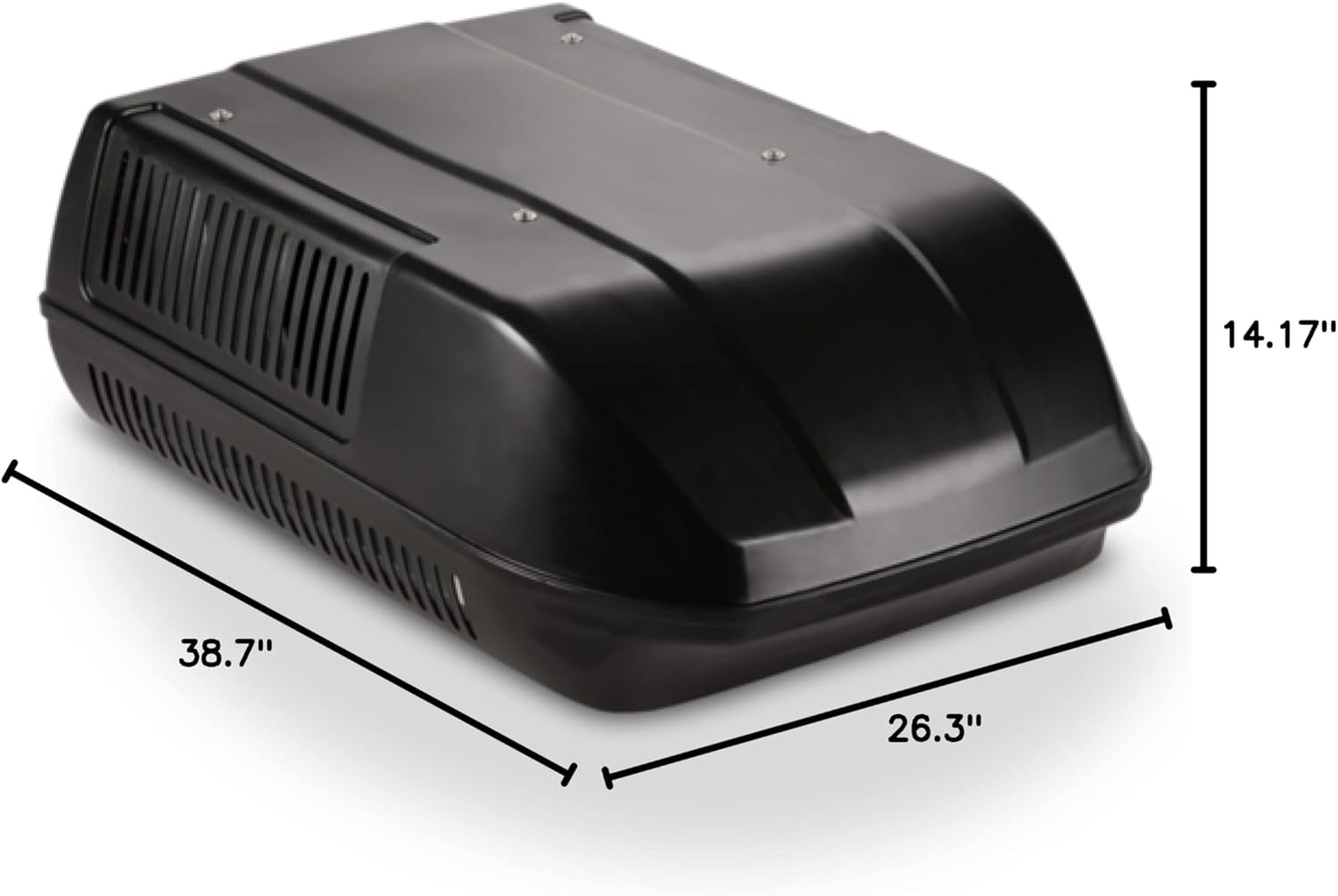

Figure 2: Product dimensions of the Dometic Atwood AirCommand RV Air Conditioner, showing length, width, and height.
Installation Video Reference:
Video 1: DIY Installation of a Furrion Chill Cube RV Air Conditioner. This video provides a general overview of the installation process for a similar RV air conditioner, demonstrating the steps involved in mounting the rooftop unit and connecting the air distribution box.
Instruccions de funcionament
Your Dometic Atwood AirCommand unit can be operated via the included remote control or the control panel on the air distribution box (ADB).
Operació de control remot:
- Potència: Premeu el botó ON/OFF per encendre o apagar la unitat.
- Selecció del mode: Cycle through cooling, fan-only, and dehumidification modes using the MODE button.
- Ajust de temperatura: Use the UP/DOWN arrow buttons to set your desired temperature. The unit offers precise temperature control.
- Velocitat del ventilador: Adjust fan speed (Auto, Low, Medium, High, Turbo) using the FAN button.
- Mode de repòs: Activates a quieter, more energy-efficient operation for nighttime use.
- Funció de swing: Controls the oscillation of the air vents for even air distribution.
Funcionament del tauler de control:
The ADB features a built-in control panel with buttons for power, mode, fan speed, and temperature adjustment, mirroring most remote functions for convenience.
Video 2: FOGATTI RV Air Conditioner 16000BTU with Heat Pump. This video demonstrates the features and operation of an RV air conditioner, including remote control and panel adjustments for temperature and fan speed.
Video 3: RecPro RV Air Conditioner: Efficient, Quiet, Reliable Cooling. This video highlights the quiet operation and remote control features of an RV air conditioner, showing how to adjust settings for optimal comfort.
Video 4: Look how quiet it is, quick review. This short video demonstrates the quiet operation of an RV air conditioner, emphasizing its low noise output during use.
Manteniment
Regular maintenance ensures optimal performance and longevity of your air conditioner. The most critical maintenance task is cleaning the air filters.
Neteja dels filtres d'aire:
- Turn off the air conditioner unit and disconnect power.
- Locate the air filters on the air distribution box (ADB) inside your RV. These are typically removable panels.
- Gently remove the filters. They may be dusty or dirty.
- Rinse the filters with clean, lukewarm water. For heavily soiled filters, a mild detergent can be used.
- Allow the filters to air dry completely before re-installing them. Do not use heat to dry.
- Re-install the dry filters into the ADB, ensuring they are securely in place.
- Restaura l'alimentació a la unitat.
It is recommended to clean the filters every 2-4 weeks, or more frequently depending on usage and environmental conditions.
Video 5: How to clean the air conditioner filter. This video provides a step-by-step guide on how to remove, clean, and re-install the air filters of an RV air conditioner.
Resolució de problemes
Abans de contactar amb l'atenció al client, si us plau, torneu aview els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | No hi ha subministrament elèctric; interruptor automàtic saltat; cablejat solt. | Check RV power source, reset circuit breaker, inspect wiring connections (by qualified personnel). |
| Refrigeració insuficient. | Dirty air filters; blocked air vents; low refrigerant; incorrect temperature setting. | Clean air filters, ensure vents are clear, verify temperature setting. If refrigerant is low, contact service. |
| La unitat fa soroll. | Loose components; fan obstruction; unit not level. | Check for loose screws or debris. Ensure RV is level. If noise persists, contact service. |
| Fuites d'aigua de la unitat. | Clogged condensate drain; improper installation seal. | Clear condensate drain. Check rooftop seal for proper installation. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Dometic |
| Model | Dometic Atwood AirCommand |
| Potència de refrigeració | 13,500 unitats tèrmiques britàniques (BTU) |
| Capacitat | 1.25 tones |
| Voltage | 115 Volts |
| Wattage | 1725 watts |
| Nivell de soroll | 52 decibels |
| Tipus d'instal·lació | Durada |
| Dimensions del producte | 38.7 "P x 26.3" W x 14.17" H |
| Pes de l'article | 86 lliures |
| Característiques especials | Fast Cooling, Dual Motor Design, Quiet Operation |
| Components inclosos | 1 Air Conditioner Unit, 1 Manual |
Garantia i Suport
For detailed warranty information, please refer to the warranty card included with your product or visit the official Dometic website. If you encounter any issues or require technical assistance, please contact Dometic customer support.
Dometic Customer Support:
- Visita el Botiga Dometic a Amazon per obtenir informació sobre el producte i recursos d'assistència.
- Consulteu la informació de contacte que trobareu a l'embalatge del producte per obtenir assistència directa.
