Kitchen Couture 30 Litre Digital Air Fryer Oven

Introducció

Thank you for choosing the Kitchen Couture 30 Litre Digital Air Fryer Oven. This versatile appliance combines the functions of an air fryer, toaster oven, thaw box, and dehydrator, offering 18 preset cooking modes for a wide range of culinary tasks. To ensure safe and efficient operation, please read this manual thoroughly before first use and retain it for future reference.

Image: The Kitchen Couture 30 Litre Digital Air Fryer Oven, showcasing its large capacity with a whole roasted chicken visible through the glass door.

Instruccions importants de seguretat

Quan s'utilitzen aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat, incloses les següents:

1. Llegiu totes les instruccions abans d’utilitzar l’aparell.
2. Do not touch hot surfaces. Use handles or knobs. Always use oven mitts or heat-resistant gloves when handling hot materials.
3. Per protegir-vos contra les descàrregues elèctriques, no submergiu el cable, els endolls ni la carcassa de l'aparell en aigua ni en altres líquids.
4. És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
5. Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces.
6. No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera. Contacteu amb l'assistència al client per obtenir assistència.
7. L'ús d'accessoris no recomanats pel fabricant de l'aparell pot causar lesions.
8. No utilitzar a l'aire lliure.
9. No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
10. No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
11. Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
12. Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
13. No utilitzeu l'aparell per a un altre ús que el previst.
14. Ensure adequate ventilation around the appliance during operation. Maintain at least 10cm clearance on all sides.
15. Do not use abrasive cleaners or metal scouring pads to clean the interior or accessories, as this can damage surfaces. Specifically, do not use oven cleaner on the interior.

Producte acabatview

Components

• Unitat principal de forn de fregidora d'aire
• Reixeta de forn
• Paella de forn
• Cistella Air Fry
• Safata de molla
• Rosserie Spit
• Rotisserie Remove Handle

Image: The interior of the air fryer oven with the door open, highlighting the rotisserie spit and the spacious cooking cavity.

Tauler de control

The Kitchen Couture Air Fryer Oven features an intuitive digital touchscreen control panel. This panel allows you to select preset cooking functions, adjust temperature and time, and manage other settings.

Imatge: Una imatge detallada view of the digital control panel, displaying icons for various cooking functions such as Air Fry, Chips, Wings, Pizza, Steak, Cookies, Snacks, Veggies, Bagel, Broil, Roast, Dehydrate, Proof, Defrost, Warm, Reheat, and Toast.

Key indicators and controls include:

• Modes predefinits: Icons for 18 common cooking functions.
• Visualització de la temperatura: Shows current and set temperature (up to 230°C).
• Visualització de l'hora: Shows remaining cooking time (up to 60 minutes).
• Botó d'encesa: Per encendre/apagar l'aparell.
• Ajust de temperatura/temps: Buttons to increase or decrease values.
• Cuina doble: For combining two cooking stages.
• Botó de llum: To illuminate the interior.
• Botó de rostidor: To activate the rotisserie function.

Configuració

Desembalatge

1. Carefully remove the air fryer oven and all accessories from the packaging.
2. Remove any protective film, stickers, or packing materials from the appliance and accessories.
3. Inspeccioneu l'aparell per detectar qualsevol dany. No el feu funcionar si està danyat.

Col·locació

• Place the air fryer oven on a stable, level, heat-resistant surface.
• Ensure there is at least 10cm of clear space on all sides of the appliance to allow for proper air circulation. Do not place it directly against a wall or under cabinets.
• Keep the appliance away from flammable materials such as curtains, tablecloths, or paper.

Neteja inicial

1. Abans del primer ús, netegeu l'exterior de l'aparell amb un anunciamp tela.
2. Wash all accessories (oven rack, baking pan, air fry basket, crumb tray, rotisserie spit, rotisserie remove handle) with warm, soapy water. Rinse thoroughly and dry completely. All accessories are dishwasher safe.
3. Netegeu l'interior del forn amb anunciamp tela.

First Use (Burn-Off)

It is normal for a slight odor or smoke to be present during the first few uses as manufacturing residues burn off. This is harmless and will dissipate. To minimize this, follow these steps:

1. Connecteu l'aparell a una presa de corrent elèctrica amb terra.
2. Turn on the appliance and set the temperature to 200°C and the timer for 15-20 minutes.
3. Assegureu-vos que la zona estigui ben ventilada.
4. After the cycle, allow the appliance to cool down completely.

Funcionament

Passos bàsics de cuina

1. Place the desired accessory (e.g., air fry basket with food, baking pan) into the oven. Ensure the crumb tray is always in place at the bottom.
2. Tanqueu la porta del forn.
3. Plug the power cord into a wall outlet. The control panel will illuminate.
4. Premeu el botó d'encesa per encendre l'aparell.
5. Select a preset cooking function or manually set the temperature and time using the respective buttons.
6. Premeu el botó Inici/Pausa per començar a cuinar.
7. The appliance will automatically shut off when the timer reaches zero.
8. Carefully remove cooked food using the rotisserie remove handle or oven mitts.

Preset Cooking Functions (18 Modes)

The appliance offers 18 convenient preset modes for various dishes:

• Frit a l'aire
• Xips
• Ales
• Pizza
• Bistec
• Galetes
• Snacks
• Verdures
• Bagel
• Bullir
• rostit
• Deshidratar-se
• Prova
• Descongelació
• Calent
• Torneu a escalfar
• Torrades
• Enfornar

Simply select the desired preset, and the oven will automatically set the optimal temperature and time. You can adjust these settings manually if needed.

Image: A visual representation of the oven's multi-functionality, highlighting its capabilities for frying, dehydrating, roasting, baking, and proofing.

Multifuncionalitat 5 en 1

This appliance serves as a versatile kitchen tool, combining the functions of:

• Air Fryer Oven: For crispy, healthier fried foods with little to no oil.
• Toaster Oven: Perfect for toast, bagels, and small baking tasks.
• Thaw Box: Gently defrosts frozen items.
• Deshidratador: Creates dried fruits, vegetables, and jerky.

Image: A graphic demonstrating the appliance's five primary functions, emphasizing its space-saving and multi-purpose design.

Ús de la funció Rotisserie

The rotisserie function is ideal for roasting whole chickens or other meats evenly.

1. Securely attach the food to the rotisserie spit, ensuring it is balanced.
2. Introduïu l'espita del rostidor a les ranures designades dins del forn.
3. Tanqueu la porta del forn.
4. Select a roasting preset or manually set the temperature and time.
5. Press the Rotisserie button on the control panel to activate rotation.
6. Once cooking is complete, use the rotisserie remove handle to safely extract the hot spit and food from the oven.

Image: The air fryer oven with a perfectly roasted chicken, demonstrating the rotisserie capability.

Neteja i Manteniment

Regular cleaning will ensure the longevity and optimal performance of your Kitchen Couture Air Fryer Oven.

Neteja general

1. Desendolleu sempre l'aparell de la presa de corrent i deixeu-lo refredar completament abans de netejar-lo.
2. Netegeu l'exterior del forn amb un drap suau iamp tela. No utilitzeu netejadors abrasius ni productes químics durs.
3. Per a l'interior, netegeu amb anunciamp drap i detergent suau si cal. Do not use oven cleaner or abrasive pads on the interior surfaces, as this can damage the non-stick coating and finish.
4. Clean the glass door with a soft cloth and glass cleaner.

Neteja d'accessoris

• All included accessories (oven rack, baking pan, air fry basket, crumb tray, rotisserie spit, rotisserie remove handle) are dishwasher safe for easy cleaning.
• Alternatively, wash them in warm, soapy water, rinse thoroughly, and dry completely before storing or re-using.

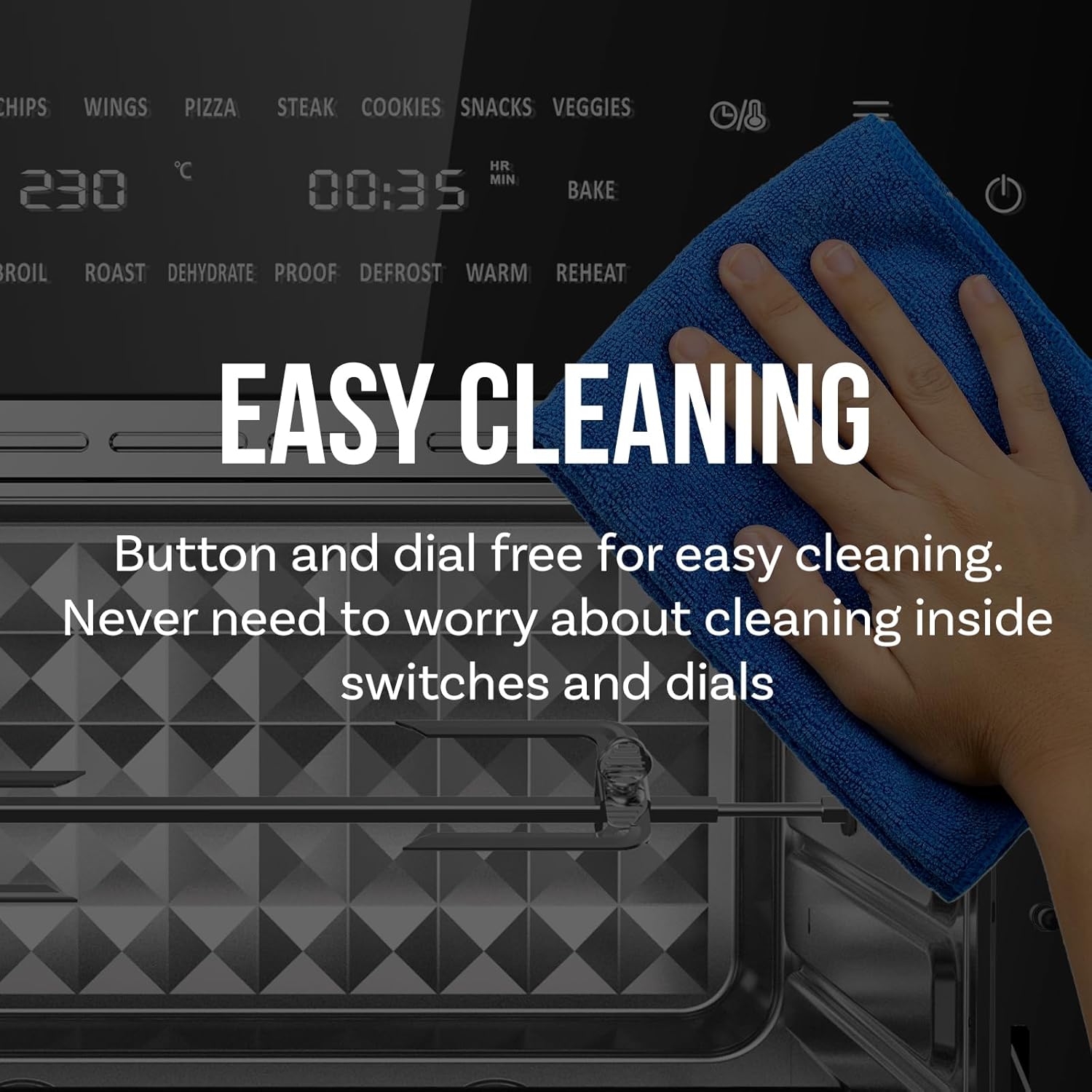

Image: A hand cleaning the smooth digital control panel, emphasizing the easy-to-clean design without physical buttons or dials.

Resolució de problemes

Si teniu problemes amb el vostre aparell, consulteu els següents problemes i solucions habituals:

If the problem persists after attempting these solutions, please contact Kitchen Couture customer support for further assistance.

Especificacions

Image: A diagram illustrating the external dimensions of the Kitchen Couture Air Fryer Oven.

Garantia i Suport

Your Kitchen Couture Air Fryer Oven is designed for durability and performance. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Kitchen Couture weblloc.

For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact Kitchen Couture customer service. Contact details can typically be found on the product packaging, the official brand weblloc web o el vostre rebut de compra.

Si us plau, tingueu a mà el número de model (10003607) i la data de compra quan us poseu en contacte amb el servei d'assistència.
