Zgrmbo 16-inch Digital Wall Clock

Introducció

The Zgrmbo 16-inch Digital Wall Clock is designed for clear visibility and ease of use, featuring a large display suitable for various environments such as living rooms, warehouses, shops, gyms, and offices. This clock provides time, date, day of the week, and indoor temperature, offering comprehensive information at a glance. Its large, clear jumbo digits ensure readability from a distance, making it ideal for all users, including seniors.

Key features include a remote control for convenient adjustments, adjustable brightness settings, and a versatile display that supports 12/24-hour time formats and Celsius/Fahrenheit temperature units. The clock also incorporates stopwatch and timer functions for various timing needs.

Image: The Zgrmbo 16-inch Digital Wall Clock displaying time, date, day of the week, and temperature, with its remote control in the foreground.

Image: Diagram illustrating the dimensions of the Zgrmbo 16-inch Digital Wall Clock (16.2 inches wide, 5.1 inches high) and icons representing its features: 16" Display, Custom Brightness, 12/24H Format, Week Display, Date Display, Remote Control, Indoor Temp(°C/°F), Timer, Time Memory, and 2 Alarm Clocks.

Contingut del paquet

Please check the box carefully to ensure all components are present:

• Zgrmbo 16-inch Digital Wall Clock Unit
• Control remot
• Cable USB de 11.5 peus
• 2 x CR2032 Batteries (for memory function)
• 2 x Non-trace Nails (for wall mounting)

Image: Diagram showing the contents of the product box, including the clock unit with hang holes, remote control, 11.5ft USB cable, 2 CR2032 batteries, and 2 non-trace nails.

Configuració

Connexió d'alimentació

The Zgrmbo Digital Wall Clock operates solely when plugged into a power source. It requires a 5V/2A power adapter (not included) to be connected via the provided 11.5ft USB cable. Connect the USB cable to the clock and then to a suitable power adapter plugged into a wall outlet.

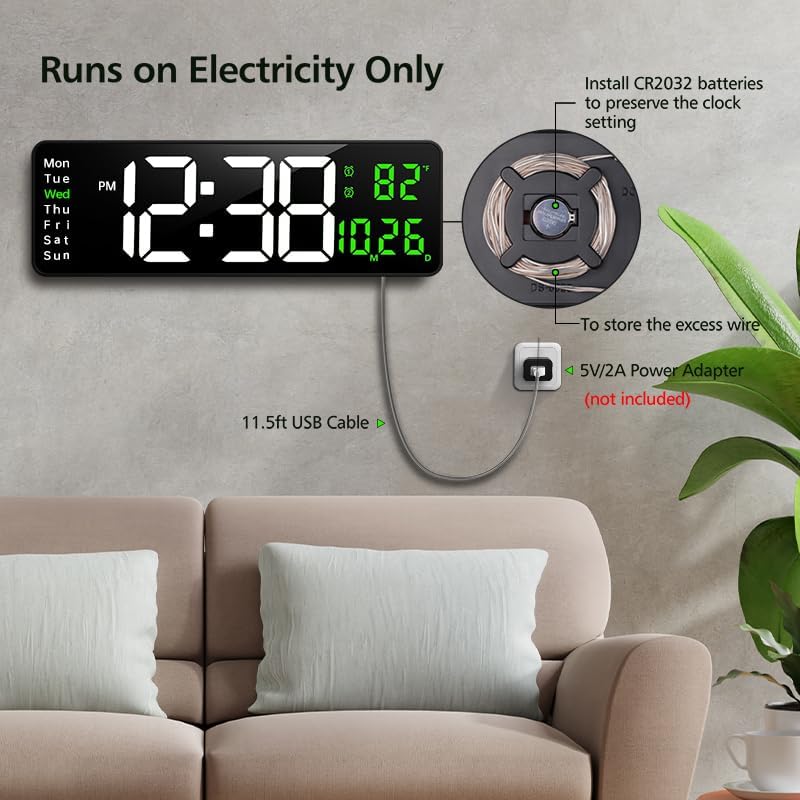

Image: The Zgrmbo Digital Wall Clock mounted on a wall, showing the 11.5ft USB cable connected to a power adapter (not included) plugged into a wall outlet. An illustration indicates the CR2032 battery compartment for preserving settings.

Battery Installation (Memory Function)

The clock uses 2 CR2032 batteries (included) to preserve time and settings during a power outage or when unplugged. These batteries do not power the display. Locate the battery compartment on the back of the clock, insert the CR2032 batteries with the correct polarity, and close the compartment.

Muntatge del rellotge

The clock can be wall-mounted using the hang holes located on the back. Use the provided non-trace nails or appropriate wall anchors and screws suitable for your wall type to securely mount the clock. Ensure the clock is level before finalizing the installation.

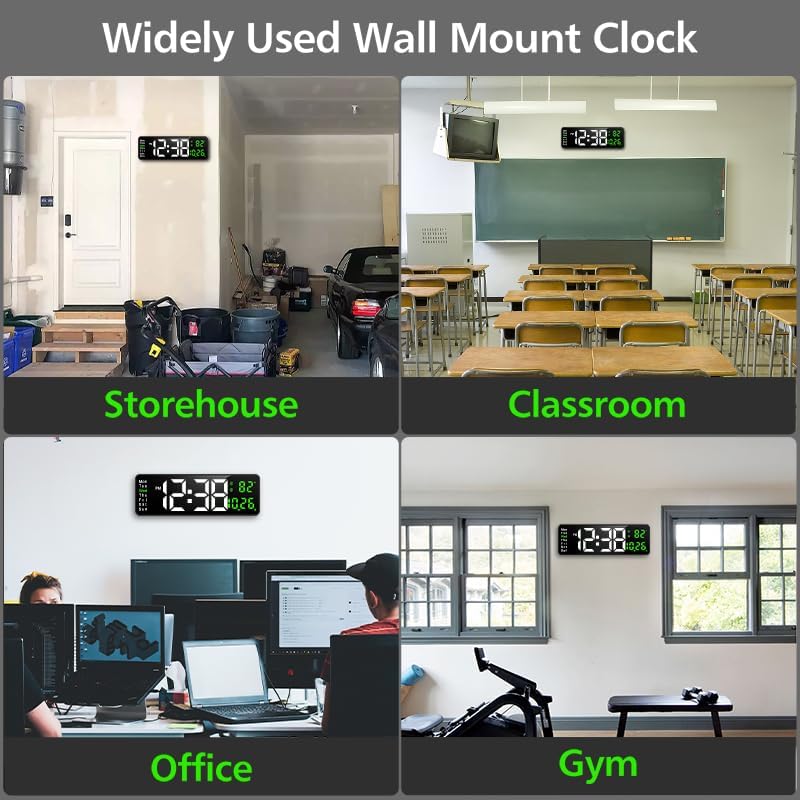

Image: Four panels showing the Zgrmbo Digital Wall Clock mounted in different environments: a storehouse, a classroom, an office, and a gym, demonstrating its versatility as a widely used wall mount clock.

Instruccions de funcionament

All primary functions and settings of the Zgrmbo Digital Wall Clock can be conveniently controlled using the included remote control.

Image: A person using the remote control to adjust the Zgrmbo Digital Wall Clock, which is mounted on a wall above a sofa, illustrating the convenience of remote operation.

Configuració de l'hora i la data

1. Premeu el botó SET del comandament a distància per entrar al mode de configuració de l'hora.
2. Utilitza el UP i ABAIX arrows to adjust the hour, then press OK per confirmar.
3. Repetiu-ho per a minuts, any, mes i dia.
4. Premeu SET de nou per sortir del mode de configuració.

Format 12/24 hores

To switch between 12-hour and 24-hour time formats, press the 12/24H botó del comandament a distància.

Temperature Display (Celsius/Fahrenheit)

The clock displays indoor temperature. To switch between Celsius (℃) and Fahrenheit (℉) units, press the ℃ / ℉ botó del comandament a distància.

Ajust de brillantor

The clock features a 10-level adjustable brightness display. You can manually set the brightness or enable auto-brightness mode.

• Ajust manual: Premeu el botó LLUMINOSITAT botó una vegada i, a continuació, utilitzeu el + or - buttons on the remote to cycle through 10 brightness levels.
• Brillantor automàtic: Premeu el botó LLUMINOSITAT button twice. The clock will automatically adjust its display brightness based on ambient light conditions.

Image: Illustrations demonstrating the 10-level brightness adjustment feature of the Zgrmbo Digital Wall Clock, showing different display intensities from 100% to 20% and the auto-brightness mode.

Funcions de cronòmetre i temporitzador

The clock includes convenient stopwatch and timer functionalities:

• Cronòmetre: Premeu el botó CRONÓMETRES button on the remote to start/pause the stopwatch. Press again to reset.
• Temporitzador: Premeu el botó TEMPORIZADOR button on the remote. Use the number buttons to set the desired countdown time, then press OK to start. Press TEMPORIZADOR again to pause/resume, or hold to reset.

Configuració d'alarmes

The clock supports setting up to two alarms.

1. Premeu el botó ALARMA botó del comandament a distància.
2. Utilitza el UP i ABAIX arrows to select Alarm 1 or Alarm 2, then press OK.
3. Adjust the alarm hour and minute using the UP i ABAIX arrows, pressing OK after each.
4. Select the alarm duration or snooze interval if prompted.
5. Premeu ALARMA again to activate/deactivate the set alarm. An alarm icon will appear on the display when active.

Manteniment

To ensure the longevity and optimal performance of your Zgrmbo Digital Wall Clock, follow these simple maintenance guidelines:

• Neteja: Gently wipe the display and clock body with a soft, dry, lint-free cloth. Avoid using abrasive cleaners, solvents, or spray cleaners directly on the clock, as they may damage the surface or internal components.
• Substitució de la bateria: The CR2032 batteries for memory backup should be replaced periodically, typically every 1-2 years, or if you notice settings are not retained after a power interruption.
• Col·locació: Avoid placing the clock in direct sunlight or near extreme heat sources, as this can affect the display's lifespan and temperature sensor accuracy.

Resolució de problemes

Especificacions

Garantia i Suport

For warranty information or technical support regarding your Zgrmbo 16-inch Digital Wall Clock, please refer to the contact details provided with your purchase or visit the official Zgrmbo weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
