Introducció
This manual provides essential information for the proper installation, operation, and maintenance of your DD Audio SL612-D4 12" Slim Shallow Car Subwoofer Speaker. Please read this manual thoroughly before using the product to ensure optimal performance and safety.
Informació de seguretat
Observeu sempre les següents precaucions de seguretat per evitar lesions o danys al producte:
- Assegureu-vos que tot l'alimentació estigui desconnectada abans de la instal·lació o el manteniment.
- Si no esteu segurs de cap pas a seguir, consulteu un professional per a la instal·lació.
- No exposeu el subwoofer a una humitat excessiva ni a temperatures extremes.
- Use appropriate wiring and fuses as recommended for car audio systems.
- Avoid operating the subwoofer at distortion levels, which can cause damage.
Característiques del producte
The DD Audio SL612-D4 subwoofer is engineered for high performance in shallow mounting applications. Key features include:
- Slim Shallow Design: Ideal for installations with limited mounting depth.
- EROM Surround: Enhances durability and excursion.
- High Temperature 2.5" Voice Coil: Designed for sustained power handling.
- Double Layer Spider System: Provides improved cone control and stability.
- Triple Layer Shallow Body Cone: Optimized for shallow mounting while maintaining rigidity.
- 72oz Magnet: Powerful motor structure for strong bass output.
- Back Plate Coil Gap Venting: Aids in cooling the voice coil for increased reliability.
- DD Cast Aluminum Frame: Robust and rigid frame construction.
Especificacions
Detailed technical specifications for the SL612-D4 subwoofer:
| Especificació | Valor |
|---|---|
| Mida de l'altaveu | 12 polzades |
| Watts RMS | 300 - 600 W |
| Watts Peak | 1200 W |
| Impedància | Dual 4-Ohm (D4) |
| Voice Coil Diameter (VCD) | 2.5 polzades |
| Diàmetre del pistó | 10.38 polzades |
| Fs (Freqüència de ressonància) | 27 Hz |
| Qms | 7.906 |
| Qes | 0.432 |
| Qts | 0.409 |
| Vas (Equivalent Volume) | 68.349 litres |
| Xmech (Mechanical Excursion) | 40 MM |
| Xmax (excursió lineal) | 14.5 MM |
| Frame OD (Outer Diameter) | 12.568 polzades |
| Frame OD w/Gasket | 12.795 polzades |
| Diàmetre de muntatge | 11.339 polzades |
| Profunditat de muntatge | 4.134 polzades |
| Diàmetre del motor | 6.496 polzades |
| Motor Depth | 1.5 polzades |
| Desplaçament del woofer | 0.06 CuFt |
| Recommended Sealed Enclosure Volume | 0.8 - 1.5 CuFt (22.65 - 42.48 Liters) |
| Recommended Ported Enclosure Volume | 1.0 - 1.5 CuFt (28.32 - 49.55 Liters) |
| Material | Alumini (Marc) |
| Pes de l'article | 17 lliures |
| Tecnologia de connectivitat | Amb cable |
Configuració i instal·lació
Proper installation is crucial for the performance and longevity of your subwoofer. It is highly recommended to have this product installed by a qualified car audio professional.
- Enclosure Selection: Choose a sealed or ported enclosure that matches the recommended volumes provided in the specifications for optimal sound quality.
- Muntatge: Securely mount the subwoofer into the enclosure using appropriate screws. Ensure the mounting diameter and depth are compatible with your chosen enclosure.
- Cablejat: Connecteu el subwoofer al vostre amplifier. The SL612-D4 is a dual 4-ohm subwoofer, allowing for various wiring configurations (e.g., 2-ohm or 8-ohm final impedance) depending on your amplifier's capabilities. Refer to your ampmanual del lificador per a càrregues d'impedància compatibles.
- AmpConfiguració del lifier: Ajustar amplifier gain, crossover frequencies, and bass boost settings according to your system's requirements and personal preference. Start with conservative settings and gradually increase.
- Connexió d'alimentació: Ensure all power and ground connections are secure and use appropriate gauge wiring to prevent voltagcaiguda i sobreescalfament.

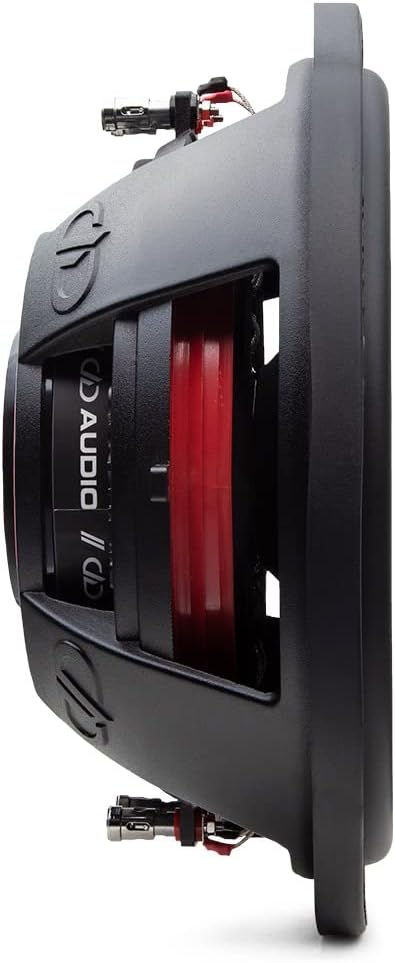

Imatge: Lateral view of the SL612-D4 subwoofer, highlighting the shallow design and the dual speaker terminals for wiring connections.
Instruccions de funcionament
Once installed, follow these guidelines for operating your subwoofer:
- Període d'entrada: Allow a break-in period of approximately 20-30 hours of moderate use before operating the subwoofer at high volumes. This allows the suspension components to loosen up and perform optimally.
- Control de volum: Adjust the volume gradually. Avoid pushing the subwoofer beyond its limits, which can lead to distortion and potential damage.
- Escolta la distorsió: If you hear any signs of distortion (e.g., muddy bass, rattling), immediately reduce the volume or adjust your ampConfiguració del lifier.
- System Matching: Assegureu-vos el vostre amplifier's power output is appropriately matched to the subwoofer's RMS power handling.
Imatge: Frontal view of the SL612-D4 subwoofer cone, featuring the DD Audio logo. This view shows the EROM surround and the triple layer shallow body cone.
Manteniment
The SL612-D4 subwoofer requires minimal maintenance:
- Neteja: Use a soft, dry cloth to wipe down the subwoofer cone and frame. Avoid using harsh chemicals or abrasive cleaners.
- Inspecció: Periodically inspect the wiring connections for tightness and signs of corrosion. Check the surround and cone for any tears or damage.
- Protecció del medi ambient: Protect the subwoofer from direct sunlight, extreme temperatures, and moisture to prolong its lifespan.
Image: Detailed side profile of the SL612-D4 subwoofer, emphasizing its slim and shallow mounting depth.
Resolució de problemes
Si teniu problemes amb el subwoofer, consulteu els problemes i solucions més comuns següents:
- Sense so:
- Check all wiring connections (power, ground, remote, RCA, speaker wires) for looseness or corrosion.
- Verifiqueu el amplifier is powered on and not in protection mode.
- Check fuses on the amplifier and power wire.
- Assegureu-vos que la unitat principal envia un senyal d'àudio.
- So distorsionat:
- Reduir el ampajust de guany del lificador.
- Check for proper crossover settings; the subwoofer should only play low frequencies.
- Ensure the enclosure is sealed properly (if applicable) and free of air leaks.
- Verify the subwoofer is not over-powered or under-powered by the ampmés viu.
- Greus febles:
- Check wiring polarity (+/-) at both the subwoofer and ampmés viu.
- Assegureu-vos el amplifier gain is set correctly.
- Verify the enclosure volume matches the recommended specifications.
- Adjust bass boost or EQ settings on your head unit or ampmés viu.
Imatge: Part posterior inclinada view of the SL612-D4 subwoofer, showcasing the robust cast aluminum frame and the 72oz magnet structure.
Garantia i Suport
DD Audio products are designed for durability and performance. For warranty information, please refer to the official DD Audio weblloc web o poseu-vos en contacte amb el vostre distribuïdor autoritzat. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
For technical support or further assistance, please visit the DD Audio support page or contact their customer service department. You can often find helpful resources, FAQs, and contact information on their official weblloc: www.ddaudio.com
