1. Producte acabatview
Utilize your Keter shed with a stable, easy-to-install shelving kit. The Shelf Kit 70 features three 70 cm long shelves that help you better organize your shed and keep all your items within reach. Whether it's garden tools, outdoor games and toys, or cushions, you will easily find everything you are looking for. Additionally, the shelves free up the shed floor, providing space for items like bicycles or lawnmowers. With the Shelf Kit 70, you can even vary the height between shelves to meet your needs, and it fits into any Keter shed (except our Factor line).
Característiques principals:
- Variable and Individual: 3 height-adjustable shelves for individual design and flexibility.
- More Space: 70 cm long shelves offer ampl'espai d'emmagatzematge.
- Fort: Each shelf can support up to 30 kg, resulting in a total capacity of 90 kg.
- Instal·lació ràpida: Installed in minutes with standard tools.
- Antioxidant: Particularly robust, rust-free metal brackets and rails.
Image 1.1: The Keter Shelf Kit 70, showcasing its three adjustable shelves and metal reinforcement.
2. Llista de components i peces
Before assembly, ensure all components are present and undamaged. The Keter Shelf Kit 70 includes the following parts:
- Metal shelves (3 pieces)
- Mounting brackets/rails (2 vertical rails, multiple horizontal brackets)
- Fasteners (screws, anchors if needed for shed material)
- Small magnetic spirit level (may be included for precise installation)
Image 2.1: Detailed diagram illustrating the components, dimensions (30 cm height, 97 cm width), and key features such as galvanized steel brackets, steel reinforced shelves, adjustable shelf height, and free valuable floor space.
3. Instruccions de muntatge i instal·lació
The Keter Shelf Kit 70 is designed for quick and straightforward installation. It is compatible with most Keter sheds, excluding the Factor series. Ensure you have standard tools such as a drill, screwdriver, and a measuring tape.
Compatibilitat:
This shelf kit is compatible with the following Keter shed lines:
Image 3.1: Compatibility chart showing which Keter shed models are suitable for the shelving kit. Compatible lines include Newton, Cortina, Artisan, Oakland (except 7.5x4), Oakland 7.5x4, Premier, Darwin, Manor Pent, and Manor Apex. The kit can be positioned on rear or side walls depending on the shed model.
Passos d'instal·lació:
- Tria la ubicació: Select the desired location for your shelves within the shed. The kit can be installed on rear or side walls, depending on your shed model and storage needs.
- Marqueu els punts de muntatge: Hold the vertical mounting rails against the wall at the desired height. Use a spirit level (a small magnetic one may be included) to ensure they are perfectly vertical. Mark the drilling points for the fasteners.
- Perforar forats pilot: Drill pilot holes at the marked points. Ensure the drill bit size is appropriate for the fasteners and the shed material.
- Secure Vertical Rails: Attach the vertical mounting rails to the shed wall using the provided fasteners. Ensure they are securely fastened and stable.
- Attach Shelf Brackets: Insert the horizontal shelf brackets into the slots on the vertical rails at your desired height. The height is adjustable, allowing for flexible storage configurations.
- Col·locar prestatges: Carefully place the metal shelves onto the horizontal brackets. Ensure they are seated properly and are level.
- Verifica l'estabilitat: Gently test the stability of the installed shelves before loading them with items.

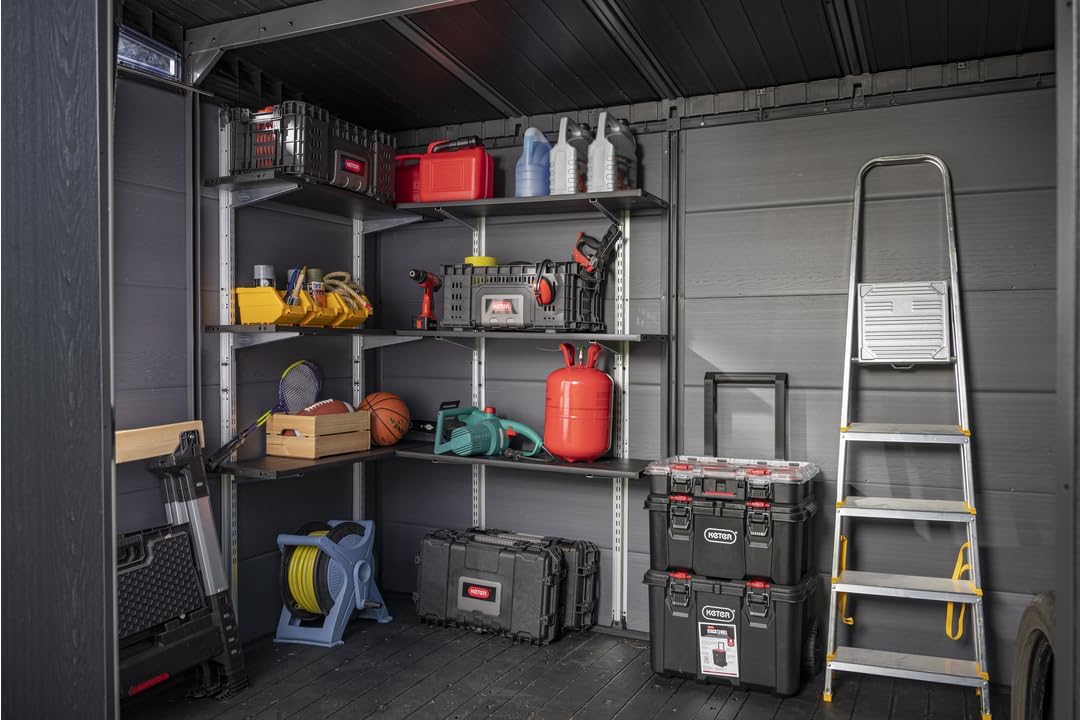

Imatge 3.2: Un example of the Keter Shelf Kit installed in a shed, demonstrating its capacity to organize various items like tools, sports equipment, and storage boxes.

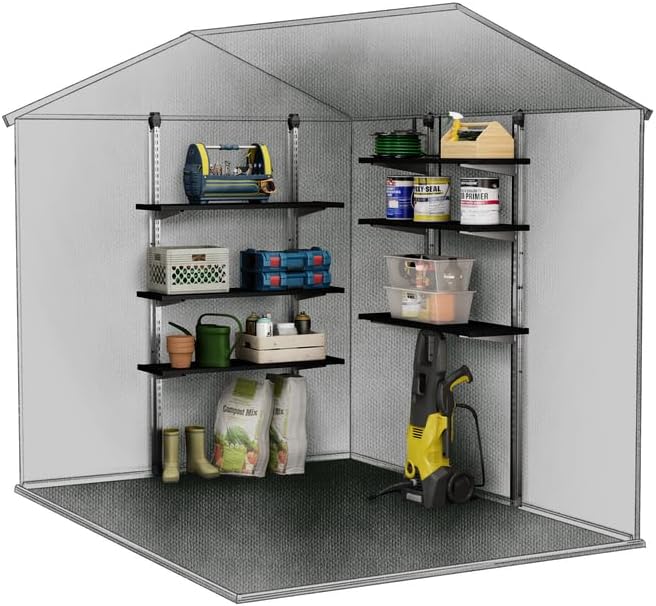

Image 3.3: Illustrative diagram demonstrating how the shelving kit can be configured within a shed, including corner installations for optimized space utilization.
4. Instruccions de funcionament
The Keter Shelf Kit 70 is designed for static storage. Once installed, its operation primarily involves proper loading and organization.
- Capacitat de càrrega: Each shelf is designed to hold up to 30 kg (66 lbs). Do not exceed this weight limit per shelf to ensure stability and prevent damage. The total capacity for the three shelves is 90 kg.
- Distribució de pes: Distribute weight evenly across the shelves. Avoid placing all heavy items on one side or in the center of a single shelf.
- Ajust de l'alçada del prestatge: To adjust the height of a shelf, unload the shelf, then carefully lift the shelf off its brackets. Remove the brackets from the vertical rails, reposition them to the desired height, and re-insert them. Finally, place the shelf back onto the brackets.
- Seguretat: Ensure items placed on the shelves are stable and not prone to falling. For tall items, consider placing them on lower shelves.
Image 4.1: The shelving system in use, showcasing its ability to organize a variety of items, from small tools to larger containers, within a Keter shed.
5. Manteniment
The Keter Shelf Kit 70 requires minimal maintenance due to its durable, rust-free materials.
- Neteja: Wipe down shelves and metal components with a damp cloth as needed to remove dust or dirt. Mild soap can be used for stubborn stains. Avoid abrasive cleaners.
- Inspecció: Periodically check all fasteners and connections to ensure they remain tight and secure. Re-tighten any loose screws.
- Prevenció de l'òxid: The metal components are rust-free. However, avoid prolonged exposure to standing water or harsh chemicals to maintain their integrity.
6. Solució De Problemes
If you encounter any issues with your Keter Shelf Kit 70, refer to the following common troubleshooting tips:
| Problema | Causa possible | Solució |
|---|---|---|
| Els prestatges no estan anivellats. | Mounting rails are not vertical; brackets are not inserted correctly. | Use a spirit level to ensure vertical rails are plumb during installation. Re-insert brackets firmly into the correct slots. |
| El prestatge sembla inestable o trontolla. | Fasteners are loose; shelf not properly seated on brackets; overloaded shelf. | Check and tighten all mounting fasteners. Ensure shelves are fully engaged with brackets. Reduce weight if exceeding 30 kg per shelf. |
| Difficulty inserting metal rods into shelves (as per a customer review). | Possible manufacturing defect or deformation during transport. | If the shelves are deformed, contact Keter customer support for assistance or replacement. Do not force components, as this may cause damage. |
7. Especificacions
| Marca: | Keter |
| Número de model: | 258688 |
| Número d'article: | 7290112637505 |
| Dimensions del producte (L x A x A): | 38 x 112 x 65 cm (aprox. 15 x 44 x 25.5 polzades) |
| Pes de l'article: | 10.5 quilograms (aprox. 23.1 lliures) |
| Shelf Length: | 70 cm |
| Material: | Metall |
| Color: | Negre |
| Max. Weight Capacity per Shelf: | 30 kg (66 lliures) |
| Total Max. Weight Capacity: | 90 kg (198 lliures) |
| Mètode d'instal·lació: | Freestanding / Wall-mounted (as per product images) |
| Característiques especials: | Durable, Rust-free metal brackets and rails, Adjustable shelf height |
| Ús: | Garden tool storage, Shed organization, Outdoor equipment storage |
8. Garantia i Suport
For warranty information and customer support, please refer to the official Keter website or contact the retailer from whom you purchased the product. Keter products are known for their durability and quality. In case of any manufacturing defects or issues not covered by the troubleshooting section, please reach out to Keter customer service with your model number (258688) and purchase details.
The seller for this product is "Keter Curver Benelux".
Return Policy: 30 days for refund/replacement (as per Amazon data).
