1. Producte acabatview
The VirtuFit Etappe 2.0i Indoor Cycle is designed for home fitness enthusiasts, offering a robust and interactive training experience. This spin bike features a heavy flywheel, multiple resistance levels, and compatibility with popular fitness applications to enhance your workouts.
Figura 1: Part frontal view of the VirtuFit Etappe 2.0i Indoor Cycle.
Figura 2: lateral view of the VirtuFit Etappe 2.0i Indoor Cycle, highlighting its sturdy frame.
2. Informació important de seguretat
Before using the VirtuFit Etappe 2.0i Indoor Cycle, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to the equipment.
- Consulta un metge abans de començar qualsevol nou programa d'exercicis.
- Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
- Place the cycle on a flat, stable surface with adequate clearance around it.
- Assegureu-vos que tots els cargols i femelles estiguin ben ajustats abans de cada ús.
- Porteu calçat i roba esportiva adequats.
- No supereu el pes màxim de l'usuari de 140 kg.
- Deixa de fer exercici immediatament si et sents dèbil, marejat o tens dolor.
- Regularly inspect the equipment for wear and tear. Do not use if damaged.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans del muntatge:
- Marc principal
- Muntatge de manillar
- Tija de seient i cadira
- Pedals (esquerra i dreta)
- Front and rear stabilizers
- Console/Display unit
- Suport de la tauleta
- Portabotella d'aigua
- Eines i maquinari de muntatge
- Manual d'usuari
4. Muntatge i muntatge
Follow these steps to assemble your VirtuFit Etappe 2.0i Indoor Cycle:
- Connecteu els estabilitzadors: Fixeu els estabilitzadors davanter i posterior al bastidor principal amb els cargols i les volanderes proporcionats. Assegureu-vos que estiguin ben fixats per garantir l'estabilitat.
- Instal·lar pedals: Identifica els pedals esquerre (E) i dret (R). El pedal esquerre es cargola en sentit antihorari i el pedal dret en sentit horari. Estreny-los fermament als braços de la biela.
- Assemble Seat Post and Saddle: Insert the seat post into the main frame. Adjust the height using the quick-release lever. Attach the deluxe saddle to the seat post, then adjust its horizontal position using the L-bolts for optimal comfort.
- Mount Handlebar Assembly: Slide the handlebar post into the main frame. Adjust the height and secure it with the adjustment knob. Attach the multi-grip handlebar to the post.
- Connecta la consola: Connect the console cables to the main frame. Mount the console onto the handlebar assembly. Place the tablet holder and water bottle holder as desired.

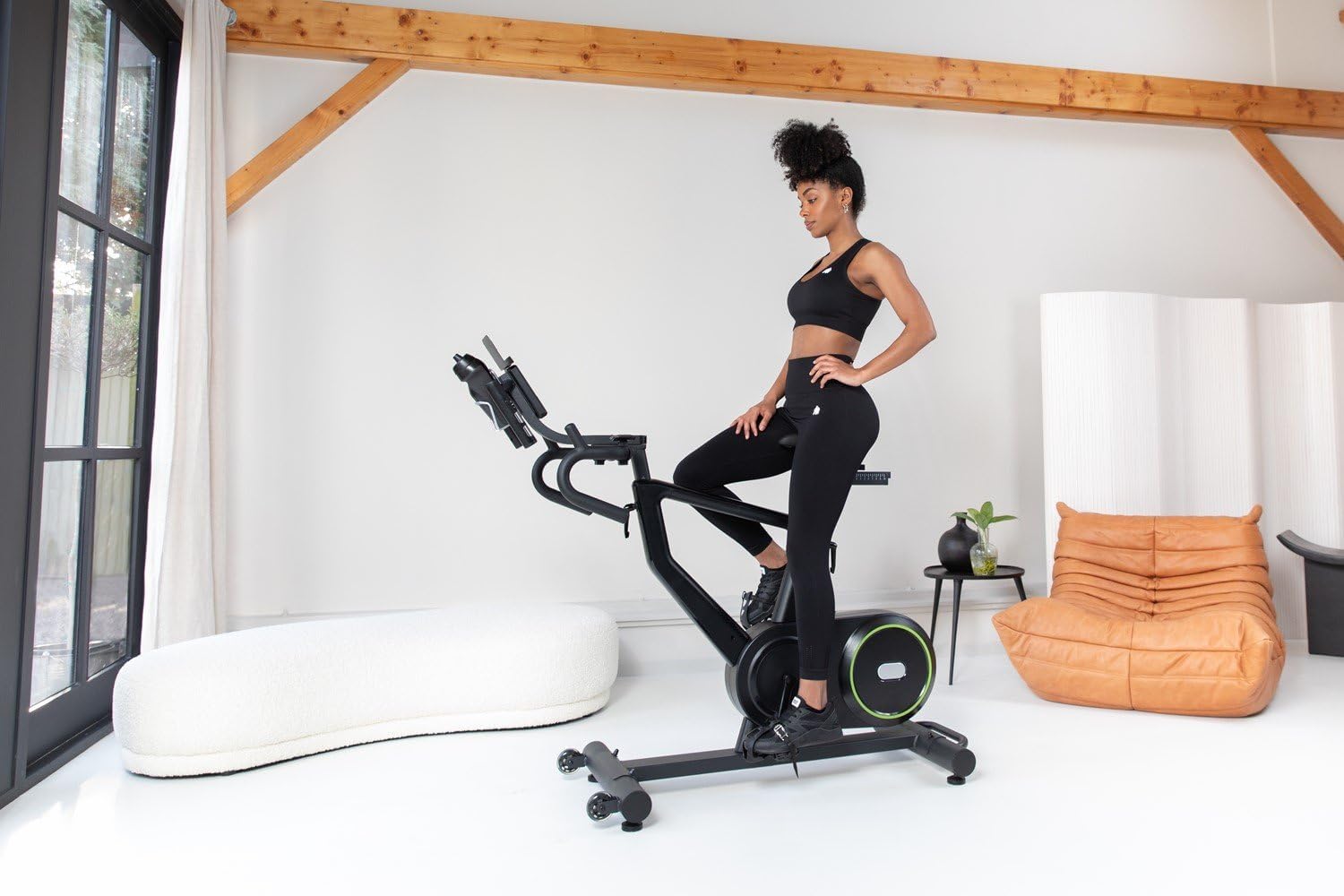

Figure 3: Adjusting the seat height for a comfortable riding position.
Figure 4: Adjusting the handlebar height to suit user preference.
5. Instruccions de funcionament
The VirtuFit Etappe 2.0i offers various training options and adjustments for a personalized workout.
5.1 Console Functions
The clear LED console displays key workout data:
- Hora: Durada del teu entrenament.
- Distància: Distància total recorreguda.
- RPM: Revolucions per minut.
- Watt: Potència de sortida en watts.
- Velocitat: Velocitat actual.
- Velocitat mitjana: Average speed during the workout.
- Calories: Calories cremades estimades.
- Pols: Heart rate (requires compatible 5 kHz heart rate monitor, not included).
- Engranatge: Current resistance level.
Use the console buttons (START, STOP, RESET, ENTER, +/-) to navigate menus, select programs, and adjust settings.
Figura 5: Detallada view of the LED console with various workout metrics.
Figure 6: Handlebar controls for adjusting resistance levels during a workout.
5.2 Resistance Levels and Programs
The cycle features 24 resistance levels and 13 pre-programmed training programs. You can manually adjust resistance or select a program for varied intensity.
5.3 App Compatibility
The Etappe 2.0i is compatible with popular training applications such as Zwift, Kinomap, and Fitshow. Connect your tablet or smartphone to the cycle to access interactive workouts, scenic routes, and structured training plans.
Figure 7: Tablet mounted on the console, displaying the Kinomap application.
Figure 8: User engaged in an interactive workout using a fitness application on the tablet holder.
5.4 Demostració en vídeo
Video 1: This video demonstrates the key features of the VirtuFit Etappe 2.0i Indoor Cycle, including seat and handlebar adjustments, console display, and compatibility with fitness apps like Kinomap and Zwift. It also highlights the 24 resistance levels and various workout programs.
6. Manteniment
Regular maintenance ensures the longevity and safe operation of your indoor cycle.
- Neteja: Wipe down the cycle with a damp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
- Inspecció: Comproveu periòdicament tots els cargols, femelles i peces mòbils per assegurar-vos que estiguin ben ajustats i que no estiguin desgastats. Estrenyeu qualsevol element de fixació solt.
- Lubricació: Apply a small amount of silicone-based lubricant to moving parts (e.g., seat post, handlebar post) if they become stiff.
- Emmagatzematge: Store the cycle in a dry, cool place away from direct sunlight and extreme temperatures.
7. Solució De Problemes
Consulteu aquesta secció per obtenir solucions a problemes comuns:
| Problema | Causa possible | Solució |
|---|---|---|
| La consola no mostra les dades | Loose cable connection; Console batteries low/dead | Check all cable connections; Replace console batteries. |
| La resistència no canvia | Resistance mechanism issue; Console not registering input | Ensure resistance knob/buttons are functioning; Check internal connections. |
| Unstable during use | Uneven surface; Loose stabilizers/feet | Adjust leveling feet; Tighten stabilizer bolts. |
| Soroll de grinyol o fregament | Loose parts; Lack of lubrication; Internal friction | Inspect and tighten all bolts; Lubricate moving parts; Contact customer support if noise persists. |
8. Especificacions
- Nom del model: Etappe 2.0i
- Número de model de l'article: VFSPINBIKE-E2.0i
- Marca: VirtuFit
- Color: Negre mat
- Material principal: Metall
- Dimensions del producte (L x A x A): 132 x 115 x 52 cm
- Pes de l'article: 22 quilos
- Pes màxim de l’usuari: 140 kg
- Pes del volant: 22 kg
- Mecanisme de resistència: Adjustable Magnetic Resistance (24 levels)
- Font d'alimentació: Pedal operated (non-electric)
- Característiques especials: Calorie counter, Speedometer, Distance monitor, Heart rate monitor (5 kHz compatible), Tablet holder, Water bottle holder
- Ús recomanat: Interior
- Compatibilitat de l'aplicació: Zwift, Kinomap, Fitshow
9. Garantia i Suport
For warranty information, technical support, or to order replacement parts, please refer to the VirtuFit official weblloc web o poseu-vos en contacte amb el vostre distribuïdor. Conserveu el comprovant de compra per a reclamacions de garantia.
