1. Introducció
Gràcies per la compraasing the CAMRY Adler CR 4414 Multi-Capsule Espresso Machine. This versatile appliance is designed to bring a wide variety of coffee experiences to your home, supporting 9 different types of capsules available on the market, including Nespresso, Dolce Gusto, Lavazza Blue, Lavazza Modo Mio, and Caffitali. It also features an adapter for ground coffee, offering even more flexibility. With its compact design, elegant appearance, and 19-bar professional pump, this machine ensures a rich and flavorful coffee experience every time.
Figura 1.1: The CAMRY Adler CR 4414 Multi-Capsule Espresso Machine. This image shows the sleek black and white design of the espresso machine, with a cup of freshly brewed coffee placed on its drip tray, and two coffee capsules in the foreground.
2. Instruccions de seguretat importants
Please read all instructions carefully before using the appliance and keep them for future reference. Incorrect operation may cause damage to the appliance or injury to the user.
- Connecteu sempre l'aparell a una presa de corrent amb connexió a terra i el volum correcte.tage tal com s'indica a l'etiqueta de qualificació.
- No submergiu l'aparell, el cable d'alimentació o l'endoll en aigua o cap altre líquid.
- Desendolleu l'aparell de la presa de corrent quan no l'utilitzeu, abans de netejar-lo i abans de muntar o desmuntar peces.
- No feu servir l'aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
- Mantingueu l'aparell i el cable fora de l'abast dels nens.
- Les superfícies es poden escalfar durant l'ús. Eviteu el contacte amb les parts calentes. Feu servir nanses o poms.
- Utilitzeu només els accessoris i complements recomanats pel fabricant.
- Aquest aparell només és per a ús domèstic. No utilitzar a l'aire lliure.
3. Components del producte
Familiarize yourself with the main parts of your CAMRY Adler CR 4414 espresso machine:
- Dipòsit d'aigua: Removable, with a 0.6-liter capacity. Located at the back or side of the machine.
- Adaptadors de càpsules: Includes multiple adapters for various capsule types (Nespresso, Dolce Gusto, Lavazza Blue, Lavazza Modo Mio, Caffitali).
- Ground Coffee Adapter: Comes with 2 filters for ground coffee/powder.
- Cap de cervesa: Where the capsule or ground coffee adapter is inserted.
- Safata de degoteig: Removable for easy cleaning, collects excess liquid.
- Control Panel/Buttons: For power and brewing selection.
- Cable d'alimentació: Per connectar a una presa de corrent.
Figura 3.1: Acabatview of the CAMRY Adler CR 4414 machine and its accessories. This image displays the main espresso machine alongside various capsule adapters, a ground coffee adapter with filters, and a measuring spoon, illustrating the machine's versatility.
Figura 3.2: Detallada view of the different capsule adapters. This image highlights the various interchangeable adapters that allow the machine to be compatible with multiple coffee capsule systems, including Nespresso, Dolce Gusto, and others, as well as a ground coffee filter.
4. Configuració i primer ús
Abans d'utilitzar la màquina d'espresso per primera vegada, seguiu aquests passos:
- Desembalar: Traieu amb cura tots els materials d'embalatge i assegureu-vos que hi hagi tots els components.
- Neteja: Wash the water tank, drip tray, and all capsule adapters with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp tela.
- Omplir el dipòsit d'aigua: Fill the removable water tank with fresh, cold water up to the 'MAX' level. Place it back securely on the machine.
- Prepara la màquina:
- Col·loqueu una tassa buida sota la sortida del cafè.
- Plug the machine into a power outlet. The power indicator light will illuminate.
- Press the power button. The machine will start heating up. Wait until the indicator light stops blinking and remains steady, indicating it's ready.
- Without inserting any capsule or ground coffee, press the brew button. Let the machine dispense water until the tank is empty. This primes the pump and cleans the internal system.
- Repeat this process 2-3 times to ensure thorough cleaning and priming.
5. Instruccions de funcionament
Your CAMRY Adler CR 4414 is designed for easy operation. Follow these steps to brew your favorite coffee:
5.1. Brewing with Coffee Capsules
- Assegureu-vos que el dipòsit d'aigua estigui ple d'aigua dolça.
- Turn on the machine and wait for it to heat up (indicator light steady).
- Select the appropriate capsule adapter for your chosen coffee capsule (e.g., Nespresso, Dolce Gusto).
- Insert the coffee capsule into the selected adapter.
- Place the adapter with the capsule into the brewing head of the machine.
- Place a cup on the drip tray under the coffee outlet.
- Press the brew button. The machine will start dispensing coffee.
- Once the desired volume is reached, press the brew button again to stop.
- Carefully remove the adapter and dispose of the used capsule.
Figura 5.1: Visual guide to the 7 capsule coffee adapters. This diagram illustrates the various adapters included with the machine, showing compatibility with different capsule types such as Coffee Powder, ESE coffee pod, Dolce Gusto, Jacobs/LOR, Lavazza Modo Mio, Caffitaly, and Lavazza Blue, along with example coffee cups.
5.2. Brewing with Ground Coffee
- Assegureu-vos que el dipòsit d'aigua estigui ple d'aigua dolça.
- Turn on the machine and wait for it to heat up (indicator light steady).
- Use the ground coffee adapter. Place one of the provided filters inside the adapter.
- Add your desired amount of ground coffee into the filter. Do not overfill.
- Place the ground coffee adapter into the brewing head.
- Place a cup on the drip tray under the coffee outlet.
- Press the brew button. The machine will start dispensing coffee.
- Once the desired volume is reached, press the brew button again to stop.
- Carefully remove the adapter and discard the used coffee grounds.

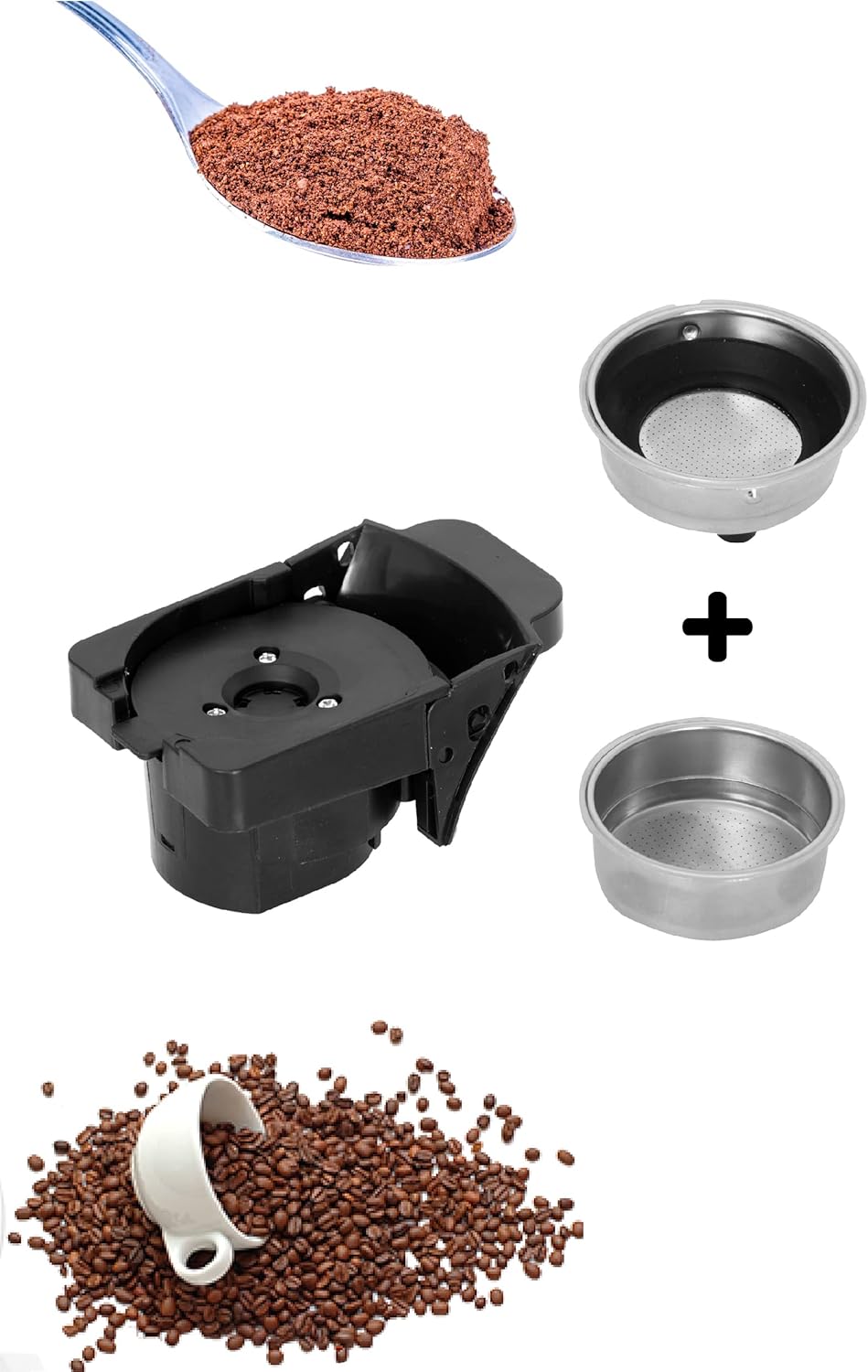

Figura 5.2: Ground coffee adapter and filters. This image shows a spoonful of ground coffee, the ground coffee adapter, and two metal filters, illustrating the components used for brewing with ground coffee.
6. Manteniment i Neteja
Una neteja regular garanteix un rendiment òptim i allarga la vida útil de la teva màquina d'espresso.
6.1. Neteja diària
- Safata de degoteig: Buideu i esbandiu la safata de degoteig després de cada ús o quan l'indicador mostri que està plena.
- Dipòsit d'aigua: Buideu l'aigua restant del dipòsit i esbandiu-lo diàriament. Torneu a omplir-lo amb aigua fresca abans de cada ús.
- Adaptadors de càpsules: After each use, remove and rinse the used capsule adapter under running water. Ensure no coffee residue remains.
- Exterior: Netegeu l'exterior de la màquina amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
6.2. Descalcificació
Over time, mineral deposits (limescale) can build up inside the machine, affecting performance. Descale your machine regularly, depending on water hardness and frequency of use (e.g., every 2-3 months).
- Use a commercially available descaling solution suitable for coffee machines, following the manufacturer's instructions.
- Ompliu el dipòsit d'aigua amb la solució descalcificadora barrejada amb aigua segons les instruccions.
- Col·loqueu un recipient gran sota la sortida del cafè.
- Run the descaling solution through the machine by pressing the brew button until the tank is empty.
- Esbandiu bé el dipòsit d'aigua i ompliu-lo amb aigua fresca.
- Feu funcionar la màquina amb diversos cicles d'aigua fresca per esbandir qualsevol resta de solució descalcificadora.
7. Solució De Problemes
Si teniu problemes amb la vostra màquina, consulteu la taula següent per veure els problemes i les solucions més habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no s'encén. | Sense font d'alimentació. | Check if the power cord is securely plugged into the outlet and the machine. Test the outlet with another appliance. |
| No es dispensa cafè. | Water tank empty; Machine not primed; Clogged nozzle/system. | Fill water tank; Prime the machine (Section 4); Descale the machine (Section 6.2). |
| El cafè és massa fluix o massa fort. | Incorrect capsule/ground coffee amount; Incorrect water volume. | Ensure correct capsule type or ground coffee amount; Adjust brewing time/volume. |
| Fuites d'aigua de la màquina. | Water tank not properly seated; Drip tray full; Internal seal issue. | Ensure water tank is securely in place; Empty drip tray; If problem persists, contact support. |
8. Especificacions
| Marca | CAMRY |
| Número de model | CR4414 |
| Color | Blanc i negre |
| Dimensions del producte (L x A x A) | 26.5 x 9.7 x 25.5 cm |
| Pes de l'article | 2.2 quilos |
| Poder | 1460 watts |
| Voltage | 230 volts (CA) |
| Material | Plàstic |
| Capacitat del dipòsit d'aigua | 0.6 litres |
| Pressió de la bomba | 19 barres |
| Característiques especials | Milk frother (Note: Feature bullets mention 'Mousseur à lait', but product description doesn't elaborate on integrated frother. This might refer to compatibility with external frothers or a general feature of espresso machines. User should verify if an actual frother is included or if it's a general capability.), Removable water tank |
| Tipus de cafetera | Màquina de cafè exprés |
| Tipus de filtre | Metall |
| País d'origen | Xina |
9. Garantia i Suport
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact CAMRY customer service. Contact information can typically be found on the manufacturer's weblloc web o a l'embalatge del producte.
Recursos en línia: For additional information, FAQs, or to register your product, visit the official CAMRY weblloc.
