MEIKEE Solar Light Instruction Manual

1. Introducció

Gràcies per la compraasing the MEIKEE Solar Light, Model AC-TYR032-2700K. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your solar light. Please read this manual thoroughly before use and retain it for future reference.

2. Producte acabatview

The MEIKEE Solar Light is a versatile lighting solution designed for both outdoor and indoor use. It features a high-efficiency solar panel, a powerful 5000 mAh battery, 76 super bright LEDs, and multiple operating modes controlled by an intelligent remote. Its adjustable color temperature and motion sensor capabilities make it suitable for various applications.

Característiques principals:

• Mètodes de càrrega dual: Solar panel charging and USB-C charging for continuous power.
• Temperatura de color ajustable: Offers Warm White (2500K), Natural White (4000K), and Cool White (6500K) options.
• Multiple Detection Modes: Three distinct motion detection modes for varied lighting needs.
• Light Control & Forced Lighting: Automatic dusk-to-dawn operation and timed lighting options.
• Control remot intel·ligent: Omnidirectional 360-degree remote with a 12m range for easy mode, brightness, and color temperature adjustments.
• Angle de feix ample: 270° beam angle with 4 adjustable light sheets for broad illumination.
• Disseny durador: IP54 protection class for outdoor resilience.
• Cable d'extensió llarg: 5m cable for flexible solar panel placement.

Components del producte:

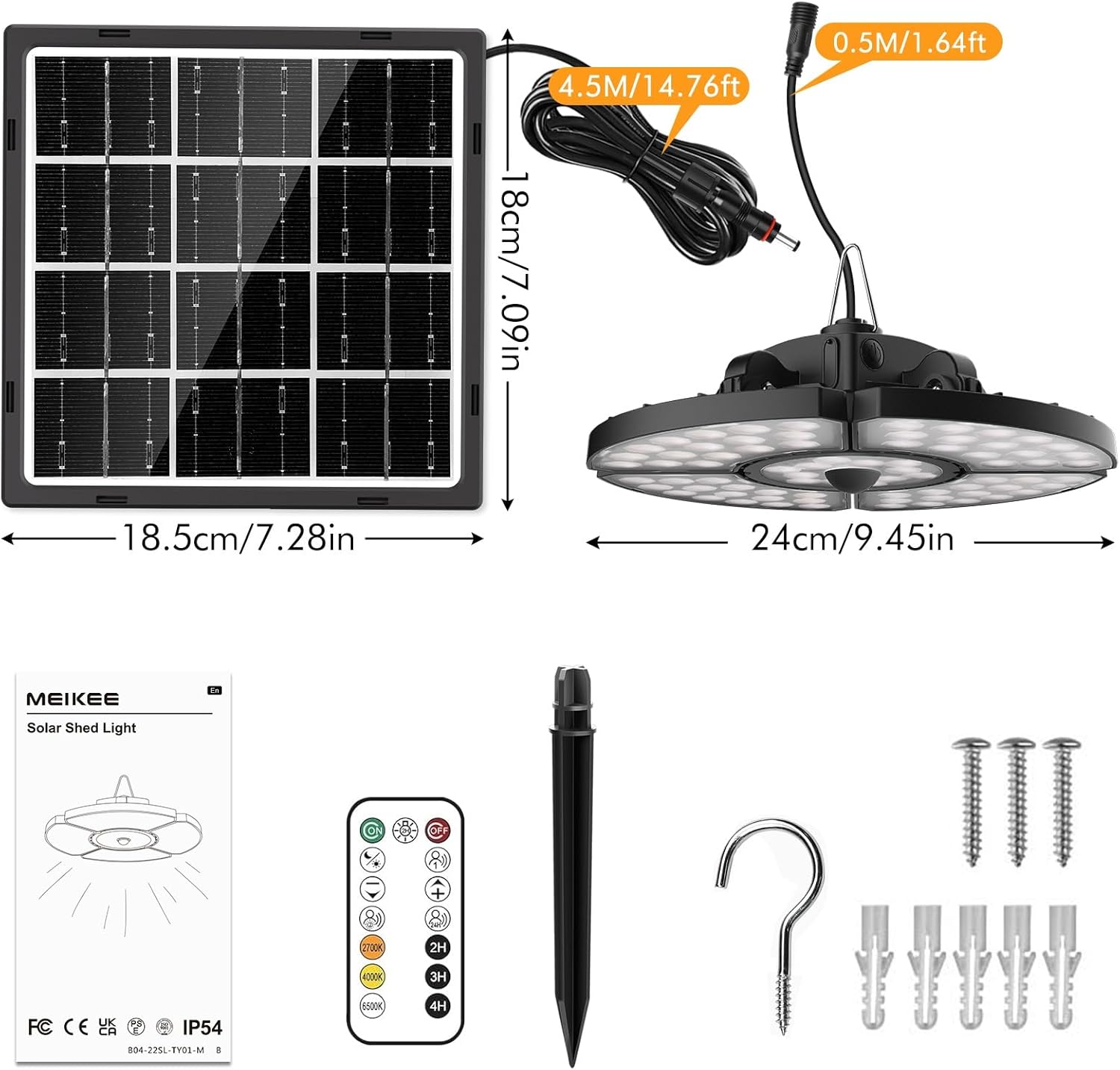

Imatge: Acabatview of the MEIKEE Solar Light components, including the solar panel, light fixture, remote control, and mounting accessories. Dimensions are also indicated.

• Solar Spotlight (Main Light Fixture)
• Solar Panel with 5m Extension Cable
• Control remot
• Accessory Pack (Screws, Wall Plugs, Ground Stake, Hook)
• Manual d'usuari

3. Especificacions tècniques

4. Instruccions de seguretat

Si us plau, observeu les següents precaucions de seguretat per evitar lesions o danys al producte:

• Do not look directly into the LED light when it is illuminated, as this may cause eye strain or damage.
• Ensure the solar panel is installed in a location that receives direct sunlight for most of the day to maximize charging efficiency.
• Keep the product away from open flames or high temperatures to prevent battery damage or explosion.
• Do not attempt to disassemble, repair, or modify the product. Contact qualified personnel for service.
• Mantenir fora de l'abast dels nens.
• Desfeu-vos del producte i de la bateria de manera responsable d'acord amb la normativa local.
• Ensure all connections are secure and waterproof, especially for outdoor installations.

5. Guia d'instal·lació

The MEIKEE Solar Light is designed for easy installation. The 5-meter extension cable allows for flexible placement of the solar panel and the light fixture.

Choosing an Installation Location:

• Panell solar: Select a location that receives at least 6-8 hours of direct sunlight daily. Avoid shaded areas from trees, buildings, or other obstructions.
• Llum: The light can be hung in sheds, gazebos, porches, garages, barns, chicken coops, storage rooms, carports, basements, backyards, gardens, or any other desired location. Ensure it is protected from direct heavy rain if installed indoors or in a semi-enclosed space.

Passos de muntatge:

1. Eines de preparació: You will need a drill, screwdriver, and pencil.
2. Muntar el panell solar:
   • Position the solar panel in your chosen sunny location.
   • Mark the drilling points using the solar panel bracket as a template.
   • Drill holes, insert wall plugs (if mounting on masonry), and secure the solar panel bracket with screws.
   • Ajusteu l'angle del panell solar perquè miri directament al sol per a una càrrega òptima.
3. Muntar la llum:
   • Choose a suitable spot for the light fixture.
   • Use the provided hook or screws to hang or mount the light.
   • Ensure the light is securely fastened.
4. Connect the Solar Panel to the Light:
   • Connect the 5-meter extension cable from the solar panel to the input port on the light fixture.
   • Ensure the connection is firm and the waterproof interface is properly sealed.

Imatge: Illustrates the separate design of the solar panel and light, highlighting solar charging and the USB charging port on the light fixture.

After installation, allow the solar panel to charge the light for at least 6-8 hours in direct sunlight before first use.

6. Funcionament

Your MEIKEE Solar Light can be operated and customized using the included remote control.

6.1 Càrrega de la llum

• Càrrega solar: The primary charging method. Ensure the solar panel is exposed to direct sunlight. The light will automatically charge during the day.
• Càrrega USB-C: In periods of low sunlight or extended indoor use, the light can be charged via a USB-C cable (not included). Connect a standard USB-C charger to the charging port on the light fixture.

6.2 Funcions de control remot

Imatge: Depicts the omnidirectional remote control and its effective range of up to 12 meters.

The remote control allows you to switch modes, adjust brightness, and change color temperature from a distance of up to 12 meters.

• Encès/apagat: Premeu el botó ON/OFF botó.
• Selecció del mode: Use the dedicated mode buttons (Mode 1, Mode 2, Mode 3, Light Control Mode, Forced Lighting 2H Mode) to cycle through lighting behaviors.
• Ajust de brillantor: Utilitza el + i - buttons to increase or decrease light intensity.
• Ajust de temperatura de color: Utilitza el 2500K (Warm White), 4000K (Natural White), and 6500K (Cool White) buttons to select your desired light color.
• Funció de temporitzador: Set the light to turn off automatically after 2H, 3H, or 4H using the respective timer buttons.

6.3 modes d'il·luminació

Imatge: Visual representation of the five distinct operating modes, showing light behavior during day and night, with and without motion detection.

1. Mode 1 (Motion Detection - Full Brightness): At night, the light turns on at 100% brightness for 30 seconds when motion is detected, then turns off when motion ceases.
2. Mode 2 (Motion Detection - Dim to Bright): At night, the light stays at 30% brightness. When motion is detected, it brightens to 100% for 30 seconds, then returns to 30% brightness.
3. Mode 3 (24-Hour Motion Detection): The light operates similarly to Mode 1 but detects motion and illuminates at 100% brightness for 30 seconds at any time of day or night.
4. Mode de control de la llum: Automatically turns on at 50% brightness at dusk and turns off at dawn.
5. Forced Lighting 2H Mode: The light stays on at 85% brightness for 2 hours, regardless of day or night.

6.4 Color Temperature Settings

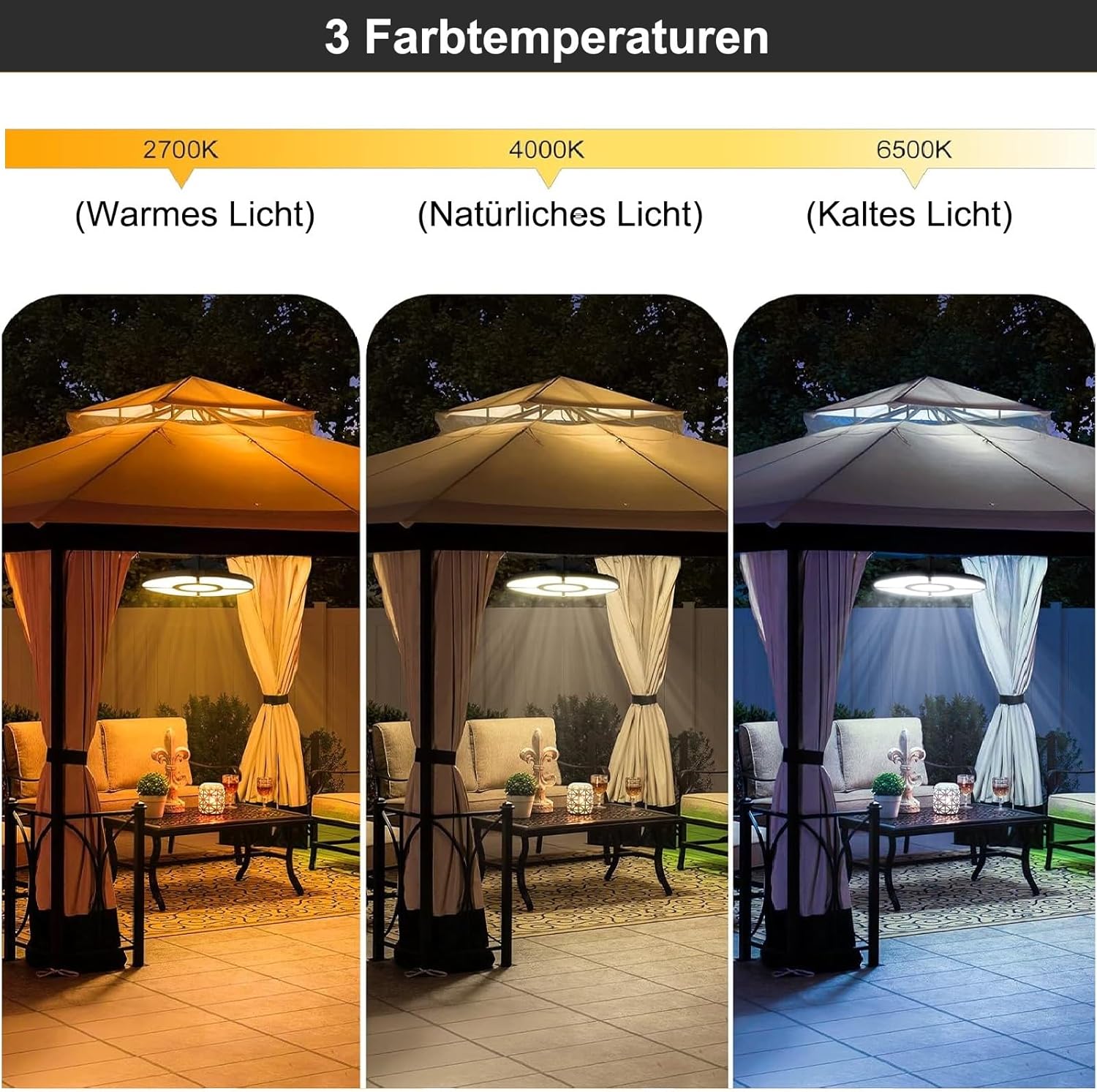

Imatge: Demonstrates the three available color temperatures: Warm Light (2700K), Natural Light (4000K), and Cold Light (6500K), as seen in a gazebo setting.

The MEIKEE Solar Light offers three distinct color temperatures to suit different preferences and environments:

• Blanc càlid (2500K): Ofereix un ambient acollidor i acollidor.
• Natural White (4000K): A balanced, neutral light suitable for general illumination.
• Blanc fred (6500K): Bright, crisp light ideal for task lighting or enhanced visibility.

Select the desired color temperature using the corresponding buttons on the remote control.

7. Manteniment

Regular maintenance ensures optimal performance and extends the lifespan of your MEIKEE Solar Light.

• Panell solar net: Netegeu periòdicament el panell solar amb un drap suau iamp drap per eliminar la pols, la brutícia, les fulles o la neu. Un panell net garanteix la màxima absorció de la llum solar i l'eficiència de càrrega.
• Comproveu les connexions: Ensure all cable connections, especially the waterproof interface between the solar panel and the light, remain secure and free from corrosion.
• Inspeccionar per danys: Regularly check the light fixture, solar panel, and cables for any signs of physical damage. If damage is found, discontinue use and contact customer support.
• Cura de la bateria: While the battery is designed for longevity, extreme temperatures can affect its performance. Avoid prolonged exposure to temperatures outside the recommended operating range (-25°C to +40°C).

8. Solució De Problemes

If you encounter issues with your MEIKEE Solar Light, refer to the following common problems and solutions:

9. Garantia i atenció al client

MEIKEE products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or contact MEIKEE customer support.

If you have any questions, require technical assistance, or experience issues not covered in this manual, please contact MEIKEE customer support through the retailer where you purchased the product or visit the official MEIKEE weblloc per obtenir informació de contacte.

Please have your model number (AC-TYR032-2700K) and purchase date ready when contacting support.
