1. Introducció
This manual provides essential information for the installation, operation, and maintenance of the Trial Smoke Extractor. This component is designed as a compatible replacement part for various Nordica Extraflame and Thermorossi pellet stoves and boilers. Its primary function is to ensure efficient and safe expulsion of combustion gases from the appliance, maintaining optimal performance and safety.
Please read these instructions carefully before attempting any installation or maintenance procedures. Proper installation and regular maintenance are crucial for the safe and effective operation of your heating appliance.
2. Informació de seguretat
- Always disconnect the heating appliance from the main power supply before attempting any installation, maintenance, or repair work.
- Installation and replacement should ideally be performed by a qualified technician to ensure correct wiring and secure mounting.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, during installation and maintenance.
- Ensure the replacement part is compatible with your specific stove or boiler model before proceeding. Refer to the 'Specifications' section for compatibility details.
- Do not operate the heating appliance if the smoke extractor is damaged or not functioning correctly.
3. Configuració i instal·lació
The following steps outline a general procedure for replacing a smoke extractor. Specific details may vary depending on your appliance model. Professional installation is highly recommended.
- Preparació: Disconnect the heating appliance from the electrical supply. Allow the appliance to cool completely. Access the existing smoke extractor, typically located at the rear or top of the stove/boiler.
- Removal of Old Extractor: Carefully disconnect any electrical wiring connected to the old extractor. Note the position and connection points for reassembly. Unscrew and remove the mounting bolts or clamps securing the old extractor. Gently remove the old unit.
- Inspecció: Inspect the mounting area and the flue gas path for any debris or blockages. Clean if necessary.
- Installation of New Extractor: Position the new Trial Smoke Extractor in the correct orientation. Secure it using the original mounting hardware or suitable replacements. Ensure a tight seal to prevent gas leaks.
- Cablejat: Reconnect the electrical wiring to the new extractor. Ensure all connections are secure and match the original configuration. Refer to your appliance's specific wiring diagram if available.
- Comprovacions finals: Double-check all connections and mounting points. Ensure no tools or loose items are left inside the appliance.
- Prova: Restore power to the appliance. Perform a test run according to your stove/boiler's operating instructions to verify proper function of the smoke extractor and absence of leaks.
Figura 1: Trial Smoke Extractor, top view with wiring and motor connections. This image shows the main body of the extractor, the motor housing, and the attached electrical wiring with connectors.
Figura 2: Trial Smoke Extractor, bottom view showing the fan blades and wiring. This perspective highlights the impeller design responsible for moving flue gases and the routing of the electrical cables.
4. Instruccions de funcionament
Once correctly installed, the Trial Smoke Extractor operates automatically in conjunction with your pellet stove or boiler's control system. It is designed to draw combustion gases from the combustion chamber and expel them through the flue system.
- Ensure the appliance's control panel is set to the desired operating mode.
- The extractor will activate and adjust its speed as required by the appliance's internal sensors and programming to maintain optimal combustion and exhaust flow.
- Monitor the appliance for any unusual noises or smoke emissions, which could indicate a problem with the extractor or flue system.
5. Manteniment
Regular maintenance helps ensure the longevity and efficient operation of the smoke extractor.
- Inspecció anual: It is recommended to have the smoke extractor inspected annually by a qualified technician, preferably during the heating appliance's annual service.
- Neteja: With the power disconnected and the unit cool, carefully inspect the fan blades and housing for any accumulation of soot, ash, or debris. If accessible, gently clean the blades using a soft brush or vacuum cleaner. Avoid using harsh chemicals or excessive force.
- Comprovació del cablejat: Periodically check the electrical connections for any signs of wear, fraying, or looseness. Secure any loose connections.
- Monitorització de soroll: Pay attention to any changes in the operating sound of the extractor. Unusual noises may indicate bearing wear or an obstruction.
6. Solució De Problemes
If you encounter issues with your smoke extractor, consider the following troubleshooting steps. Always disconnect power before inspection.
- Extractor Not Operating:
- Check if the appliance is receiving power.
- Verify all electrical connections to the extractor are secure.
- Ensure the appliance's control panel is not displaying any error codes related to the exhaust system.
- Confirm the extractor is the correct compatible model for your appliance.
- Unusual Noises (e.g., grinding, rattling):
- Disconnect power and inspect the fan blades for any obstructions (e.g., debris, foreign objects).
- Check if the mounting bolts are tight and the extractor is securely fastened.
- Excessive noise may indicate worn bearings, requiring replacement of the extractor.
- Reduced Performance (e.g., poor draft, smoke backflow):
- Inspect the flue system for blockages (soot, bird nests, etc.).
- Clean the fan blades and housing as described in the 'Maintenance' section.
- Ensure the appliance's air intake is not obstructed.
If these steps do not resolve the issue, contact a qualified service technician for further diagnosis and repair.
7. Specifications and Compatibility
This Trial Smoke Extractor is designed to be compatible with various models from Nordica Extraflame and Thermorossi. It is also compatible with EBM code R2E150-AN91-13.
Compatible Nordica Extraflame Models:
Original Code 2271023:
- Pellet Stoves: Clementina 2010, Divina 2011, Divina 2012, Duchessa, Duchessa Steel 2010, Duchessa Steel 2011, Duchessa Steel 2012, Ecologica 2010, Ecologica 2011, Ecologica 2012, Elixir 2010, Elixir 2011, Elixir 2012, Elixir Crystal, Emma, Emma Plus, Esmeralda 2010, Esmeralda 2011, Esmeralda 2012, Esmeralda Crystal 2010, Esmeralda Crystal 2011, Esmeralda Crystal 2012, Falo 1 Xlp 2010, Falo 1 Xlp 2011, Falo 1 Xlp 2012, Falo Cp 2010, Falo Cp 2011, Falo Cp 2012, Graziosa Lux 2010, Graziosa Lux Plus 2011, Graziosa Steel Plus 2011, Irina 2010, Irina 2011, Irina 2012, Isabella 2011, Preziosa Steel 2010, Preziosa Steel 2011, Rosy 2010, Rosy 2011, Teodora 2012, Teodora 2016, Teodora 2018, Tosca Plus 2011, Tosca Plus 2012.
- Hydro Stoves: Comfort Idro, Duchessa Idro 2010, Duchessa Idro 2011, Duchessa Idro 2012, Giordana Idro, Iside Idro 2010, Iside Idro 2012, Iside Idro 2014, Iside Idro 2.0, Melinda Idro 2010, Melinda Idro 2011, Melinda Idro 2012, Melinda Idro Steel 2010, Melinda Idro Steel 2011, Melinda Idro Steel 2012, Raffaella Idro, Raffaella Idro 2.0.
Original Code 2271001:
- Pellet Stoves: Babyflamma, Bella, Bella Lux, Clementina 2007, Clementina 2009, Contessa, Delizia Four, Divina 2003, Divina 2004, Divina 2005, Divina 2006, Divina 2007, Divina 2008, Divina Plus 2004, Divina Plus 2005, Divina Plus 2006, Divina Plus 2007, Divina Plus 2008, Divina Steel 2007, Divina Steel 2008, Duchessa Steel 2007, Duchessa Steel 2008, Ecoflamme, Ecologica 2003, Ecologica 2005, Ecologica 2006, Ecologica 2007, Ecologica 2008, Esmeralda 2007, Esmeralda 2008, Esmeralda Crystal 2007, Falo 1 Xlp 2006, Falo 1 Xlp 2007, Falo 1 Xlp 2008, Falo Cp 2005, Falo Cp 2006, Falo Cp 2007, Falo Cp 2008, Irina 2008, Isabella 2006, Isabella 2007, Isabella 2008, Karolina, Preziosa Steel 2008, Preziosa Steel 2009, Rosy 2009.
- Hydro Stoves: Comfort Idro 2008, Comfort Idro 2009, Duchessa Idro Steel 2009, Ecologica Idro.
Original Code 2271021:
- Pellet Stoves: Divina 2009, Divina Plus 2009, Divina Steel 2009, Duchessa Steel 2009, Ecologica 2009, Esmeralda 2009, Esmeralda Crystal 2009, Falo 1 Xlp 2009, Falo Cp 2009, Irina 2009.
Compatible Thermorossi Models:
Original Code 60013339:
- Pellet Stoves: Dorica, Slimquadro 11, Scuba, Aromy, St Moritz, 8000, 6000, 7000, Mood, Cuba 10, Insert 49, Insert 60, Monamour, Settecento, Kokkola, Slimquadro 9, Cuba 12, Dorica Silent, Pidra Supreme.
Original Code 60010114:
- Pellet Stoves: 1000, 3001, Ciao.
Dimensions:

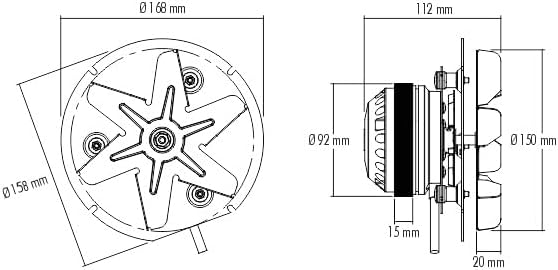

Figura 3: Technical drawing with key dimensions of the smoke extractor. This diagram illustrates the overall diameter (Ø168 mm), impeller diameter (Ø158 mm), motor housing diameter (Ø92 mm), and various depths (15 mm, 20 mm, 112 mm total depth).
- Overall Diameter: Ø168 mm
- Impeller Diameter: Ø158 mm
- Motor Housing Diameter: Ø92 mm
- Profunditat total: 112 mm
8. Garantia i Suport
Information regarding specific warranty terms for this product is not available in the provided documentation. For warranty inquiries or technical support, please refer to the retailer or manufacturer from whom the product was purchased.
