1. Producte acabatview
The Soundcore by Anker Life Note E true wireless earbuds are designed for an immersive audio experience with powerful bass and clear calls. They feature oversized 10mm drivers, customizable EQ modes, and AI-enhanced call technology, all within a compact and water-resistant design.
Característiques principals:
- Thumping Beats: Equipped with 10mm oversized drivers for 50% more bass and clear audio.
- So personalitzat: Switch between Signature, Bass Booster, and Podcast EQ modes.
- Compacte i lleuger: Ultra-light earbuds and a compact charging case (1.3oz / 37g) for portability.
- Temps de joc ampliat: Up to 8 hours of listening on a single charge, with the charging case providing up to 4 full recharges for a total of 32 hours.
- AI-Enhanced Calls: Built-in microphones and a custom AI-algorithm ensure clear conversations.

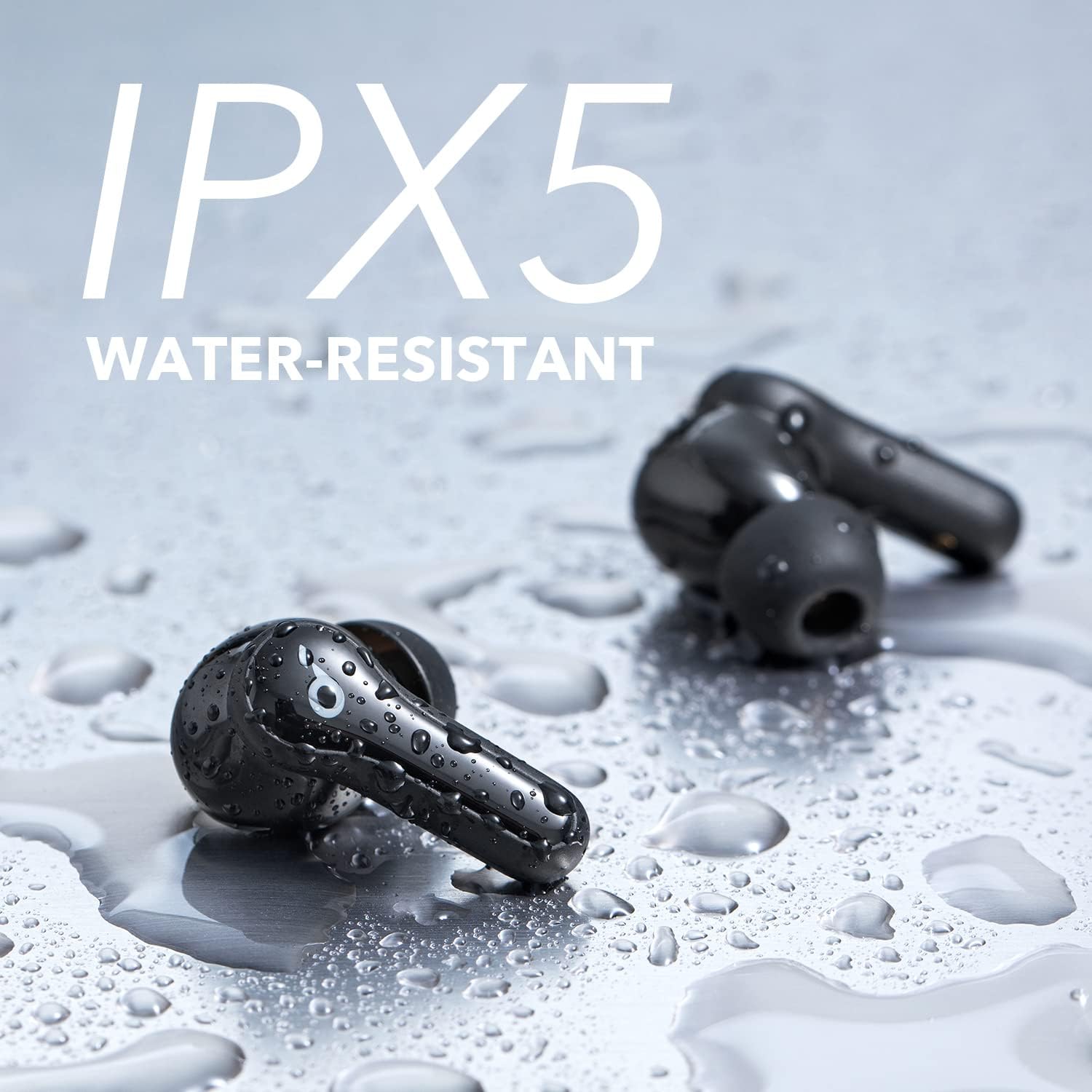

- Resistent a l'aigua IPX5: Designed to withstand splashes and sweat, suitable for workouts and outdoor use.
2. Què hi ha a la caixa
- Soundcore Life Note E True Wireless Earbuds (Left and Right)
- Estoig de càrrega
- Cable de càrrega USB-C
- Múltiples mides de puntes d'orella
- Guia d'inici ràpid / Manual d'usuari (aquest document)
3. Product Diagrams
4. Guia de configuració
4.1 Càrrega dels auriculars i l'estoig
Abans del primer ús, carregueu completament els auriculars i l'estoig de càrrega.
- Col·loqueu els dos auriculars a la caixa de càrrega.
- Connecteu el cable de càrrega USB-C al port de càrrega de la part posterior de la carcassa i a una font d'alimentació.
- The LED indicators on the case will light up to show charging status. Once fully charged, the indicators will turn solid or off depending on the model.
- A full charge provides up to 8 hours of playtime for the earbuds, and the case holds an additional 24 hours of charge (3 full recharges).
4.2 Emparellament amb el dispositiu
- Primera parella: Open the charging case. The earbuds will automatically enter Bluetooth pairing mode, and the LED indicator on one earbud will flash white.
- Al dispositiu (telèfon intel·ligent, tauleta, ordinador portàtil), aneu a la configuració de Bluetooth.
- Select "Soundcore Life Note E" from the list of available devices.
- Once connected, the LED indicator on the earbud will turn solid white for 1 second and then turn off.
- Vinculació amb un altre dispositiu: Place the earbuds in the charging case and leave the lid open. Press and hold the button on the charging case for 3 seconds until the earbud indicators flash white rapidly. Then repeat steps 2-4.
5. Instruccions de funcionament
5.1 Controls
The Soundcore Life Note E earbuds feature touch controls. The specific actions may vary slightly based on the firmware version. Refer to the Soundcore app for customizable controls.
| Acció | Auricular esquerre | Auricular dret |
|---|---|---|
| Reproduir/Pausa | Fes doble toc | Fes doble toc |
| Pista següent | (Not specified, typically triple-tap or hold) | Mantingueu premut 2 segons |
| Pista anterior | Mantingueu premut 2 segons | (Not specified, typically triple-tap or hold) |
| Respondre/Finalitzar la trucada | Fes doble toc | Fes doble toc |
| Rebutja la trucada | Mantingueu premut 2 segons | Mantingueu premut 2 segons |
| Activa l'Assistent de veu | Toca tres vegades | Toca tres vegades |
Note: For volume control, use your connected device.
5.2 modes d'equalització
The Soundcore Life Note E offers three distinct EQ modes to optimize your listening experience. These can typically be switched via the Soundcore app or specific touch controls if available (check app for details).
- Signatura del soundcore: So equilibrat professionalfile suitable for all music genres.
- Amplificador de baix: Enhances low frequencies for a more powerful and thumping bass.
- Podcast: Optimizes audio for spoken content, making voices clearer and more prominent.
5.3 Fer trucades
The earbuds feature AI-enhanced microphones for clear call quality.
- Assegureu-vos que els auriculars estiguin connectats al telèfon.
- Use the touch controls (as listed in Section 5.1) to answer, end, or reject calls.
6. Manteniment i cura
Proper maintenance ensures the longevity and optimal performance of your Soundcore Life Note E earbuds.
- Neteja: Regularly clean the earbuds and charging pins with a soft, dry, lint-free cloth. Remove eartips and clean any earwax or debris from the mesh.
- Emmagatzematge: Quan no els utilitzeu, guardeu sempre els auriculars a la seva funda de càrrega per protegir-los i mantenir-los carregats.
- Resistència a l'aigua: While IPX5 water-resistant, avoid submerging the earbuds in water. Dry them thoroughly if they get wet before placing them back in the charging case.
- Temperatura: Avoid exposing the earbuds to extreme temperatures (hot or cold) as this can damage the battery and internal components.
7. Solució De Problemes
Si teniu problemes amb els auriculars, proveu les solucions següents:
| Problema | Possible solució |
|---|---|
| Els auriculars no es carreguen | Ensure the charging cable is securely connected. Clean the charging pins on both the earbuds and the case. Try a different USB-C cable or power adapter. |
| Els auriculars no s'aparellen | Make sure Bluetooth is enabled on your device. Place earbuds back in the case, close the lid, then open it again to re-enter pairing mode. Forget "Soundcore Life Note E" from your device's Bluetooth list and try pairing again. |
| Només un auricular reprodueix so | Ensure both earbuds are charged. Place both earbuds back in the case, close the lid, wait a few seconds, then open it again. Try resetting the earbuds (refer to the full Soundcore manual for specific reset instructions). |
| Mala qualitat del so | Adjust the EQ mode in the Soundcore app. Ensure eartips provide a good seal in your ear. Clean any debris from the earbud mesh. Move closer to your connected device to avoid interference. |
| Problemes amb el micròfon durant les trucades | Ensure earbuds are properly positioned. Check for any obstructions on the microphone ports. Ensure your phone's audio output is set to the earbuds during calls. |
8. Especificacions
| Característica | Detall |
|---|---|
| Nom del model | Nota de vida E |
| Tecnologia de connectivitat | Sense fil (True Wireless) |
| Mida del controlador | 10mm Oversized Drivers |
| Temps de joc (auriculars) | Fins a 8 hores |
| Temps de reproducció total (amb estoig de càrrega) | Fins a 32 hores |
| Port de càrrega | USB-C |
| Classificació de resistència a l'aigua | IPX5 |
| Micròfons | Built-in with AI-algorithm for calls |
| Modes EQ | Signature, Bass Booster, Podcast |
| Tipus de control | Touch Control (Media Control, Remote) |
| Dispositius compatibles | Telèfons mòbils, tauletes, ordinadors portàtils, ordinadors de sobretaula |
| Pes de l'article (caixa) | 1.31 unces (37 g) |
| Color | Negre |
| Bateries | Necessites 1 piles de polímer de liti (incloses) |
9. Garantia i Suport
This product is covered by a return policy of 90 days from the date of purchase. For detailed warranty information and terms, please refer to the official Soundcore weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.
For further assistance, troubleshooting, or to register your product, please visit the official Soundcore support page or contact their customer service team. Contact details can typically be found on the Soundcore weblloc o a l'embalatge del producte.
Assistència en línia: us.soundcore.com/pages/support
