Introducció
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Mont Alpi MAi400-DBEV 4-Burner Deluxe Outdoor Kitchen Island. Please read this manual thoroughly before assembly and use, and retain it for future reference.
The complete Mont Alpi MAi400-DBEV 4-Burner Deluxe Outdoor Kitchen Island, featuring a grill, refrigerator, sink, and ample counter space.
Un acabatview presentació de vídeoasing the features and design of the Mont Alpi 4-Burner 400 Deluxe Series Outdoor Kitchen Island.
Informació de seguretat
Precaucions generals de seguretat
- Always operate the outdoor kitchen in a well-ventilated area.
- Mantingueu els nens i les mascotes allunyats de la unitat durant el funcionament.
- Ensure all gas connections are secure and leak-free before use.
- No emmagatzemeu materials inflamables a prop de la graella.
- Use heat-resistant gloves when handling hot surfaces.
- No deixeu mai la graella sense vigilància mentre està en funcionament.
- Ensure proper clearance from combustible materials as specified in local codes.
Seguretat elèctrica
- Connect the refrigerator and grill electrical components to a properly grounded outlet.
- Do not use extension cords unless absolutely necessary and ensure they are rated for outdoor use and the appliance's power requirements.
- Keep electrical cords away from hot surfaces and water.
Característiques del producte
The Mont Alpi MAi400-DBEV Deluxe Series Outdoor Kitchen Island is designed for comprehensive outdoor cooking and entertainment. Key features include:
- Construcció: Heavy-duty 304 stainless steel and white granite countertops.
- Grill: 32-inch 4-burner gas grill with 78,000 BTU output.
- Cremadors: 4 tubular stainless steel main burners, 1 ceramic infrared side burner (16" x 14"), and 1 rear height-adjustable ceramic infrared rotisserie burner.
- Zona de cuina: 28" x 18" (792 square inches total including side burner).
- Encesa: Electronic ignition.
- Il·luminació: LED knob lights (blue when off, red when on) and internal cooking lights.
- Nevera: Outdoor-rated MAF refrigerator with 110-can capacity, glass door, interior blue LED lighting, temperature control, adjustable shelves, and lockable door.
- Sink & Faucet: Integrated stainless steel faucet and 12.25"D x 14.5"W x 8.5"D sink with hole cap and strainer.
- Emmagatzematge: Soft-closing drawers and storage cabinets.
- Mobilitat: Gliding castor wheels for movement and stability.
- Accessoris: Heavy-duty rotisserie kit (110V, 4-watt motor, holds up to 25 lbs), propane hose and regulator, white granite chopping board, and water-resistant full weather cover.
- Tipus de combustible: Propane ready, convertible to natural gas (conversion kit sold separately).
Visual representation of the grill's key features: the infrared rear burner for rotisserie, Accu-Temp gauge, sear plates, LED illuminated control knobs, and heavy-duty burners.
The powerful infrared side burner, demonstrating its heat output, restaurant-quality searing capability, and two grate settings for various cooking needs.
The integrated outdoor-rated refrigerator, highlighting its large capacity, lockable door, adjustable shelves, and interior blue LED lighting.
Configuració i instal·lació
Desembalatge i col·locació
The Mont Alpi MAi400-DBEV outdoor kitchen island arrives almost fully assembled. Modular attachments may require minor assembly. Ensure the unit is placed on a level, stable surface with adequate clearance from combustible materials.
Connexió de gas
The grill is configured for propane use and includes a propane hose and regulator. For natural gas conversion, a Mont Alpi Natural Gas Conversion Kit (sold separately) is required. Follow the instructions provided with the conversion kit for safe installation. Always check for gas leaks after connecting the gas supply.
Connexió elèctrica
Connect the grill and refrigerator to a grounded 110V electrical outlet. Ensure the power cords are routed safely and are not exposed to heat or water.
Water Connection (for Sink)
Connect the integrated faucet to a suitable outdoor water supply. Ensure all connections are watertight to prevent leaks.
Instruccions de funcionament
Operació de graella
Encesa dels cremadors principals
- Assegureu-vos que la tapa de la graella estigui oberta.
- Turn all main burner control knobs to the "OFF" position.
- Open the gas supply valve on your propane tank or natural gas line.
- Push and turn one main burner control knob to the "HIGH" position.
- Manteniu premut el botó d'encesa electrònica fins que el cremador s'encengui.
- Once ignited, release the ignition button and adjust the flame to your desired cooking temperature.
- Repeat for other main burners as needed.
Using the Infrared Side Burner
- Lift the side burner cover.
- Assegureu-vos que el botó de control del cremador lateral estigui a la posició "OFF".
- Push and turn the side burner control knob to the "HIGH" position.
- Manteniu premut el botó d'encesa electrònica fins que el cremador s'encengui.
- Adjust the flame as required for searing, pan frying, or boiling.
Ús del cremador rostit
- Ensure the rotisserie burner control knob is in the "OFF" position.
- Mount the rotisserie rod with food securely onto the rotisserie motor.
- Plug in the 110V rotisserie motor.
- Push and turn the rotisserie burner control knob to the "HIGH" position.
- Manteniu premut el botó d'encesa electrònica fins que el cremador s'encengui.
- Monitor cooking and adjust heat as necessary.

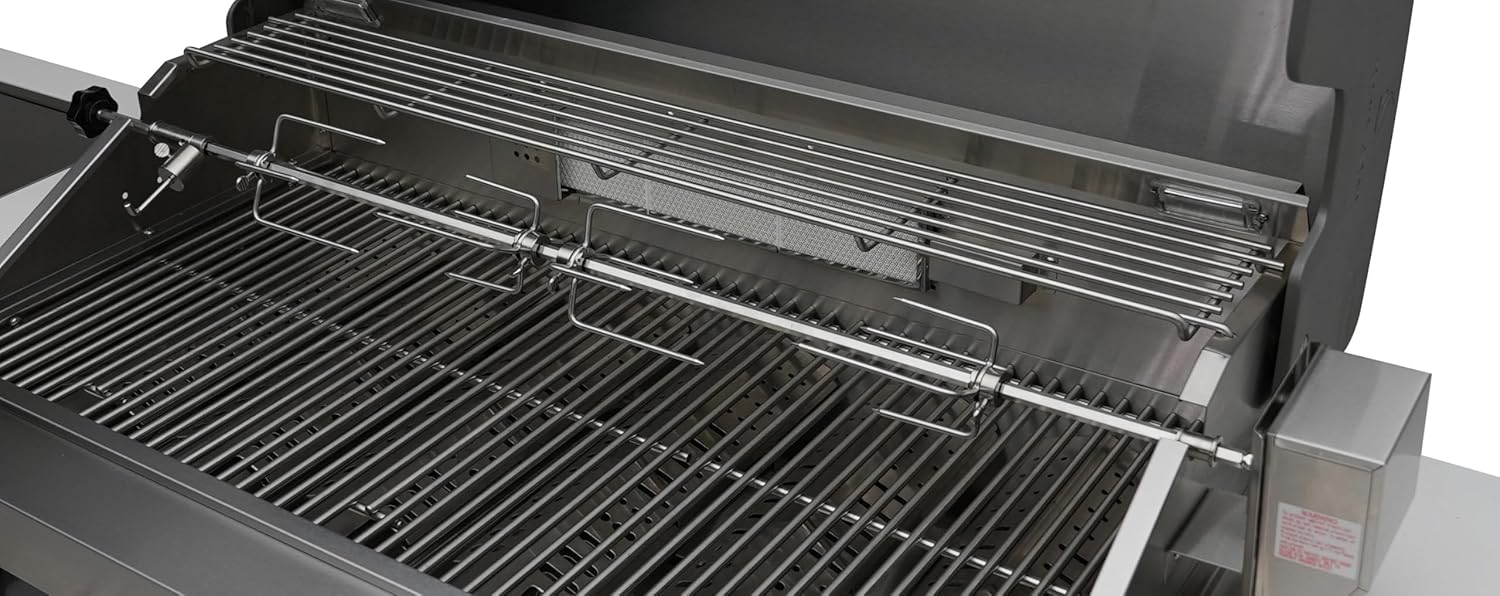

Un detallat view of the heavy-duty rotisserie kit, showing its setup within the grill for even cooking.
The precision control knobs with LED backlighting (blue when off, red when on) and the convenient built-in bottle opener.
Funcionament de la nevera
Plug the refrigerator into a grounded 110V outlet. Use the internal temperature control to set your desired cooling level. The blue LED interior lighting can be controlled via a switch inside the unit.
Sink and Faucet Use
Turn on the water supply to the faucet as needed for washing and cleaning. Ensure the drain is clear.
Manteniment i cura
Neteja de la graella
- Cooking Grids: Clean after each use with a grill brush while warm. For stubborn residue, soak in warm, soapy water and scrub.
- Flame Tamers/Heat Plates: Periodically remove and clean any accumulated grease or food debris.
- Safata de greix: The full front pull-out grease tray should be emptied and cleaned regularly to prevent grease fires.
- Exterior: Wipe stainless steel surfaces with a soft cloth and a stainless steel cleaner. Clean granite countertops with a mild, non-abrasive cleaner.
The spacious, soft-closing storage drawers providing convenient access for grilling tools and accessories.
Manteniment de la nevera
Regularly wipe down the interior and exterior of the refrigerator with a mild detergent and soft cloth. Ensure the door seal is clean and intact for efficient operation.
Manteniment de la pica
Clean the sink and faucet with a mild cleaner. Ensure the drain is free of blockages.
Protecció meteorològica
Use the provided water-resistant full weather cover to protect your outdoor kitchen from the elements when not in use.
Resolució de problemes
Grill Not Igniting
- Comproveu si la vàlvula de subministrament de gas està completament oberta.
- Ensure the propane tank is not empty or the natural gas line is active.
- Verify that the burner control knob is pushed in and turned to "HIGH" before pressing the ignition button.
- Check if the igniter is sparking. If not, the battery may need replacement or the igniter electrode may be dirty/misaligned.
Calefacció desigual
- Clean cooking grids and flame tamers to remove blockages.
- Ensure burners are free from debris.
La nevera no refreda
- Comproveu si la nevera està connectada i rep corrent.
- Assegureu-vos que el control de temperatura està configurat correctament.
- Verify that the door is sealing properly.
Water Leaks from Sink/Faucet
- Comproveu que totes les connexions d'aigua estiguin ben ajustades.
- Inspect hoses and fittings for damage.
For issues not resolved by these steps, please contact Mont Alpi customer support.
Especificacions
| Característica | Detall |
|---|---|
| Marca | Mont Alpi |
| Número de model | MAi400-DBEV |
| Dimensions del producte (P x A x A) | 23 "P x 120" W x 46" H |
| Pes de l'article | 925 lliures |
| Material | 304 Stainless Steel, Granite |
| Color | White / Stainless Steel |
| Tipus de combustible | Propane (convertible to Natural Gas) |
| Nombre de cremadors principals | 4 |
| Nombre de cremadors laterals | 1 (Infrared) |
| Cremador posterior | 1 (Infrared Rotisserie) |
| Sortida total de BTU | 78,000 BTU (Grill) |
| Superfície de Cocció | 792 polzades quadrades |
| Capacitat de la nevera | 110 llaunes |
| Voltage | 110 V |
| Muntatge obligatori | Yes (Modular attachment) |
Detailed dimensions of the Mont Alpi MAi400-DBEV outdoor kitchen island, showing width, depth, and height.
Garantia i Suport
Garantia limitada de per vida
Mont Alpi offers a limited lifetime warranty on its products, demonstrating commitment to quality and customer satisfaction. Specific limitations apply; please refer to the warranty documentation included with your product or contact customer support for full details. The product also includes a 15-Year Limited Warranty as per specifications.
Atenció al client
For any questions, concerns, or assistance with your Mont Alpi outdoor kitchen island, please contact Mont Alpi customer support. Contact information can typically be found on the manufacturer's weblloc web o a l'embalatge del producte.
